PLW3030ACW35000 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LED lighting> The LED emitter> High power LED - white> PLW3030ACW35000

Preview

PLW3030ACW35000: DescriptionHigh Power LED - White Cool White 3500K 3200K to 3710K; CategoryLED optoelectronic/LED LED lighting The LED emitter High power LED - white; File Size2MB，20 Pages; ManufacturerPlessey Semiconductors; Environmental Compliance

Download Datasheet Parametric Compare View All

PLW3030ACW35000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLW3030ACW35000	-	-	View	Buy Now

PLW3030ACW35000 Overview

High Power LED - White Cool White 3500K 3200K to 3710K

PLW3030ACW35000 Parametric

Parameter Name	Attribute value
Maker	Plessey Semiconductors
Product Category	High Power LED - White
product	White LEDs
Installation style	SMD/SMT
Package/box	PLCC-2
lighting color	Neutral White
Wavelength/Color Temperature	3500 K
Luminous flux/radiant flux	28 lm
Color Rendering Index - CRI	80
display angle	120 deg
Lens color/type	Diffused
If - forward current	65 mA
Vf - forward voltage	3.2 V
length	3.2 mm
width	3 mm
high	0.6 mm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	PLW3030AC
Encapsulation	Reel
LED size	3.2 mm x 3 mm x 0.6 mm
humidity sensitivity	Yes
Factory packaging quantity	3000

Preview

Download Datasheet

View All

Document number 294696 V4

PLW3030AC Series 3030

Low Power LED

Product Datasheet

Description

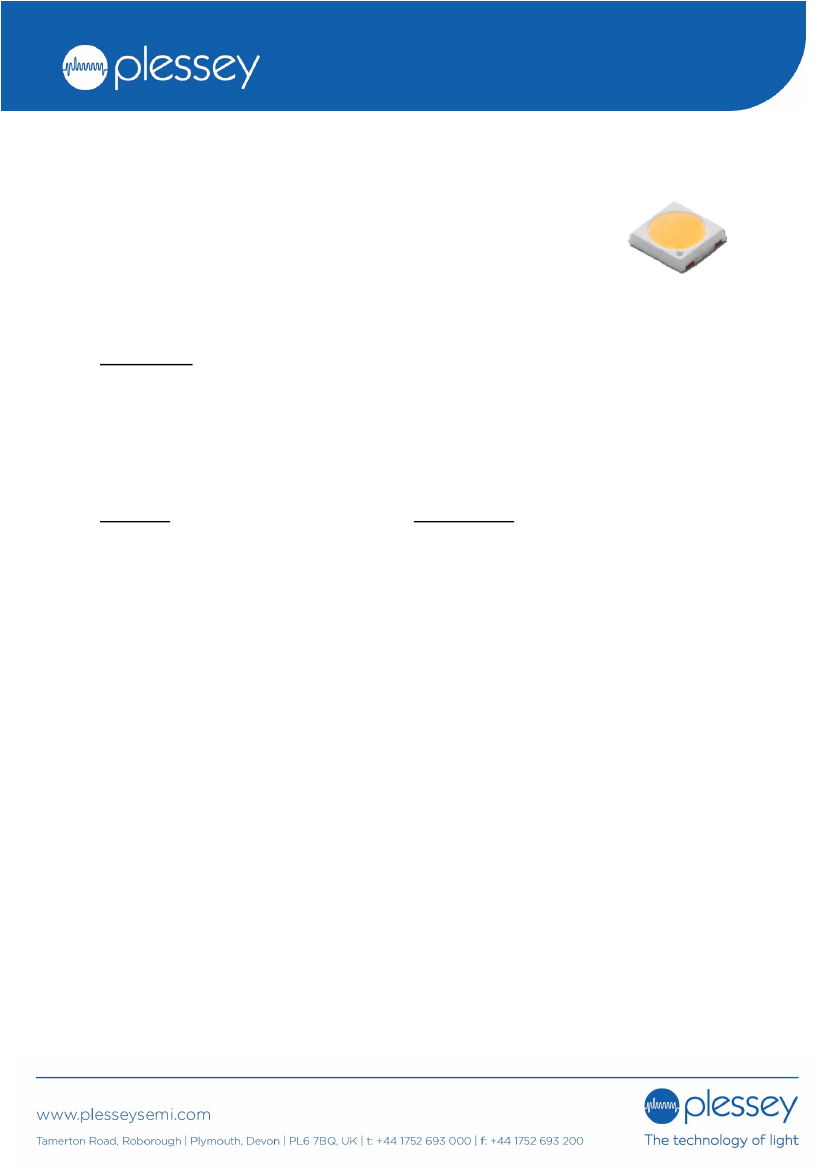

Plessey PLW3030AC SMT LEDs are designed for linear tubes, spot lights, bulb replacements

and other general lighting applications. The light is emitted close to a Lambertian

distribution and hence this SMT package is naturally suitable for backlighting panels and

symbols. The LEDs are packed in reels containing 3000 pieces; each individual reel will be

shipped in single intensity and colour bin, to provide close uniformity.

Features

•

3030 footprint (3.2 x 3.0 x 0.6mm)

Hot colour binning (65

3 and 5-step MacAdam colour space

High reliability PLCC packaging

Diffused pale yellow resin

120 degree wide viewing angle

Applications

•

Decoration Lighting

Instrument panel backlighting

Illumination symbols

General lighting

Signage lighting

PLW3030ACW35000 Related Products

	PLW3030ACW35000	PLW3030ACW30000	PLW3030ACC57000	PLW3030ACC50000	PLW3030ACN40000
Description	High Power LED - White Cool White 3500K 3200K to 3710K	High Power LED - White Warm White 3000K 2870K to 3200K	High Power LED - White Cool White 5700K 5310K to 6020K	High Power LED - White Cool White 5000K 4745K to 5311K	High Power LED - White Neutral White 4000K 3710K to 4260K
Maker	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors
Product Category	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White
product	White LEDs	White LEDs	White LEDs	White LEDs	White LEDs
Installation style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package/box	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2
lighting color	Neutral White	White (Warm White)	White (Cool White)	White (Cool White)	White (Neutral White)
Wavelength/Color Temperature	3500 K	3000 K	5700 K	5000 K	4000 K
Luminous flux/radiant flux	28 lm	28 lm	31.5 lm	31.5 lm	31.5 lm
Color Rendering Index - CRI	80	80	80	80	80
display angle	120 deg	120 deg	120 deg	120 deg	120 deg
Lens color/type	Diffused	Diffused	Diffused	Diffused	Diffused
If - forward current	65 mA	65 mA	65 mA	65 mA	65 mA
Vf - forward voltage	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V
length	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
width	3 mm	3 mm	3 mm	3 mm	3 mm
high	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
series	PLW3030AC	PLW3030AC	PLW3030AC	PLW3030AC	PLW3030AC
Encapsulation	Reel	Reel	Reel	Reel	Reel
LED size	3.2 mm x 3 mm x 0.6 mm	3.2 mm x 3 mm x 0.6 mm	3.2 mm x 3 mm x 0.6 mm	3.2 mm x 3 mm x 0.6 mm	3.2 mm x 3 mm x 0.6 mm
Factory packaging quantity	3000	3000	3000	3000	3000
