PLW5630AGB65B5

Description
High Power LED - White 6500K CCT 0.5W 150mA 3Vf 65lm 90 CRI
CategoryLED optoelectronic/LED    LED lighting    The LED emitter    High power LED - white
File Size2MB，21 Pages
ManufacturerPlessey Semiconductors
Environmental Compliance
Download Datasheet Parametric Compare View All

PLW5630AGB65B5 Online Shopping

Suppliers Part Number Price MOQ In stock
PLW5630AGB65B5 - - View Buy Now

PLW5630AGB65B5 Overview

High Power LED - White 6500K CCT 0.5W 150mA 3Vf 65lm 90 CRI

PLW5630AGB65B5 Parametric

Parameter NameAttribute value
MakerPlessey Semiconductors
Product CategoryHigh Power LED - White
productWhite LEDs
Installation styleSMD/SMT
lighting colorCool White
Wavelength/Color Temperature6500 K
Luminous flux/radiant flux65 lm
Color Rendering Index - CRI80
display angle120 deg
If - forward current150 mA
Vf - forward voltage2.8 V
length5.7 mm
width3 mm
high0.78 mm
Minimum operating temperature- 40 C
Maximum operating temperature+ 85 C
seriesPLW5630AGB
EncapsulationReel
humidity sensitivityYes
Factory packaging quantity3000

Preview

Download Datasheet

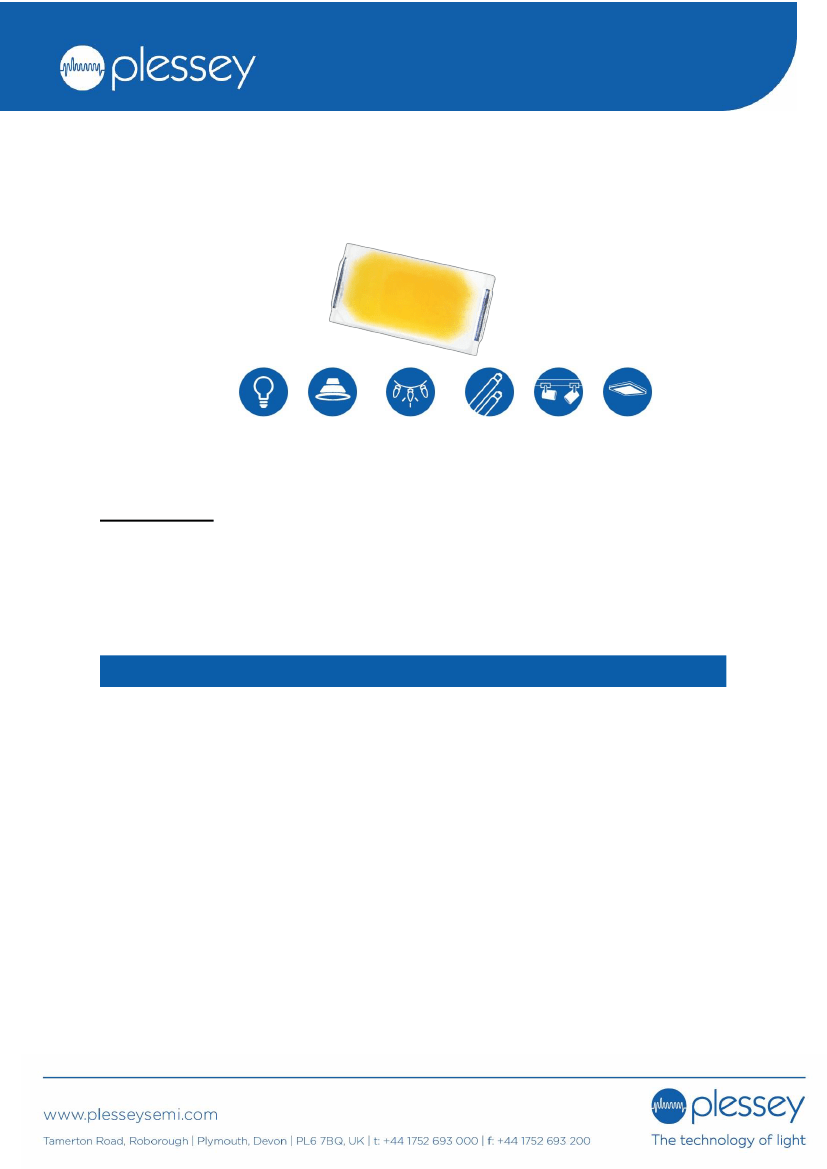

PLW5630AGB Series
Product Datasheet
Bulb
Down
Light
Decorative
Light
Tube
Light
Track
Light
Panel
Light
Introduction
Plessey’s ultra-high luminous PLW5630AGB SMT LEDs are designed for optical indicators,
indoor displays, automotive lighting, backlights for switches/symbols/LCD, tubular lighting
and other general lighting applications and the light is emitted close to a Lambertian
distribution. The LEDs are packed in reels containing 3,000 pieces; each individual reel will
be shipped in single intensity and colour bin, to provide close uniformity
Description
Standard package size 5.7mmx3.0mm
Good uniform light colour.
Multi-colour system more options.
High reliability product (pass LM-80
verification)
Features and Benefits
High luminous intensity and high
efficiency.
Based on Blue: InGaN technology.
Wide viewing angle: 120°.
Excellent performance and visibility.
Suitable for all SMT assembly methods.
IR reflow process compatible.
Environmental friendly; RoHS
compliance.
ANSI compliant colour binning.

PLW5630AGB65B5 Related Products

PLW5630AGB65B5 PLW5630AGB27B3 PLW5630AGB30B5 PLW5630AGB40B5 PLW5630AGB27B5 PLW5630AGB35B3 PLW5630AGB50B3 PLW5630AGB57B3 PLW5630AGB57B5 PLW5630AGB65B3
Description High Power LED - White 6500K CCT 0.5W 150mA 3Vf 65lm 90 CRI High Power LED - White 2700K CCT 0.5W 150mA 3Vf 60lm 90 CRI High Power LED - White 3000K CCT 0.5W 150mA 3Vf 60lm 90 CRI High Power LED - White 4000K CCT 0.5W 150mA 3Vf 65lm 90 CRI High Power LED - White 2700K CCT 0.5W 150mA 3Vf 60lm 90 CRI High Power LED - White 3500K CCT 0.5W 150mA 3Vf 60lm 90 CRI High Power LED - White 5000K CCT 0.5W 150mA 3Vf 65lm 90 CRI High Power LED - White 5700K CCT 0.5W 150mA 3Vf 65lm 90 CRI High Power LED - White 5700K CCT 0.5W 150mA 3Vf 65lm 90 CRI High Power LED - White 6500K CCT 0.5W 150mA 3Vf 65lm 90 CRI
Maker Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors
Product Category High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White
product White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs
Installation style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
lighting color Cool White Warm White White (Warm White) White (Neutral White) White (Warm White) White (Warm White) White (Cool White) White (Cool White) White (Cool White) White (Cool White)
Wavelength/Color Temperature 6500 K 2700 K 3000 K 4000 K 2700 K 3500 K 5000 K 5700 K 5700 K 6500 K
Luminous flux/radiant flux 65 lm 60 lm 60 lm 65 lm 60 lm 60 lm 65 lm 65 lm 65 lm 65 lm
Color Rendering Index - CRI 80 80 80 80 80 80 80 80 80 80
display angle 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg
If - forward current 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA
Vf - forward voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
length 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm 5.7 mm
width 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm
high 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm 0.78 mm
Minimum operating temperature - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C
Maximum operating temperature + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C
series PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB PLW5630AGB
Encapsulation Reel Reel Reel Reel Reel Reel Reel Reel Reel Reel
Factory packaging quantity 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
