RP600-125-4.7-S-F datasheet, PDF

Datasheet> All Categories > The power supply> Power regulation> The power line filter> RP600-125-4.7-S-F

RP600-125-4.7-S-F: DescriptionPower line filter FILTER DC HI PERF 125A 4.7NF; CategoryThe power supply Power regulation The power line filter; File Size2MB，4 Pages; ManufacturerAstrodyne TDI; Environmental Compliance

Download Datasheet Parametric View All

RP600-125-4.7-S-F Overview

Power line filter FILTER DC HI PERF 125A 4.7NF

RP600-125-4.7-S-F Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
Product Category	Power line filter
filter type	DC Power Line
Voltage rating	100 V
Current rating	125 A
Installation style	Chassis Mount
Termination type	Screw
series	RP600
Encapsulation	Bulk
capacitance	4700 pF
high	129 mm
length	205 mm
width	45 mm
Maximum operating temperature	+ 55 C
Minimum operating temperature	- 25 C

Preview

Download Datasheet

View All

RP600 Series

RP600

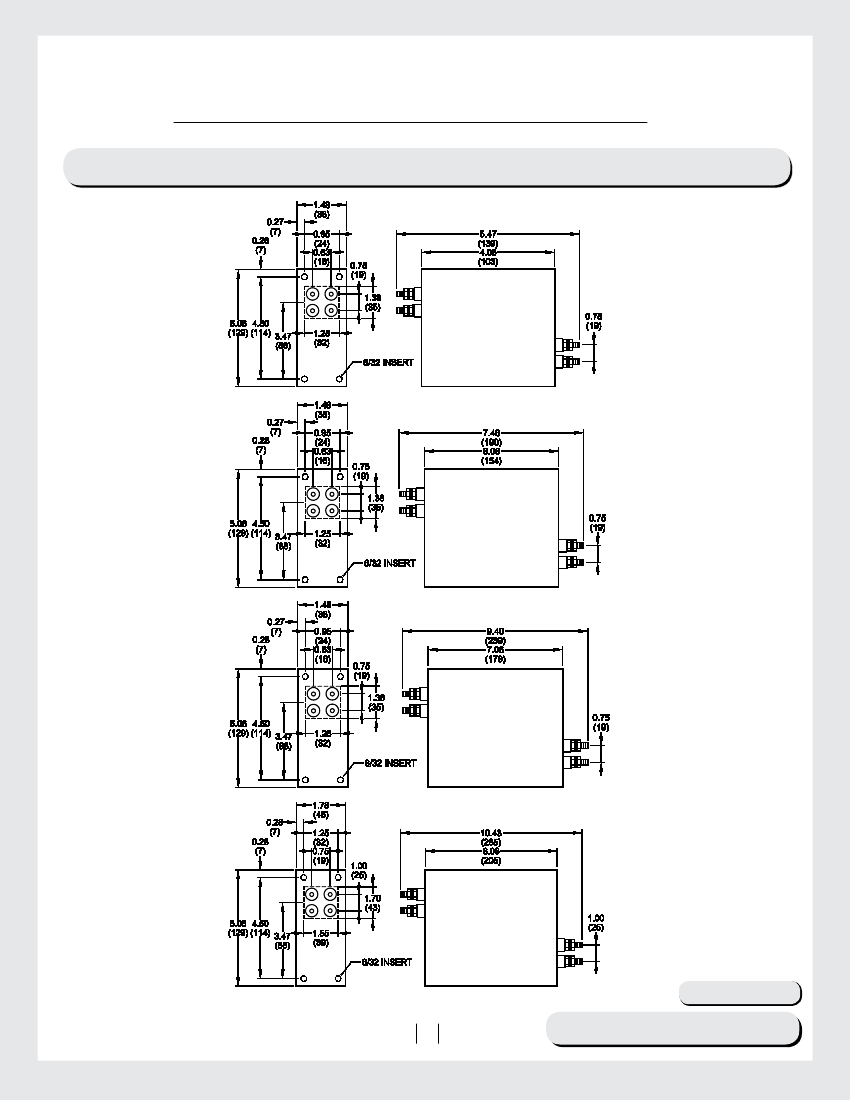

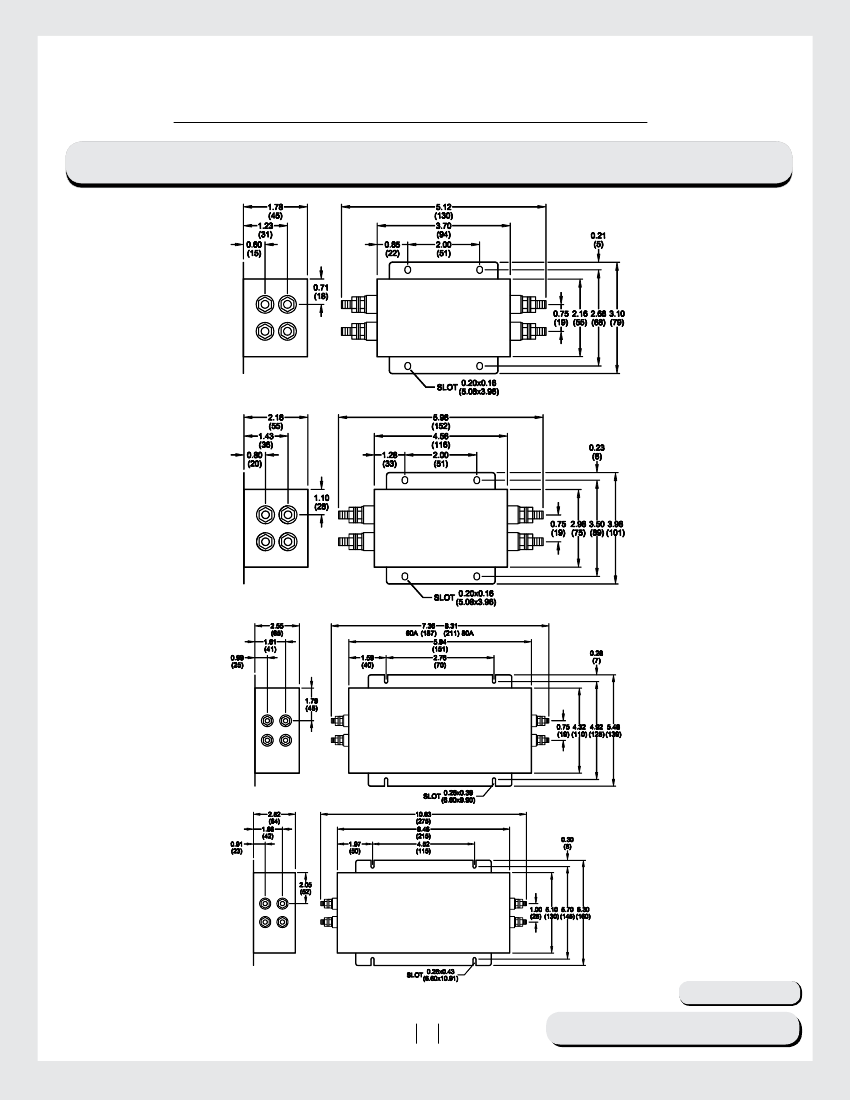

HIGH PERFORMANCE TO 125A

DC FILTER

ROHS COMPLIANT

RADIUS POWER

Your Power Partner

High Performance DC Power Line Filter

SPECIFICATIONS

Max. Operating Voltage

Ambient Temperature

Climatic Category

Hipot Rating (L-G)

Terminals (-T)

Safety Approvals

100VDC

-25 to 55C

25/100/21

2700VDC

S: 15/30/60A (M5)

80/100/125A (M6)

UR, CSA, EN60939

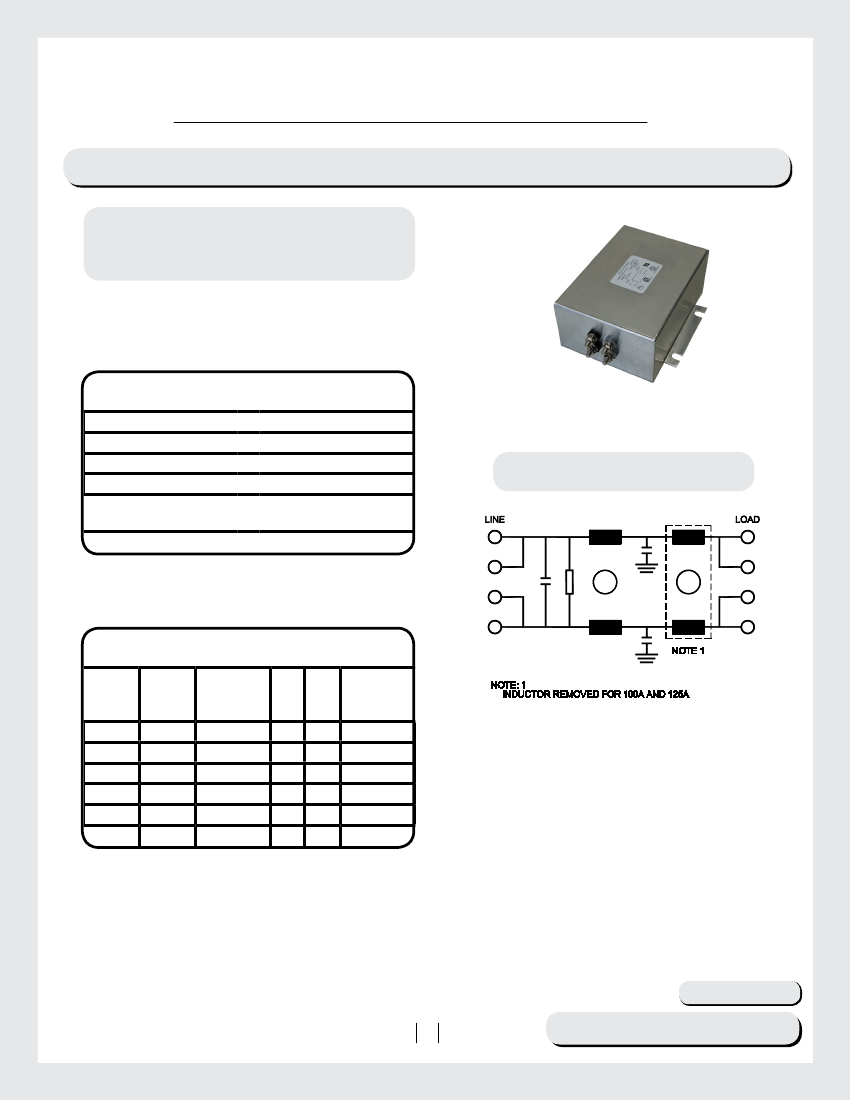

SCHEMATIC

PART NUMBER/ ORDERING

-X

-Y

RP600

(Amps) (Ycap, nF)

100

125

100

1000

-T

-Z

Weight

LBS (KG)

Typ.

1.3 (0.6)

1.9 (0.9)

3.2 (1.5)

7.7 (3.5)

Note:

-Z = Mounting

B = Bulkhead Mounting

F = Flange Mounting

Use any combination -Y(YCap) with any -X (Amps) rating:

e.g. RP600-30-10-S-F (30 Amps with 10nF Ycap & Flange)

www.radiuspower.com

Reference purposes only.

Specifications are subject to change.

Consult factory to verify specifications.

Engineering Assistance: engg@radiuspower.com

Sales:sales@radiuspower.com
