2ED2304S06FXLSA1 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 2ED2304S06FXLSA1

2ED2304S06FXLSA1: DescriptionGate driver HVIC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size590KB，15 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

2ED2304S06FXLSA1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2ED2304S06FXLSA1	-	-	View	Buy Now

2ED2304S06FXLSA1 Overview

Gate driver HVIC

2ED2304S06FXLSA1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	,
Reach Compliance Code	compliant
Humidity sensitivity level	2
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

2ED2304S06F

650 V Half Bridge Gate Driver with Integrated Bootstrap Diode

Feature list

•

Infineon Thin-film-SOI-technology

Fully operational to +650 V

Floating channel designed for bootstrap operation

Output source/sink current capability +0.36 A/-0.7 A

Integrated Ultra-fast, low

DSON

Bootstrap Diode

Tolerant to negative transient voltage up to -50 V

(Pulse width is up 500 ns) given by SOI-technology

10 ns typ., 60 ns max. propagation delay matching

dV/dt immune ±50 V

Gate drive supply range from 10 V to 20 V

Undervoltage lockout for both channels

3.3 V, 5 V and 15 V input logic compatible

RoHS compliant

Product summary

•

OFFSET

O+/-

(typ.)

OUT

Delay Matching

Internal deadtime

on/off

(typ.)

= 670 V max.

= 0.36 A/0.7 A

= 10 V - 17.5 V

= 60 ns max.

= 75 ns

= 310 ns/300 ns

Package

Potential applications

•

Motor drives, General purpose inverters

Refrigeration compressors

Half-bridge and full-bridge converters in offline AC-DC power supplies for telecom and lighting

Product validation

Qualified for industrial applications according to the relevant tests of JEDEC47/20/22.

Description

The 2ED2304S06F is a 650-V half-bridge gate driver. Its Infineon thin-film-SOI technology provides excellent

ruggedness and noise immunity. The Schmitt trigger logic inputs are compatible with standard CMOS or LSTTL

logic down to 3.3 V. The output drivers features a high pulse current buffer stage designed for minimum driver

cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high

side configuration which operates up to 650 V. Additionally, the offline clamping function provides an inherent

protection of the parasitic turn-on by floating gate conditions when IC is not supplied.

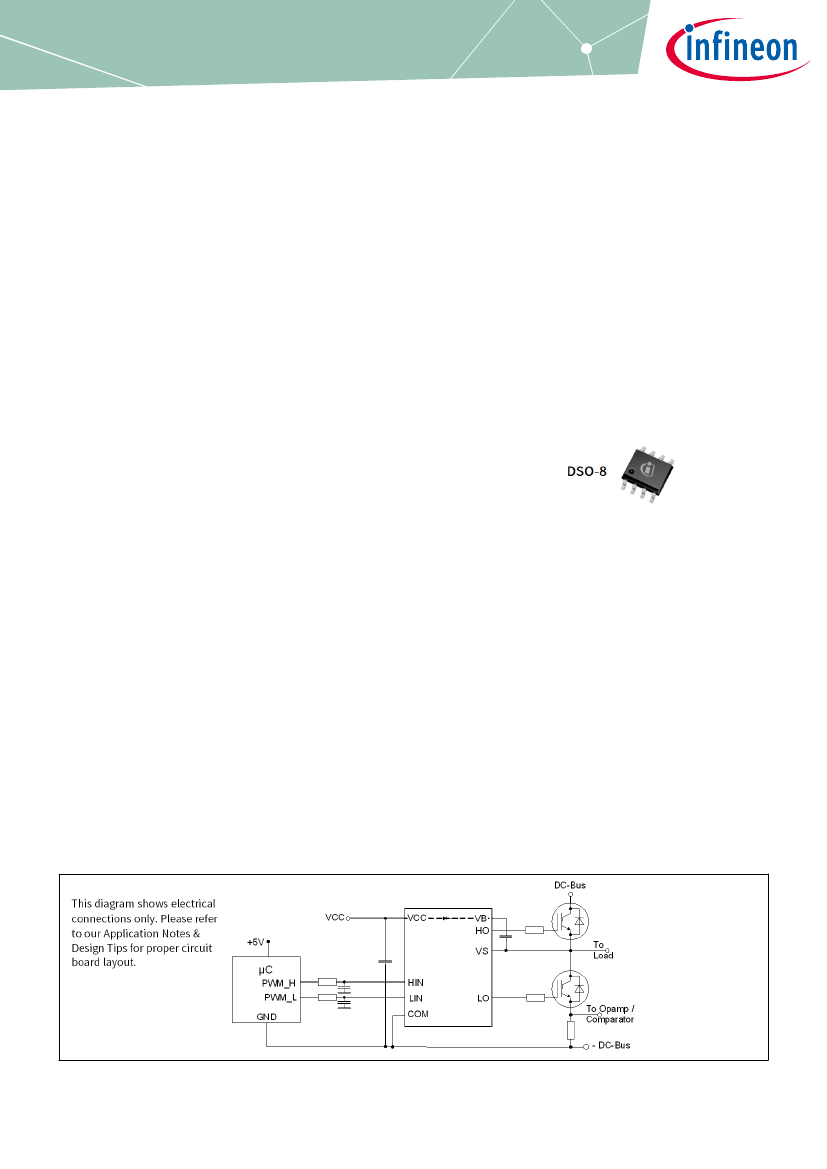

Figure 1

Datasheet

Typical connection diagram

Please read the Important Notice and Warnings at the end of this document

Rev.

2.11

2018‐09‐12

www.infineon.com

2ED2304S06F

Table of contents

650 V Half Bridge Gate Driver with Integrated Bootstrap Diode

Table of contents

Feature list

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Potential applications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Product validation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Device information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

5.1

5.2

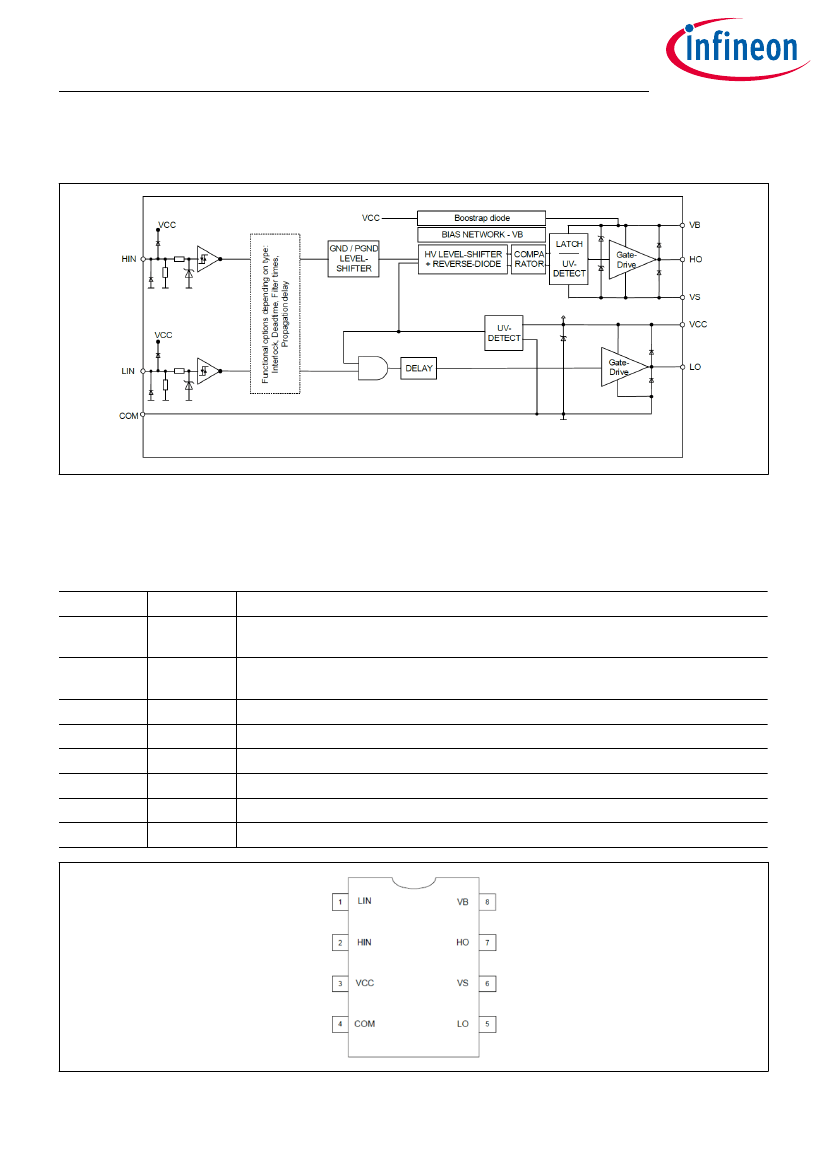

Block diagram

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Lead definitions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Absolute maximum ratings

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Recommended operating conditions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Electrical characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Static electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Dynamic electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Package information DSO-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Qualification information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Recommended Resources

Amplified circuit diagram for precision instruments

Manual temperature control circuit three

Automatic plant waterer circuit diagram

Semi-stable circuit diagram

Carbon monoxide meter circuit diagram

Single tube quartz crystal oscillator

Improve circuit PCB design procedures to improve testability: As miniaturization continues to increase, component and PCB design wiring technology has also made great progress, such as the highly integrated micro IC packaged in BGA shells, and the insulation spa...; ESD技术咨询 PCB Design

BeagleBone related information: [size=5][color=#0000ff]Since the forum organized a low-price group purchase BBB, you can learn the powerful functions of this development board. The following is the information I found before I got t...; chen8710 DSP and ARM Processors

Discussion on a Feasibility Model of Entrepreneurship: I work for a company that uses a mature suite from another company. I have a good understanding of this suite. If I start my own small company, develop it, and then sell it to the company, is this pos...; k410533234 Talking about work

Delphi, the largest auto parts maker in the United States, lost $2.4 billion last year: Delphi Corporation, the largest auto parts manufacturer in the United States, released a report on the 11th saying that the company's losses last year reached 2.4 billion US dollars, but it was half o...; frozenviolet Automotive Electronics

AT+CGREG? +CGREG:0,5: I use MC35I to connect to the Internet network, input AT+CGREG? Return +CGREG:0,5 OK, I checked and it shows that my GPRS is in the registered state, but it is roaming. My card is a local card, starti...; abcufo Embedded System

How to start telnetd with inetd in linux: I have a development board and want to telnet to it from other places. In the networking options in busybox menuconfig, I selected inetd, telnet, and telnetd. After the board enters the Linux system, ...; ling281021799 Linux and Android
