DF17(3.0)-50DS-0.5V(57) datasheet, PDF

DF17(3.0)-50DS-0.5V(57): DescriptionBoard to Board & Mezzanine Connectors 50 POS RECP SMT GOLD W/FITTING AND BOSS; CategoryThe connector The connector; File Size340KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

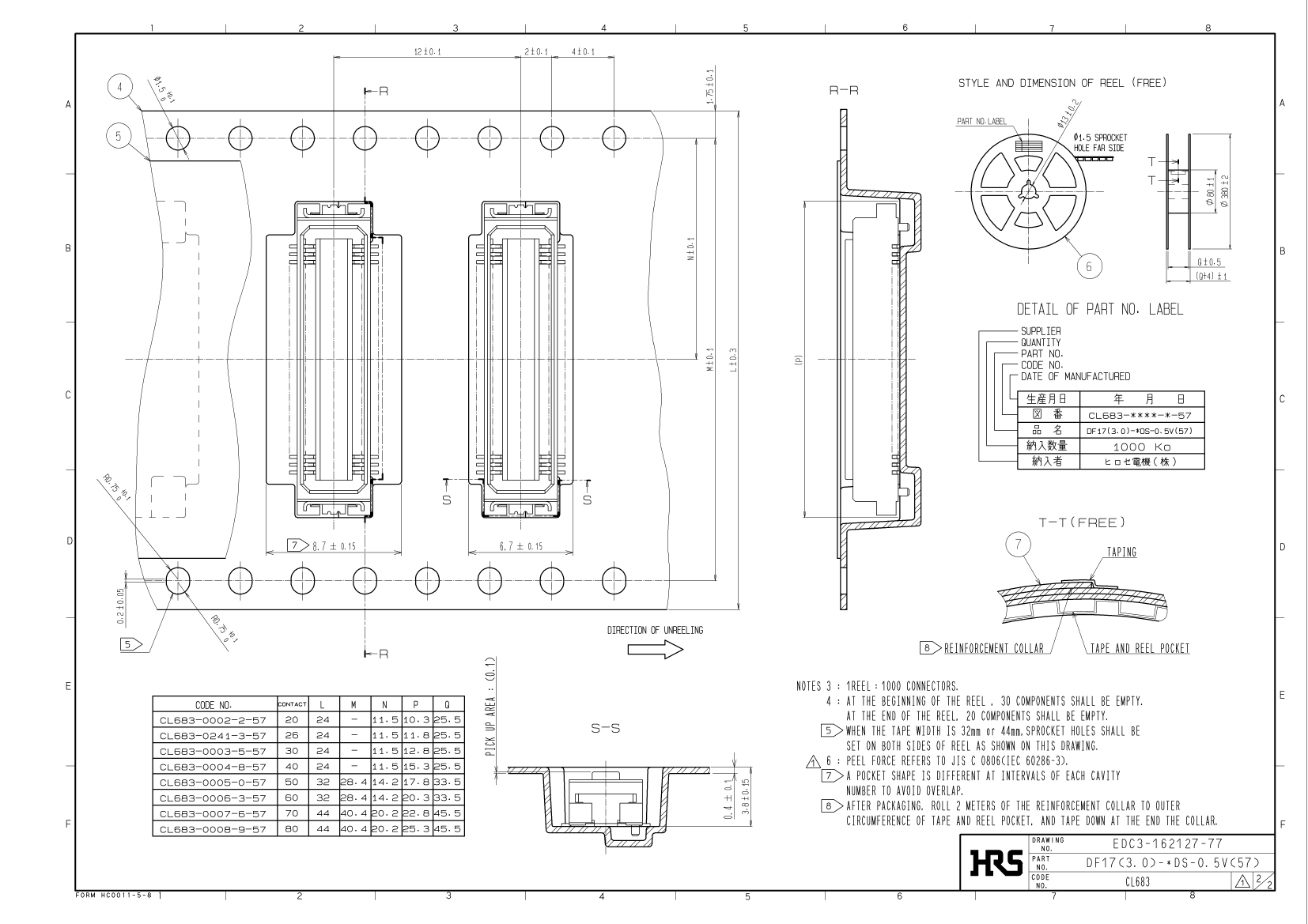

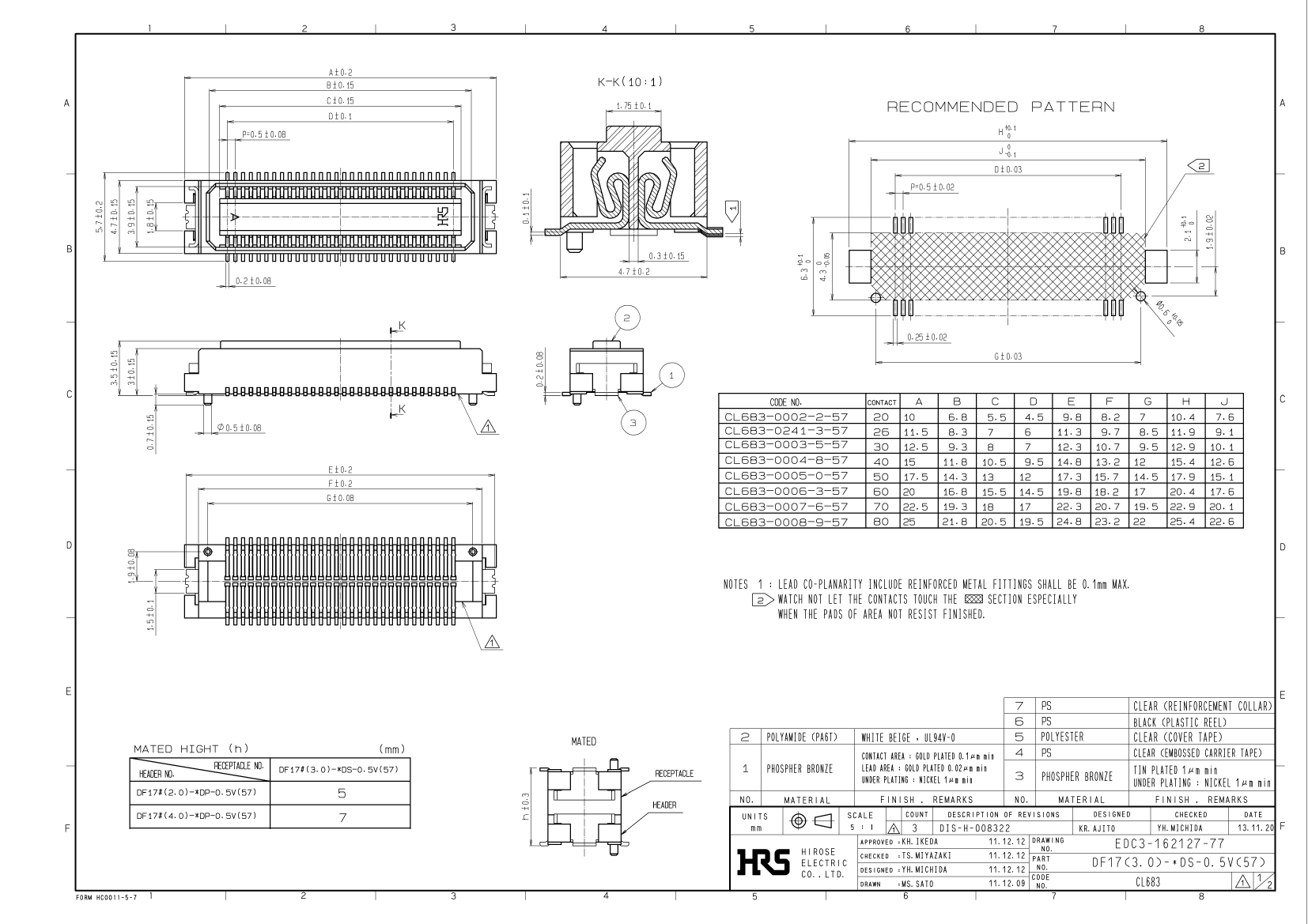

DF17(3.0)-50DS-0.5V(57) Overview

Board to Board & Mezzanine Connectors 50 POS RECP SMT GOLD W/FITTING AND BOSS

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Hirose DF17 Series 0.5mm Pitch 50 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.185 inch
subject depth	0.138 inch
body length	0.689 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3086 mm
polarization key	ENDS
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

In case of consideration for using Automotive equipment / device which demand high reliability, kindly contact our sales window correspondents.
