Backlit monochrome STN LCD
White, pink and red
200 x 80 pixels
Analogue
10000 hours with red
50000 hours with pink
50000 hours with white
8 levels
16 levels via touch panel
ASCII
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
24 V DC +/- 20 %
30 A
1 LED with green for normal operation
5W
Limited by internal memory capacity
333 MHz
10/100BASE-TX
Application memory, 16 MB
Back up of data, 128 kB
1 USB 2.0 type mini B
1 USB 2.0 type A
Removable screw terminal block connector power supply
1 1 RJ45 connector Ethernet TCP/IP
External source
Access to the PLC real-time clock
Modbus TCP/IP
Third party protocols
XWAY TCP/IP
By 2 spring clips on 1.6...5 mm thick panel
PPT
CE
Brightness
Contrast
Character font
[Us] rated supply voltage
Inrush current
Local signalling
Power consumption in W
Number of pages
Processor frequency
Port Ethernet
Memory description
Integrated connection type
Supply
Realtime clock
Downloadable protocols
Fixing mode
Enclosure material
Marking
Environment
immunity to microbreaks
standards
3 ms
EN 61131-2
FCC Class A
1/4
IEC 61000-6-2
UL 1604
UL 508
product certifications
CE
C-Tick
CULus
UL Class 1 Division 2 T4A
UL Class 1 Division 2 T5
32...122 °F (0...50 °C)
-4...140 °F (-20...60 °C)
0...90 % without condensation
<= 6561.68 ft (2000 m)
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA 4X front panel (indoor use)
15 gn 11 ms conforming to IEC 60068-2-27
+/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6
Resistance to radiated electromagnetic fields : 10 V/m conforming to IEC 61000-4-3
ambient air temperature for operation
ambient air temperature for storage
relative humidity
operating altitude
IP degree of protection
NEMA degree of protection
shock resistance
vibration resistance
electromagnetic compatibility
Offer Sustainability
Not Green Premium product
Not Green Premium product
Compliant - since 1126 - Schneider Electric declaration Compliant - since 1126 - Schneider Electric declaration of conformity
of conformity
Reference not containing SVHC above the threshold
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Reference not containing SVHC above the threshold
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Contractual warranty
Warranty period
18 months

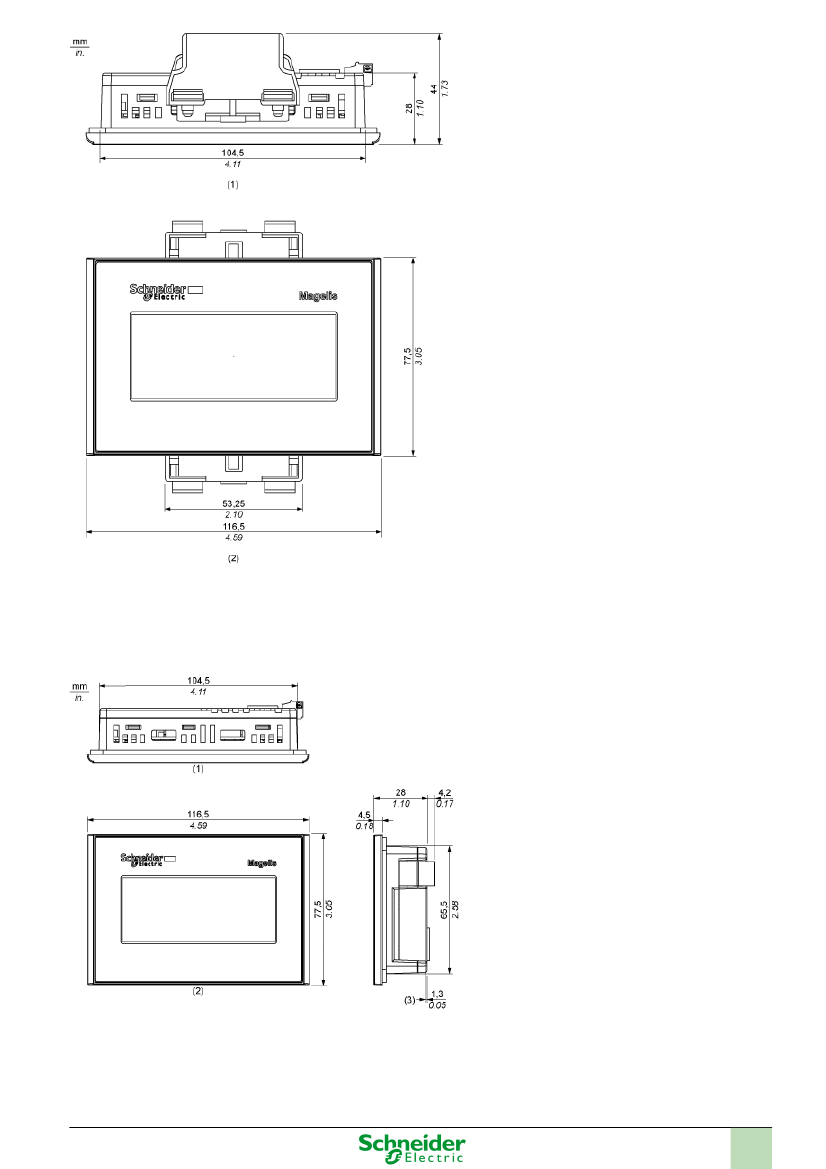

Dimensions with Spring Clips
2/4
(1)
(2)
Top
Front
Dimensions without Spring Clips
(1)
(2)
(3)
Top
Front
Right Side
3/4
Clearance
Panel Cut-out Dimensions
(1)
Panel
A (mm)
A (in.)
B (mm)
B (in.)
C (mm)
Spring Clips
+1
+0.04
4.13
-0
66
-0
+1
+0.04
2.59
-0
1.5 to 6.0
C (in.)
Spring Clips
0.059 to 0.236 2.0 to 3.0
0.078 to 0.118
R (mm)
R (in.)
105
-0
4/4
