78788-0811 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 78788-0811

78788-0811: DescriptionHeader & Wire Housing 2mm DR MGrid VRec SMT W/Cap&Pg 8CKT; CategoryThe connector The connector; File Size270KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

78788-0811 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	78788-0811	-	-	View	Buy Now

78788-0811 Overview

Header & Wire Housing 2mm DR MGrid VRec SMT W/Cap&Pg 8CKT

78788-0811 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	13 weeks

Preview

Download Datasheet

View All

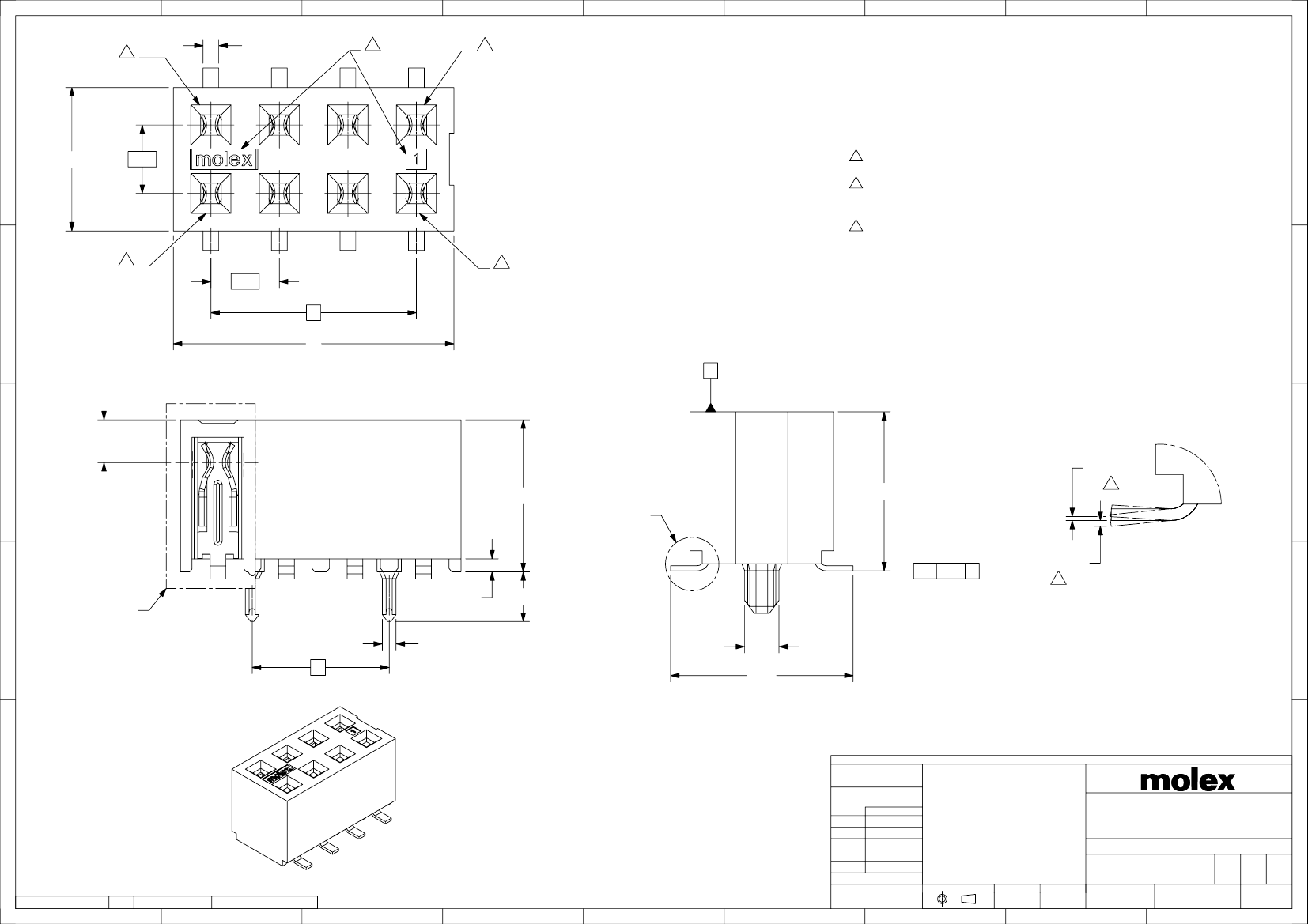

0.46

TYP

ROW A

CKT 1

ROW A

CKT 25

4.19

0.10

2.00

NOTES:

1. MATERIALS:

HOUSING: LCP, GLASS FILLED, UL94V-0, BLACK

TERMINAL: COPPER ALLOY

CAP: NYLON, GLASS FILLED, BLACK

2. FINISHES: 2.50µM TIN OVER 1.25µM NICKEL UNDERPLATE

3. PRODUCT SPECIFICATION: PS-78788-001

4. PACKAGING SPECIFICATION: SEE TABLE

5. MATES WITH: 87758, 87759, 87760, 87831, 87832, 87833

MOLEX LOGO AND CAVITY ID IS LOCATED APPROXIMATELY AS SHOWN

7. FOR ILLUSTRATION, 8 CIRCUITS IS SHOWN

CIRCUIT NUMBERS ARE COUNTED FROM LEFT TO RIGHT ON TOP VIEW WITH

RECESSED GATE ALWAYS ON THE RIGHT

9. SEE SHEET 2 FOR CIRCUIT SIZE PART NUMBER & DIMENSIONS

MEASUREMENT IS TAKEN BETWEEN THE TANGENT OF THE TOE TO TIP

OF THE TERMINAL

ROW B

CKT 1

2.00

ROW B

CKT 25

1.25

CONTACT POINT

4.44

DETAIL 1

0.05

MAX

4.65

⌓

0.15

0.075

MAX

0.38

1.45

DETAIL 1

CUTAWAY1

0.40

1.00

(2X)

5.33

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: CKT POS CHANGE

NTS

GENERAL TOLERANCES

(UNLESS SPECIFIED)

INCH

EC NO:

173923

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0.25

3.0 °

0 PLACES

ANGULAR TOL

DRWN: VLM

CHK'D: ISHWARG

APPR:

ISHWARG

INITIAL REVISION:

DRWN:

GMENARLY

APPR:

BOKOK

THIRD ANGLE PROJECTION

DRAWING

2018/03/06

2018/03/23

2012/11/16

2013/06/03

SERIES

SALES DRAWING

2MM DUAL ROW, SMT W/ PEG MILLIGRID VERT

RECEPT

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-78788-001

MATERIAL NUMBER

CUSTOMER

PSD

001

DOCUMENT STATUS

FORMAT: Met-lega-master-tb-prod-A3

REVISION: D

DATE: 2018/01/18

RELEASE DATE

2018/03/23

06:07:17

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

78788

SEE TABLE

GENERAL MARKET

1 OF 3
