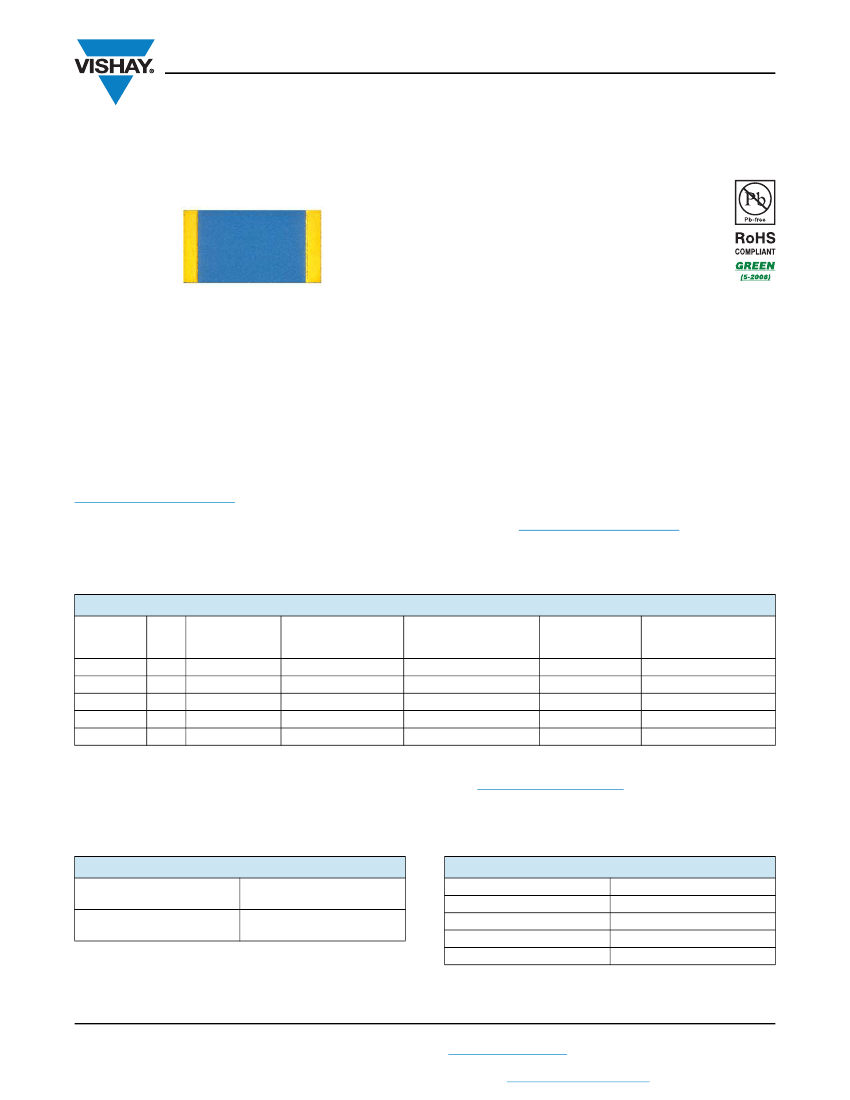

PHT
www.vishay.com
Vishay Sfernice
High Stability - High Temperature (230 °C)
Thin Film Wraparound Chip Resistors
FEATURES
• Operating temperature range:
- 55 °C; + 215 °C
• Storage temperature: - 55 °C; + 230 °C
• Gold terminations (< 1 μm thick)
• 5 sizes available (0402, 0603, 0805, 1206,
2010); other sizes upon request
• Temperature coefficient down to 15 ppm
(- 55 °C; + 215 °C)
• Tolerance down to 0.05 %
• Load life stability: 0.35 % max. after 2000 h at 220 °C
(ambient) at Pn
• Shelf life stability: 0.7 % typ. (1 % max.) after 15 000 h at
230 °C
• SMD wraparound
• 0.02 % upon request
• TCR remains constant after long term storage at 230 °C
(15 000 h)
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
INTRODUCTION
For applications such as down hole applications, the need
for parts able to withstand very severe conditions
(temperature as high as 215 °C powered or up to 230 °C
un-powered) has leaded Vishay Sfernice to push out the
limit of the thin film technology.
Designers might read the application note: Power
Dissipation Considerations in High Precision Vishay
Sfernice Thin Film Chip Resistors and Arrays
(P, PRA etc…) (High Temperature Application)
www.vishay.com/doc?53047
in conjunction with this
datasheet to help them to properly design their PCBs and
get the best performances of the PHT.
Vishay Sfernice R&D engineers will be willing to support any
customer design considerations.
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
PHT0402
PHT0603
PHT0805
PHT1206
PHT2010
SIZE
0402
0603
0805
1206
2010
RESISTANCE
RANGE
10 to 130K
10 to 320K
10 to 720K
10 to 2.7M
10 to 7.5M
RATED POWER
(1)(2)
P
215 °C
W
0.0189
0.0375
0.06
0.1
0.2
(4)
LIMITING ELEMENT
VOLTAGE
V
50
75
150
200
300
TOLERANCE
±%
0.05, 0.1, 0.5, 1
0.05, 0.1, 0.5, 1
0.05, 0.1, 0.5, 1
0.05, 0.1, 0.5, 1
0.05, 0.1, 0.5, 1
TEMPERATURE
COEFFICIENT
(3)
± ppm/°C
10, 15, 25, 30, 50, 55
10, 15, 25, 30, 50, 55
10, 15, 25, 30, 50, 55
10, 15, 25, 30, 50, 55
10, 15, 25, 30, 50, 55
Notes
(1)
For power handling improvement, please refer to application note 53047: Power Dissipation Considerations in High Precision Vishay
Sfernice Thin Film Chip Resistors and Arrays (High Temperature Applications)
www.vishay.com/doc?/53047
and consult Vishay Sfernice
(2)
See Table 2 on next page
(3)
See Table 1 on next page
(4)
It is possible to dissipate up to 0.3 W, but there will be an additional drift of 0.1 % after load life
CLIMATIC SPECIFICATIONS
Operating temperature range
Storage temperature range
- 55 °C; + 215 °C
- 55 °C; + 230 °C
MECHANICAL SPECIFICATIONS
Substrate
Resistive Element
Passivation
Protection
Terminations
Alumina
Nichrome (NiCr)
Silicon nitride (Si
3
N
4
)
Epoxy + Silicone
Gold (< 1 μm) over nickel barrier
Note
• For other terminations, please consult
Revision: 11-Feb-13
Document Number: 53050
1
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PHT
www.vishay.com
Vishay Sfernice
10 ppm/°C
15 ppm/°C
25 ppm/°C
30 ppm/°C
50 ppm/°C
55 ppm/°C
- 55 °C; + 155 °C
- 55 °C; + 215 °C
- 55 °C; + 155 °C
- 55 °C; + 215 °C
- 55 °C; + 155 °C
- 55 °C; + 215 °C
TABLE 1 - TEMPERATURE COEFFICIENT
Y
E
H
TABLE 2
SERIES
0402
0603
0805
1206
2010
RANGE ()
From
10R
to 90K
From > 90K to
130K
From
10R
to 210K
From > 210K to
320K
From
10R
to 480K
From > 480K to
720K
From
10R
to 1M8
From > 1M8 to
2M7
From
10R
to 5M
From > 5M to
7M5
TOL. (± %)
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
0.05; 0.1; 0.5; 1
TCR CODE
Y; E; H
E; H
Y; E; H
E; H
Y; E; H
E; H
Y; E; H
E; H
Y; E; H
E; H
PHT STABILITY CURVE
High Temperature Drift vs. Time
2.0
1.8
1.6
1.4
Drift in %
1.2
1.0
0.8
With Pd
0.6 (T
j
= 230 °C)
0.4
0.2
0.0
0
2000
4000
6000
8000
Time in h
10 000
12 000
14 000
T = 215 °C
T = 200 °C
T = 185 °C
T = 230 °C
Note
• Stability will be dependent on resistivity of resistor. Above curves are worst case.
POWER DERATING CURVE
Rated Power (%)
350
300
250
200
150
100
50
0
0
50
100
150
200
250
Ambient Temperature in °C
Revision: 11-Feb-13
Document Number: 53050
2
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PHT
www.vishay.com
DIMENSIONS
in millimeters (inches)
A
D
D
Vishay Sfernice
C
B
E
E
A
MAX. TOL.
+ 0.152 (+ 0.006)
MIN. TOL.
- 0.152 (- 0.006)
NOMINAL
0402
0603
0805
1206
2010
1.00 (0.039)
1.52 (0.060)
1.91 (0.075)
3.06 (0.120)
5.08 (0.200)
B
MAX. TOL.
+ 0.127 (+ 0.005)
MIN. TOL.
- 0.127 (- 0.005)
NOMINAL
0.60 (0.024)
0.85 (0.033)
1.27 (0.050)
1.60 (0.063)
2.54 (0.100)
0.5 (0.02)
± 0.127 (0.005)
0.38 (0.015)
0.13 (0.005)
0.40 (0.016)
0.48 (0.019)
D/E
C
CASE SIZE
NOMINAL
0.25 (0.010)
NOMINAL
0.1 (0.004)
SUGGESTED LAND PATTERN (TO IPC-7351A)
G
min.
X
max.
Z
max.
DIMENSIONS (in millimeter)
CHIP SIZE
Z
max.
0402
0603
0805
1206
2010
1.55
2.37
2.76
3.91
5.93
G
min.
0.15
0.35
0.74
1.85
3.71
X
max.
0.73
0.98
1.40
1.73
2.67
Caution:
Performances obtained with following mounting conditions:
PCB: Polyimide
Solder paste: PbSnAg (93.5/5/1.5)
Revision: 11-Feb-13
Document Number: 53050
3
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PHT
www.vishay.com
POPULAR OPTIONS
It is recommended to consult Vishay Sfernice for availability first.
Option: Enlarged terminations:
For stringent and special power dissipation requirements, the thermal resistance between the resistive layer and the solder joint
can be reduced using enlarged terminations chip resistors which are soldered on large and thick copper pads acting as heatsink
(see application note: 53048 Power Dissipation in High Precision Vishay Sfernice Chip Resistors and Arrays (P Thin Film, PRA
Arrays, CHP Thick Film)
www.vishay.com/doc?53048.
Option to order: 0063 (applies to size 1206/2010).
Vishay Sfernice
DIMENSIONS
(Option 0063) in millimeters
Bottom view for mounting
A
Uncoated
ceramic
Enlarged
termination
B
F
D
E
A
CASE SIZE
MAX. TOL.
+ 0.152
MIN. TOL.
- 0.152
NOMINAL
1206
2010
3.06
5.08
B
MAX. TOL.
+ 0.127
MIN. TOL.
- 0.127
NOMINAL
1.60
2.54
E
MAX. TOL.
+ 0.13
MIN. TOL.
- 0.13
NOMINAL
0.40
0.48
D
MAX. TOL.
+ 0.13
MIN. TOL.
- 0.13
NOMINAL
1.215
2.25
NOMINAL
0.63
F
MIN.
0.50
MAX.
0.76
SUGGESTED LAND PATTERN
(Option 0063)
G
min.
X
max.
Z
max.
CHIP SIZE
1206
2010
DIMENSIONS (in millimeter)
Z
max.
3.91
5.93
G
min.
0.50
X
max.
1.73
2.67
Revision: 11-Feb-13
Document Number: 53050
4
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PHT
www.vishay.com
PACKAGING
ESD packaging available: waffle-pack, and plastic tape and
reel (low conductivity). Paper tape available upon request
(ESD only).
NUMBER OF PIECES PER PACKAGE
SIZE MOQ
WAFFLE PACK
2" × 2"
TAPE AND REEL
MIN.
MAX.
5000
0603
0805
1206
2010
Note
(1)
12 mm on request
100
140
60
2000
8 mm
(1)
100
8 mm
100
4000
TAPE
WIDTH
Vishay Sfernice
PACKAGING RULES
Waffle Pack
Can be filled up to maximum quantity indicated in the table
here above, taking into account the minimum order quantity.
When quantity ordered exceeds maximum quantity of a
single waffle pack, the waffle packs are stacked up on the
top of each other and closed by one single cover.
To get “not stacked up” waffle pack in case of ordered
quantity > maximum number of pieces per package:
Please consult Vishay Sfernice for specific ordering
code.
Tape and Reel
Can be filled up to maximum quantity indicated in the table
here above, taking into account the minimum order quantity.
When quantity ordered is between the MOQ and the
maximum reel capacity, only one reel is provided.
When several reels are needed for ordered quantity
within MOQ and maximum reel capacity: Please consult
Vishay Sfernice for specific ordering code.
0402
GLOBAL PART NUMBER INFORMATION
Global Part Numbering: PHT1206Y1001BGT063
P
H
T
1
2
0
6
Y
1
0
0
1
B
G
T
0
6
3
GLOBAL
MODEL
PHT
SIZE
0402
0603
0805
1206
2010
TCR
Y
E
H
VALUE
The first three digits are
significant figures and
the last digit specifies
the number of zeros to
follow, R designates
decimal point
10R0
= 10
3901
= 3900
1004
= 1 M
TOLERANCE
W
= 0.05 %
B
= 0.1 %
D
= 0.5 %
F
=1%
TERMINATION
G
= Gold
N
= Tin/silver
(2)
PACKAGING
T
= Tape and reel
Blank
= Waffle pack
OPTION
Leave blank
if no option
Note
(2)
For usage at temperatures up to 200 °C maximum N (tin/silver termination are available upon request)
Revision: 11-Feb-13
Document Number: 53050
5
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
