MEC8-170-02-LM-D-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC8-170-02-LM-D-EM2

MEC8-170-02-LM-D-EM2: DescriptionBoard-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical; CategoryThe connector The connector; File Size784KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MEC8-170-02-LM-D-EM2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MEC8-170-02-LM-D-EM2	-	-	View	Buy Now

MEC8-170-02-LM-D-EM2 Overview

Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical

MEC8-170-02-LM-D-EM2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MEC8
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	140

Preview

Download Datasheet

View All

F-219

MEC8–140–02–L–D–EM2

MEC8–160–02–L–D–EM2

MEC8–140–02–L–D–RA1

(0.80 mm) .0315"

MEC8–110–02–L–D–RA1

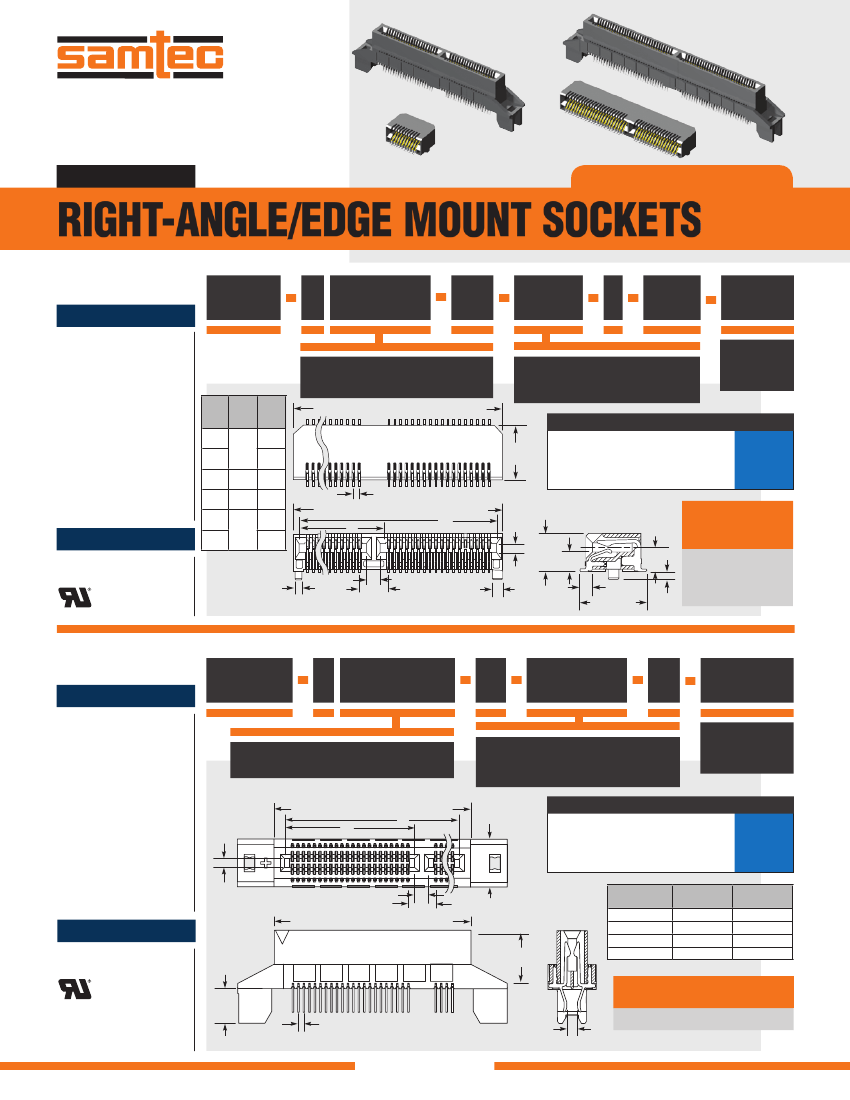

MEC8-RA, MEC8-EM SERIES

RIGHT-ANGLE/EDGE MOUNT SOCKETS

Mates with:

(1.60 mm) .062" thick card

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?MEC8-RA

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(3.94 mm) .155" to

(6.25 mm) .246"

Current Rating:

2.4 A per pin

(2 adjacent pins powered)

Voltage Rating:

265 VAC

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

MEC8

Note:

Some sizes,

styles and options

are non-standard,

non-returnable.

POS.

PER

ROW

POSITIONS

PER ROW

PLATING

OPTION

RA1

OTHER

OPTION

10, 13, 20, 25,

30, 37, 40, 49, 50

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

–L

= Tape & Reel

Packaging

–TR

No. of Positions x (0.80) .0315 + (3.00) .118

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

(15.00)

(6.10) .591

.240 (24.60)

.969

(18.10) (34.20)

.713 1.346

(18.90) (36.60)

.744 1.441

(43.80)

(22.90) 1.724

.902 (44.60)

1.756

HIGH-SPEED CHANNEL PERFORMANCE

(7.40)

.291

MEC8-RA

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

G b p s

(0.80) .0315

No. of Positions x (0.80) .0315 + (6.20) .244

(1.80)

.071

(5.77)

.227 (2.65)

.104

(3.53)

.139

(0.95)

.037

(9.10) .358

ALSO

AVAILABLE

(MOQ Required)

thickness option

• Latching option

(1.05)

• Elevated

.041

•

1 mm mating card

(0.90) x (1.40)

.035 .055

DIA

(2.00) .0787

(4.00) .157

(1.40)

.055

DIA

Mates with:

(1.60 mm) .062" thick card

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?MEC8-EM

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(4.32 mm) .170" to

(5.66 mm) .223"

Current Rating:

2.2 A per pin

(2 adjacent pins powered)

Voltage Rating:

265 VAC

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

MEC8

POSITIONS

PER ROW

PLATING

OPTION

EM2

10, 20, 30, 40, 50, 60, 70

No. of Positions x (0.80) .0315 + (7.80) .307

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

–L

= (1.60 mm) .062"

thick PCB

HIGH-SPEED CHANNEL PERFORMANCE

MEC8-EM

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

G b p s

(1.80)

.071

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

(4.00)

.157 (7.00)

.276

No. of Positions x (0.80) .0315 + (4.60) .181

(2.00) .0787

(8.50)

.335

POSITIONS

PER ROW

(18.90) .744

(22.90) .902

(26.90) 1.059

(30.90) 1.217

(36.60) 1.441

(44.60) 1.756

(52.60) 2.071

(60.60) 2.386

ALSO AVAILABLE

(5.00)

.197

(MOQ Required)

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0.80)

.0315

(1.48)

.058

• 1 mm mating card thickness option

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

MEC8-110-02-L-D-RA1 MEC8-110-02-L-D-EM2 MEC8-110-02-L-D-RA1-TR MEC8-120-02-L-D-RA1 MEC8-120-02-

L-D-RA1-TR MEC8-140-02-L-D-EM2 MEC8-150-02-S-D-EM2 MEC8-130-02-L-D-RA1 MEC8-120-02-L-D-EM2

MEC8-125-02-L-D-RA1 MEC8-150-02-L-D-EM2 MEC8-140-02-L-D-RA1 MEC8-150-02-L-D-RA1 MEC8-125-02-L-D-

RA1-TR MEC8-130-02-L-D-RA1-TR MEC8-137-02-LM-D-RA1-TR MEC8-170-02-L-D-EM2 MEC8-140-02-L-D-RA1-

TR MEC8-130-02-L-D-EM2 MEC8-125-02-S-D-RA1-TR MEC8-120-01-S-D-RA1-TR MEC8-137-02-LM-D-RA1

MEC8-140-02-S-D-EM2 MEC8-140-02-S-D-RA1-TR MEC8-150-02-S-D-RA1-TR MEC8-135-01-L-D-RA1 MEC8-135-

02-L-D-RA1 MEC8-140-01-L-D-RA1 MEC8-140-01-L-D-RA1-TR MEC8-150-01-L-D-RA1 MEC8-150-01-L-D-RA1-TR

MEC8-110-01-S-D-RA1 MEC8-110-01-SM-D-EM2 MEC8-110-01-L-D-RA1 MEC8-110-01-L-D-RA1-TR MEC8-120-01-

L-D-RA1 MEC8-130-01-L-D-RA1 MEC8-160-02-L-D-EM2 MEC8-160-02-LM-D-EM2 MEC8-170-01-L-D-EM2 MEC8-

170-02-LM-D-EM2 MEC8-110-01-L-D-EM2 MEC8-110-01-LM-D-RA1-TR MEC8-150-02-L-D-RA1-TR MEC8-150-02-

LM-D-EM2 MEC8-150-02-LM-D-RA1 MEC8-150-02-LM-D-RA1-TR MEC8-150-02-S-D-RA1 MEC8-160-01-L-D-EM2

MEC8-140-02-LM-D-EM2 MEC8-140-02-LM-D-RA1-TR MEC8-140-02-S-D-RA1 MEC8-145-02-L-D-EM2 MEC8-149-

02-L-D-RA1 MEC8-150-01-L-D-EM2 MEC8-130-02-SM-D-RA1 MEC8-130-02-SM-D-RA1-TR MEC8-135-02-L-D-EM2

MEC8-135-02-S-D-RA1 MEC8-137-02-L-D-RA1 MEC8-140-01-L-D-EM2 MEC8-130-01-L-D-EM2 MEC8-130-01-L-D-

RA1-TR MEC8-130-01-S-D-RA1 MEC8-130-02-LM-D-EM2 MEC8-130-02-LM-D-RA1 MEC8-130-02-S-D-RA1 MEC8-

120-02-LM-D-RA1 MEC8-120-02-LM-D-RA1-TR MEC8-120-02-S-D-EM2 MEC8-120-02-S-D-RA1 MEC8-120-02-S-D-

RA1-TR MEC8-125-02-LM-D-RA1 MEC8-113-02-S-D-RA1 MEC8-120-01-L-D-EM2 MEC8-120-01-L-D-RA1-TR

MEC8-120-01-LM-D-RA1 MEC8-120-01-S-D-EM2 MEC8-120-02-LM-D-EM2 MEC8-110-02-LM-D-EM2 MEC8-110-02-

LM-D-RA1 MEC8-110-02-LM-D-RA1-TR MEC8-110-02-S-D-EM2 MEC8-110-02-S-D-RA1 MEC8-113-02-L-D-RA1

MEC8-113-02-S-D-RL1 MEC8-125-02-L-D-RL1 MEC8-125-02-S-D-RA1 MEC8-125-02-S-D-RL1 MEC8-130-01-S-D-

EM2 MEC8-130-02-S-D-EM2 MEC8-149-02-S-D-RL1 MEC8-150-02-SM-D-RA1 MEC8-110-02-S-D-RA1-TR MEC8-

113-02-L-D-RA1-TR MEC8-113-02-L-D-RL1 MEC8-113-02-S-D-RA1-TR MEC8-135-01-S-D-RA1 MEC8-135-02-L-D-

RA1-TR MEC8-137-02-L-D-RA1-TR

MEC8-170-02-LM-D-EM2 Related Products

	MEC8-170-02-LM-D-EM2	MEC8-120-01-S-D-EM2	MEC8-120-02-S-D-RA1	MEC8-130-02-S-D-EM2	MEC8-110-01-L-D-EM2	MEC8-170-01-L-D-EM2	MEC8-120-02-LM-D-EM2	MEC8-135-02-L-D-EM2	MEC8-130-02-L-D-RA1-TR	MEC8-125-02-L-D-RA1-TR
Description	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	Board-to-Board and Mezzanine Connectors0.80 mm Mini Edge Card Connector, Vertical	0.80 mm Mini Edge Card Connector, Vertical	0.80 mm Mini Edge Card Connector, Vertical
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	-	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	-	-	conform to	conform to	conform to
Maker	SAMTEC	-	SAMTEC	SAMTEC	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	-	compliant	compliant	-	-	compliant	compliant	compliant
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	-	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD	GOLD	-	GOLD	GOLD	-	-	GOLD	GOLD	GOLD
Contact completed and terminated	MATTE TIN	GOLD	-	GOLD	GOLD	-	-	GOLD	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	-	-	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	-	NO	NO	-	-	NO	NO	NO
Filter function	NO	NO	-	NO	NO	-	-	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	-	-	NO	NO	NO
JESD-609 code	e3	e4	-	e4	e4	-	-	e4	e4	e4
MIL compliance	NO	NO	-	NO	NO	-	-	NO	NO	NO
Manufacturer's serial number	MEC8	MEC8	-	MEC8	MEC8	-	-	MEC8	MEC8-RA	-
Mixed contacts	NO	NO	-	NO	NO	-	-	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD	-	-	BOARD	BOARD	BOARD
Number of rows loaded	2	2	-	2	2	-	-	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	-	0.8 mm	0.8 mm	-	-	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	140	40	-	60	20	-	-	70	60	50
