DRMS SERIES
DIN RAIL MOUNT HYBRID MOTOR STARTERS

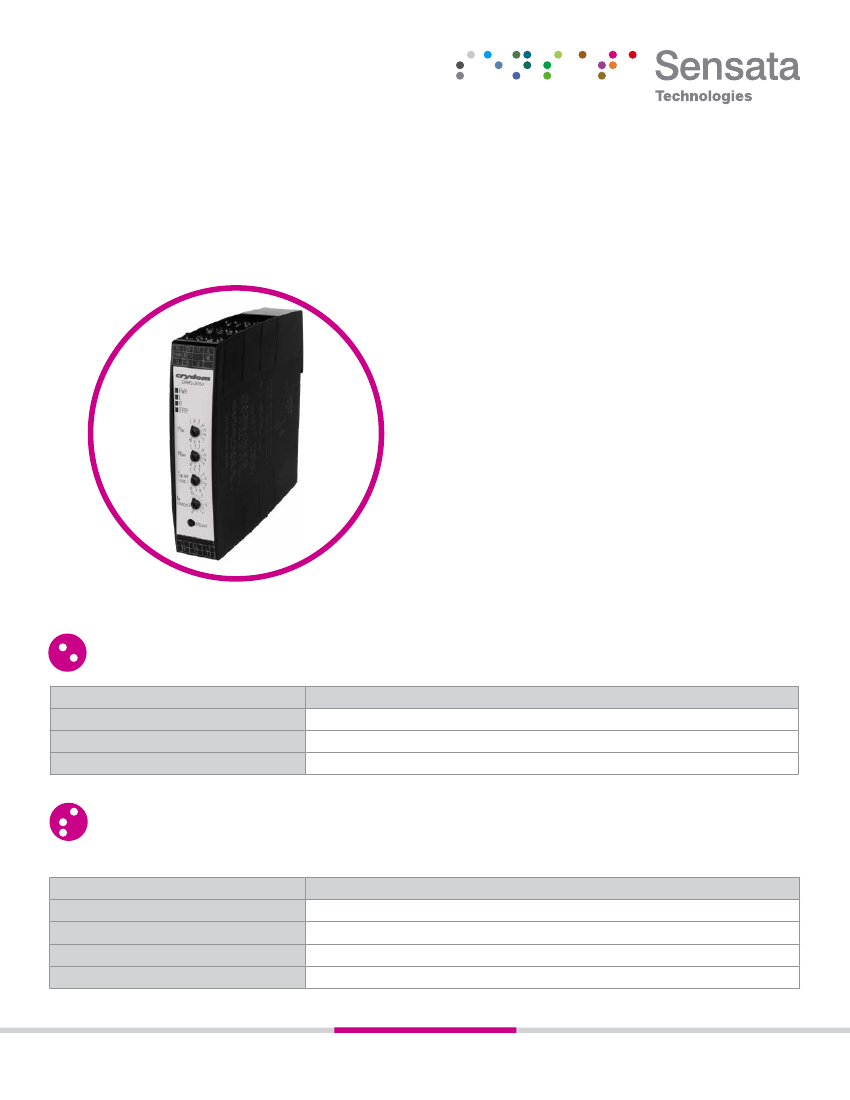

DRMS Series Hybrid Motor Starters are intelligent and convenient solutions for controlling 3-phase asynchronous motors. These compact devices can provide up
to 6 functions in the same unit: Forward/Reverse, Soft Start/Soft Stop, Motor Overload Protection, and Mains Isolating Relay.
Motor overload detection is based on a thermal load curve. The relays are de-energized when an overload condition is present, ensuring a long service life.
Features
• 3-phase motors reversing up to 4 kW
• 2-phase soft start/stop
• Up to 4 dials for setting of starting torque, deceleration torque, soft start/
stop, and rated motor current
• 4 LEDs for status indication
• Galvanic separated 24 VDC inputs for forward and reverse control
• Reset button on front, with connection for external reset
• Relay indicator output for operation
• Hybrid relay combines benefits of electromechanical relay technology with
non-wearing semiconductor technology
• High reliability by temperature monitoring of semiconductors
Applications
• Reversing operation for door and gate controls, bridge drives and lifting
applications with monitoring of blockage
• Conveyor systems with monitoring of blockage
• Actuating drives in process controls with blockage monitoring
PRODUCT SELECTION
Part Number
DRMS48D91
DRMS48D92
DRMS48D93
Functions
Forward/Reverse, Overload Protection
Forward/Reverse, Overload Protection, Soft Start/Stop
Forward/Reverse, Overload Protection, Soft Start/Stop, Mains Isolating Relay
SPECIFICATIONS
Output
(1)
Description
Operating Voltage L1/L2/L3 [Vrms]
Nominal Frequency [Hz]
Peak Reverse Voltage [Vpk]
Overvoltage Limiting [Vrms]
DRMS48D9x
200-480 ± 10%
50/60, automatic detection
1500
550
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
Maximum Off-State Leakage Current @
Rated Voltage [mArms]
Load Current, AC51 [Arms]
(2)
Load Current, AC53a: 6-2: 10-30 IEC/EN
60947-4-2 [Arms]
(2)
Maximum Motor Power [kW] @ 400 VAC
Minimum Motor Power [W]
Maximum Surge Current [Apk] t = 20 msec
Load Limit Integral [A²sec] t = 10 msec
Starting Voltage
Start / deceleration ramp [sec]
Switchover Delay Time [msec]
Max. Fuse Rating per IEC/EN 60947-5-1
Electrical Life
0.5
9
7.6
4
25
200
200
30-80%
1-10
250
25 A gG / gL
> 10
7
cycles
Motor Protection
(1)
Description
Ie: 1.5 A to 6.8 A
Ie: 6.9 A to 9.0 A
Protection type
Reset
DRMS48D9x
Class 10 / 10 A
Class 5
Electronic, without thermal memory
Manual
Input
(1)
Description
Control Voltage Range (R, L)
Minimum Turn-On Voltage
Must Turn-Off Voltage
Typical Input Current
Polarity Reversal Protected
Manual Reset Voltage Range
DRMS48D9x
10-30 VDC
10 VDC
8 VDC
4 mA
Yes
10-30 VDC
Auxiliary Power Supply
(1) (3)
Description
Voltage Range
Power Consumption
Min. Start Up Delay
Min. Release Delay
DRMS48D9x
24 VDC ±10%
2W
100 msec
50 msec
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
Indicator Outputs
(1)
Description
Output Type (Ready)
Switching Capacity to AC 15 per IEC/EN
60947-5-1, NO Contact
Switching Capacity to AC 15 per IEC/EN
60947-5-1, NC Contact
Thermal Current, Ith
Electrical Life to AC15 @ 3A, 230 VAC per
IEC/EN 60947-5-1
Mechanical Life
Maximum Switching Frequency
Max. Fuse Rating per IEC/EN 60947-5-1
DRMS48D9x
1 Changeover Contact (SPDT)
3 A / 230 VAC
1 A / 230 VAC
5A
2 x 10
5
Cycles
30 x 10
6
Cycles
1800 cycles/hr
4 A gG / gL
General
(1)
Description
Device Type
Rated Insulation Voltage
Overvoltage Category / Contamination
Level per IEC/EN 60664-1
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (Typical)
Housing Color
LED Status Indicators
Protection Degree, Housing
Protection Degree, Terminals
Humidity @ 40 °C
Control Terminal Screw Torque (lb-in/Nm)
Load Terminal Screw Torque (lb-in/Nm)
Control Terminal Wire Capacity
Load Terminal Wire Capacity
DRMS48D9x
Hybrid Motor Controller
500 V
4 kV / 2
0 to 60 °C
-25 to 75 °C
188 g
Black and Light Gray
See Indicators Chart
IP40
IP20
93% non condensing
3.46 / 0.39
5-7 / 0.56-0.79
1 x 22-14 AWG (IEC 0.5-2.5 mm²) (stranded/solid)
1 x 30-12 AWG (IEC 0.05-4 mm²) (stranded/solid)
GENERAL NOTES
All parameters at 25°C unless otherwise specified.
To achieve maximum ratings there must be a minimum spacing of 0.9 in (22mm) between the devices in free air (see derating curves).
(3)
For reliable operation the 24 VDC auxiliary power supply needs to be fully stable during the entire operation of the device. Removing this volt-
age while the output is under load could cause permanent damage to the device.
(1)
(2)
Additional Notes
• This device is intended for use on supply systems with a maximum voltage from phase to ground of 300 V (e.g. for a three phase-four wire system
277/480 V or on a three phase-three wire systems of 240 V), rated impulse withstand voltage of max. 4 kV.
• Suitable for use on a circuit capable of delivering not more than 5000 rms symmetrical Amperes, 480 Volts maximum when protected by class CC,
J or RK5 fuse rated maximum 20 A.
• For use in pollution degree 2 Environment or equivalent.
• The control circuits of this device shall be supplied by an isolated 24 VDC power supply which output is protected with a fuse rated max. 4 Adc.
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
• For installations according to Canadian National Standard C22.2 No. 14-13 (cUL Mark only) and supply voltages above 400V:
• For 415 V max. supply voltage, transient surge suppression devices shall be installed on the line side of this equipment and shall be rated 240
V (phase to ground), 415 V (phase to phase), suitable for overvoltage category III, and shall provide protection for a rated impulse withstand
voltage peak of 4 kV.
• For 480 V max. supply voltage, transient surge suppression devices shall be installed on the line side of this equipment and shall be rated 277
V (phase to ground), 480 V (phase to phase), suitable for overvoltage category III, and shall provide protection for a rated impulse withstand
voltage peak of 4 kV.

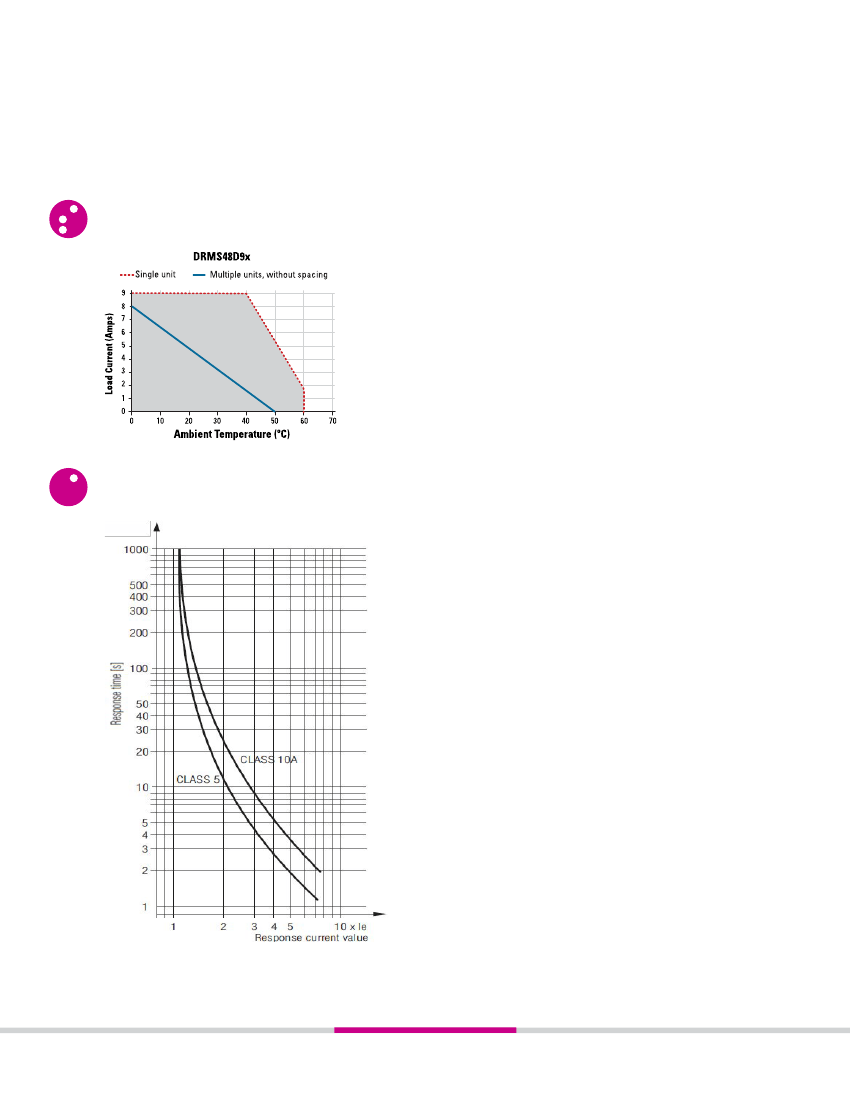

THERMAL DERATE INFORMATION
MOTOR OVERLOAD PROTECTION CURVES
Page 4
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

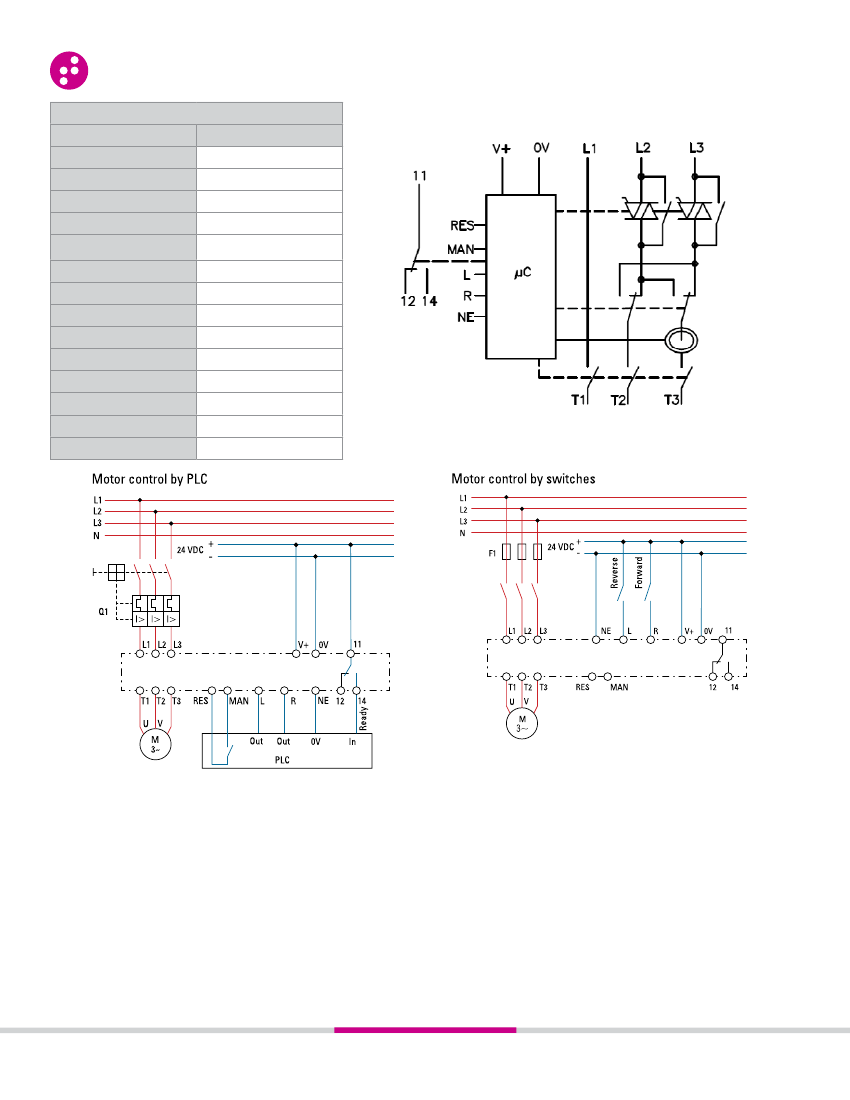

EQUIVALENT CIRCUIT BLOCK AND WIRING DIAGRAMS
TABLE 3. Connection Terminals
Terminal Designator
V+
0V
R
L
NE
MAN
RES
11, 12, 14
L1
L2
L3
T1
T2
T3
Description
Auxiliary voltage +
Auxiliary voltage -
Control input Forward
Control input Reverse
Earth connection control input
Input for remote Reset
Output for remote Reset
Indicator relay for operation
Phase voltage L1
Phase voltage L2
Phase voltage L3
Motor connection T1
Motor connection T2
Motor connection T3
(3)
(3)
Page 5
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
