REVISIONS
20.0
REV
A1
ECO
DESCRIPTION
RELEASE NUMBER
DATE
30/NOV/18
BY
BROOK
APPR
TOMMY
40.5
TITLE:
REQUIRES CONTACT
RETENTION WEDGE AW12P
7
5.1
23.9
35.6
DWG NO:
45.0

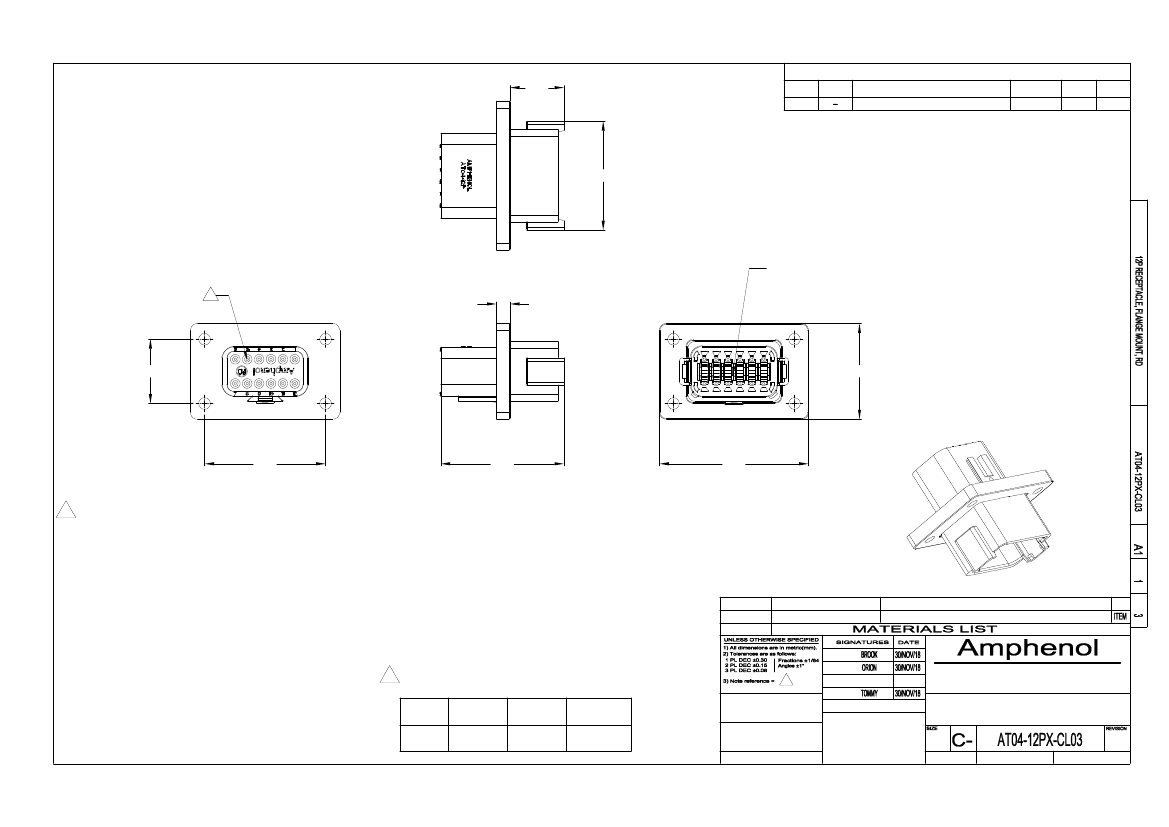

NOTES: UNLESS OTHERWISE SPECIFIED
1. SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: FLANGE, REDUCED DIA. WIRE SEAL
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55
℃
TO +125
℃
.
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25
℃
.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT06-12SX* PLUG.
( X=A,B,C,D KEYS, * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
45.8
55.4
REV:
SH:
OF:
SEE SHEET 2
PART NUMBER
QUANTITY
DRAWN:
CHECKED:
DESCRIPTION
7 . CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT MIN. INSUL MAX. INSUL
TYPICAL
SIZE
O.D.
O.D.
WIRE RANGE
X
MATERIAL SPECIFICATIONS:
ENGINEER:
APPROVAL:
CUSTOMER:
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
12P RECEPTACLE, FLANGE MOUNT, RD
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIG HTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
16
1.35 mm
(.053 in)
3.05 mm
(.120 in)
16 - 20 AWG
NEXT ASS'Y:
B
NONE
SHEET
A1
1
OF
3
REVISIONS
REV
A1
ECO
DESCRIPTION
RELEASE NUMBER
DATE
30/NOV/18
BY
BROOK
APPR
TOMMY

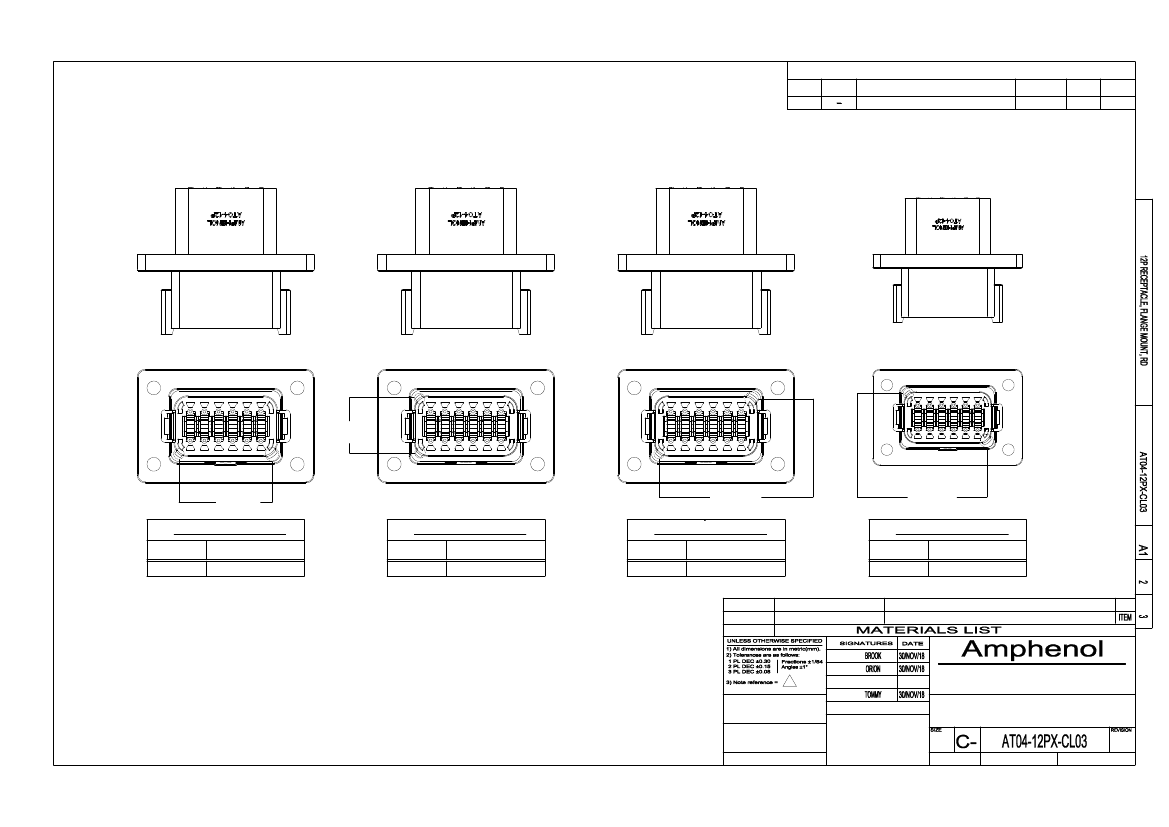

KEY A CONFIGURATION
STANDARD COLOR:GREY
KEY B CONFIGURATION
STANDARD COLOR:BLACK
KEY C CONFIGURATION
STANDARD COLOR:GREEN
KEY D CONFIGURATION
STANDARD COLOR:BROWN
TITLE:
DWG NO:
KEYWAY
(2)PLACES
KEYWAY
(2)PLACES
KEY-A CONFIGURATION
COLOR
GREY
PART NUMBER
AT04-12PA-CL03
KEY-B CONFIGURATION
COLOR
BLACK
PART NUMBER
AT04-12PB-CL03
KEYWAY
(2)PLACES
KEY-C CONFIGURATION
COLOR
GREEN
PART NUMBER
AT04-12PC-CL03
KEYWAY
(2)PLACES
KEY-D CONFIGURATION
COLOR
BROWN
PART NUMBER
SH:
REV:
AT04-12PD-CL03
OF:
SEE SHEET 2
PART NUMBER
QUANTITY
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
DESCRIPTION
X
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
12P RECEPTACLE, FLANGE MOUNT, RD
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
B
NONE
SHEET
A1
2
OF
NEXT ASS'Y:
3
REVISIONS
REV
A1
ECO
DESCRIPTION
RELEASE NUMBER
DATE
30/NOV/18
BY
BROOK
APPR
TOMMY
TITLE:
FOR REFERENCE ONLY
4X R6.35±0.12
23.88±0.07 23.52±0.12
DWG NO:
4X Ø4.29±0.07
41.83±0.12
44.96±0.07
FRONT MOUNT
REAR MOUNT

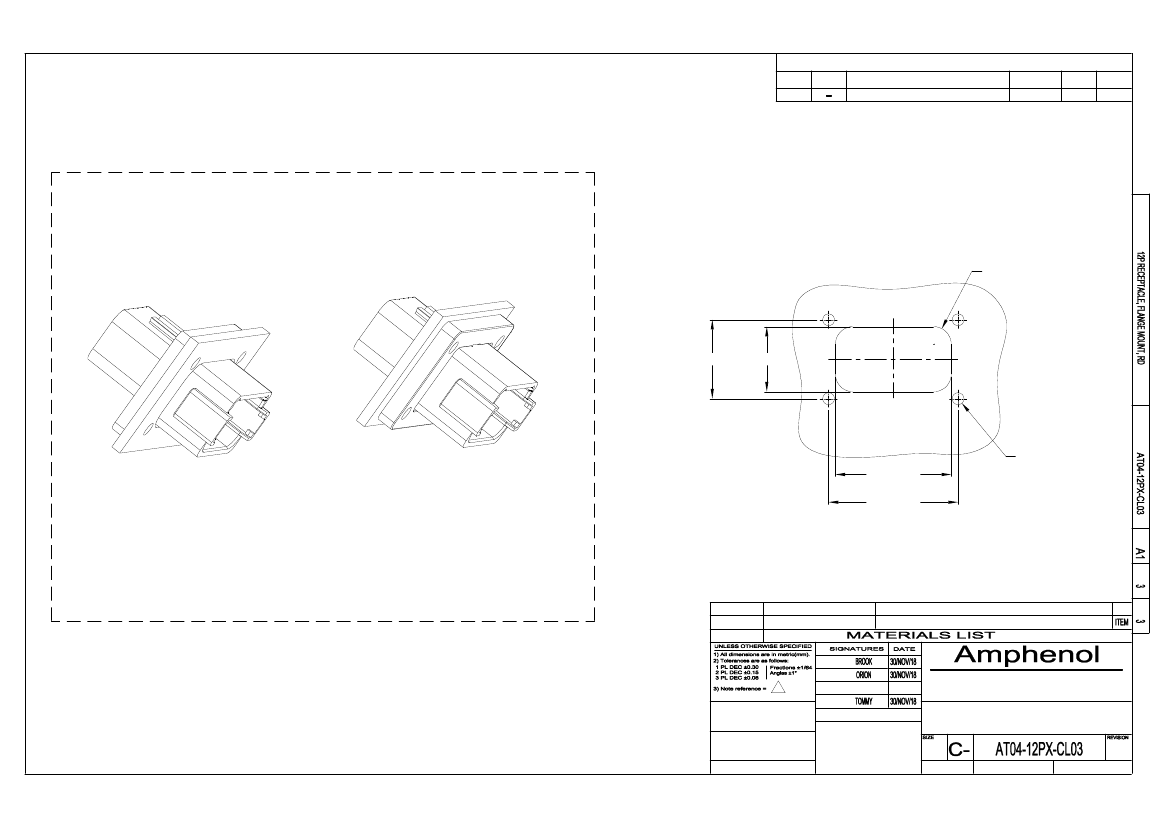

RECOMMENDED CUTOUT
FRONT AND REAR MOUNT
REV:
SH:
OF:
SEE SHEET 2
PART NUMBER
QUANTITY
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
DESCRIPTION
X
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
12P RECEPTACLE, FLANGE MOUNT, RD
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
B
NONE
SHEET
A1
3
OF
3
