REV.
A
B
T
A
L
W
5
ECN NO.
Initial Release
LEN1590195~197
6
DATE
2015/07/25
2015/08/27
SIGN
Mafei
Mafei
7
DESCRIPTION
Change Rev.01 To Rev.A
Adding Key Point.
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
CONFIDENTIAL
2015-08-27
R&D DEPT.
E
Seal Nut
5
Seals
4
Clamp Ring
3
O-ring
2
1 Housing
D
68.9 (Ref.)
DC-XXBFMC-RL7001
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
20.0(Hex.)
22.0(Hex.)
Large Size Cuttent Rating 20A
No. Of Pin(Pin 數)
For Cable without SR(無網尾)
Female Connector(母座)
Male Pin(公Pin)
Without Cable
IP67
Straight(180 $ )
Snap in with Latch(½臂卡合)
Crimp Type(鉚接式)
32.5
1
1
3
4
3
1
2
4
3
B
B
Pin2
Pin Assignments
Front View
Pin3
Pin Assignments
Front View
TITLE
Pin4
Pin Assignments
Front View

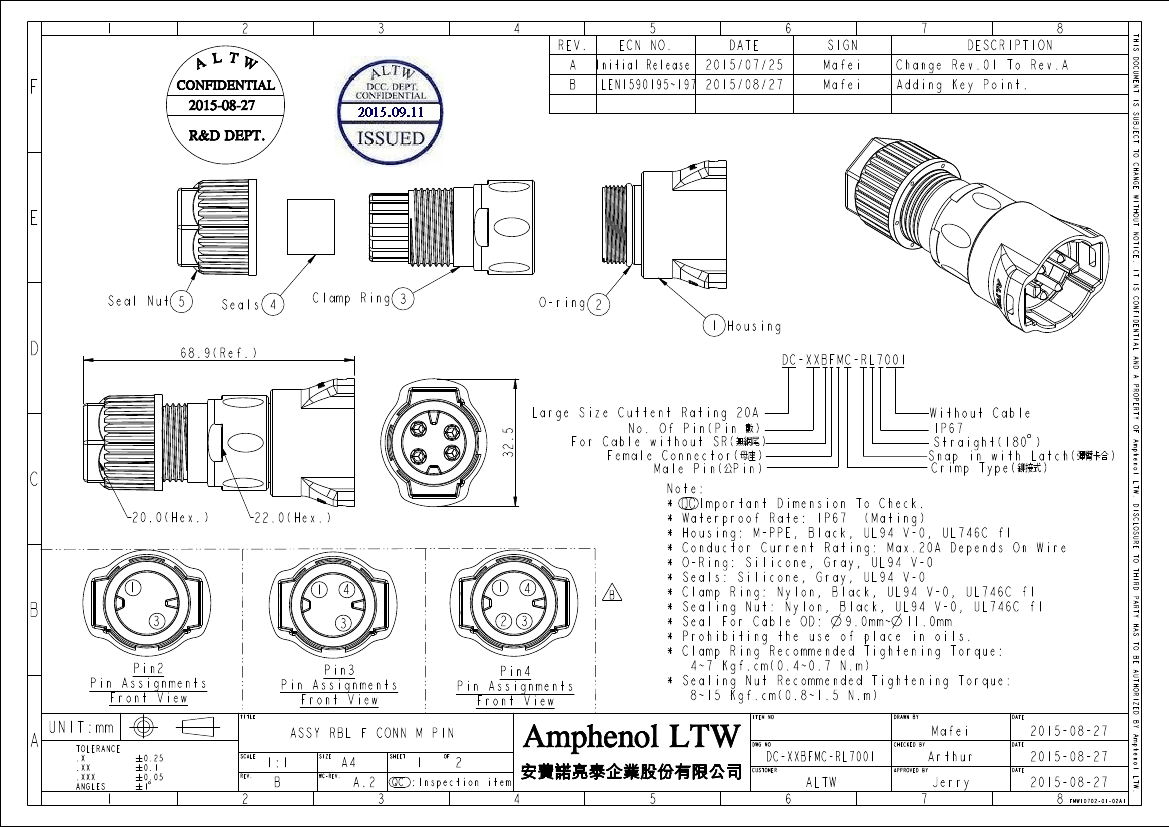

Note:
* Important Dimension To Check.
QC
* Waterproof Rate: IP67 (Mating)
* Housing: M-PPE, Black, UL94 V-0, UL746C f1
* Conductor Current Rating: Max.20A Depends On Wire
* O-Ring: Silicone, Gray, UL94 V-0
* Seals: Silicone, Gray, UL94 V-0
* Clamp Ring: Nylon, Black, UL94 V-0, UL746C f1
* Sealing Nut: Nylon, Black, UL94 V-0, UL746C f1
* Seal For Cable OD: n 9.0mm~ n 11.0mm
* Prohibiting the use of place in oils.
* Clamp Ring Recommended Tightening Torque:
4~7 Kgf.cm(0.4~0.7 N.m)
* Sealing Nut Recommended Tightening Torque:
8~15 Kgf.cm(0.8~1.5 N.m)
ITEM NO
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
ASSY RBL F CONN M PIN
SCALE
1:1
B
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
2
4
5
Mafei
DWG NO
CHECKED BY
DATE
2015-08-27
2015-08-27
DATE
Amphenol LTW.
DC-XXBFMC-RL7001
CUSTOMER
APPROVED BY
Arthur
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2015-08-27
8
FMW10702-01-02A1
1
2
3
4
REV.
5
ECN NO.
6
DATE
SIGN
7
DESCRIPTION
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F

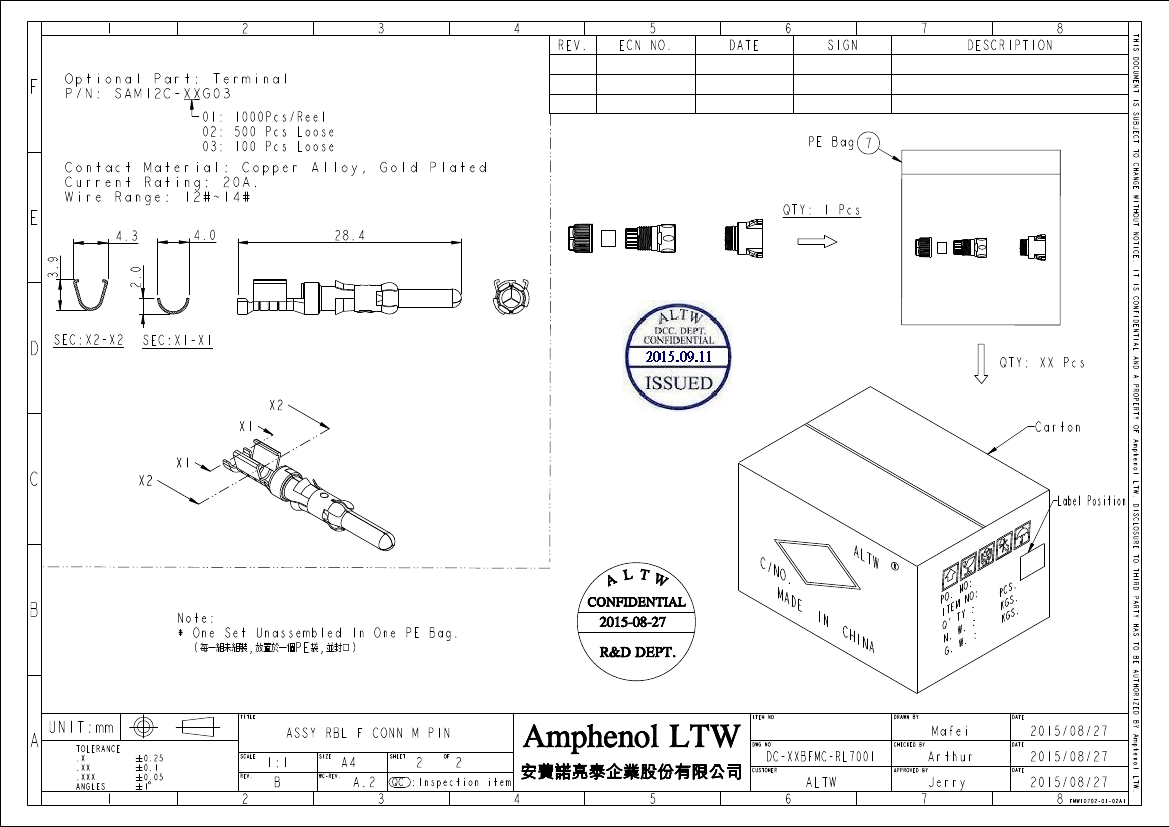

Optional Part: Terminal
P/N: SAM12C-XXG03
01: 1000Pcs/Reel
02: 500 Pcs Loose
03: 100 Pcs Loose
Contact Material: Copper Alloy, Gold Plated
Current Rating: 20A.
Wire Range: 12#~14#
PE Bag
7
E
4.3
3.9
2.0
4.0
28.4
QTY: 1 Pcs
D
SEC:X2-X2
SEC:X1-X1
QTY: XX Pcs
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
Carton
C
Label Position
T
A
L
W
B
CONFIDENTIAL
Note:
* One Set Unassembled In One PE Bag.
(每一組未組裝,放½於一個PE袋,並封口)
2015-08-27
R&D DEPT.
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE
ASSY RBL F CONN M PIN
SCALE
1:1
B
SIZE
A4
A.2
3
SHEET
2
OF
Amphenol LTW
2
4
5
ITEM NO
DRAWN BY
DATE
Mafei
DWG NO
CHECKED BY
DATE
2015/08/27
2015/08/27
DATE
Amphenol LTW.
DC-XXBFMC-RL7001
CUSTOMER
APPROVED BY
Arthur
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2015/08/27
8
FMW10702-01-02A1
