ERJ-XGEJ390Y: DescriptionThick Film Resistor - SMD 01005 39ohms 5% Halogen-free; CategoryPassive components The resistor Film resistor Thick film resistor, SMD; File Size88KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ERJ-XGEJ390Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERJ-XGEJ390Y	-	-	View	Buy Now

ERJ-XGEJ390Y Overview

Thick Film Resistor - SMD 01005 39ohms 5% Halogen-free

ERJ-XGEJ390Y Parametric

Parameter Name	Attribute value
Maker	Panasonic
Product Category	Thick Film Resistors - SMD
series	ERJ-XGE
resistance	39 Ohms
Power rating	30 mW (1/32 W)
Tolerance	5 %
Temperature Coefficient	300 PPM / C
Minimum operating temperature	- 55 C
Maximum operating temperature	+ 125 C
Voltage rating	15 V
shell code - in	01005
Shell code - mm	0402
Features	-
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
high	0.13 mm
length	0.4 mm
Package/box	-
product	Thick Film Resistors SMD
technology	Thick Film
Termination type	SMD/SMT
type	Thick Film Resistors SMD
width	0.2 mm
Installation style	PCB Mount
Factory packaging quantity	20000

Preview

Download Datasheet

View All

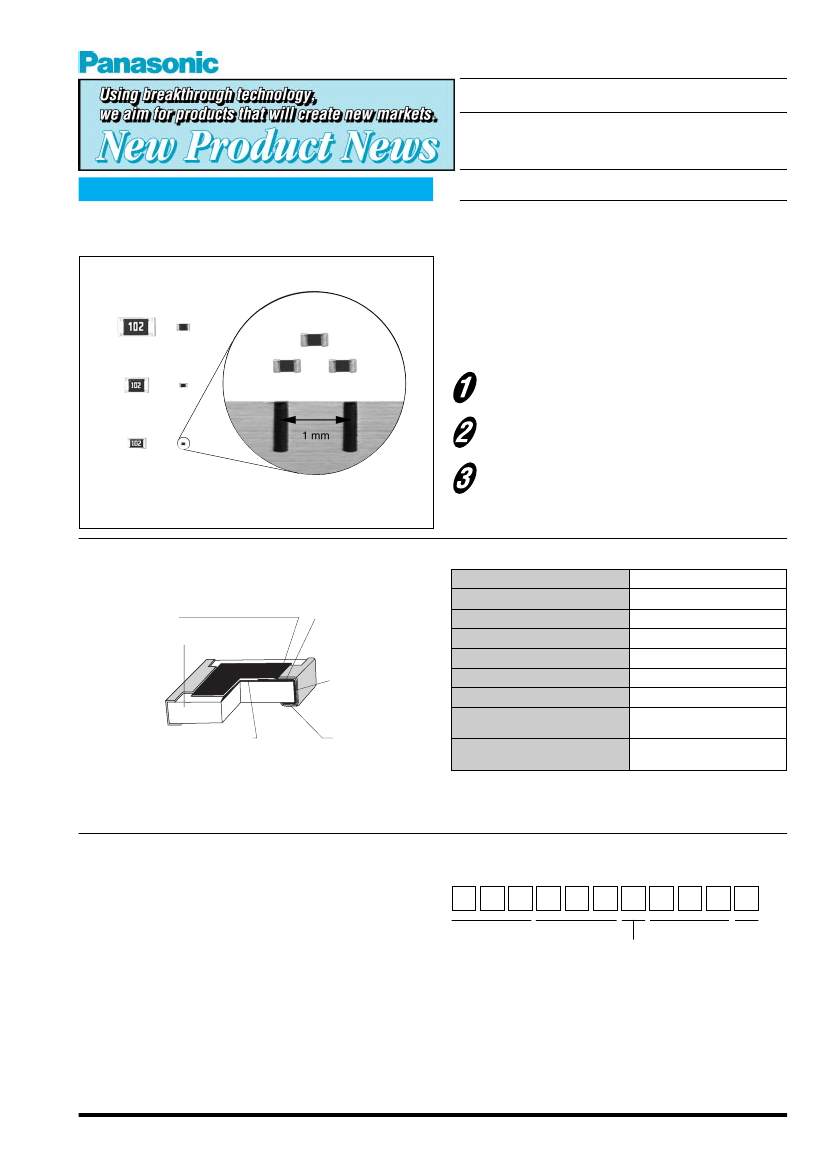

Thick Film Chip Resistor

0402(01005) Size

Thick Film Chip Resistor

The industry's smallest size

Industry/Field:

Module, Mobile communications

It reduces the mounting occupation area by the industry's smallest size.

• Development Target:

The module for small communication equipment

3216

1005

2012

0603

• Features:

Contributes to the reduction in the mounting

occupation area.

Enables narrow pitch mounting by accuracy size.

1608

0402

Achieved high reliability with metal graze

resistive element.

• Number of industrial property rights:

12(Pending)

• Construction:

• Characteristics/specifications:

Series

Dimension

Protective coating

Alumina substrate

Electrode (Inner)

ERJXGE Series

L 0.4mm×W 0.2mm×t 0.13mm

10Ω to 1MΩ

±5%

0.031W

15V

30V

10Ω to 91Ω:±300×10-

6

/°C

100Ω to 1MΩ:±200×10-

6

/°C

-55°C to +125°C

Resistance Range

Resistance Tolerance

Power Rating (70°C)

Electrode (Between)

Limiting Element Voltage (Max.RCWV)

Max. Overload Voltage

T.C.R.

Thick film resistive element

Electrode (Outer)

Category Temp.Range

(Operating Temp. Range)

• Applications/usage examples:

• The small modules;VCO(Voltage Controlled

Oscillators),PA(Power Amp) etc.

• Explanation of part numbers:

1

2

3

4

5

6

7

8

9

10

11

E

R

J

X G E

Power Rating 0.031W

J

Resistance

Tolerance

1

0

2

Y

Thick Film

Chip Resistors

Resistance Value Package

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

ERJ-XGEJ390Y Related Products

	ERJ-XGEJ390Y	ERJ-XGEJ202Y
Description	Thick Film Resistor - SMD 01005 39ohms 5% Halogen-free	Thick Film Resistor - SMD 01005 2Kohms 5% Halogen-free
Maker	Panasonic	Panasonic
Product Category	Thick Film Resistors - SMD	Thick Film Resistors - SMD
series	ERJ-XGE	ERJ-XGE
resistance	39 Ohms	2 kOhms
Power rating	30 mW (1/32 W)	30 mW (1/32 W)
Tolerance	5 %	5 %
Temperature Coefficient	300 PPM / C	200 PPM / C
Minimum operating temperature	- 55 C	- 55 C
Maximum operating temperature	+ 125 C	+ 125 C
Voltage rating	15 V	15 V
shell code - in	01005	01005
Shell code - mm	0402	0402
high	0.13 mm	0.13 mm
length	0.4 mm	0.4 mm
product	Thick Film Resistors SMD	Thick Film Resistors SMD
technology	Thick Film	Thick Film
Termination type	SMD/SMT	SMD/SMT
type	Thick Film Resistors SMD	Thick Film Resistors SMD
width	0.2 mm	0.2 mm
Installation style	PCB Mount	PCB Mount
Factory packaging quantity	20000	20000
Encapsulation	Reel	Reel
