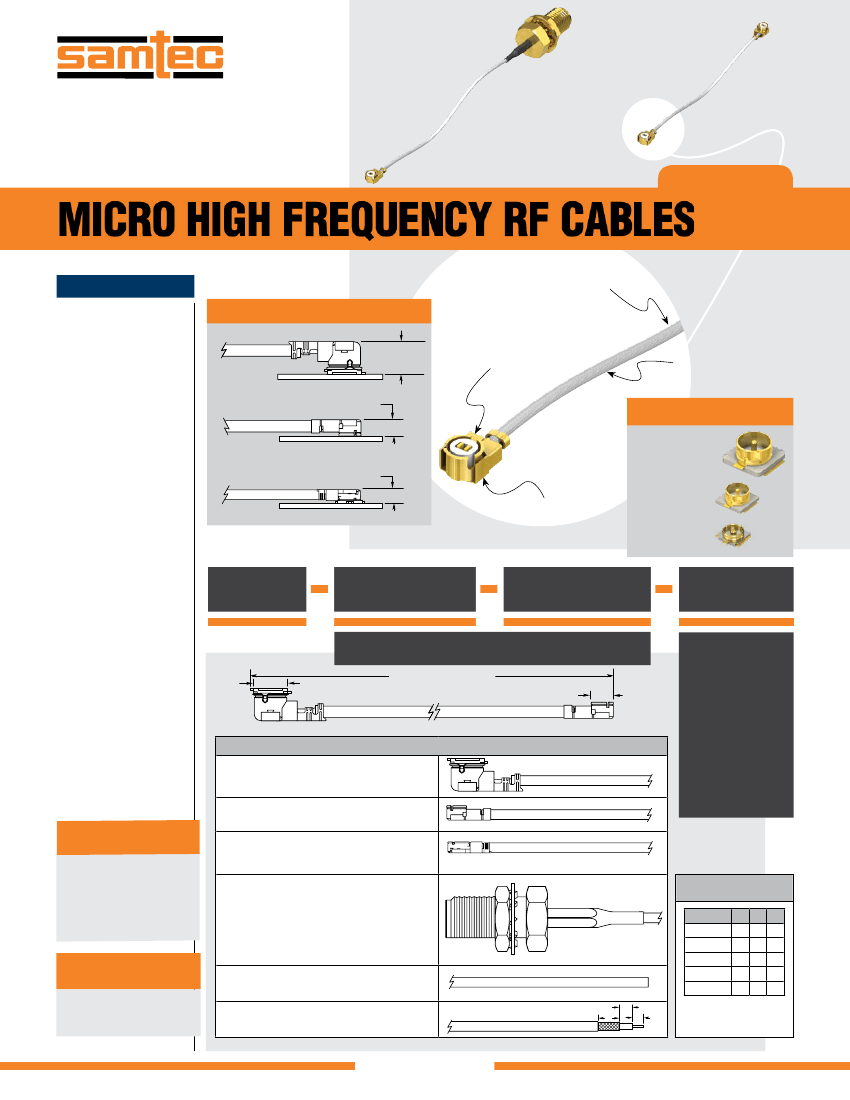

MH081 SERIES
MICRO HIGH FREQUENCY RF CABLES
SPECIFICATIONS
For complete specifications see
www.samtec.com?MH081
Outer Contact Material:
Au plated Phosphor Bronze
Center Contact Material:
Au plated Phosphor Bronze
(MHX)
Au plated BeCu (SMA)
Insulator Material:
PBT (MHX)
PTFE (SMA)
Operating Temperature:
-40 °C to +90 °C
Voltage Rating:
170 V max
Dielectric Withstanding
Voltage:
200 Vrms
Frequency Range:
0~6 GHz
Impedance:
50
W
RoHS Compliant:
Yes
U.FL and W.FL Types
APPLICATION
2.5 mm
MAX
–MH1RP
Micro High
Frequency RF,
MHF or SMA
Bulkhead
(0.81 mm) .032"
Diameter Cable
1.55 mm MAX
MATING SOLUTIONS
• MH1RP end
mates with
RSP-122811-01
(Cycles: 30 max.)
• MH3RP end
mates with
RSP-122811-02
• MH4RP end
mates with
RSP-122811-03
–MH3RP
1.2 mm MAX
–MH4RP
0.81 mm Cable:
Impedance:
50
W
Capacitance:
100 pF/meter
Max Attenuation
(cable only):
3.1 dB @ 1 GHz
Conductor Size:
36 AWG, (0.81 mm) .032" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
1.40
W/meter
max
Insulator Diameter:
(0.4 mm) .016"
Insulator Material:
FEP
Shield Material:
Silver Plated Copper
Jacket Material:
PFA
Jacket Diameter:
(0.81 mm) .032" dia.
Bend Radius:
5.0 mm
Jacket Temp Rating:
-40 °C to +90 °C
RoHS Compliant:
Yes
Mating PCB
connectors
available
MH081
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
Specify END OPTIONS from chart
(2.69)
.106
DIA
º
XXXX = OAL (millimeters)
(1.64)
.064
DIA
= 1.18" (30 mm)
–0030
–0050
–0100
–0150
–0300
= 1.97" (50 mm)
–MH1RP–MH3RP SHOWN
END OPTIONS
–MH1RP = MHF1 Type Plug
(3.9 µ" (0.1 µm) Gold on Center Contact,
1.9 µ" (0.05 µm) Gold on Shell)
–MH3RP = MHF3 Type Plug
(3.9 µ" (0.1 µm) Gold on Center Contact,
1.9 µ" (0.05 µm) Gold on Shell)
–MH4RP = MHF4 Type Plug
(10 µ" (0.25 µm) Gold on Center Contact,
1.9 µ" (0.05 µm) Gold on Shell)
(End 1 MH4RP only available with End 2 MH4RP)
–01BJ1 = SMA
Straight Bulkhead Jack
–01BJ2 = SMA
Straight Bulkhead Jack,
Reversed Polarity
–01SB1 = SMA
Straight Jack, Sealed Bulkhead
–01SR1 = SMA
Straight Jack, Sealed Bulkhead,
Reversed Polarity
(30 µ" (0.76 µm) Gold on Center Contact,
Gold Flash on Shell)
–SING =
Single Ended
(End 2 callout)
XXXXXX =
Stripped & Tinned
(End 2 callout)
Due to technical progress, all designs, specifications and components are subject to change without notice.
B
C
A
= 3.94" (100 mm)
= 5.91" (150 mm)
= 11.81" (300 mm)
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
• Additional end connector
combinations
• Overall lengths
Contact Samtec.
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT A
–303030
3.0
–303040
3.0
–403030
4.0
–403040
4.0
–404040
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
EXTRACTION
TOOLS
• –MH1RP = RSP-122893-01
• –MH3RP = RSP-122893-02
• –MH4RP = RSP-122893-03
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
