ERF5-050-07.0-L-DV-TR datasheet, PDF

Datasheet> All Categories > The connector> Surface plate and sandwich connector> ERF5-050-07.0-L-DV-TR

ERF5-050-07.0-L-DV-TR: DescriptionBoard-to-Board and Mezzanine Connectors0.50 mm Edge Rate Rugged High-Speed Socket Strip; CategoryThe connector Surface plate and sandwich connector; File Size893KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ERF5-050-07.0-L-DV-TR Overview

Board-to-Board and Mezzanine Connectors0.50 mm Edge Rate Rugged High-Speed Socket Strip

ERF5-050-07.0-L-DV-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Board-to-Board and Mezzanine Connectors
Shipping restrictions	Mouser does not currently sell this product.
series	ERF5
Encapsulation	Reel
Factory packaging quantity	325

Preview

Download Datasheet

View All

F-219

ERF5–050–01–L–D–RA–TR

ERF5–010–01–L–D–RA–TR

ERF5–010–05.0–L–DV–K–TR

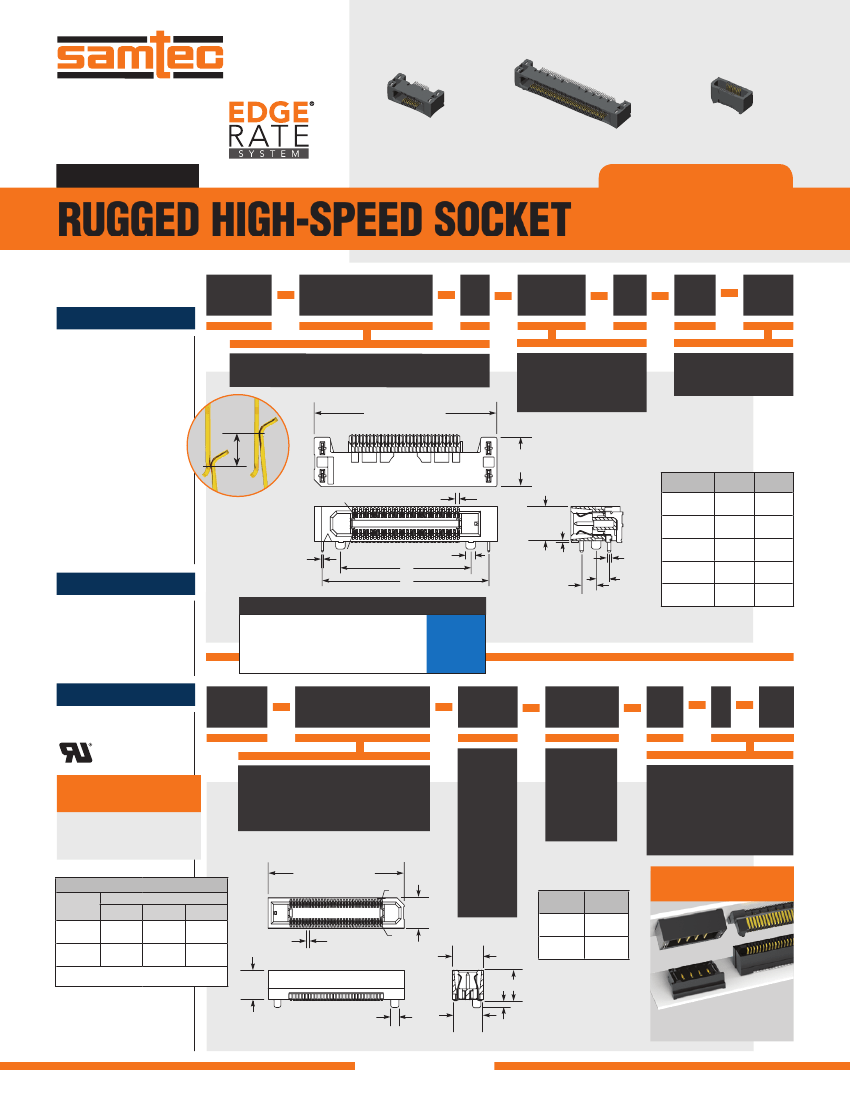

(0.50 mm) .0197"

ERF5, ERF5-RA SERIES

RUGGED HIGH-SPEED SOCKET

Mates with:

ERM5

ERF5

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?ERF5 or

www.samtec.com?ERF5-RA

Insulator Material:

Black LCP

Terminal Material:

BeCu

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (-DV to -DV):

1.5 A per pin

(2 pins powered)

Current Rating (-DV to -RA):

1.6 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

Voltage Rating:

194 VAC mated with ERM5

RoHS Compliant:

Yes

NO. OF POSITIONS

PER ROW

PLATING

OPTION

–010, –020, –030, –040, –050

(1.00 mm)

.039"

NOMINAL

WIPE

No. of Positions x

(0.50) .0197 + (10.30) .406

(6.83)

.269

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

= Tape & Reel Packaging

–TR

NO. OF

POSITIONS

(8.00)

.315

(13.00)

.512

(18.00)

.709

(23.00)

.906

(28.00)

1.102

(13.00)

.512

(18.00)

.709

(23.00)

.906

(28.00)

1.102

(33.00)

1.299

(0.50) .0197

(4.75)

.187

–010

–020

(0.50)

.0197

(1.81)

.071

(0.30)

.012

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (010-040)

(0.13 mm) .005" max (050-075)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

(1.32) .052 DIA

(0.25)

.010

(2.00)

.079

–030

–040

–050

HIGH-SPEED CHANNEL PERFORMANCE

ERM5/ERF5 @ 7 mm Mated Stack Height

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

G b p s

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

ERF5

NO. OF POSITIONS

PER ROW

LEAD

STYLE

PLATING

OPTION

ALSO AVAILABLE

(MOQ Required)

• Friction Lock (–DV only)

• Weld Tab (–DV only)

• Other platings

–010, –020,

–030, –040, –050,

–060, –070, –075

–05.0

= 5 mm

Body

Height

–07.0

= 7 mm

Body

Height

(Available

up to 50

positions

only)

= 10 µ"

(0.25 µm)

Gold on

contact,

Matte Tin

on tail

–L

= (6.00 mm) .236" DIA

Polyimide Film Pick & Place Pad

–K

= Tape & Reel Packaging

–TR

MATED HEIGHT*

ERF5

LEAD

STYLE

ERM5 LEAD STYLE

No. of Positions x

(0.50) .0197 + (6.80) .268

–02.0

(7.00)

.276

(9.00)

.354

–04.0

(9.00)

.354

(11.00)

.433

–05.0

(10.00)

.394

(12.00)

.472

–05.0

–07.0

(4.95)

.195

(0.50)

.0197

(4.73)

.186

(1.32)

.052

DIA

LEAD

STYLE

(4.91)

.193

(6.91)

.272

POWER/SIGNAL

APPLICATION

–05.0

(4.75)

.187

–07.0

*Processing conditions will

affect mated height.

Notes:

Patented

Some lengths, styles and

options are non-standard,

non-returnable.

(4.49)

.177

(1.09)

.043

Compatible with

UMPT/UMPS for flexible

two-piece power/signal solutions

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

ERF5-075-05.0-L-DV-TR ERF5-020-07.0-L-DV-TR ERF5-050-05.0-L-DV-K-TR ERF5-020-05.0-L-DV-TR ERF5-040-

05.0-L-DV-K-TR ERF5-020-05.0-L-DV-K-TR ERF5-020-01-L-D-RA-TR ERF5-050-05.0-L-DV-TR ERF5-010-05.0-L-

DV-K-TR ERF5-030-07.0-L-DV-K-TR ERF5-030-05.0-L-DV-K-TR ERF5-070-07.0-L-DV-K-TR ERF5-010-05.0-L-DV-

TR ERF5-075-05.0-L-DV-K-TR ERF5-050-07.0-L-DV-K-TR ERF5-060-07.0-L-DV-K-TR ERF5-050-01-L-D-RA-TR

ERF5-010-01-L-D-RA-TR ERF5-020-07.0-L-DV-K-TR ERF5-040-07.0-L-DV-K-TR ERF5-030-05.0-L-DV-TR ERF5-

060-05.0-L-DV-K-TR ERF5-010-07.0-L-DV-K-TR ERF5-030-07.0-L-DV-TR ERF5-040-01-L-D-RA-TR ERF5-030-01-L-

D-RA-TR ERF5-070-05.0-L-DV-K-TR ERF5-060-05.0-L-DV-TR ERF5-010-05.0-S-DV-K-TR ERF5-075-07.0-L-DV-WT-

K-TR ERF5-005-05.0-L-DV-K-TR ERF5-005-05.0-L-DV-TR ERF5-020-05.0-S-DV-TR ERF5-060-05.0-S-DV-K-TR

ERF5-050-05.0-S-DV-TR ERF5-050-07.0-S-DV-TR ERF5-030-05.0-L-DV-WT-K-TR ERF5-030-05.0-L-DV-WT-TR

ERF5-010-05.0-S-DV-TR ERF5-050-01-S-D-RA-TR ERF5-030-01-S-D-RA-TR ERF5-030-05.0-S-DV-TR ERF5-005-

07.0-L-DV-K-TR ERF5-040-07.0-L-DV-TR ERF5-070-05.0-L-DV-TR ERF5-075-05.0-L-DV-WT-TR ERF5-075-07.0-L-

DV-K-TR ERF5-010-07.0-L-DV-TR ERF5-040-05.0-L-DV-TR ERF5-010-01-S-D-RA-TR ERF5-040-05.0-S-DV-TR

ERF5-050-07.0-S-DV-K-TR ERF5-060-07.0-S-DV-K-TR ERF5-060-07.0-L-DV-TR ERF5-020-05.0-S-DV-K-TR ERF5-

040-05.0-S-DV-K-TR ERF5-050-05.0-S-DV-K-TR ERF5-070-07.0-L-DV-TR ERF5-005-07.0-L-DV-FL-TR ERF5-020-

01-S-D-RA-TR ERF5-030-05.0-S-DV-K-TR ERF5-050-07.0-L-DV-TR ERF5-075-05.0-S-DV-K-TR ERF5-075-07.0-L-

DV-TR ERF5-010-05.0-L-DV-FL-TR ERF5-030-05.0-L-DV-FL-TR ERF5-020-05.0-L-DV-WT-TR ERF5-020-05.0-S-DV-

WT-K-TR ERF5-030-07.0-L-DV-FL-TR ERF5-075-07.0-S-DV-K-TR ERF5-020-07.0-S-DV-TR ERF5-040-05.0-L-DV-

WT-TR ERF5-050-05.0-L-DV-WT-TR ERF5-060-05.0-L-DV-WT-TR ERF5-075-05.0-S-DV-TR ERF5-010-05.0-S-DV-

WT-TR ERF5-020-05.0-L-DV-FL-TR ERF5-040-07.0-L-DV-WT-K-TR ERF5-075-07.0-L-DV-WT-TR ERF5-070-05.0-S-

DV-K-TR ERF5-040-01-S-D-RA-TR
