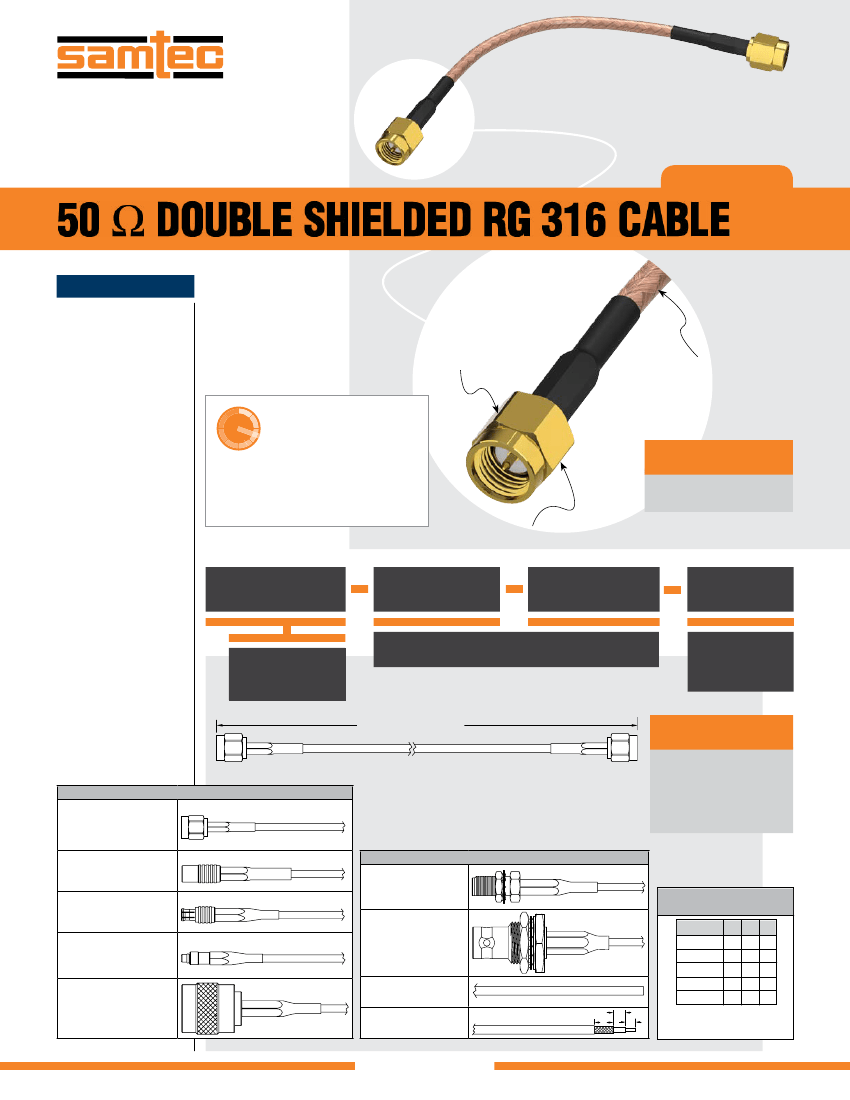

RF-18 (Rev 28JUN18)
RS316–01SP1–01SP1–0300
RS316 SERIES
50
W
DOUBLE SHIELDED RG 316 CABLE
SPECIFICATIONS
For complete specifications see
www.samtec.com?RS316
Mates with:
SMA, MCX,
MMCX, TNC, BNC5
RF Connector:
Outer Contact Material:
Ni plated Brass (BNC),
Au plated Brass (SMA),
Au plated BeCu (MCX, MMCX)
Center Contact Material:
Au plated Brass
(SMA, MCX, MMCX),
Au plated Phosphor Bronze
(BNC)
Insulator Material:
PTFE
Operating Temperature:
-50 °C to +165 °C
Impedance:
50
W
Frequency Range:
0~6 GHz
(Cable & connector dependent)
RoHS Compliant:
Yes
Straight SMA
Plugs
Double shielded for
increased shielding
effectiveness (SE)
Solutionator
DESIGN IN A MINUTE
®
• Create a full system:
cable assembly and board level mates,
50
W
and 75
W
solutions
• Free samples available
• Visit: rf.samtec.com
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
RG 316 DS Cable:
Single or
Double ended
Impedance:
50
W
Capacitance:
95.8 pF/meter
Max Attenuation
(cable only):
1.4 dB @ 2 GHz for 1 meter
Conductor Size:
26 AWG, (0.51 mm) .020" dia.
Conductor Material:
Silver Plated Copper
Clad Steel
Insulator Material:
FEP
Shield 1 Material:
Silver Plated Copper
Shield 2 Material:
Silver Plated Copper
Jacket Material:
FEP
Jacket Diameter:
(2.90 mm) .114"
Jacket Color:
Amber
Bend Radius:
12.8 mm
RoHS Compliant:
Yes
CABLE TYPE
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
= RG 316 Cable,
Double Shielded
RS316
Specify END OPTIONS from chart
= Overall Length in
millimeters –0100
(100 mm) minimum
–“XXXX”
XXXX = OAL (millimeters)
OTHER
SOLUTIONS
• Single shielded
RG 316 cable available, see
RF316 Series
• Cable connector kits
(see cable components
catalog pages)
–01SP1–01SP1 SHOWN
END OPTIONS
–01SP1 = SMA
Straight Plug
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
02SJ1 = MCX
Straight Jack
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–02SP1 = MCX
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–03SP1 = MMCX
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
05SP3 = TNC
Straight Plug
(10 µ" (0.25 µm)
Gold on Center Contact,
Nickel on Shell)
END OPTIONS
–01BJ1 = SMA
Straight Bulkhead Jack
(30 µ" (0.76 µm) Gold on
Center Contact,
Gold Flash on Shell)
–04BJ2 = BNC
Bulkhead Jack
(30 µ" (0.76 µm)
Gold on Center Contact,
Nickel on Shell)
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
B
C
A
SING
=
Single Ended
(End 2 Callout)
XXXXXX
=
Stripped & Tinned
(End 2 Callout)
Due to technical progress, all designs, specifications and components are subject to change without notice.
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
Both center conductor and
braid shield are stripped, only
the center conductor is tinned.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
