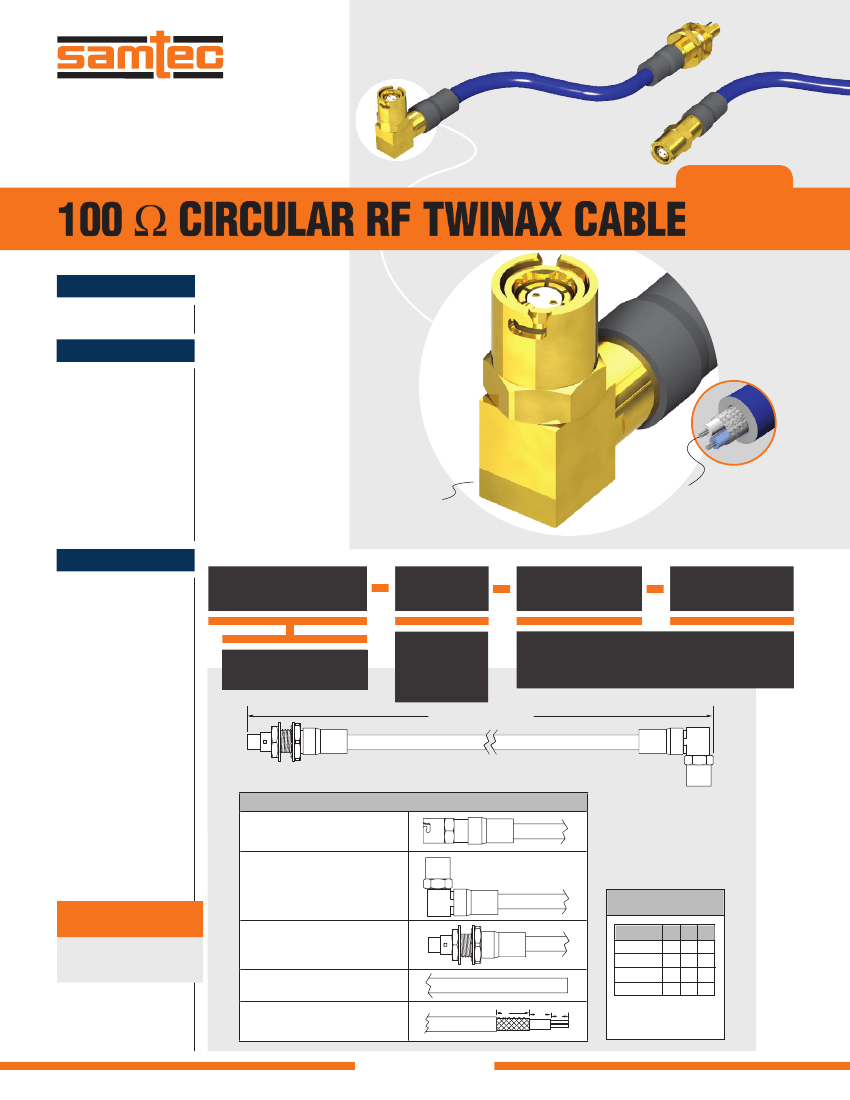

RF-18
C28S–06.00–RPS8–BJT8
C28S–04.00–SPS8–SING
C28S SERIES
100
W
CIRCULAR RF TWINAX CABLE
SPECIFICATIONS
For complete specifications
see www.samtec.com?C28S
Mates with:
CJT, C28S
RF CONNECTOR
Outer Contact Material:
Phosphor Bronze (Plug),
Brass (Jack)
Center Contact Material:
Phosphor Bronze (Terminals),
BeCu (Sockets)
Insulator Material:
PTFE
Operating Temperature:
-40 °C to +85 °C
Voltage Rating:
200 VAC
Frequency Range:
0 - 4 GHz
Impedance:
100
W
RoHS Compliant:
Yes
Right-angle or
straight end
options
28 AWG shielded
twisted pair cable
CABLE
Cable:
28 AWG shielded
twisted pair
Signal Routing:
100
W
Differential
Jacket Material:
PVC
Insulator Material:
FEP
RoHS Compliant:
Yes
TYPE
OVERALL
LENGTH
END 1
CONNECTOR
END 2
CONNECTOR
= 28 AWG shielded twisted pair
C28S
= Overall Length
in Inches
(101.6 mm) 04.00"
minimum
XX.XX = OAL (inches)
–“XX.XX”
Specify
END OPTIONS
from chart
–BJT8–RPS8 SHOWN
END OPTIONS
–SPS8
=
Straight Plug with Sockets
(30 µ" (0.76 µm) Gold on Center and Outer
Contact, Gold Flash on Shell)
–RPS8
=
Right-angle Plug with Sockets
(30 µ" (0.76 µm) Gold on Center and Outer
Contact, Gold Flash on Shell)
–BJT8
=
Bulkhead Jack with Terminals
(30 µ" (0.76 µm) Gold on Center and Outer
Contact, Gold Flash on Shell)
–SING
=
Single Ended
(End 2 callout)
–XXXXXX
=
Stripped & Tinned
(End 2 callout)
(See chart for callout)
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
Contact Samtec.
STRIPPED & TINNED
(Dimensions in inches)
CALLOUT
–303030
–303040
–403030
–403040
C
B
A
A
.30
.30
.40
.40
B
.30
.30
.30
.30
C
.30
.40
.30
.40
Note:
Cable lengths longer
than 36.00" (0.92 meter)
are not supported with
S.I. test data.
Both center conductors and
braid shield are stripped,
only the center
conductors are tinned.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
