EJH-110-01-S-D-SM-LC-13 datasheet, PDF

Datasheet> All Categories > The connector> Header and line shell> EJH-110-01-S-D-SM-LC-13

EJH-110-01-S-D-SM-LC-13: DescriptionHeader and Wire Housing.100" Shrouded IDC Ejector Header; CategoryThe connector Header and line shell; File Size792KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EJH-110-01-S-D-SM-LC-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EJH-110-01-S-D-SM-LC-13	-	-	View	Buy Now

EJH-110-01-S-D-SM-LC-13 Overview

Header and Wire Housing.100" Shrouded IDC Ejector Header

EJH-110-01-S-D-SM-LC-13 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Headers and wire housings
Shipping restrictions	Mouser does not currently sell this product.
series	EJH
Encapsulation	Tube
Factory packaging quantity	12

Preview

Download Datasheet

View All

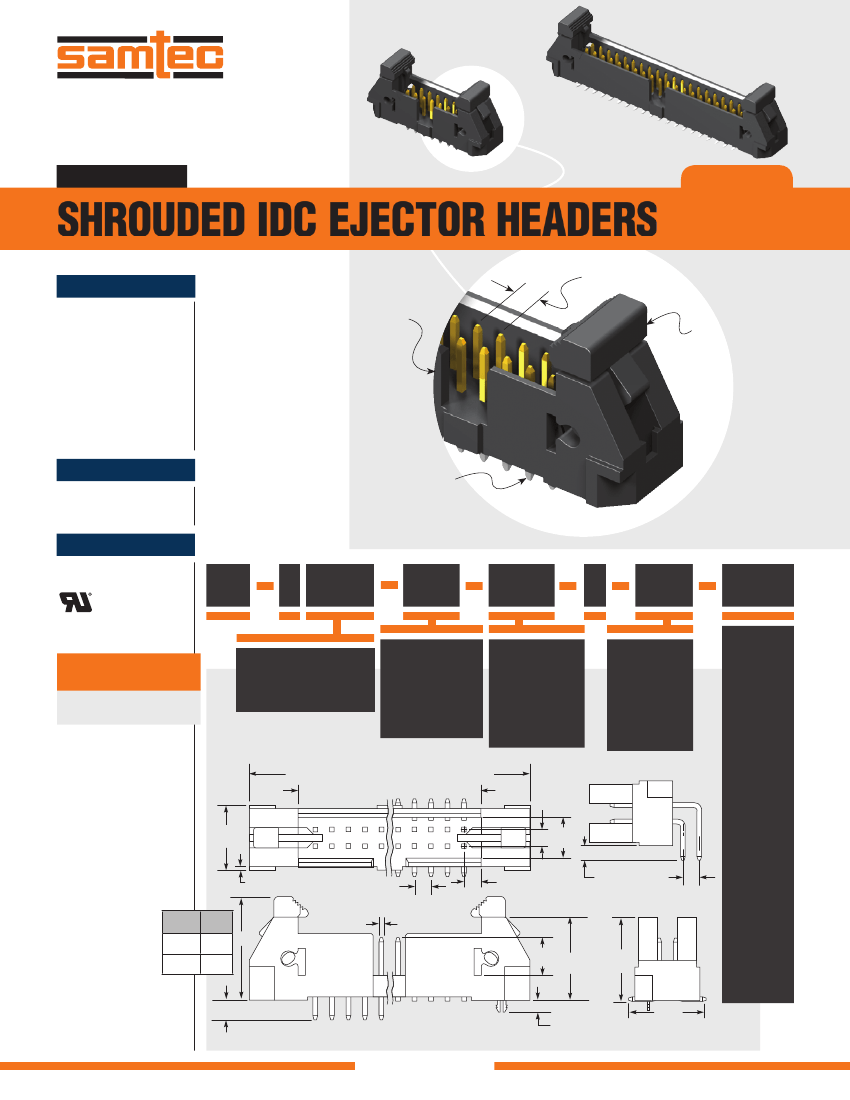

F-219

EJH–107–01–F–D–TH

EJH–120–01–L–D–SM

(2.54 mm) .100"

EJH SERIES

SHROUDED IDC EJECTOR HEADERS

SPECIFICATIONS

For complete specifications

and recommended PCB layouts

see www.samtec.com?EJH

Insulator Material:

-01: Black LCP

-02: Natural LCP

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

IDSD (EJH-01 Required),

HCSD (EJH-02 Required)

(2.54 mm)

.100" pitch

Polarized

Ejector

mechanism

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

Surface Mount,

Right-angle

or Through-hole

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

EJH

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

05, 07, 08, 10,

13, 15, 17, 20, 25

(Standard sizes)

= Standard

(Mates to IDSD)

–01

= Gold flash on post,

Matte Tin on tail

–F

= Surface Mount

–SM

–TH

= Polarized

Position

–“XX”

–LC

= Extended

(Mates to HCSD)

–02

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

–L

= Through-hole

=Right-angle

–RA

= Locking Clip

(-SM only)

(Manual

placement

required)

–01= No. of positions x (2.54) .100 + (17.63) .694

–02= No. of positions x (2.54) .100 + (20.70) .815

No. of positions x (2.54) .100 + (2.64) .104

(2.54)

.100

(6.35)

.250

(9.91)

.390

= .475"

(12.00 mm)

DIA

Polyimide

Film Pick &

Place Pad

(-SM only)

(2.3)

.09

(2.54)

.100

–RA OPTION

–K

(0.51) .020

(2.54)

.100

(0.64)

.025 SQ

(2.59)

.102 REF

LEAD

STYLE

–01

–02

= Pick &

Place Pad

(-SM only)

–P

(16.88)

.665

(17.39)

.685

(5.72)

.225 (12.70)

.500

(12.83)

.505

= Tape & Reel

Packaging

(-SM only)

(25 position

not available)

–TR

(3.05)

.120

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–LC OPTION

(1.52)

.060

(11.87)

.467

–SM OPTION

(Latch removed for clarity)

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

EJH-105-01-F-D-TH EJH-108-01-F-D-SM-LC EJH-113-01-F-D-TH EJH-105-01-S-D-TH EJH-110-01-F-D-TH EJH-

105-01-F-D-RA EJH-110-01-S-D-TH EJH-108-01-F-D-TH EJH-120-01-F-D-TH EJH-113-01-S-D-TH EJH-125-01-F-D-

TH EJH-120-01-F-D-SM EJH-107-01-S-D-TH EJH-113-01-F-D-SM-LC EJH-113-01-F-D-RA EJH-105-01-F-D-SM

EJH-105-01-F-D-SM-LC EJH-115-01-S-D-TH EJH-105-02-F-D-SM EJH-117-01-F-D-TH EJH-105-01-F-D-TH-01

EJH-120-01-S-D-TH EJH-125-01-FM-D-SM EJH-120-02-F-D-RA EJH-110-01-FM-D-SM EJH-109-01-S-D-TH EJH-

105-01-L-D-RA EJH-107-01-S-D-SM-LC-06 EJH-108-01-S-D-SM-K-TR EJH-108-01-S-D-SM-LC-P EJH-108-01-S-D-

SM-TR EJH-110-01-S-D-SM-TR EJH-113-01-S-D-SM EJH-120-01-F-D-RA-40 EJH-113-01-L-D-TH EJH-117-01-S-D-

TH EJH-120-01-S-D-SM-P EJH-125-01-FM-D-SM-LC EJH-105-01-FM-D-TH EJH-107-01-SM-D-TH EJH-108-01-F-D-

SM EJH-108-01-S-D-SM EJH-108-01-SM-D-SM EJH-110-01-F-D-SM-TR EJH-110-01-S-D-SM-P-TR EJH-113-01-

SM-D-RA EJH-125-01-FM-D-TH EJH-125-01-L-D-TH EJH-125-01-SM-D-TH EJH-105-01-FM-D-SM EJH-105-01-S-

D-SM-TR EJH-108-01-L-D-TH EJH-105-01-F-D-SM-TR EJH-110-01-FM-D-TH EJH-113-01-F-D-SM-K-TR EJH-113-

01-SM-D-SM-LC EJH-120-01-SM-D-RA EJH-105-01-S-D-SM-LC-K EJH-113-01-F-D-SM EJH-120-01-F-D-RA EJH-

120-01-L-D-TH EJH-120-01-S-D-SM-LC-P EJH-120-01-SM-D-SM-LC EJH-120-01-SM-D-TH EJH-107-01-S-D-RA

EJH-110-01-S-D-SM-K EJH-113-01-S-D-SM-LC-P EJH-117-01-L-D-RA EJH-120-01-S-D-SM-34 EJH-120-01-SM-D-

SM-LC-P EJH-125-01-L-D-RA EJH-105-01-S-D-SM-10 EJH-107-01-S-D-SM-P EJH-107-01-S-D-SM-P-TR EJH-110-

01-S-D-TH-09 EJH-110-01-SM-D-SM EJH-110-01-SM-D-SM-LC EJH-120-01-FM-D-TH EJH-120-01-L-D-RA EJH-

125-01-F-D-SM-P EJH-105-01-SM-D-RA EJH-107-01-L-D-TH EJH-107-01-S-D-SM-14 EJH-108-01-FM-D-SM-K-TR

EJH-110-01-S-D-SM-K-TR EJH-112-01-L-D-TH EJH-113-01-FM-D-SM-K-TR EJH-113-01-L-D-RA EJH-113-01-S-D-

SM-P-TR EJH-117-01-L-D-TH EJH-105-01-S-D-TH-09 EJH-108-01-L-D-RA EJH-110-01-F-D-TH-01 EJH-110-01-S-

D-SM-P EJH-113-01-FM-D-TH EJH-105-01-SM-D-SM-LC EJH-108-01-F-D-SM-P EJH-108-01-F-D-TH-01 EJH-110-

01-FM-D-SM-LC EJH-110-01-L-D-RA
