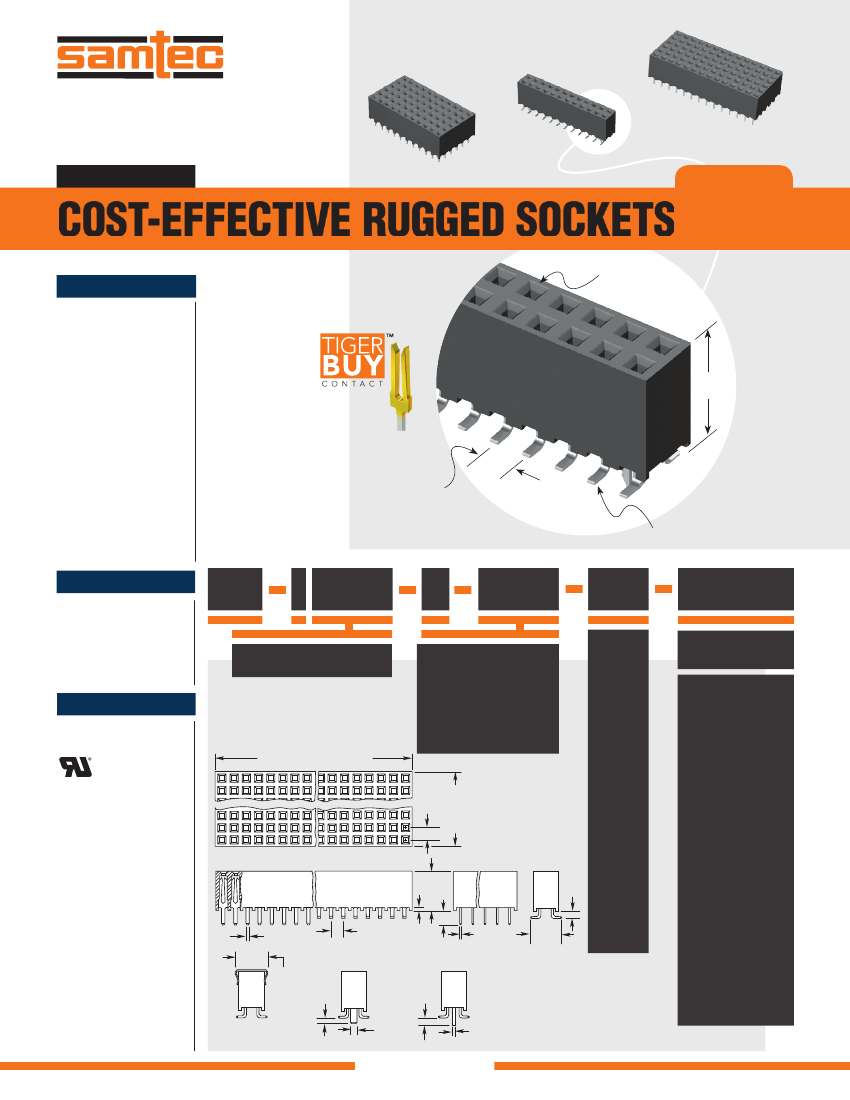

F-219
SQW–112–01–F–D–VS–LC
SQW–114–01–F–6
(2.00 mm) .0787"
SQW–111–01–L–6
SQW SERIES
COST-EFFECTIVE RUGGED SOCKETS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SQW
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Current Rating (SQW/TMMH):
3.8 A per pin
(2 pins powered)
Voltage Rating:
281 VAC mated with TMM;
250 VAC mated with TMMH
Operating Temp Range:
-55 °C to +125 °C
Insertion Depth:
(2.62 mm) .103" to
(5.03 mm) .198" with
(0.38 mm) .015" wipe
Max Cycles:
100 with 10 µ" (0.25 µm) Au
RoHS Compliant:
Yes
Board Mates:
TMMH, TMM,
MTMM, MMT, TW,
TSH, LTMM, PTT
Cable Mates:
TCMD
Choice of two
through six rows
(7.62 mm)
.300"
(2.00 mm)
.0787"
pitch
Choice of surface mount
or through-hole
PROCESSING
Lead–Free Solderable:
Yes, for -D & -D-VS
(Wave only for -T, -Q, -5 & -6)
SMT Lead Coplanarity:
(0.10 mm) .004" max (02-10)
(0.15 mm) .006" max (11-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
SQW
1
NO. PINS
PER ROW
01
PLATING
OPTION
ROW
OPTION
OPTION
02 thru 50
= Gold flash on contact,
Matte Tin on tail
–F
= Double
Row
–D
= Polarized Position
–D–VS only options:
= Alignment Pin
(5 positions minimum)
Metal or plastic at
Samtec discretion.
(N/A with -LC)
–“XXX”
–A
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
300
FILE NO. E111594
No. of positions x
(2.00) .0787 + (0.30) .012
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
06
–L
–D–VS
= Double
Row
Surface
Mount
(2.00) No. of
.0787 rows
TYP
x
(2.00)
.0787
295
01
= Triple
Row
–T
= Four
Row
–Q
–5
–6
= Locking Clip
(5 positions minimum)
(N/A with -A)
(Manual placement
required)
–LC
(6.35)
.250
(2.00)
.0787
(0.38)
(0.25)
.015
(2.29) .010 TYP
.090
–D, –T, –Q,
–5, –6
(1.27)
.050
(0.25)
.010
x
(1.42)
.056
(1.27)
.050
= Five
Row
= (4.25 mm) .167" DIA
Polyimide Film
Pick & Place Pad
(4 positions minimum)
–K
(0.51) .020
(4.74)
.187
–D–VS
= Six
Row
= Pick & Place Pad
(4 positions minimum)
–P
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(5.72)
.225
x
(5.13)
.202
–P OPTION
(0.89)
.035
(1.09)
.043
DIA
–A OPTION
= Tape & Reel
Packaging
(4 thru 28 positions only)
–TR
–LC OPTION
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
