RF058-05SR3-06SP2-2000

Description
RF Cable Assembly 50 Ohm RG58 Cable Assembly
CategoryThe connector    Connector bracket
File Size196KB，2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

RF058-05SR3-06SP2-2000 Online Shopping

Suppliers Part Number Price MOQ In stock
RF058-05SR3-06SP2-2000 - - View Buy Now

RF058-05SR3-06SP2-2000 Overview

RF Cable Assembly 50 Ohm RG58 Cable Assembly

RF058-05SR3-06SP2-2000 Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
Factory Lead Time3 weeks
Connector bracket typeCABLE ASSEMBLY
Base Number Matches1

Preview

Download Datasheet

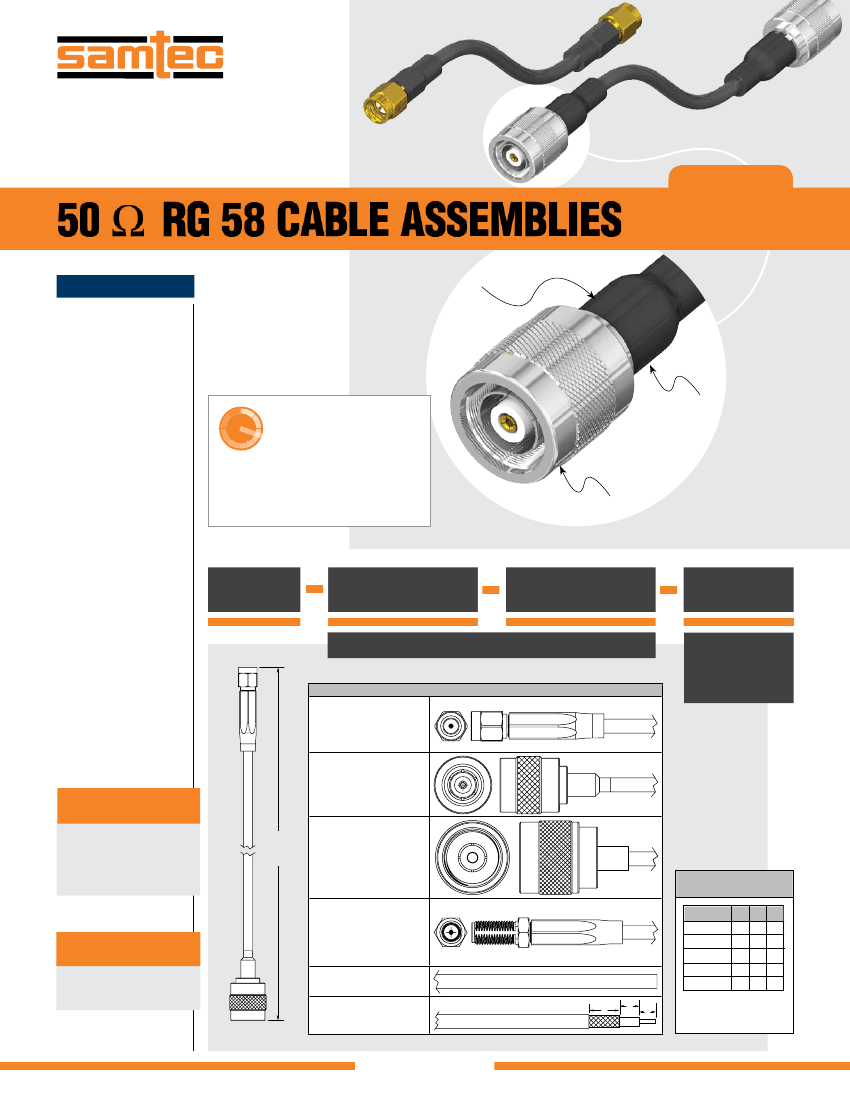

RF-18 (Rev 28JUN18)
RF058–01SP1–01SP1–0100
RF058–05SR3–05SR3–0100
RF058 SERIES
50
W
RG 58 CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?RF058
Mates with:
TNC, SMA
20 AWG
RG 58 coax cable
RF Connector:
Outer Contact Material:
Ni plated Brass (TNC, N Type),
Au plated Ni (SMA)
Center Contact Material:
Au plated Ni (TNC, N Type),
Au plated Brass (SMA)
Insulator Material:
PTFE
Frequency Range:
0~1 GHz
Impedance:
50
W
RoHS Compliant:
Yes
Solutionator
DESIGN IN A MINUTE
®
Single or Double
Ended
RG 58 Cable:
Impedance:
50
W
Capacitance:
102 pF/meter
Max Attenuation
(cable only):
0.8 dB @ 1 GHz
Conductor Size:
20 AWG, (0.90 mm) .036" dia.
Conductor Material:
Tinned Copper
Insulator Diameter:
(3.00 mm) .076"
Insulator Material:
Solid Polyethylene
Shield Material:
Tinned Copper
Jacket Material:
PVC
Jacket Diameter:
(5.00 mm) .197" dia.
Bend Radius:
48.3 mm
Jacket Temp Rating:
-50 ˚C to +90 ˚C
RoHS Compliant:
Yes
• Create a full system:
cable assembly and board level mates,
50
W
and 75
W
solutions
• Free samples available
• Visit: rf.samtec.com
SMA, TNC or N Type
end options
RF058
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
Specify END OPTIONS from chart
END OPTIONS
–01SP1 = SMA
Straight Plug
(30 µ" (0.76 µm) Gold
on Center Contact,
Gold Flash on Outer
Contact and Shell)
–05SR3 = TNC
Reversed Polarity
Straight Plug
(10 µ" (0.25 µm) Gold
on Center Contact,
Nickel on Shell)
= Overall Length
in millimeters
–0100 (100 mm) 3.94"
minimum
–“XXXX”
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
• Additional plating options
• Additional end
connector options
XXXX =
OAL
(millimeters)
–06SP3 = N Type
Straight Plug
(10 µ" (0.25 µm) Gold
on Center Contact,
Nickel on Shell)
–01BJ1 = SMA
Straight Bulkhead Jack
–01SB1 = SMA
Straight Bulkhead Jack, Sealed
(30 µ" (0.76 µm) Gold on
Center Contact, Gold Flash
on Outer Contact and Shell)
–SING
=
Single Ended
(End 2 Callout)
–XXXXXX
=
Stripped & Tinned
(End 2 Callout)
C
B
A
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
OTHER
SOLUTIONS
• Cable connector kits
(see cable components
catalog pages)
–05SR3–01SP1
SHOWN
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
