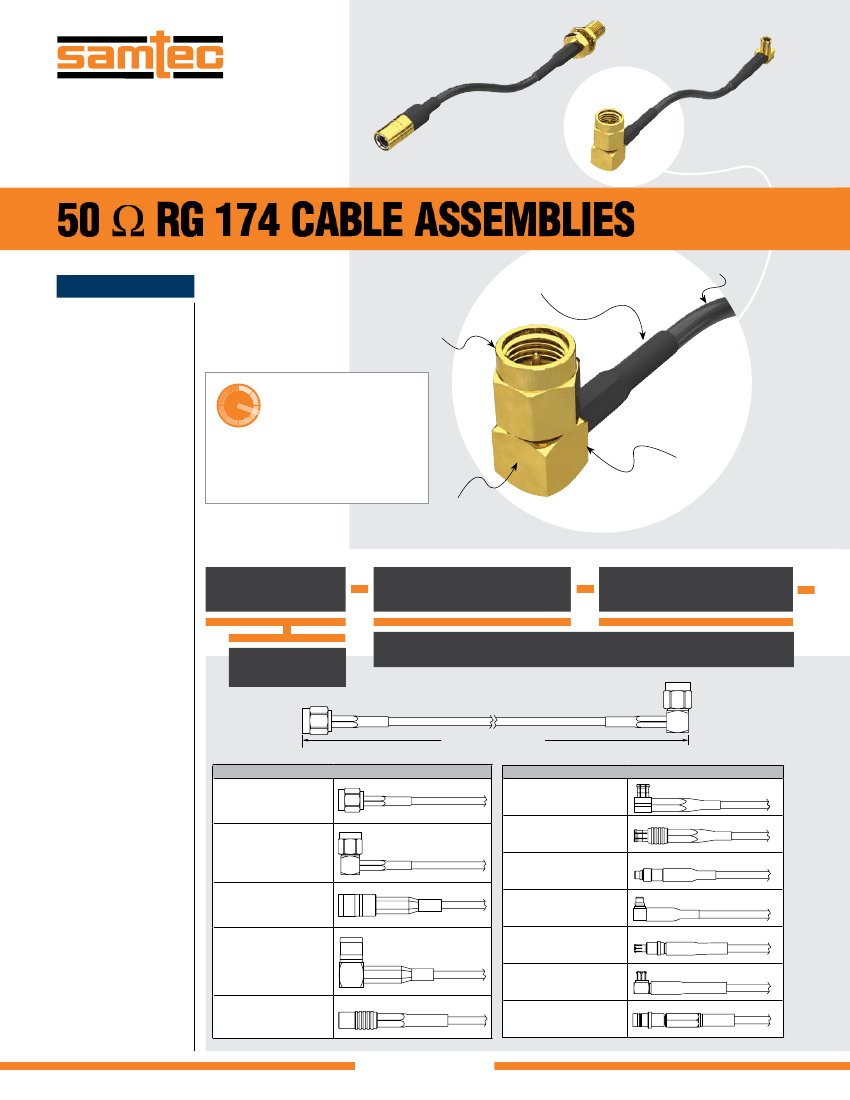

RG 174 CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications see
www.samtec.com?RF174
Mates with:
MCX, MMCX, MMCXV,
SMA, SMB5, BNC5,
TNC
Standard performance 26 AWG
RG 174 coax cable
Plugs and
Jacks
2.3dK
RF Connector:
Outer Contact Material:
Ni plated Brass (BNC)
Au plated Brass (SMB & SMA)
Au plated BeCu (MCX & MMCX)
Center Contact Material:
Au plated Brass (BNC-P, MCX-P,
MMCX-P & SMA-P)
Au plated BeCu
(SMB-P & SMA-J)
Au plated Phos. Bronze (BNC-J)
Insulator Material:
PTFE
Operating Temperature:
-50 °C to +90 °C
Impedance:
50
W
Frequency Range:
0~6 GHz
(Cable & connector dependent)
RoHS Compliant:
Yes
Solutionator
DESIGN IN A MINUTE
®
• Create a full system:
cable assembly and board level mates,
50
W
and 75
W
solutions
• Free samples available
• Visit: rf.samtec.com
Single or
Double Ended
Straight or
Right-angle
RG 174 Cable:
Impedance:
50
W
Capacitance:
101.024 pF/meter
Max Attenuation
(cable only):
1.4 dB @ 1 GHz for 1 meter
Conductor Size:
26 AWG, (0.48 mm) .019" dia.
Conductor Material:
Copper
Insulator Material:
KLPE
Shield Material:
Tin Copper
Jacket Material:
PVC
Jacket Diameter:
(2.70 mm) .106"
Jacket Color:
Black
Bend Radius:
25.4 mm
RoHS Compliant:
Yes
CABLE TYPE
END 1
CONNECTOR
END 2
CONNECTOR
= RG 174 Cable
–01SP1–01RP1 SHOWN
RF174
Specify END OPTIONS from chart
XXXX = OAL (millimeters)
END OPTIONS
–01SP1 = SMA
Straight Plug
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–01RP1 = SMA
Righ-angle Plug
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–07SP1 = SMB
Straight Plug
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–07RP1 = SMB
Righ-angle Plug
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–02SJ1 = MCX
Straight Jack
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
END OPTIONS
–02RP1 = MCX
Right-angle Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–02SP1 = MCX
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–03SP1 = MMCX
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–03RP1 = MMCX
Right-angle Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–V3SP1 = MMCXV
Straight Plug, High Vibration
(30 µ" (0.76 µm) Gold on Center
Contact, Nickel on Shell)
–V3RP1 = MMCXV
Right-angle Plug, High Vibration
(30 µ" (0.76 µm) Gold on Center
Contact, Nickel on Shell)
–V3SJ1 = MMCXV
Straight Jack, High Vibration
(30 µ" (0.76 µm) Gold on Center
Contact, Nickel on Shell)
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
RF174–02RP1–02SP1–0200
RF174–03RP1–07RP1–0200
RF174–04BJ2–07SP1–0100

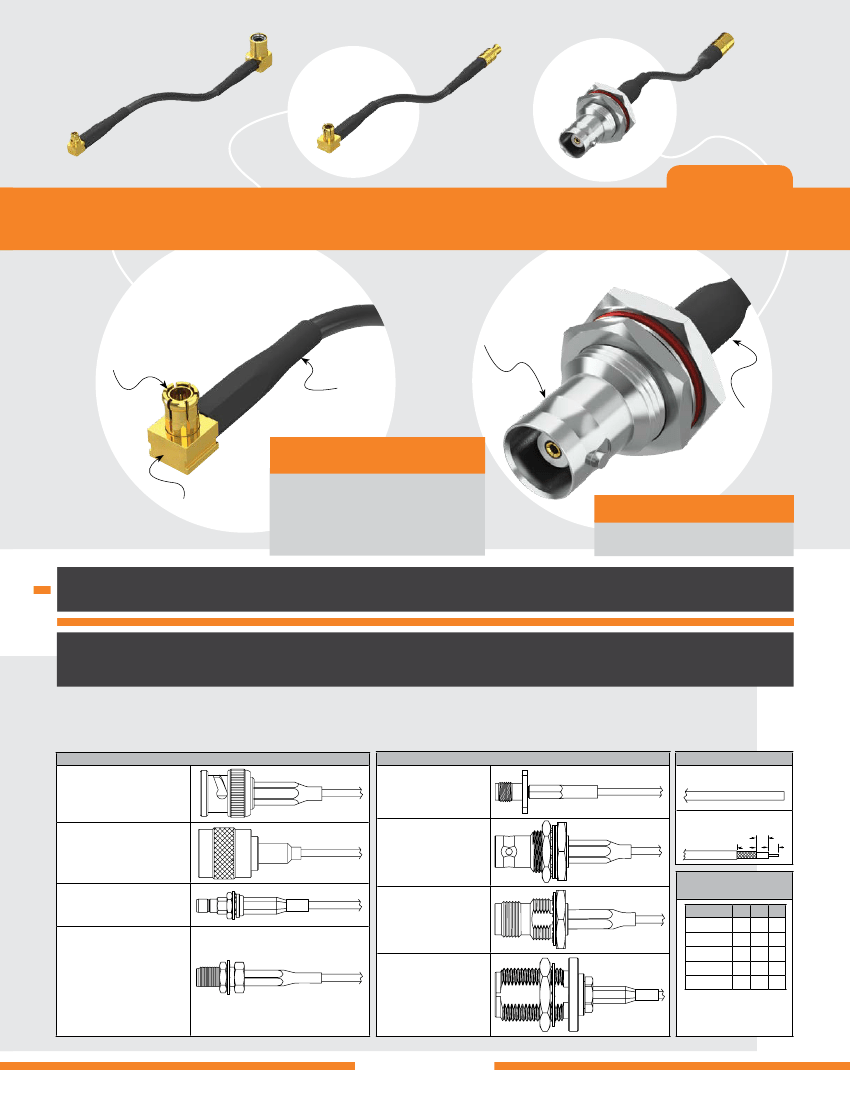

RF174 SERIES
Heavy Gold
plated
Standard heat
shrink wraps
Variety of
Bulkhead Jacks
Single or
Double ended
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and tinning options
• IP67 TNC option
• Additional plating options
• Additional end connector combinations
• Knurled nuts with BNC option
Choice of RF
connector styles
OTHER SOLUTIONS
• Cable connector kits
(see cable components catalog pages)
OVERALL LENGTH
= Overall Length in millimeters –0100 (100 mm) minimum
(Cable lengths larger than 1000 millimeters are not supported by S.I. Test data)
–“XXXX”
END OPTIONS
–04SP3 = BNC
Straight Plug
(10 µ" (0.25 µm)
Gold on Center Contact,
Nickel on Shell)
–05SP3 = TNC
Straight Plug
(10 µ" (0.25 µm)
Gold on Center Contact,
Nickel on Shell)
–07BJ1 = SMB
Bulkhead Jack (30 µ" (0.76 µm)
Gold on Center Contact,
Gold flash on Shell)
–01BJ1 = SMA
Straight Bulkhead Jack
–01SB1 = SMA
Straight Bulkhead Jack, Sealed
–01SR1 = SMA
Straight Bulkhead Jack, Sealed,
Reversed Polarity
–01BR1 = SMA
Straight Bulkhead Jack,
Reversed Polarity
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–01PN1 = SMA
4-Hole Panel Mount Jack
(30 µ" (0.76 µm)
Gold on Center Contact,
Gold Flash on Shell)
–04BJ2 = BNC
Bulkhead Jack
(30 µ" (0.76 µm)
Gold on Center Contact,
Nickel on Shell)
END OPTIONS
END OPTIONS
–SING
= Single Ended
(End 2 Callout)
XXXXXX
= Stripped & Tinned
(End 2 Callout)
B
C
A
STRIPPED & TINNED
(Dimensions in mm)
–05BJ3 = TNC
Bulkhead Jack
(10 µ" (0.25 µm)
Gold on Center Contact,
Nickel on Shell)
–06BJ2 = N Type
Bulkhead Jack
(30 µ" (0.76 µm)
Gold on Center Contact,
Nickel on Shell)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
