EHF-110-01-LM-D-SM-LC datasheet, PDF

Datasheet> All Categories > The connector> Header and line shell> EHF-110-01-LM-D-SM-LC

EHF-110-01-LM-D-SM-LC: DescriptionHeader and Wire Housing.050" Shrouded IDC Ejector Header; CategoryThe connector Header and line shell; File Size641KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EHF-110-01-LM-D-SM-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EHF-110-01-LM-D-SM-LC	-	-	View	Buy Now

EHF-110-01-LM-D-SM-LC Overview

Header and Wire Housing.050" Shrouded IDC Ejector Header

EHF-110-01-LM-D-SM-LC Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Headers and wire housings
Shipping restrictions	Mouser does not currently sell this product.
series	EHF
Encapsulation	Tube
Factory packaging quantity	20

Preview

Download Datasheet

View All

F-219

SHF–110–01–L–D–RA

ESHF–125–01–L–D–SM–LC

EHF–108–01–F–D–SM–LC

ESHF–105–01–L–D–SM

(1,27 mm) .050"

(1.27

EHF–125–01–L–D–SM–LC

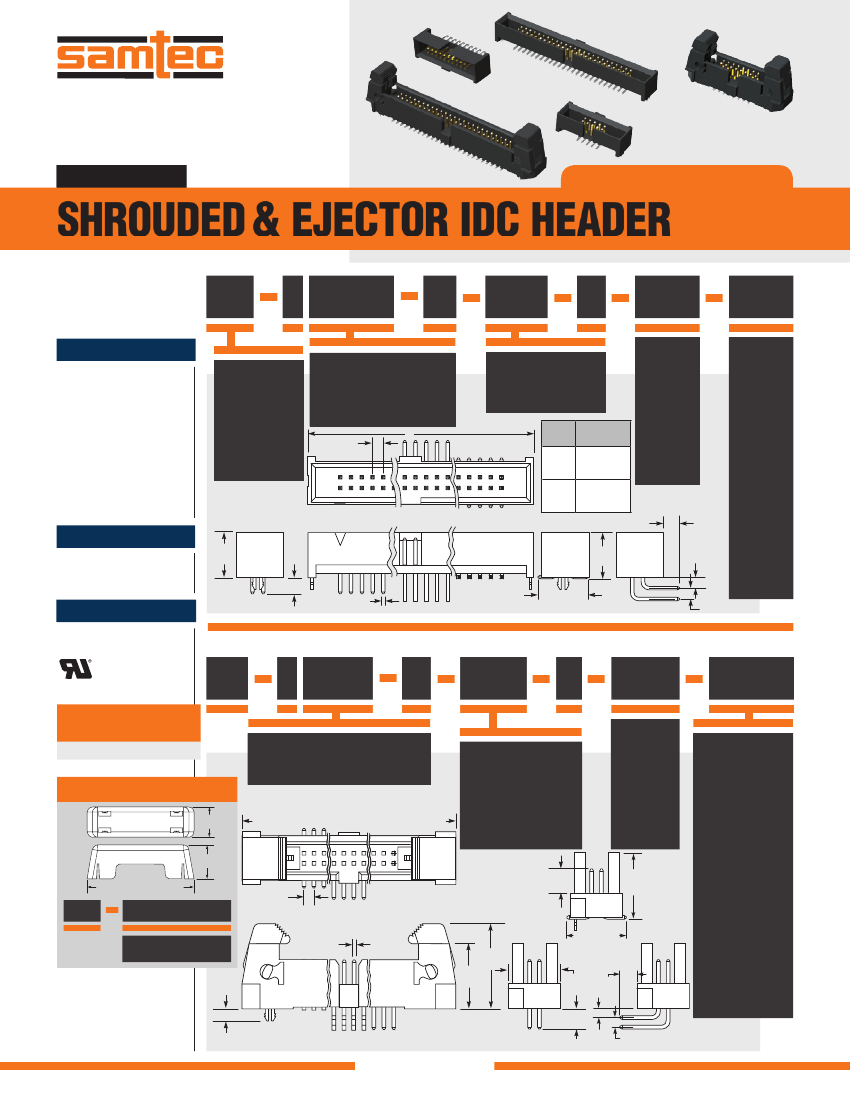

SHF, ESHF, EHF, ECF SERIES

SHROUDED & EJECTOR IDC HEADER

SHF, ESHF Mates with:

FFSD, FFTP (SHF)

EHF Mates with:

FFSD*, FFTP

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

TAIL

STYLE

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?SHF,

www.samtec.com?ESHF or

www.samtec.com?EHF

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

= Mates with

FFSD without

Strain Relief

SHF

04, 05, 06, 08,

10, 11, 12, 13,

15, 17, 20, 25

(Standard sizes)

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

TYPE

STRIP

No. of pins x

(6.35) .250

–L

= Through-

hole

–TH

–RA

= Mates with

FFSD with

Strain Relief

ESHF

= Right-

angle

(1.27)

.050 TYP

02 04

SHF

(1.27) .050 +

ESHF

(1.27) .050 +

No. of pins x

(10.16) .400

= Surface

Mount

–SM

= Locking

Clip

(Not available

with –RA)

(Manual

placement

required)

–LC

= Tape &

Reel

Packaging

(2.15)

.085

–TR

–K

01 03

–TH

(5.33)

.210

(1.91)

.075

(0.41) .016 SQ

–RA

–SM

(5.46)

.215

(5.85) .230

–SM

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

(1.27)

.050

= (6.50 mm)

.256" DIA

Polyimide

Film Pick &

Place Pad

(–SM only)

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

–TH

–RA

(1.27)

.050

EHF

NO. PINS

PER ROW

PLATING

OPTION

TAIL

OPTION

Leave blank

for Through-

Hole version

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other sizes

04, 05, 08, 10,

13, 17, 20, 25

(Standard sizes)

(Locks FFSD cable to EHF header)

(8.76)

.345

EJECTOR HEADER CAP

= Gold flash on post,

Matte Tin on tail

–F

–L

= Surface

Mount

–SM

= Polarized Position

(–RA not available)

–“XX”

–LC

No. of positions x (1.27) .050 + (14.48) .570

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

= Right-angle

–RA

= Locking Clip

(–SM only)

(Manual placement

required)

(9.65)

.380

No. of positions x (1.27) .050

+ (18.03) .710

ECF

NO. PINS PER ROW

05, 08, 10,

13, 17, 20, 25

(1.27)

.050

(3.05)

.120

(8.51)

.335

= (7.50 mm) .295" DIA

Polyimide Film Pick

& Place Pad

–K

–P

–SM

–RA

–TH

(7.52) .296

(0.41)

.016 SQ

(1.52)

.060

*Important Note:

EHF will not mate to FFSD

with strain relief (-SR option),

see ESHF series.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(11.30)

.445

(8.26)

.325

–SM

(6.67)

(2.29)

.263

.090

(2.72)

.107

(1.27)

.050

= Pick & Place Pad

(–SM only)

= Tape & Reel

Packaging

(–LC not available)

(1.27) .050

–RA

–TR

–LC

–TH

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

EHF-125-01-L-D EHF-108-01-L-D EHF-110-01-L-D EHF-105-01-F-D-SM-LC EHF-117-01-F-D-SM-LC EHF-120-01-

F-D-SM-LC EHF-125-01-L-D-SM-LC EHF-105-01-L-D-SM-LC EHF-108-01-F-D EHF-108-01-L-D-SM-LC EHF-120-

01-L-D-SM-LC EHF-113-01-F-D-SM-LC EHF-117-01-L-D EHF-125-01-F-D EHF-120-01-L-D EHF-117-01-L-D-SM-LC

EHF-105-01-F-D-SM EHF-120-01-L-D-SM EHF-105-01-L-D-SM EHF-110-01-F-D-SM-LC EHF-113-01-L-D-SM

EHF-125-01-F-D-SM-LC EHF-113-01-L-D-SM-LC EHF-105-01-L-D-SM-P EHF-113-01-L-D EHF-117-01-L-D-RA

EHF-125-01-L-D-SM-P EHF-125-01-F-D-SM EHF-105-01-F-D-SM-P-TR EHF-108-01-F-D-RA EHF-125-01-L-D-SM

EHF-108-01-L-D-SM EHF-105-01-L-D-SM-K-TR EHF-110-01-L-D-SM-P-TR EHF-105-01-F-D EHF-110-01-F-D-SM-P-

TR EHF-113-01-F-D-RA EHF-120-01-L-D-SM-K-TR EHF-113-01-L-D-SM-P-TR EHF-104-01-L-D EHF-105-01-L-D-

SM-P-TR EHF-108-01-L-D-RA EHF-105-01-F-D-RA EHF-120-01-L-D-RA EHF-125-01-L-D-SM-P-TR EHF-110-01-F-

D EHF-117-01-F-D-RA EHF-125-01-F-D-SM-P-TR EHF-108-01-F-D-SM EHF-108-01-L-D-SM-K-TR EHF-105-01-L-D

EHF-120-01-F-D-RA EHF-117-01-F-D EHF-125-01-F-D-SM-K-TR EHF-113-01-F-D EHF-110-01-F-D-SM EHF-125-

01-F-D-RA EHF-120-01-L-D-SM-P EHF-120-01-L-D-SM-P-TR EHF-105-01-L-D-SM-LC-P EHF-120-01-F-D-SM EHF-

117-01-F-D-SM EHF-110-01-F-D-RA EHF-117-01-L-D-SM-K-TR EHF-113-01-L-D-SM-LC-P EHF-117-01-L-D-SM

EHF-113-01-L-D-SM-K-TR EHF-110-01-L-D-SM EHF-105-01-L-D-RA EHF-113-01-L-D-RA EHF-120-01-F-D EHF-

110-01-L-D-RA EHF-113-01-F-D-SM EHF-110-01-L-D-SM-LC-P EHF-108-01-F-D-SM-LC EHF-125-01-L-D-SM-K-TR

EHF-110-01-L-D-SM-K-TR EHF-117-01-L-D-SM-LC-P EHF-110-01-L-D-SM-LC EHF-125-01-L-D-RA EHF-108-01-L-

D-SM-P-TR EHF-110-01-F-D-SM-K-TR EHF-108-01-F-D-SM-P EHF-110-01-FM-D EHF-120-01-F-D-SM-TR EHF-

110-01-F-D-SM-P EHF-105-01-F-D-SM-LC-P EHF-108-01-LM-D-SM-K-TR EHF-108-01-F-D-SM-K-TR EHF-108-01-F-

D-SM-P-TR EHF-105-01-F-D-SM-K-TR EHF-105-01-FM-D EHF-108-01-F-D-SM-K EHF-105-01-LM-D-RA EHF-105-

01-LM-D-SM EHF-105-01-LM-D-SM-LC EHF-110-01-LM-D-SM-P-TR EHF-113-01-LM-D-SM-LC EHF-125-01-F-D-

SM-K EHF-125-01-LM-D-SM
