SQF-SDMS4-16G-S9E Overview

Solid State Drive - SSD SQF SATA DOM 630 16G SLC (-40~85 C)

SQF-SDMS4-16G-S9E Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Solid State Drive – SSD
series	SQF-SDM 630
Configuration	SLC
Factory packaging quantity	1

Preview

Download Datasheet

View All

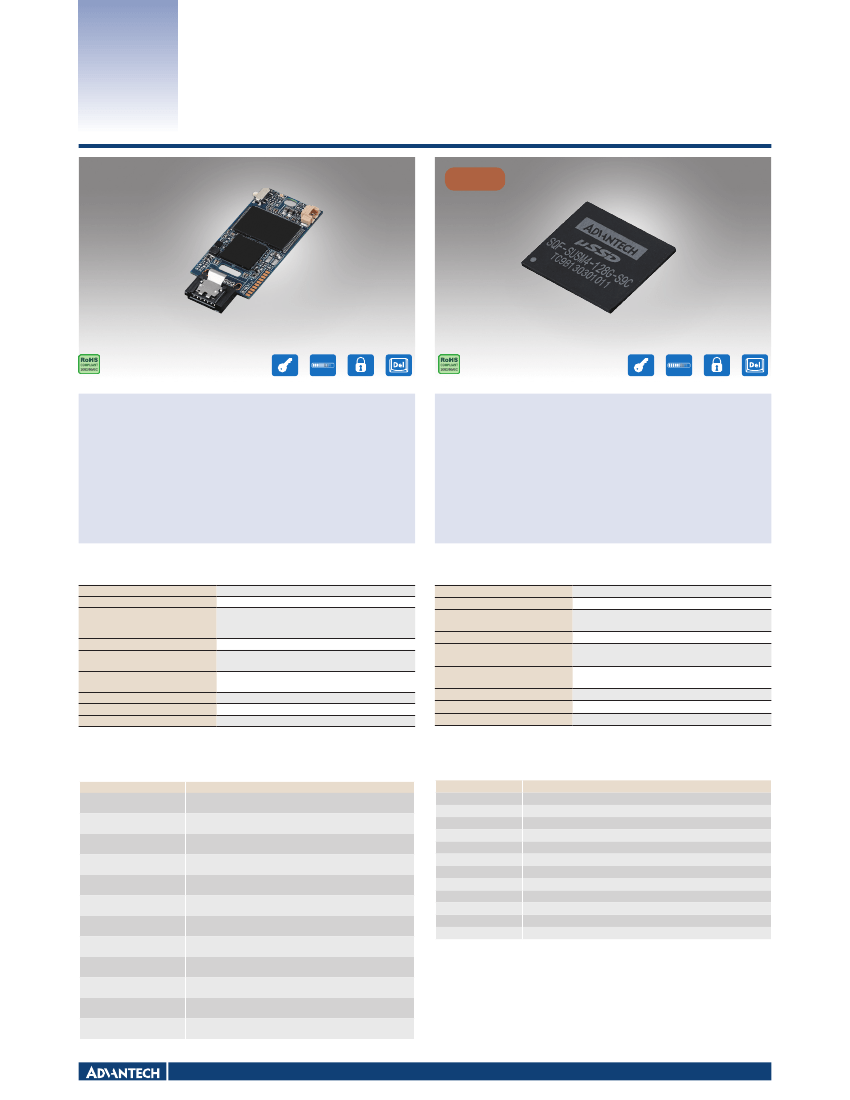

SQF-SDM

Module

630

SATA III (6.0Gb) Disk

SQF-SUS 630

SATA III (6.0Gb) Disk Module

NEW

Flash

Life

Flash Lock Emergency

Security ID Monitoring

Erase

Flash

Life

Flash Lock Emergency

Security ID Monitoring

Erase

Features

Compliant with SATA III and SATA v3.0 standard

Supports 72 bit ECC correct per 1K Byte data

Universal wear-leveling and bad block management

Shock resistance, anti-vibration and Low power consumption

GUI management tool & software API package

Supports hardware write protect

Features

Compliant with SATA III and SATA v3.0 standard

Single chip package SSD

Supports 72 bit ECC correct per 1K Byte data

Universal wear-leveling and bad block management

Shock resistance, anti-vibration and Low power consumption

GUI management tool & software API package

Specifications

Connector Type

Flash Type

Capacity

Transfer Mode

Sustained R/W Performance*

Operating Temperature

Shock Resistance

Vibration Resistance

Dimensions (mm)

Standard 7-pin SATA connector

SLC / Ultra MLC / MLC

SLC: 1 to 32GB

Ultra MLC: 4 to 128GB

MLC: 4 to 256GB

SATA III (6.0 Gbps)

SLC: up to 500/150 MB/sec

MLC: up to 525/200 MB/sec

Commercial grade: 0 to +70 °C

Industrial grade: -40 to +85 °C

1,500 G, peak / 0.5 ms

20 G, peak / 80 ~ 2000 Hz

44.7 x 11.2 x 4.2

Specifications

Connector Type

Flash Type

Capacity

Transfer Mode

Sustained R/W Performance*

Operating Temperature

Shock Resistance

Vibration Resistance

Dimensions (mm)

Onboard SSD

Ultra MLC / MLC

Ultra MLC: 2 to 32GB

MLC: 4 to 64GB

SATA III (6.0 Gbps)

Ultra MLC: up to 490/180 MB/sec

MLC: up to 480/180 MB/sec

Commercial grade: -20 ~ +85 °C

Industrial grade: -40 to +85 °C

1,500 G, peak / 0.5 ms

20 G, peak / 80 ~ 2000 Hz

16 x 20 x 1.4

* These values are for reference only; they may change according to the flash memory used.

Ordering Information

Description

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA, 1 GB (0

SQF-SDMS1-1G-S9C(T/B)

~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA, 1 GB (-40

SQF-SDMS1-1G-S9E(T/B)

~ 85 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA,

SQF-SDMS2-XG-S9C(T/B)

2/4/8 GB (0 ~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA,

SQF-SDMS2-XG-S9E(T/B)

2/4/8 GB (-40 ~ 85 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA, 16/32 GB

SQF-SDMS4-XG-S9C(T/B)

(0 ~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) SLC, DMA, 16/32 GB

SQF-SDMS4-XG-S9E(T/B)

(-40 ~ 85 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) Ultra MLC, DMA,

SQF-SDMU2-XG-S9C(T/B)

4/8/16/32/64/128 GB (0 ~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) Ultra MLC, DMA,

SQF-SDMU2-XG-S9E(T/B)

4/8/16/32/64/128 GB (-40 ~ 85 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) MLC, DMA,

SQF-SDMM1-4G-S9C(T/B)

4 GB (0 ~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) MLC, DMA,

SQF-SDMM1-4G-S9E(T/B)

4 GB (-40 ~ 85 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) MLC, DMA,

SQF-SDMM2-XG-S9C(T/B)

8/16/32/64/128/256 GB (0 ~ 70 °C)

SQFlash 630 series SATA DOM V (Top/Bottom) MLC, DMA,

SQF-SDMM2-XG-S9E(T/B)

8/16/32/64/128/256 GB (-40 ~ 85 °C)

Note: X stands for different capacities

Ordering Information

Description

SQF-SUSU1-4G-S9C

SQFlash 630 series Micro SSD Ultra MLC, 4 GB (-20 ~ 85 °C)

SQF-SUSU2-8G-S9C

SQFlash 630 series Micro SSD Ultra MLC, 8 GB (-20 ~ 85 °C)

SQF-SUSU4-xG-S9C

SQFlash 630 series Micro SSD Ultra MLC, 16/32/64 GB (-20 ~ 85 °C)

SQF-SUSU1-4G-S9E

SQFlash 630 series Micro SSD Ultra MLC, 4 GB (-40 ~ 85 °C)

SQF-SUSU2-8G-S9E

SQFlash 630 series Micro SSD Ultra MLC, 8 GB (-40 ~ 85 °C)

SQF-SUSU4-xG-S9E

SQFlash 630 series Micro SSD Ultra MLC, 16/32/64 GB (-40 ~ 85 °C)

SQF-SUSM1-8G-S9C

SQFlash 630 series Micro SSD MLC, 8 GB (-20 ~ 85 °C)

SQF-SUSM2-16G-S9C SQFlash 630 series Micro SSD MLC, 16 GB (-20 ~ 85 °C)

SQF-SUSM4-xG-S9C

SQFlash 630 series Micro SSD MLC, 32/64 GB (-20 ~ 85 °C)

SQF-SUSM1-8G-S9E

SQFlash 630 series Micro SSD MLC, 8 GB (-40 ~ 85 °C)

SQF-SUSM2-16G-S9E SQFlash 630 series Micro SSD MLC, 16 GB (-40 ~ 85 °C)

SQF-SUSM4-xG-S9E

SQFlash 630 series Micro SSD MLC, 32/64 GB (-40 ~ 85 °C)

Note: X stands for different capacities

Embedded M2M/IoT Modules

All product specifications are subject to change without notice.

Last updated: 23-Jul-2018
