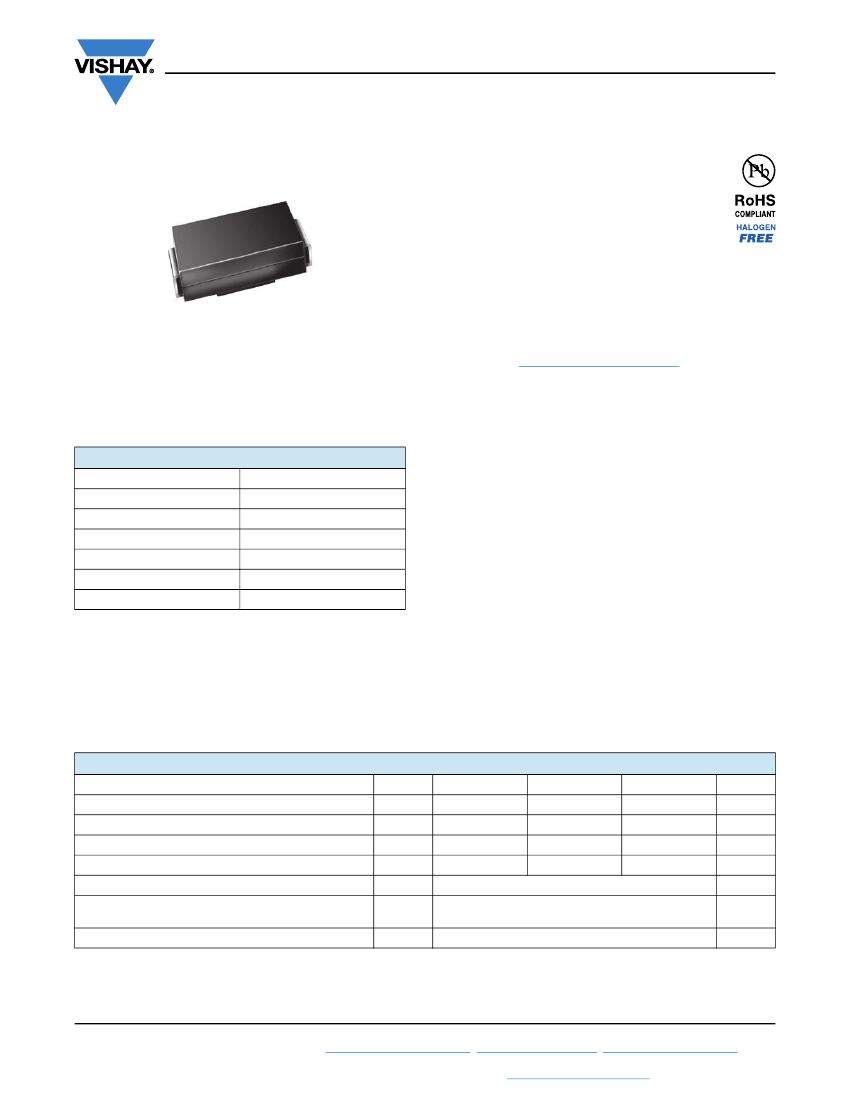

ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor
Surface Mount Ultrafast Plastic Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Ultrafast recovery times for high efficiency
Available
• Low forward voltage, low power loss
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
SMA
(DO-214AC)
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in secondary rectification and freewheeling for
ultrafast switching speeds AC/AC and DC/DC converters in
high temperature conditions for both consumer and
automotive applications.
1.0 A
100 V, 150 V, 200 V
25 ns
0.90 V
175 °C
SMA (DO-214AC)
Single
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
t
rr
V
F
at I
F
T
J
max.
Package
Diode variations
MECHANICAL DATA
Case:
SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity:
color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
= 150 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC
®
method)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
ESH1B
EHB
100
70
100
ESH1C
EHC
150
105
150
1.0
50
-55 to +175
ESH1D
EHD
200
140
200
V
V
V
A
A
°C
UNIT
Revision: 21-Jul-17
Document Number: 88890
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward voltage
Maximum DC reverse current at rated DC
blocking voltage
Maximum reverse current
Maximum reverse recovery time
Typical reverse recovery time
V
R
= 20 V, T
J
= 150 °C
I
F
= 0.5 A, I
R
= 1 A, I
rr
= 0.25 A
I
F
= 0.6 A, V
R
= 30 V,
dI/dt = 50 A/μs, I
rr
= 10 % I
RM
I
F
= 0.6 A, V
R
= 30 V,
dI/dt = 50 A/μs, I
rr
= 10 % I
RM
4.0 V, 1 MHz
T
J
= 25 °C
T
J
= 100 °C
T
J
= 25 °C
T
J
= 100 °C
I
F
= 0.7 A
I
F
= 1 A
T
A
= 25 °C
T
A
= 125 °C
TEST CONDITIONS
SYMBOL
V
F (1)
V
F
I
R
I
R
t
rr
t
rr
VALUE
0.87
0.90
1.0
25
50
25
25
35
10
15
25
UNIT
V
μA
μA
ns
ns
Typical stored charge
Typical junction capacitance
Q
rr
C
J
nC
pF
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
θJA
(1)
R
θJL
(1)
ESH1B
ESH1C
85
30
ESH1D
UNIT
°C/W
(1)
Note
Units mounted on PCB with 5.0 mm x 5.0 mm (0.013 mm thick) land areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
ESH1D-E3/61T
ESH1D-E3/5AT
ESH1DHE3_A/H
(1)
ESH1DHE3_A/I
(1)
ESH1D-M3/61T
ESH1D-M3/5AT
ESH1DHM3_A/H
(1)
ESH1DHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
H
I
61T
5AT
H
I
BASE QUANTITY
1800
7500
1800
7500
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 21-Jul-17
Document Number: 88890
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor

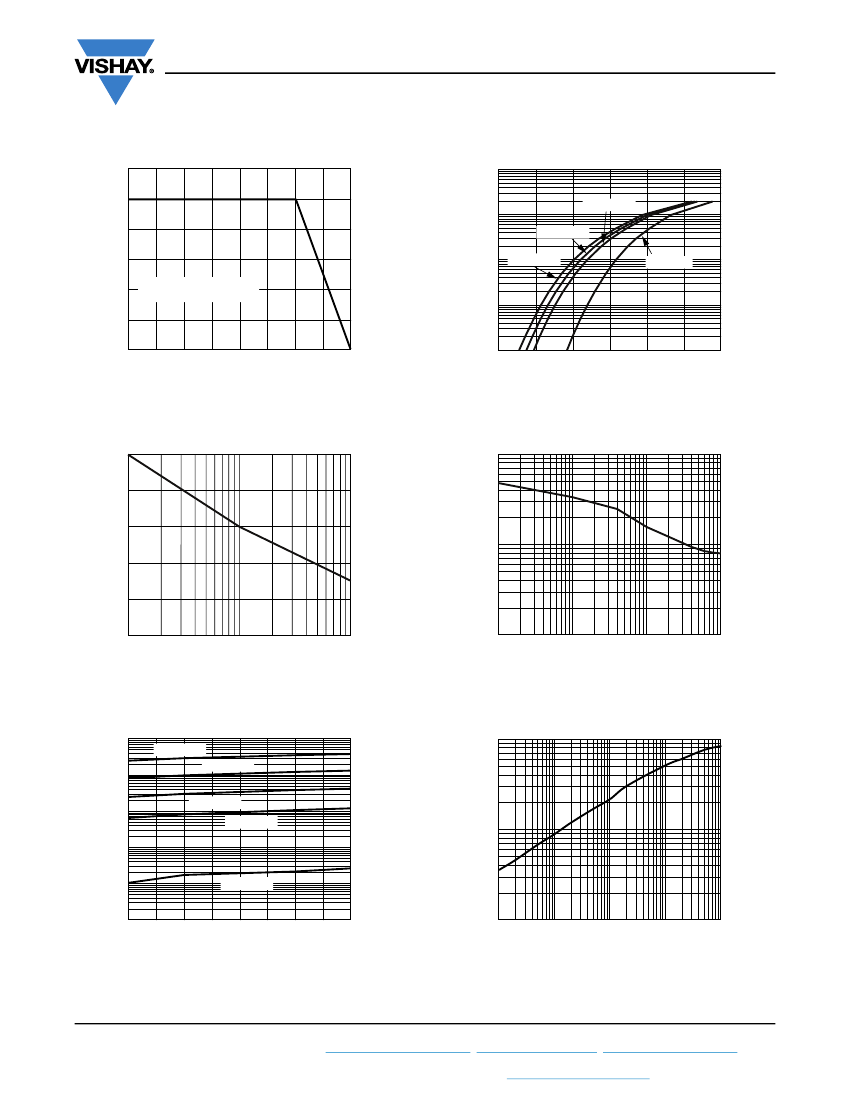

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
100
Average Forward Rectified Current (A)
1.0
Instantaneous Forward Current (A)
T
J
= 125 °C
10
T
J
= 150 °C
1
T
J
= 175 °C
T
J
= 25 °C
0.8
0.6
T
L
Measured
at the Cathode Band Terminal
0.4
0.1
0.2
0
95
105
115
125
135
145
155
165
175
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Lead Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Instantaneous Forward Characteristics
50
100
Peak Forward Surge Current (A)
40
30
Junction Capacitance (pF)
1
10
100
10
20
10
0
1
0.1
1
10
100
Number of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
100
T
J
= 150 °C
10
T
J
= 125 °C
T
J
= 100 °C
0.1
100
1
Transient Thermal Impedance (°C/W)
80
100
T
J
= 175 °C
Instantaneous Reverse Leakage
Current (µA)
10
0.01
T
J
= 25 °C
0.001
20
40
60
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 3 - Typical Reverse Leakage Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 21-Jul-17
Document Number: 88890
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ESH1B, ESH1C, ESH1D
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMA
(DO-214AC)
Cathode Band
Vishay General Semiconductor
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 21-Jul-17
Document Number: 88890
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
