PA4336.473NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA4336.473NLT

PA4336.473NLT: DescriptionFixed inductor 47uH 2mm 0.44A 20% SMT; CategoryPassive components inductor; File Size271KB，4 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

PA4336.473NLT Overview

Fixed inductor 47uH 2mm 0.44A 20% SMT

PA4336.473NLT Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Factory Lead Time	12 weeks 1 day
Inductor type	GENERAL PURPOSE INDUCTOR
Base Number Matches	1

Preview

Download Datasheet

View All

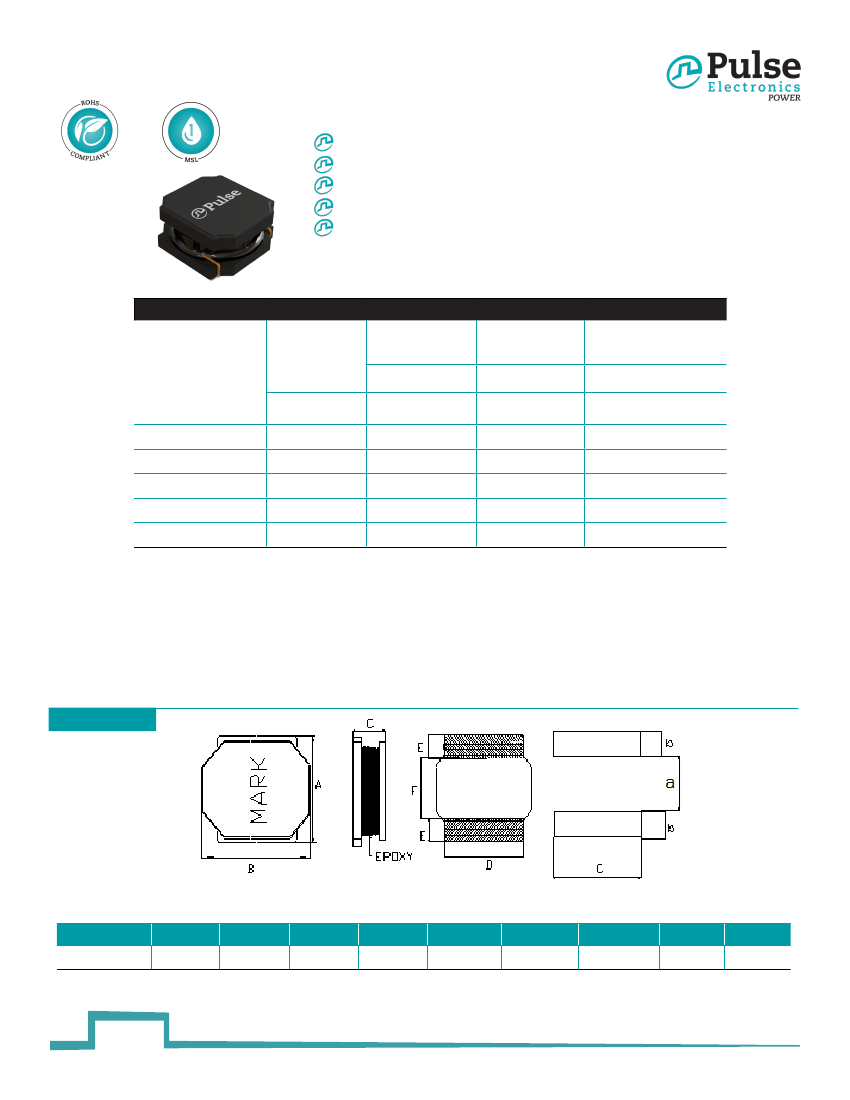

SMT Power Inductors

Shielded Drum Core - PA4336.XXXNLT Series

Height: 2.0mm Max

Footprint: 4.2mm x 4.2mm Max

Current Rating: up to 3.3A

Inductance Range: 0.33uH to 100uH

Shielded magnetic circuit reduces leakage flux, Fe base metal

core enables high saturation and metalized core termination

results in excellent shock resistance.

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

Number

PA4336.331NLT

PA4336.222NLT

PA4336.103NLT

PA4336.473NLT

PA4336.104NLT

Inductance

100 KHz, 1V

0.33±30%

2.2±30%

10±20%

47±20%

100±20%

Resistance

MAX.

mΩ

215

923

2020

Saturation

Current

≤30%

Drop

7.50

3.40

1.60

0.74

0.48

Rated

Current

< 40˚C Rise

3.30

1.85

0.90

0.44

0.31

Notes:

1. Actual temperature of the component during system operation (ambient plus temperature current (to eliminate self-heating effect) to the component.

rise) must be within the standard operating range.

3. The Rated Current is the DC current required to raise the component temperature by 40 °C

maximum. Take note that the component’s performance varies depending on the system

2. The saturation current is the current at which the initial inductance drops approximately

condition. It is suggested that the component be tested at the system level, to verify the

30% at the stated ambient temperature. This current is determined by placing the

temperature rise of the component during system operation.

component in the specified ambient environment and applying a short duration pulse

Mechanical

PA4336.XXXNLT

Final Layout

Series

PA4336.XXXNLT

All Dimensions in mm.

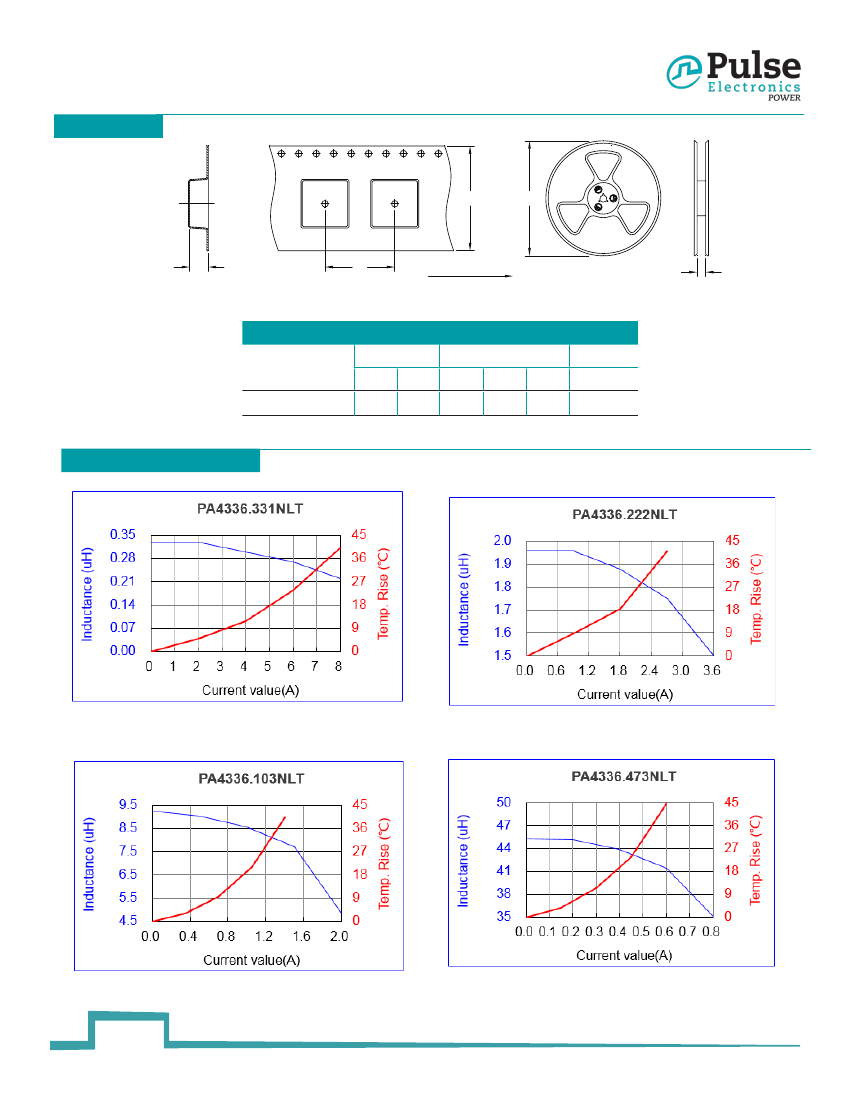

power.pulseelectronics.com

SUGGESTED PAD LAYOUT

2.0 MAX

3.4±0.3

1.2±0.3

1.6±0.3

1.3 TYP

1.4TYP

3.7 TYP

4.0±0.2

P802.B (11/17)

http://www.power.pulseelectronics.com/contact
