07HCP-820K-50

Description
Fixed inductor RF CHOKE 82uH 10%
CategoryPassive components    Inductor, choke coil and coil    Fixed inductance
File Size318KB，1 Pages
ManufacturerFastron
Environmental Compliance
Download Datasheet Parametric Compare View All

07HCP-820K-50 Online Shopping

Suppliers Part Number Price MOQ In stock
07HCP-820K-50 - - View Buy Now

07HCP-820K-50 Overview

Fixed inductor RF CHOKE 82uH 10%

07HCP-820K-50 Parametric

Parameter NameAttribute value
MakerFastron
Product Categoryfixed inductor
Termination typeRadial
shieldShielded
inductance82 uH
Tolerance10 %
Maximum DC current1 A
Maximum DC resistance160 mOhms
Minimum operating temperature- 55 C
Maximum operating temperature+ 85 C
terminal-
length10 mm
diameter8.3 mm
applicationRF
series07 HCP
EncapsulationBulk
productFixed Inductors
Factory packaging quantity500

Preview

Download Datasheet
www.fastrongroup.com

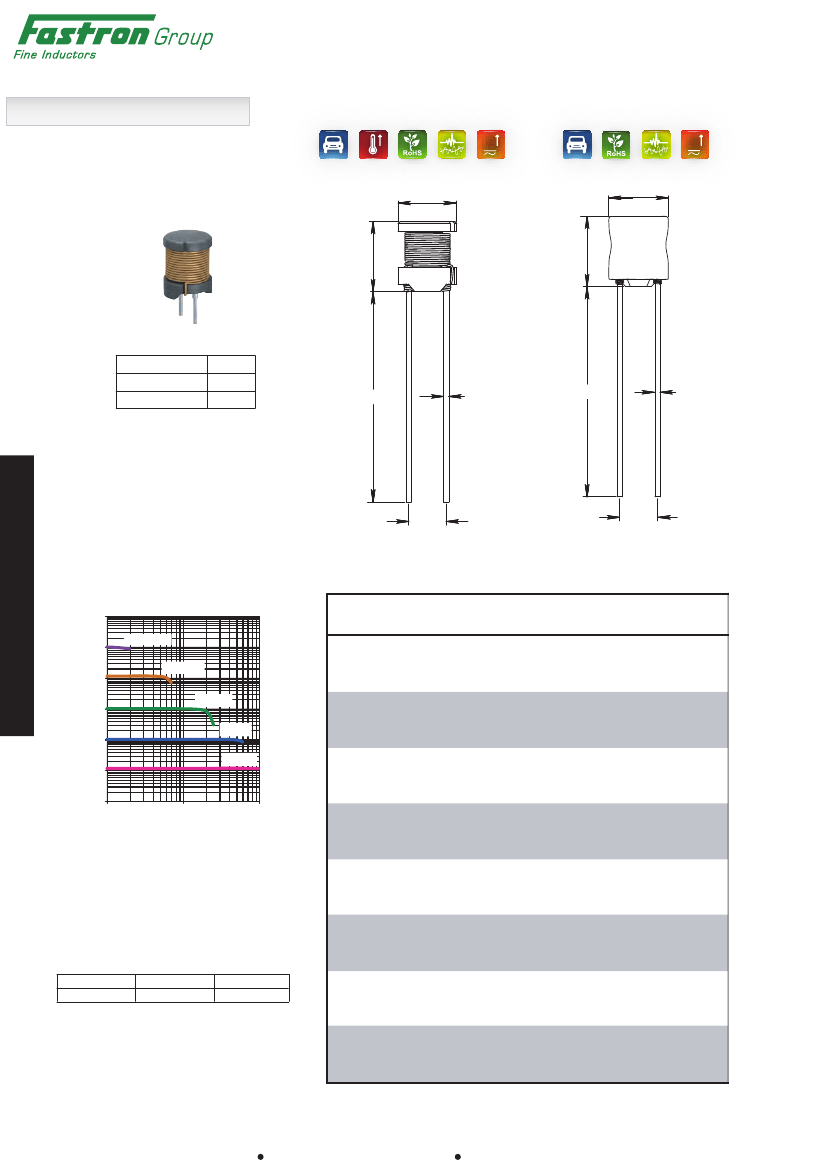

07 HCP, 07 HCP/T
For High Currents
A
Ø 8.3 max
A
Ø 9.5 max
(Pin Type Coils)
Packing
Loose / Box [-50]
Taped / Reel [-51]
C1
13.0
26.0
C1
Ø 0.70
10.0 max
10.5 max
C1
Ø 0.70
Plugable Inductors
5.0
5.0
07 HCP
Typical Ls vs Current (I)
100000
10000
Inductance (µH)
07 HCP/T
(With Tube)
DCR
max
(Ω)
0.010
0.010
0.013
0.018
0.025
0.030
0.040
0.055
0.10
0.10
0.14
0.16
0.20
0.22
0.36
0.38
0.70
0.70
0.89
0.89
1.43
1.56
1.95
2.90
3.30
3.30
5.30
6.80
9.30
10.30
16.50
24.00
Rated DC
Current
(A)
I
N max
I
sat typ
7.50
10.0
6.00
8.00
5.00
6.30
4.00
5.40
3.80
6.50
3.00
5.00
2.60
5.00
2.30
3.60
1.50
2.50
1.30
2.50
1.10
2.10
1.00
1.90
0.90
1.60
0.85
1.20
0.85
1.20
0.64
1.20
0.64
0.95
0.51
0.95
0.50
0.80
0.43
0.80
0.43
0.70
0.36
0.70
0.30
0.50
0.30
0.39
0.30
0.30
0.21
0.35
0.19
0.25
0.24
0.17
0.14
0.22
0.14
0.22
0.14
0.17
0.14
0.17
Part No
Inductance
L (µH)
f
L
(kHz)
Tol.
± (%)
20
20
20
20
20
20
20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10,20
10000 µH
1000 µH
100 µH
10 µH
1.0 µH
1000
100
10
1
0.1
0.
1
1
Current (A)
10
Core Material :
Ferrite
SPQ :
Packing Form
Radial
Loose / Box
500 [-50]
Taped / Reel
500 [-51]
Remarks:
- Also available with shorter leads.
- All 07HCP, 07HCP/T are specified for 150°C except
the models with *, which are specified for 125°C.
* 07HCP-1R0M-YY
1.0
* 07HCP-2R2M-YY
2.2
* 07HCP-3R3M-YY
3.3
07HCP-4R7M-YY
4.7
* 07HCP-6R8M-YY
6.8
* 07HCP-7R5M-YY
7.5
07HCP-100M-YY
10
07HCP-220X-YY
22
07HCP-330X-YY
33
07HCP-470X-YY
47
07HCP-680X-YY
68
07HCP-820X-YY
82
07HCP-101X-YY
100
07HCP-121X-YY
120
07HCP-151X-YY
150
07HCP-221X-YY
220
07HCP-271X-YY
270
07HCP-331X-YY
330
07HCP-391X-YY
390
07HCP-471X-YY
470
07HCP-681X-YY
680
07HCP-821X-YY
820
07HCP-102X-YY
1000
07HCP-122X-YY
1200
07HCP-152X-YY
1500
07HCP-182X-YY
1800
07HCP-222X-YY
2200
07HCP-272X-YY
2700
07HCP-332X-YY
3300
07HCP-402X-YY
4000
07HCP-472X-YY
4700
07HCP-103X-YY 10000
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
1 @ 0.25V
Revision date : 28 August 2018
•
Bold figure for
Tol%
is standard
•
All dimensions in mm
