51-719-054 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 51-719-054

51-719-054: DescriptionElectromagnetic interference pass-through filter 10A 200V 3000pF Pi RESIN SEALED BOLT IN; CategoryAnalog mixed-signal IC filter; File Size888KB，13 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

51-719-054 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51-719-054	-	-	View	Buy Now

51-719-054 Overview

Electromagnetic interference pass-through filter 10A 200V 3000pF Pi RESIN SEALED BOLT IN

51-719-054 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
capacitance	3000 µF
diameter	6.35 mm
filter type	DATA LINE FILTER
high	11.89 mm
Maximum insertion loss	70 dB
Installation type	PANEL MOUNT
Number of functions	1
Maximum operating temperature	125 °C
physical size	D6.35XH11.89 (mm)/D0.25XH0.468 (inch)
Rated current	10 A
Rated voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

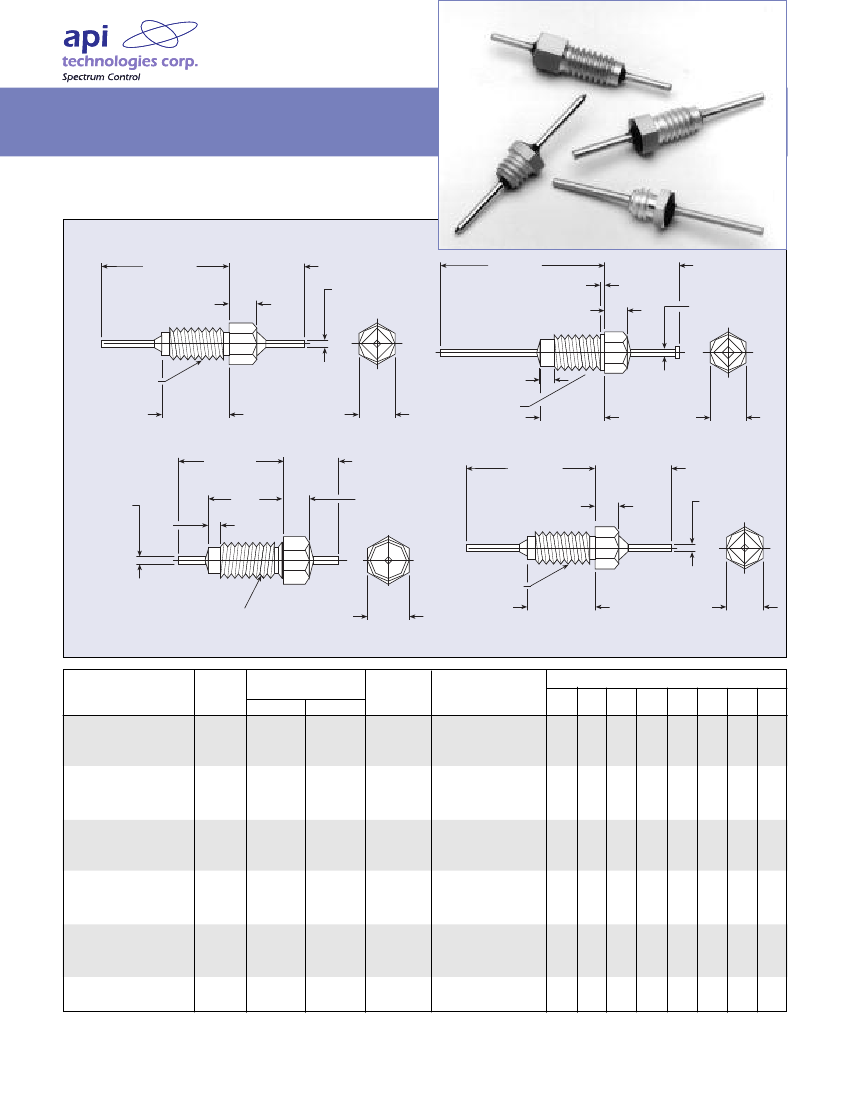

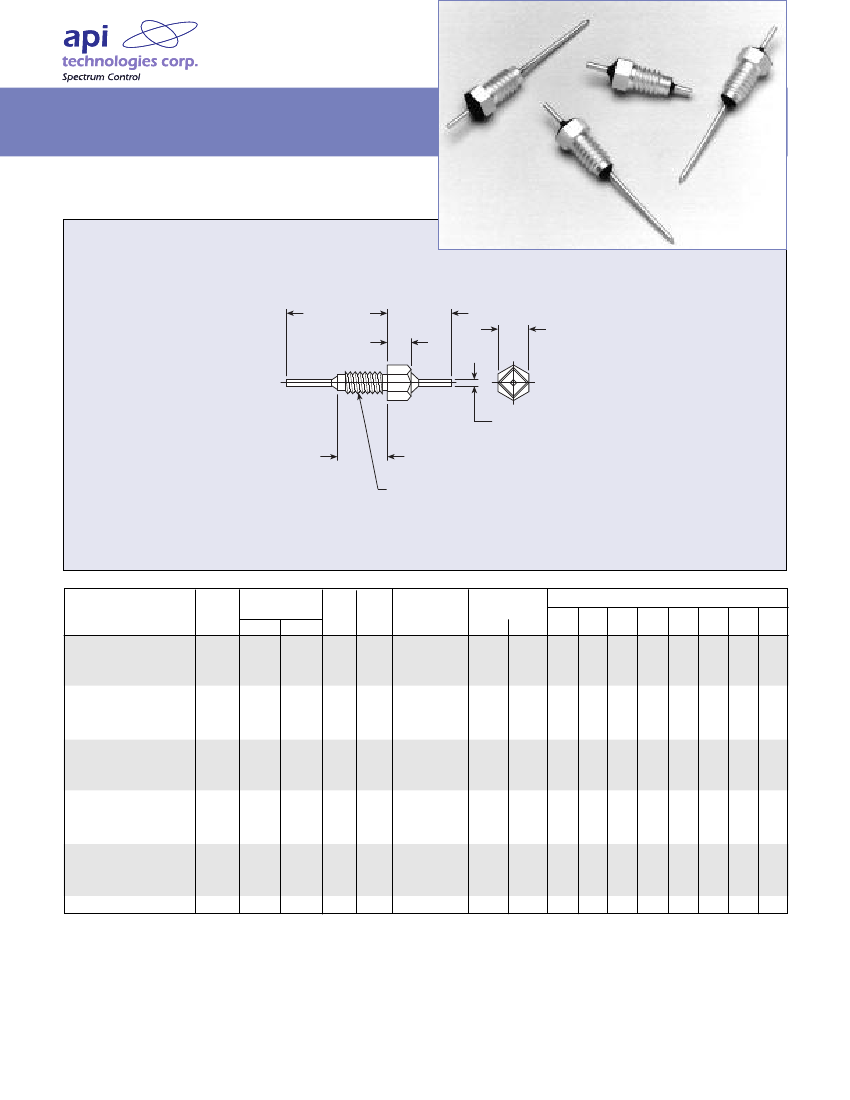

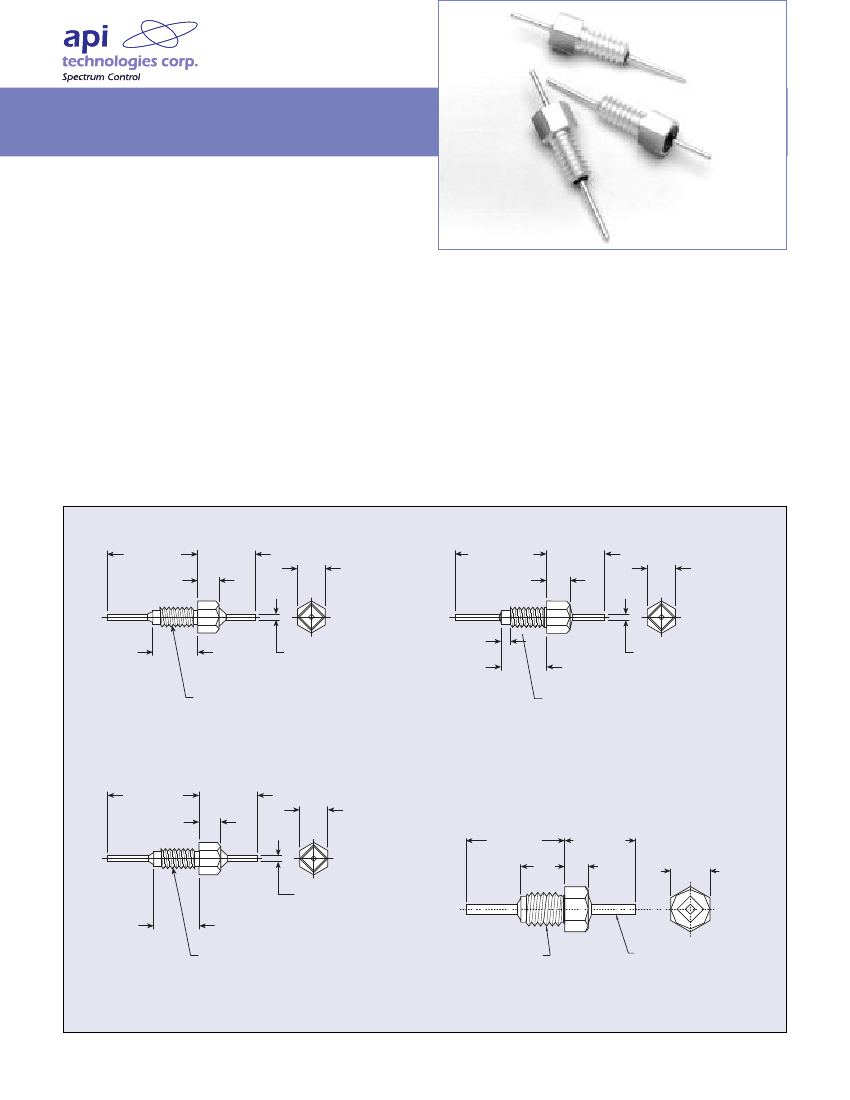

Resin Sealed Bolt-in Filters

These filters are easily mounted in a tapped hole or

through-hole with supplied nut and lock-washer. The

rugged case with resin seals at both ends provides

excellent environmental protection. Primarily used

in filtering signal/data lines and DC power lines.

Features

Wide range of sizes: 4-40 thread through

5/16-24 thread

Voltage ratings to 500 VDC/220 VAC (400 Hz)

MIL-F-15733 QPL filters available

Multiple circuit configurations: C, L and Pi

Metric threaded filters available, consult factory

4-40 C Circuit

.510

.031

(13.0

.79)

.120

(3.05)

.310

.031

(7.87

.79)

.156 Hex.

(3.96)

.368

.031

(9.347

.79)

.120

(3.05)

.275

.031

(6.99

.79)

.156 Hex.

(3.96)

.220

(5.59)

ø .025

.005

(.64

.13)

#4–40 Unc–2A Thd.

.050

(1.27)

.220

(5.59)

#4–40 Unc–2A Thd.

ø .032

.005

(.810

.13)

Figure 1

Figure 2

.360

.031

(9.144

.79)

.120

(3.05)

.240

.031

(6.10

.79)

.156 Hex.

(3.96)

.315

.031

(8.00

0.79)

.140

(3.56)

ø A

.005

(± .13)

.225

.031

(5.72

0.79)

.075

(1.91)

.125 Hex.

(3.18)

.220

(5.59)

#4–40 Unc–2A Thd.

ø .032

(ø 0.81)

Figure 3

Figure 4

Dimensions in inches

(mm)

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

LP12

51-719-054 Related Products

	51-719-054	SCI-9210-103	51-712-003	54804002X5R471M	54-786-028	51-702-021	51-726-017
Description	Electromagnetic interference pass-through filter 10A 200V 3000pF Pi RESIN SEALED BOLT IN	Electromagnetic interference pass-through filter 100V 10A 10000pF TURRET BOLT-IN	Electromagnetic interference pass-through filter.022UF 100V 10A	Electromagnetic interference pass-through filter 470PF 250V 10A	EMI Pass-Through Filter 560nF 10 Amp Max. -55C +125	Electromagnetic interference pass-through filter 25A 500V 3000pF Pi RESIN SEALED BOLT IN	Electromagnetic interference pass-through filter STRT FILTER 50V
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PI-TYPE CIRCUIT	C-TYPE CIRCUIT	L-TYPE CIRCUIT	C-TYPE CIRCUIT	C-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT
capacitance	3000 µF	10000 µF	22000 µF	470 µF	560000 µF	3000 µF	9000 µF
diameter	6.35 mm	4.75 mm	4.75 mm	7.92 mm	5.54 mm	9.53 mm	3.96 mm
filter type	DATA LINE FILTER	FEED THROUGH CAPACITOR	DATA LINE FILTER	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	DATA LINE FILTER	DATA LINE FILTER
high	11.89 mm	9.13 mm	9.13 mm	9.1 mm	9.5 mm	17.45 mm	8.9 mm
Maximum insertion loss	70 dB	50 dB	60 dB	28 dB	70 dB	70 dB	70 dB
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
physical size	D6.35XH11.89 (mm)/D0.25XH0.468 (inch)	D4.75XH9.13 (mm)/D0.187XH0.359 (inch)	D4.75XH9.13 (mm)/D0.187XH0.359 (inch)	D7.92XH9.1 (mm)/D0.312XH0.358 (inch)	D5.54XH9.5 (mm)/D0.218XH0.374 (inch)	D9.53XH17.45 (mm)/D0.375XH0.687 (inch)	D3.96XH8.9 (mm)/D0.156XH0.35 (inch)
Rated current	10 A	10 A	10 A	10 A	10 A	25 A	3 A
Rated voltage	200 V	100 V	100 V	250 V	50 V	500 V	50 V
Maker	API Technologies	API Technologies	-	API Technologies	API Technologies	API Technologies	API Technologies
Base Number Matches	1	-	1	1	1	-	1
