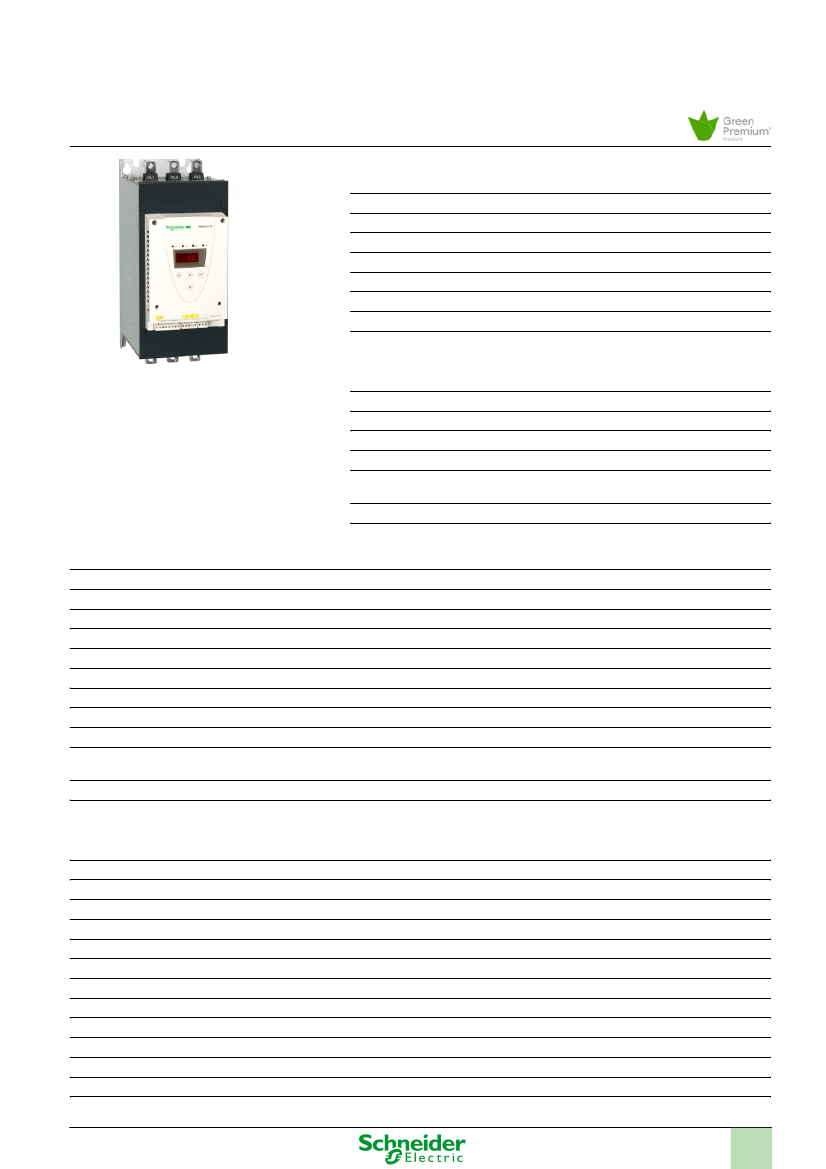

Factory setting current
Power dissipation in W
Utilisation category
Type of start
IcL starter rating
IP degree of protection
156 A
91 W for standard applications
AC-53A
Start with torque control (current limited to 3.5 In)
170 A connection in the motor supply line for
standard applications
IP00
Complementary
Assembly style
Function available
Supply voltage limits
Supply frequency
Network frequency
Device connection
[Uc] control circuit voltage
Control circuit consumption
Discrete output number
Discrete output type
Minimum switching current
Maximum switching current
With heat sink
Internal bypass
177...660 V
50...60 Hz - 10...10 %
45...66 Hz
In the motor supply line
110 V -15...10 % 50/60 Hz
20 W
2
Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
100 mA 12 V DC relay outputs
5 A 250 V AC resistive 1 relay outputs
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
3
Logic LI1, LI2, LI3 5 mA 20 kOhm
110 V <= 121 V
Positive logic LI1, LI2, LI3 < 20 V and <= 15 mA > 79 V <= 2 mA
0.4...1 Icl adjustable
750 Ohm
Modbus
1 RJ45
Serial
RS485 multidrop
4800, 9600 or 19200 bps
31
Thermal protection motor
Discrete input number
Discrete input type
Discrete input voltage
Discrete input logic
Output current
PTC probe input
Communication port protocol
Connector type
Communication data link
Physical interface
Transmission rate
Installed device
Protection type
1/8
Phase failure line
Thermal protection starter
Marking
Type of cooling
Operating position
Height
Width
Depth
Product weight
CE
Forced convection
Vertical +/- 10 degree
14.02 in (356 mm)
5.91 in (150 mm)
9.04 in (229.5 mm)
39.68 lb(US) (18 kg)
Environment
electromagnetic compatibility
Conducted and radiated emissions level A IEC 60947-4-2
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/current impulse level 3 IEC 61000-4-5
EN/IEC 60947-4-2
CCC
CSA
C-Tick
GOST
UL
1 gn 13...200 Hz EN/IEC 60068-2-6
1.5 mm 2...13 Hz EN/IEC 60068-2-6
15 gn 11 ms EN/IEC 60068-2-27
56 dB
Level 2 IEC 60664-1
0...95 % without condensation or dripping water EN/IEC 60068-2-3
14...104 °F (-10...40 °C) without derating
> 104...< 140 °F (> 40...< 60 °C) with current derating 2.2 % per °C
-13...158 °F (-25...70 °C)
<= 3280.84 ft (1000 m) without derating
> 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per
additional 100 m
standards
product certifications
vibration resistance
shock resistance
noise level
pollution degree
relative humidity
ambient air temperature for operation
ambient air temperature for storage
operating altitude
Offer Sustainability
Green Premium product
Green Premium product
Compliant - since 0939 - Schneider Electric declaration Compliant - since 0939 - Schneider Electric declaration of conformity
of conformity
Reference not containing SVHC above the threshold
Available
Available
WARNING: This product can expose you to chemicals
including:
Reference not containing SVHC above the threshold
Available
Available
WARNING: This product can expose you to chemicals including:
Lead and lead compounds, which is known to the State Lead and lead compounds, which is known to the State of California to cause cancer
of California to cause cancer and birth defects or other and birth defects or other reproductive harm.
reproductive harm.
Bisphenol A (BPA), which is known to the State of
California to cause birth defects or other reproductive
harm.
For more information go to www.p65warnings.ca.gov
Bisphenol A (BPA), which is known to the State of California to cause birth defects or
other reproductive harm.
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months
Frame Size C

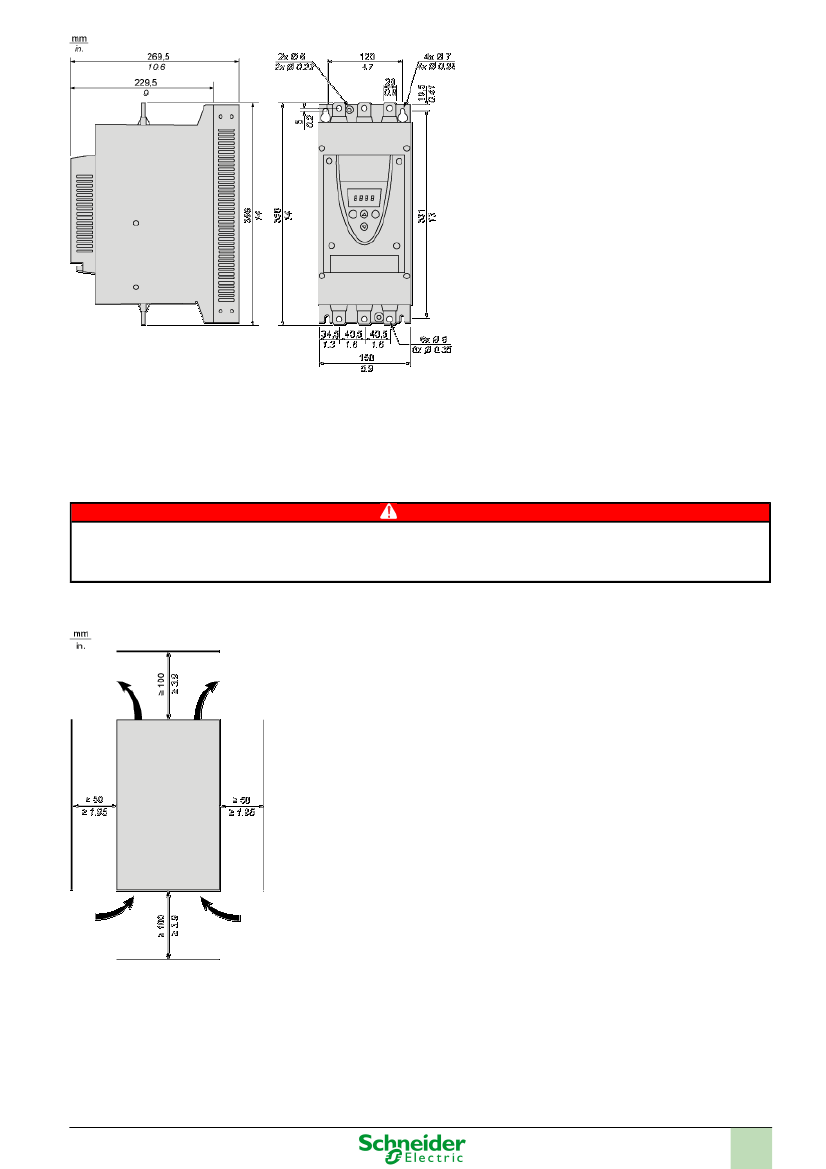

Dimensions
2/8
Precautions
Standards
The Altistart 22 soft starter is compliant with pollution Degree 2 as defined in NEMA ICS1-1 or IEC 60664-1.
For environment pollution degree 3, install the Altistart 22 soft starter inside a cabinet type 12 or IP54.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
ATS22 soft starters are open devices and must be mounted in a suitable enclosure.
Failure to follow these instructions will result in death or serious injury.
Air Circulation
Leave sufficient free space to help the air required for cooling purposes to circulate from the bottom to the top of the unit.
Overheating
To avoid the soft starter to overheat, respect the following recommendations:
l
l
l
Mount the Altistart 22 Soft Starter within ± 10° of vertical.
Do not locate the Altistart 22 Soft Starter near heat radiating elements.
Electrical current through the Altistart 22 Soft Starter will result in heat losses that must be dissipated into the ambient air
immediately surrounding the soft starter. To help prevent a thermal fault, provide sufficient enclosure cooling and/or ventilation to
limit the ambient temperature around the soft starter.
3/8
l
If several soft starters are installed in a control panel, arrange them in a row. Do not stack soft starters. Heat generated from the
bottom soft starter can adversely affect the ambient temperature around the top soft starter.
Mounting

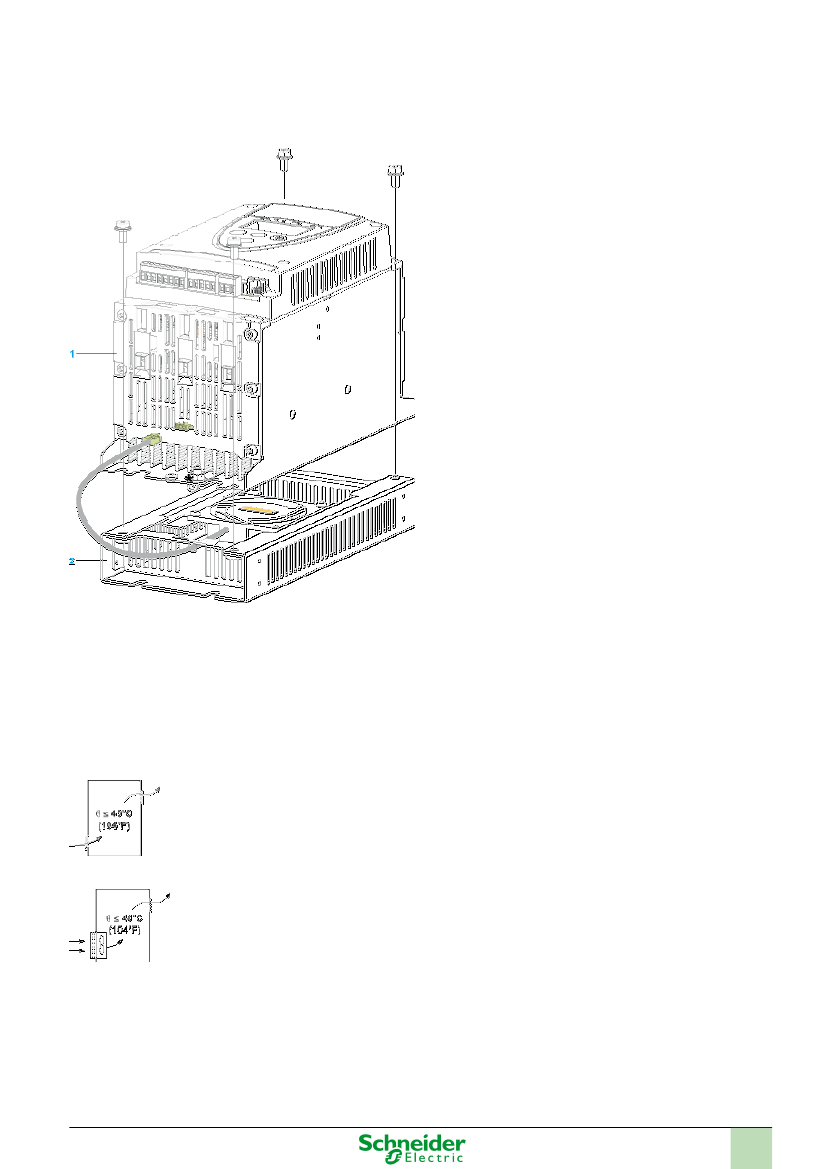

Connection Between the Fan and the Altistart 22 Soft Starter
1
2
Altistart 22 Soft Starter
Fan
Wall mounted or Floor-standing Enclosure with IP 23 Degree of protection
Introduction
To help proper air circulation in the soft starter, grilles and forced ventilation can be installed.
Ventilation Grilles
Forced Ventilation Unit
Power Terminal
Bar Style
4/8
Power supply and output to motor
Bar
b
a
Bolt
20 mm (0.79 in)
5 mm (0.2 in)
M8 (0.31 in)
95 mm²
250 MCM
LA9F702
18 N.m
157.5 lb.in
Cable and protective cover Size
Gauge
Protective cover
Tightening torque
Power connections, minimum required wiring section
IEC cable
UL cable
mm² (Cu 70°C/158°F) (1) AWG (Cu 75°C/167°F) (1)
70
4/0

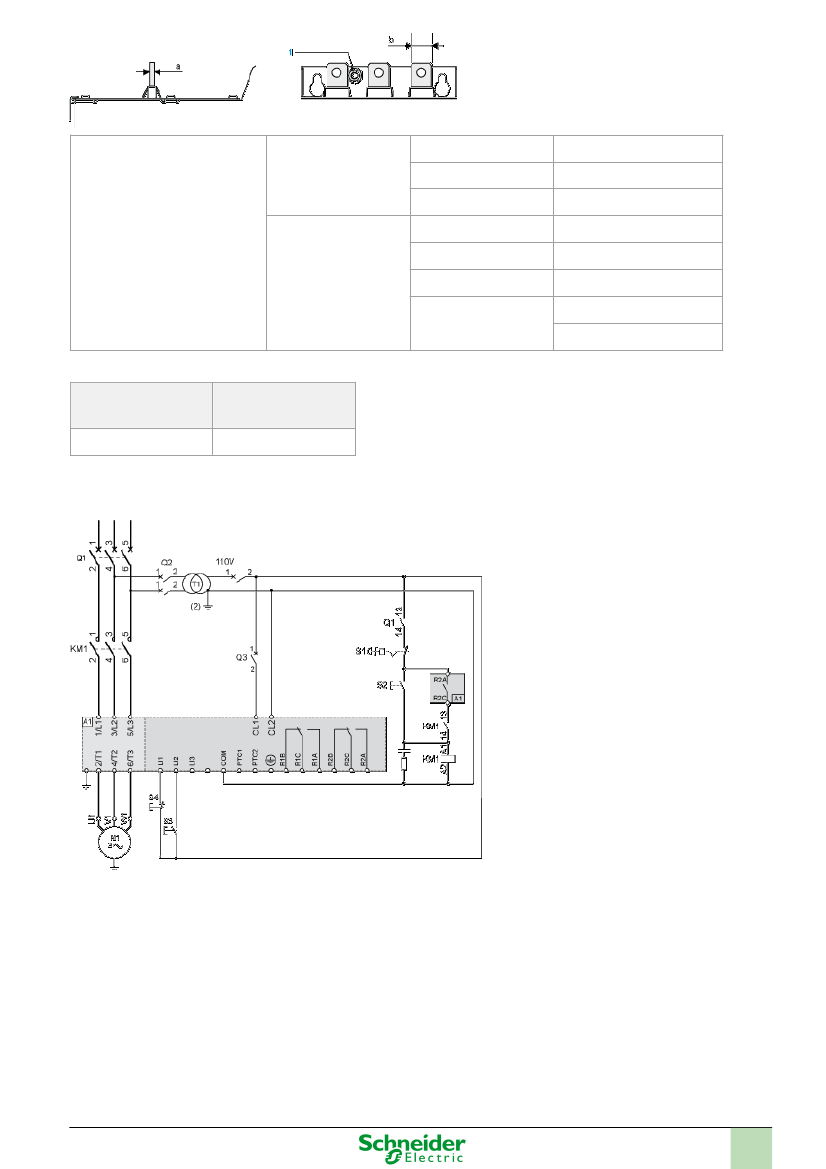

110 Vac control, Logic Inputs (LI) 110 Vac, 3-wire control
