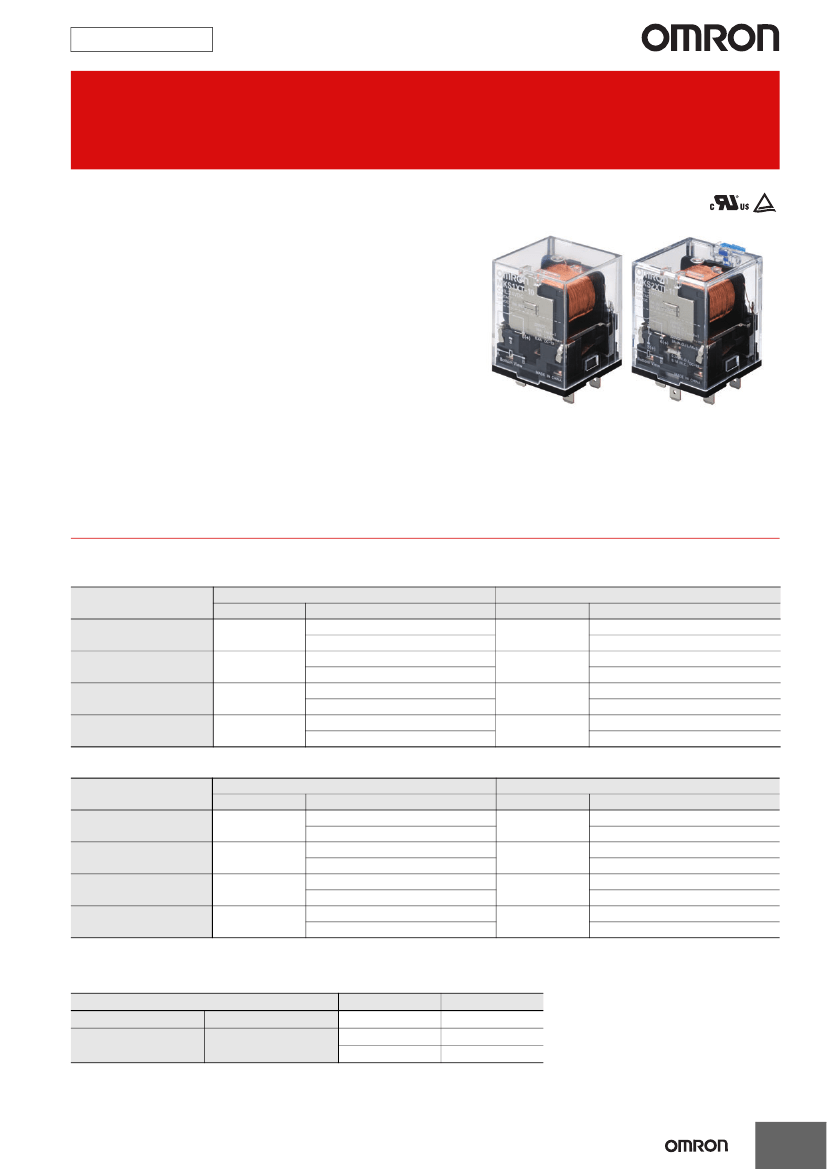

New Product
Power Relays
MK-S(X)
MK-S-series Relays with DC-switching
Models That Can Switch 220 VDC, 10 A
(Resistive Load).
• Switch a DC load of 220 VDC, 10 A (resistive load).
• Models for AC Loads can switch 250 VAC, 15 A (resistive load).
• Lineup includes models with SPST-NO and SPST-NO/SPST-
NC contact forms.
• Using a SPST-NO/SPST-NC contact form enables detecting
contact welding. (When the NO contacts become welded, the
NC contacts will maintain a minimum distance of 0.5 mm.)
• Models available with operation indicators and built-in test
buttons.
• RoHS compliant.
• Standards: UL, IEC (TÜV certification)
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Ordering Information
General-purpose Relays
Models for DC Loads
Contact form
Type
Standard Models
Models with Built-in
Operation Indicators
Models with Test Button
Models with Test Button and
Built-in Operation Indicators
Model
MKS1XT-10
MKS1XTN-10
MKS1XTI-10
MKS1XTIN-10
SPST-NO
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Model
MKS2XT-11
MKS2XTN-11
MKS2XTI-11
MKS2XTIN-11
SPST-NO/SPST-NC
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Models for AC Loads
Contact form
Type
Standard Models
Models with Built-in
Operation Indicators
Models with Test Button
Models with Test Button and
Built-in Operation Indicators
Model
MKS1T-10
MKS1TN-10
MKS1TI-10
MKS1TIN-10
SPST-NO
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Model
MKS2T-11
MKS2TN-11
MKS2TI-11
MKS2TIN-11
SPST-NO/SPST-NC
Rated voltage (V)
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220
Accessory (Order Separately)
Connecting Socket
Classifications
Back-connecting Socket
Front-connecting Socket
PCB Terminals
Mounts to DIN Track or via
screws
Built-in diode
No
No
Yes
Model
P7M-06P
P7MF-06
P7MF-06-D
1
MK-S(X)
Characteristics
Contact resistance
*1
Operate time
*2
Release time
*2
Max. operating
frequency
Mechanical
Rated load
100 mΩ max.
AC: 20 ms max.
DC: 30 ms max.
20 ms max.
18,000 operations/h
Models for DC loads: 1,800 times/hour
Models for AC loads: 1,200 times/hour
100 MΩ min.
2,500 VAC 50/60 Hz for 1 min between
1,000 VAC 50/60 Hz for 1 min
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
10 to 55 to 10 Hz, 0.50-mm single amplitude (1.0-mm double amplitude)
Back-connecting Socket (P7M-06P) mounting: 1,000 m/s
2
Front-connecting Socket (P7MF-06(-D)) mounting:500m/s
2
100 m/s
2
1,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at rated load and maximum switching frequency)
10 mA at 24 VDC
−40°C
to 60°C (with no icing or condensation)
Note:
The range is
−25°C
to 60°C for models with built-in operation indicators.
5% to 85%
SPST-NO: Approx. 73 g, SPST-NO/SPST-NC: Approx. 82 g
Insulation resistance
*3
Between coil and contacts
Dielectric
strength
Vibration
resistance
Shock
resistance
Endurance
Between contacts of same polarity
Destruction
Malfunction
Destruction
Malfunction
Mechanical
Electrical
*4
Between contacts of different polarity
2,500 VAC 50/60 Hz for 1 min between
Failure rate P level (reference value)
Ambient operating temperature
Ambient operating humidity
Weight
Note:
The values given above are initial values.
*1.
The contact resistance was measured for 1 A at 5 VDC using the voltage drop method.
*2.
The operate time was measured with the rated voltage imposed and any contact bounce ignored at an ambient temperature of 23°C.
*3.
The insulation resistance was measured with a 500-VDC insulation resistance tester at the same places as those used for checking the
dielectric strength.
*4.
The electrical endurance was measured at an ambient temperature of 23°C.
Approved Standards
UL508 (File No. E41515)
*
Model
MKS1XT@-@
Coil ratings
NO contacts
Contact ratings
10 A, 220 VDC (Resistive)
5 A, 220 VDC L/R (T
0.632
) = 7 ms
0.4 A, 220 VDC L/R (T
0.95
) = 300 ms
5 A, 220 VDC (Resistive)
3 A, 220 VDC L/R (T
0.632
) = 7 ms
0.2 A, 220 VDC L/R (T
0.95
) = 300 ms
2 A, 220 VDC (Resistive)
0.3 A, 220 VDC L/R (T
0.632
) = 7 ms
0.1 A, 220 VDC L/R (T
0.95
) = 300 ms
15 A, 250 VAC (Resistive)
15 A, 250 VAC (Resistive)
5 A, 250 VAC (Resistive)
Operations
NO contacts
MKS2XT@-@
12 to 220 VDC
24 to 240 VAC
6,000
NC contacts
NO contacts
NO contacts
NC contacts
MKS1T@-@
MKS2T@-@
CSA Standard: CSA Certification by
: CSA C22.2 No.14
IEC Standard/TÜV Certification: IEC61810-1 (Certification No. R50104853)
Model
MKS1XT@-@
Coil ratings
NO contacts
Contact ratings
DC-1: 10 A, 220 VDC
5 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.4 A, 220 VDC
DC-1: 5 A, 220 VDC
3 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.2 A, 220 VDC
DC-1: 2 A, 220 VDC
0.3 A, 220 VDC L/R (T
0.632
) = 7 ms
DC-13: 0.1 A, 220 VDC
AC-1: 15 A, 250 VAC 50/60 Hz
AC-1: 15 A, 250 VAC 50/60 Hz
AC-1: 5 A, 250 VAC 50/60 Hz
100,000
Operations
MKS2XT@-@
12, 24, 48, 110,
220 VDC
24, 100, 110, 120,
200, 220, 230,
240 VAC
NO contacts
NC contacts
NO contacts
NO contacts
NC contacts
MKS1T@-@
MKS2T@-@
4
