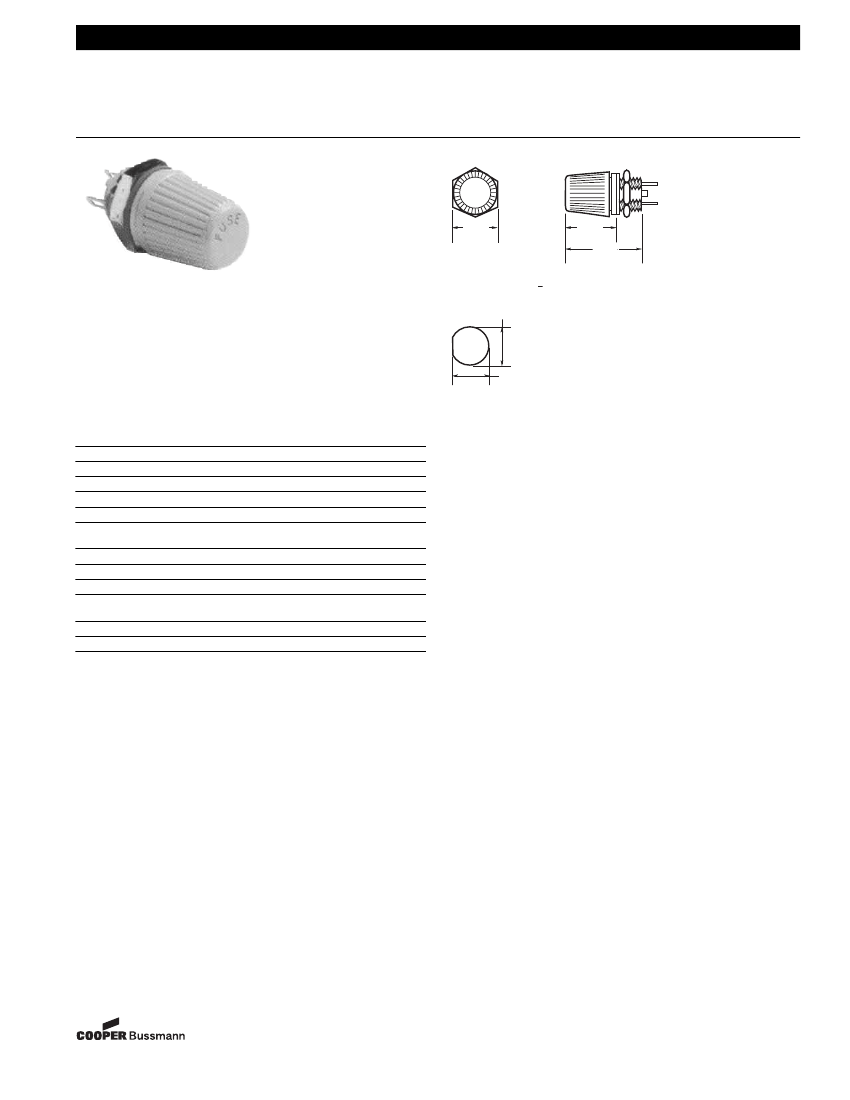

Bussmann
®
Military Fuseholders
Panel Mount
Dimensional Data
FU
S
E
FHN42W
HWA-AF
0.52"
(13.2mm)
0.66"
(26.1mm)
0.97"
(24.6mm)
MOUNTING HOLE + 0.002"
(0.5mm)
CATALOG SYMBOL: FHN42W
PANEL MOUNT
MEETS MILITARY SPECIFICATION - MIL-F-19207/26
NO AGENCY LISTINGS
FOR MILITARY FUSES: FM01 SERIES
COMMERCIAL EQUIVALENT: HWA-AF
SUB-MINIATURE FOR LIMITED SPACE APPLICATIONS
Specifications
Knob
Terminals
Enclosure
Panel Thickness
Rating
Body and Knob
Material
Temperature Rise
Fuses
Mechanical
Shock
Torque Capacity
Mounting Torque
Screw type.
Solder lug type.
Watertight.
0.125 Max.
5 amperes. 125 volts.
MAI-60 or MIL-M-14
Grey Diallyl Phthalate.
45°C Max.
Per MIL-23419/1 FM01.
MIL-STD-202. Method 207. Method I.
4 lbs.-inches.
10 lbs.-inches.
0.379"
(9.6mm)
0.344"
(8.7mm)
Qualified and tested per MIL-F-19207. Group A, B and C.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-17-98
SB98107
Rev. A
Form No. FHN42W
Page 1 of 1
BIF Doc #2136
