TB200HB-08S2406 Overview

Barrier terminal block MAGNUM TB200 SERIES

TB200HB-08S2406 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Barrier type terminal block
product	Barrier Terminal Blocks
Number of locations	8 Position
Pitch	0.437 in
Current rating	30 A
Voltage rating	600 V
type	High Barrier
Number of rows	2 Row
Installation style	Panel
series	TB200HB
color	Black
Contact plating	Tin
high	0.56 in
Shell material	Thermoplastic
length	4.25 in
Installation angle	Straight
Termination type	Screw
width	1.12 in
Contact material	Brass
Flammability rating	UL 94 V-0
Maximum operating temperature	+ 130 C
Minimum operating temperature	- 40 C
Maximum wire gauge	22 AWG
Minimum wire gauge	12 AWG

Preview

Download Datasheet

View All

Connectors

Double Row Terminal Blocks

Series TB200 & TB200HB

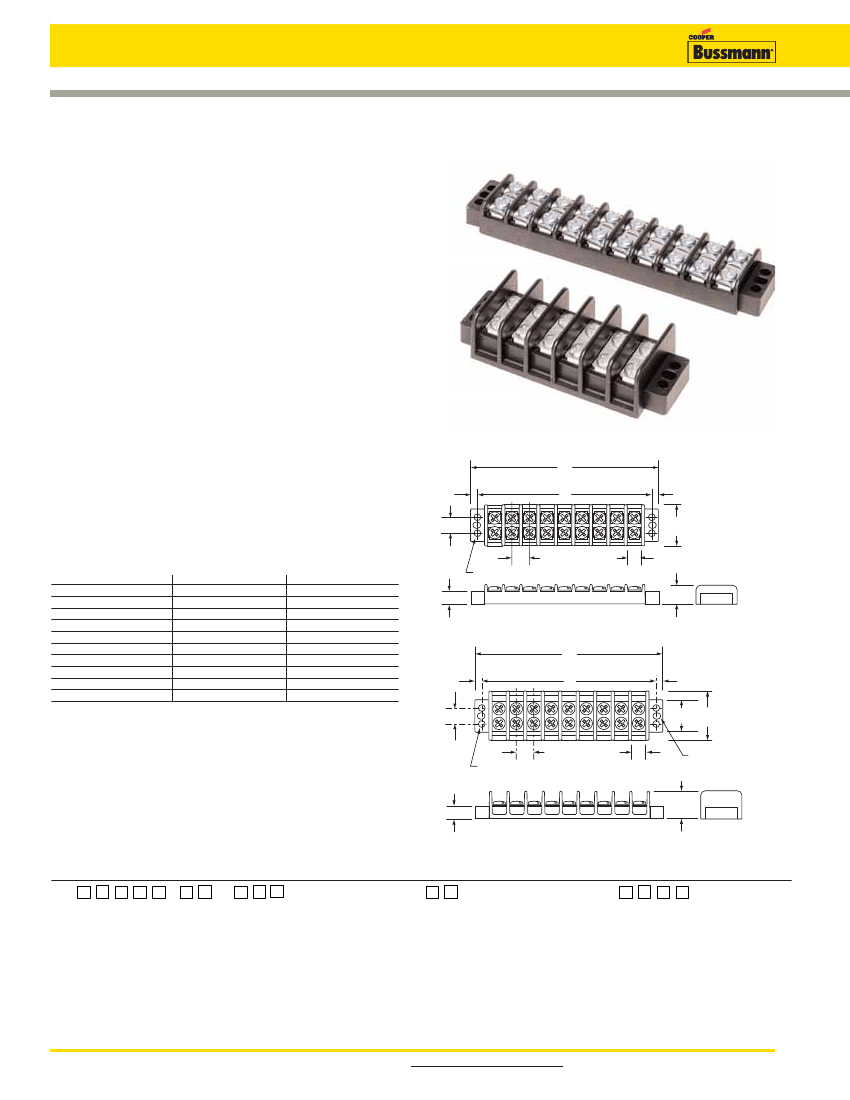

Specifications

Description:

Double row terminal blocks.

Ratings:

Volts: — 300V* (TB200)

— 600V* (TB200HB)

Amps: — 30A*

Center Spacing:

0.437” or 7/16” (11.10mm)

Wire Range:

#12 - 22 AWG Cu

Screw Size:

#6-32 philslot screws

Torque Rating:

9 lb-in.

Distance Between Barriers:

0.353” (8.97mm)

Mounting:

#6 screws

Operating Temperature:

130°C (266°F) max., -40°C (-40°F)

min.

Materials:

Molded base: Black, UL rated 94V0

thermoplastic

Terminal plating: Tin over brass; Screws: zinc-plated steel

Breakdown Voltage:

4800V

Agency Information:

UL File E62622, CSA File 47235 &

15364; IEC Compliance; CE Certified

* Max rating shown; some options may be rated lower - consult factory.

TB200-10SP

TB200HB-06

TB200 - in (mm)

A

0.16

(4.0)

0.16

(4.0)

1.12

(28.4)

0.437

(11.1)

0.353

(8.9)

B

0.44 (11.2)

Dimensions - in

Poles

02

03

04

05

06

07

08

09

10

11

A

1.63

2.07

2.51

2.94

3.38

3.82

4.25

4.69

5.13

5.57

B

1.31

1.75

2.18

2.62

3.06

3.50

3.93

4.37

4.81

5.25

Poles

12

13

14

15

16

17

18

19

20

21

A

6.00

6.44

6.87

7.31

7.75

8.19

8.62

9.06

9.50

9.94

B

5.68

6.12

6.56

7.00

7.43

7.87

8.31

8.75

9.18

9.62

Poles

22

23

24

25

26

27

28

29

30

A

10.37

10.81

11.25

11.68

12.12

12.56

13.00

13.44

13.87

B

10.06

10.50

10.93

11.37

11.81

12.25

12.68

13.12

13.56

.31 (7.8)

0.17 dia.

(4.3)

0.56

(14.2)

TB200HB

A

0.16

(4.0)

0.16

(4.0)

B

1” = 25.4mm.

0.44 (11.2)

0.90

1.37

(22.8) (34.8)

0.17 dia.

(4.3)

0.437

(11.1)

0.353

(8.9)

0.17 x 0.22

slots

(4.3 x 5.6)

0.33 (8.4)

0.75

(19.0)

Catalog Number Build-A-Code

Series

TB

200 = Standard

200HB = High barrier

—

02 to 30

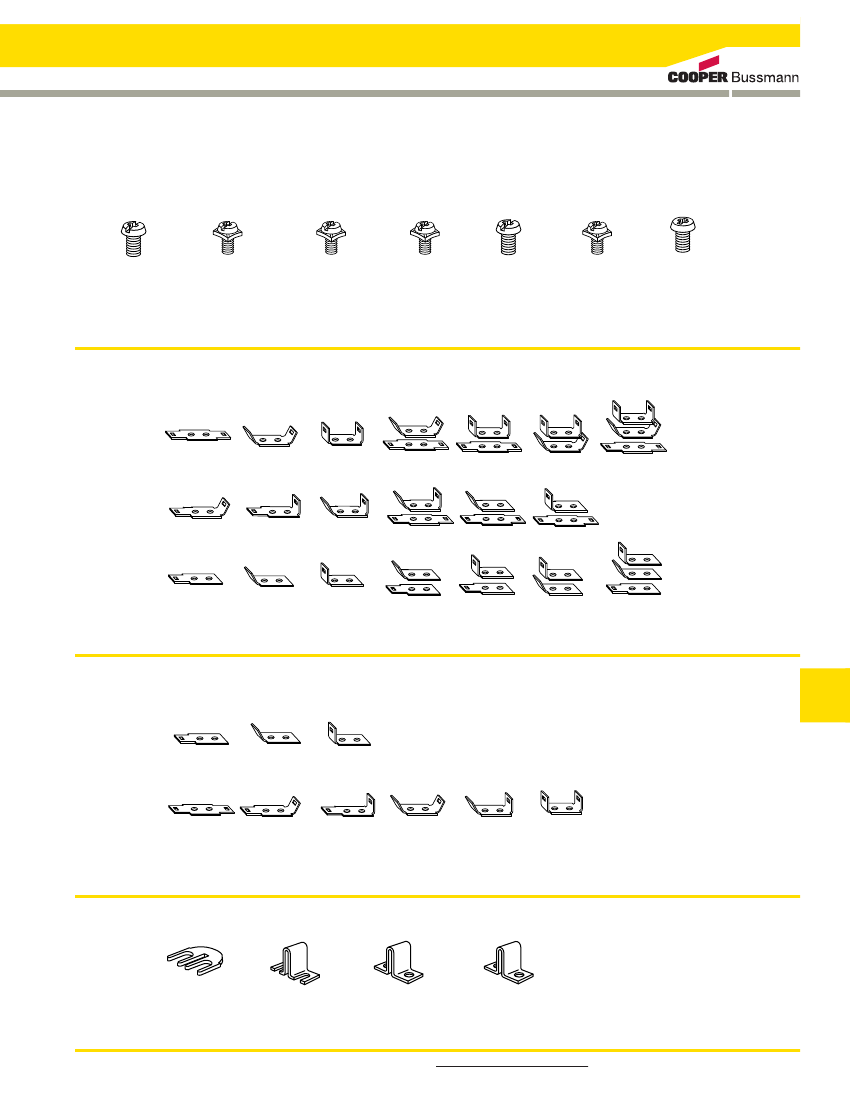

Blank = Steel philslot, zinc-plated

00 = Screws shipped bulk

B = Brass philslot, nickel-plated

BS = Brass Sems philslot, nickel-plated

SP = Steel Sems philslot, zinc-plated

P = Steel Sems (P-style)

ST = Stainless steel, philslot

SS = Stainless steel Sems, philslot

STR = Stainless steel, phillips (recess)

L1 to L6 Marking Strips (See page 318)

Special Markings (See page 318)

Covers (See page 318)

QC1 to QC20 = Quick connects

J201 = Flat slip-on jumper (2 position only)

0J3 = Over barrier jumpers

0J5 = Over barrier jumpers

0J7 = Over barrier jumpers

Poles

Screw Options

Marking/Cover

Hardware Options

314

For more information, visit www.cooperbussmann.com

TB200HB-08S2406 Related Products

	TB200HB-08S2406	TB200HB-28SP	DD2-HB/J
Description	Barrier terminal block MAGNUM TB200 SERIES	BARRIER BLOCK	Barrier type terminal block COVER CLIP FOR TB200HB
Maker	Bussmann (Eaton)	Bussmann (Eaton)	Bussmann (Eaton)
Product Category	Barrier type terminal block	Barrier type terminal block	Barrier type terminal block
product	Barrier Terminal Blocks	Barrier Terminal Blocks	Barrier Terminal Blocks
type	High Barrier	High Barrier	Cover Clips
series	TB200HB	TB200HB	TB200HB
Number of locations	8 Position	28 Position	-
Pitch	0.437 in	0.437 in	-
Current rating	30 A	30 A	-
Voltage rating	600 V	600 V	-
Number of rows	2 Row	2 Row	-
Installation style	Panel	Panel	-
color	Black	Black	-
Contact plating	Tin	Tin	-
high	0.56 in	0.56 in	-
Shell material	Thermoplastic	Thermoplastic	-
length	4.25 in	13 in	-
Installation angle	Straight	Straight	-
Termination type	Screw	Screw	-
width	1.12 in	1.12 in	-
Contact material	Brass	Brass	-
Flammability rating	UL 94 V-0	UL 94 V-0	-
Maximum operating temperature	+ 130 C	+ 130 C	-
Minimum operating temperature	- 40 C	- 40 C	-
Maximum wire gauge	22 AWG	22 AWG	-
Minimum wire gauge	12 AWG	12 AWG	-
