Terminal Systems
MCS

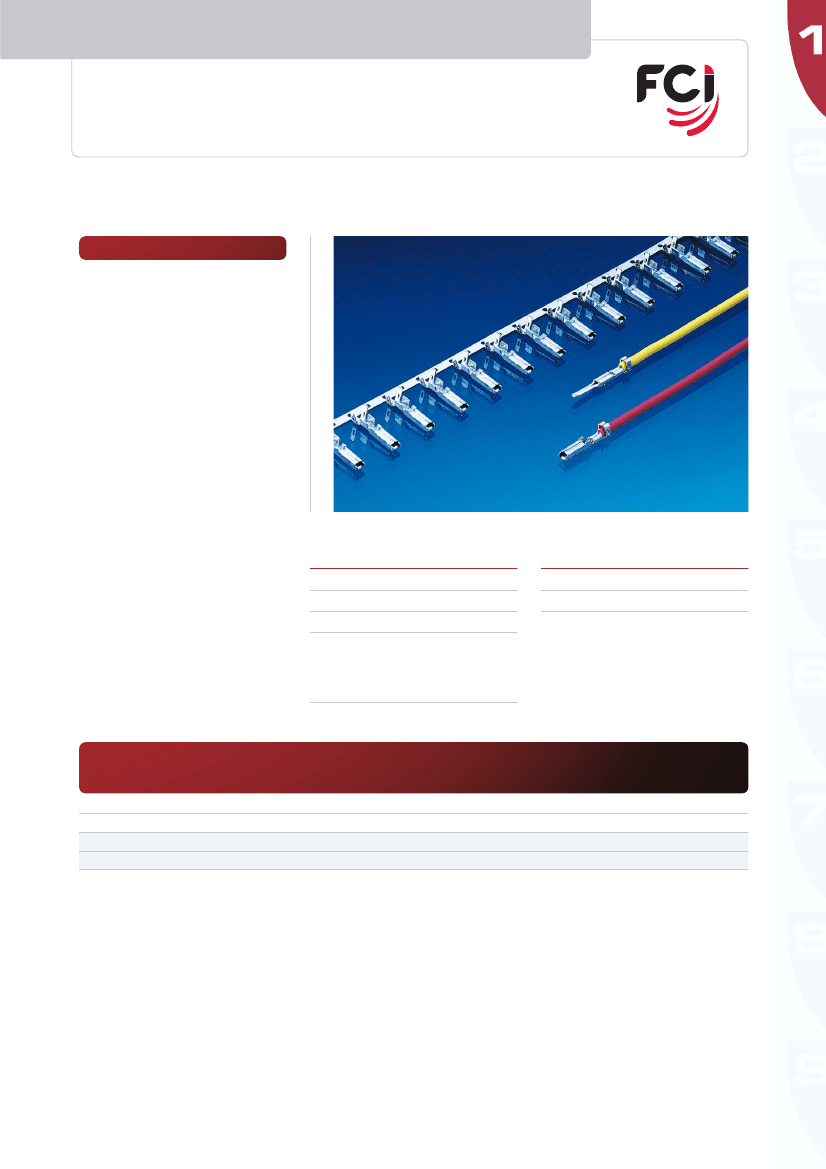

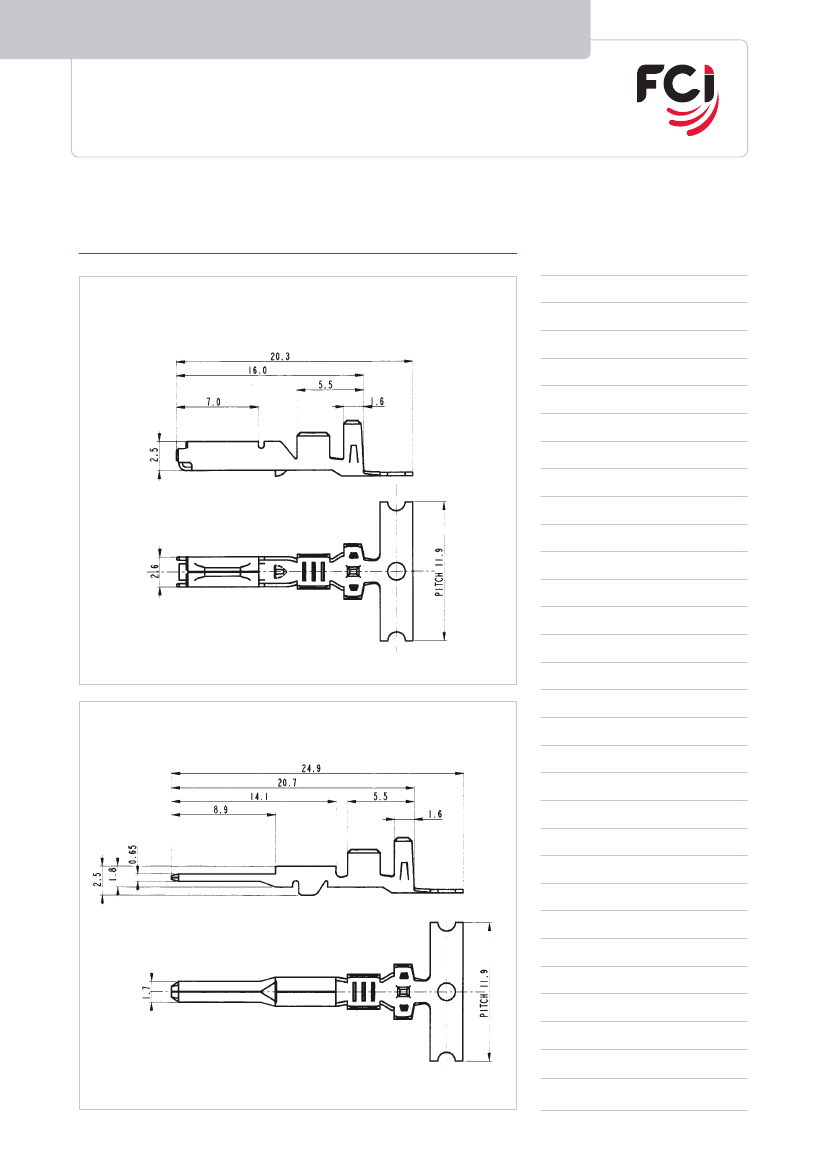

1.8 mm female and male terminals
Features
•
MCS technology
•
3.5 mm pitch
•
High current carrying capacity
Performance characteristics
•
Contact resistance:
•
Contact mating force:
•
Contact unmating force:
•
Current carrying capacity
at 23°C up to approx.:
at 85°C up to approx.:
at 100°C up to approx.:
< 3 mΩ
<6N
< 3.5 N
14 A
11 A
6A
Tooling
•
Manual crimping tool:
•
Mini applicator:
Consult us
Consult us
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
MCSFDBU1
MCSFDBU2
MCSMDBU1
MCSMDBU2
Female
Female
Male
Male
0.35
1.00
0.35
1.00
0.50
1.50
0.50
1.50
1.70
2.40
1.70
2.40
CuZn
CuZn
CuZn
CuZn
Sn
Sn
Sn
Sn
1.33
