AIT-
Ⅱ
CONNECTOR
0.64 terminal
Board-to-wire/Wire-to-wire

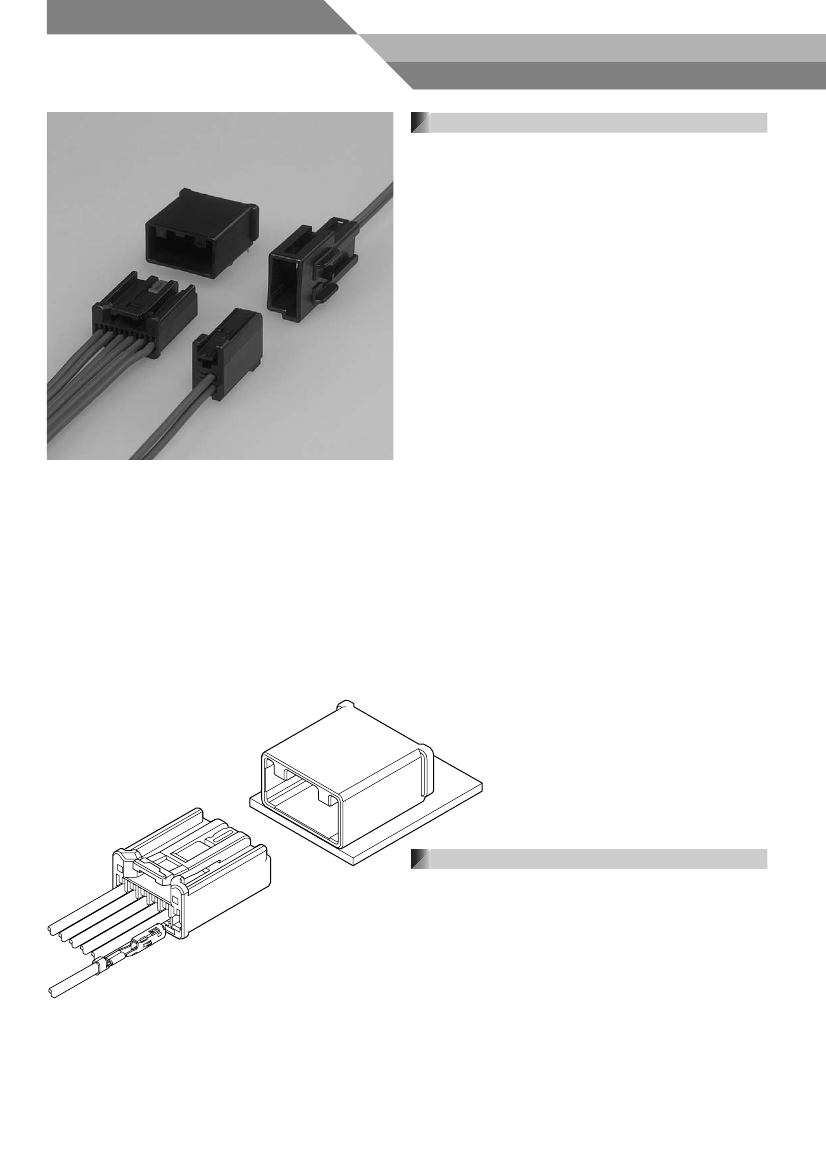

Features
●Ultra
Low Profile Connector
Over 30% Height Reduction as compared to the Standard
USCAR Footprints.
●Variations
There are multiple varieties of AIT-
Ⅱ
Connectors which can
satisfy your needs.
0.64 unsealed low-profile connector series for use in a
wide range of automotive applications.
Specifications
¡Current
rating: 5 A DC max.
¡Voltage
rating: 14 V DC
¡Temperature
range: -40°C to +105°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/ 15 mΩ max.
After environmental tests/ 15 mΩ max.
¡Insulation
resistance: 100 MΩ min.
¡Applicable
wire: SAE/ AVSS/ CAVS/ FLRY
0.3 mm
2
to 0.85 mm
2
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
1
AIT-
CONNECTOR
Ⅱ

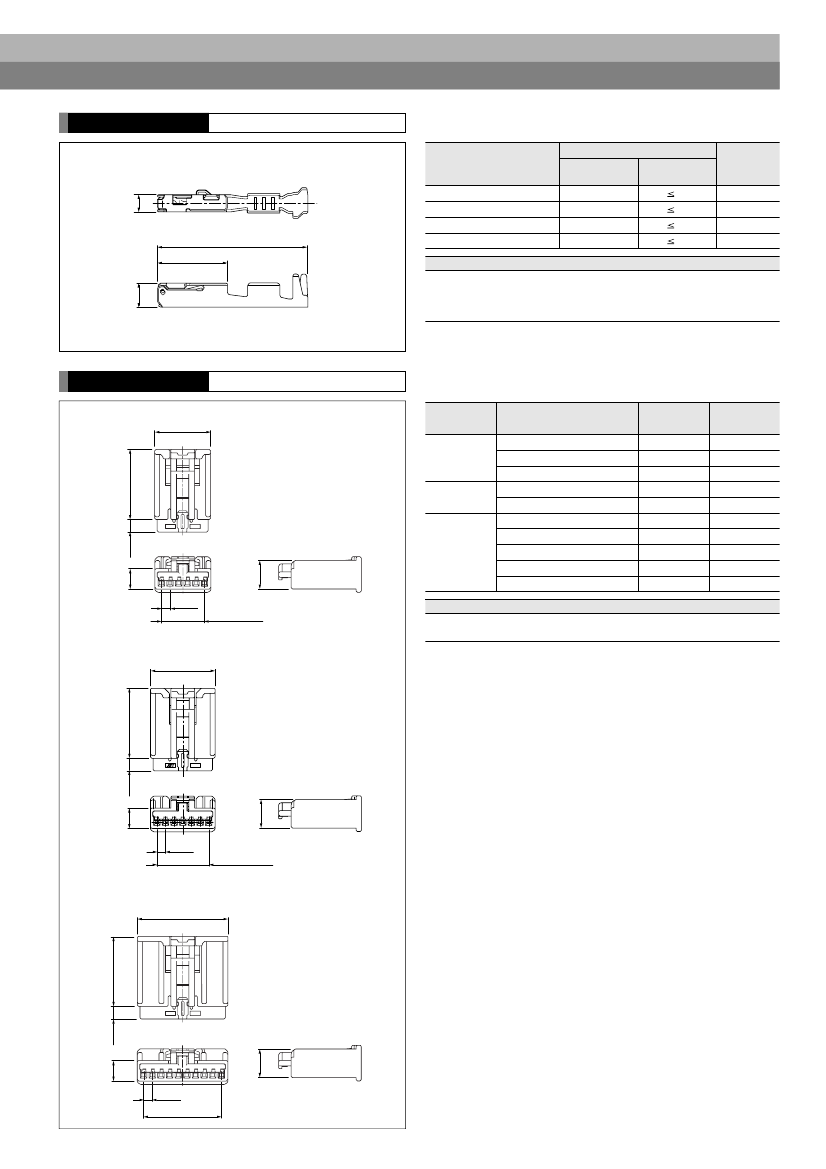

Female terminal
Applicable wire range
Model No.
qSAIT-A03T-M064
qSAIT-A02T-M064
wSAIT-A03GF-M064
14
6.5
Conductor
(mm
2
)
0.3 to 0.5
0.75 to 0.85
0.3 to 0.5
0.75 to 0.85
Material and Finish
Insulation O.D.
(mm)
1.9
1.9
1.9
1.9
Q’ty/reel
6,500
6,500
6,500
6,500
1.6
wSAIT-A02GF-M064
qCopper
alloy, tin-plated (reflow treatment)
wCopper
alloy, nickel-undercoated,
Contact area; gold-plated
Barrel area; tin-plated
Female connector
(Single row)
¡6
circuits
16.44
2.25
Circuits
Model No.
AIT2PB-06-1AK
Q’ty/box
5,250
5,250
5,250
300
300
3,000
3,000
3,000
3,000
3,000
Housing
Color
Black
Gray
Natural (White)
Gray
Natural (White)
Black
Gray
Green
Natural (White)
Orange
6
20.6
AIT2PB-06-1BH
AIT2PB-06-1FS
AIT2PB-07-1BH
AIT2PB-07-1FS
AIT2PB-10-1AK
AIT2PB-10-1BH
7
JST
(3.7)
10
8.4
AIT2PB-10-1DM
AIT2PB-10-1FS
AIT2PB-10-1AD
6
2.54
5
X
2.54=12.7
Material and Finish
Housing: Glass-filled PBT
TPA: Glass-filled PBT, Red
¡7
circuits
18.98
(3.7)
20.6
6
2.54
6
X
2.54=15.24
¡10
circuits
26.6
20.6
JST
(3.7)
6
2.54
9
X
2.54=22.86
8.4
8.4
2

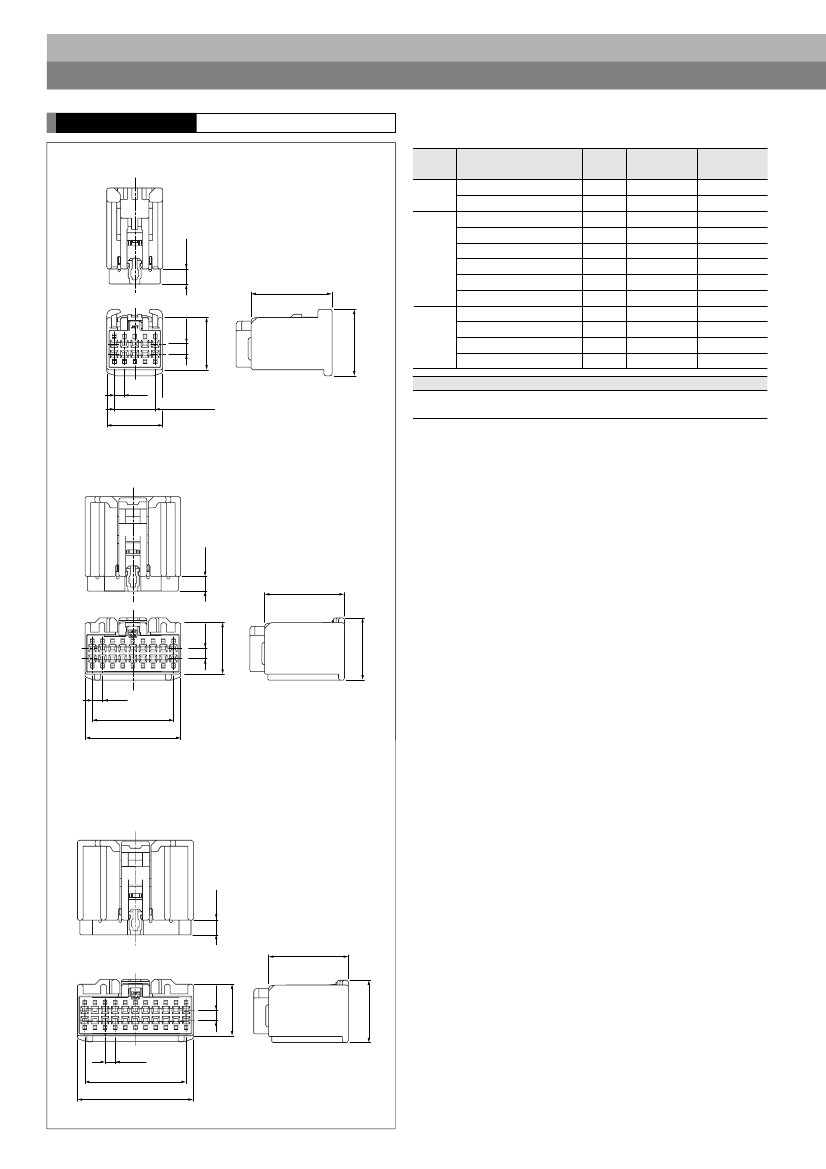

AIT-
CONNECTOR
Ⅱ
Female connector
(Dual row)
¡10
circuits
Circuits
10
Model No.
AIT2PB-10P-2AK
AIT2PB-10P-2BH
AIT2PB-18-2AD
AIT2PB-18-2BD
(3.7)
Q’ty/box
200
200
120
120
120
120
120
120
100
100
100
100
Housing
Color
Black
Gray
Orange
Orange
Black
Gray
Green
Natural (White)
Black
Gray
Brown
Natural (White)
TPA Color
Natural (White)
Natural (White)
Black
Natural (White)
Natural (White)
Natural (White)
Natural (White)
Black
Natural (White)
Natural (White)
Natural (White)
Black
18
20
AIT2PB-18-2AK
AIT2PB-18-2BH
AIT2PB-18-2DM
AIT2PB-18-2FS
AIT2PB-22-2AK
2.54
16.42
12.9
22
AIT2PB-22-2BH
AIT2PB-22-2CN
AIT2PB-22-2FS
2.54
4
X
2.54=10.16
13.8
Material and Finish
Housing: Glass-filled PBT
TPA: Glass-filled PBT
¡18
circuits
(3.7)
20
2.54
12.9
2.54
8
X
2.54=20.32
23.96
¡22
circuits
(3.7)
20
2.54
12.9
2.54
10
X
2.54=25.4
29.04
3
15.6
15.6
AIT-
CONNECTOR
Ⅱ
Female connector
(Side Lock)
Side-Load TPA
¡3
circuits
¡4
circuits
(1.7)
23.8
21.8
23.8
(19.94)
19.04
2.16
17.8
(22.48)
21.58
2.16
17.8
6
21.8
2.54
2
X
2.54=5.08
2.54
3
X
2.54=7.62
Front-Load TPA
¡2
circuits
¡4
circuits
12
21.8
14.8
14.3
2.16
17.8
22.08
20.78
21.8
6
2.54
(3.7)
3
X
2.54=7.62
(3.7)
Circuits
2
3
4
TPA
Location
Front-Load
Side-Load
Front-Load
Side-Load
Model No.
AIT2PB-02G-1AK
AIT2PB-02A-1FS
AIT2PB-03B-1AK
AIT2PB-04G-1AK
AIT2PB-04B-1AK
Material and Finish
Housing: Glass-filled PBT
TPA: Glass-filled PBT, Red
Q’ty/box
8,400
8,400
6,000
5,500
400
Natural (White)
Black
Black
Black
7.6
6
Housing
Color
Black
4
AIT-
CONNECTOR
Ⅱ
Male terminal
Applicable wire range
Model No.
qSAITW-A03T-064
qSAITW-A02T-064
wSAITW-A03GF-064
6.4
7.5
Conductor
(mm
2
)
0.3 to 0.5
0.75 to 0.85
0.3 to 0.5
0.75 to 0.85
Material and Finish
Insulation O.D.
(mm)
1.9
1.9
1.9
1.9
Q’ty/reel
7,000
7,000
7,000
7,000
wSAITW-A02GF-064
(22.7)
qBrass,
tin-plated (reflow treatment)
wBrass,
nickel-undercoated, Contact area: gold-plated
Barrel area: tin-plated
Male connector
¡4
circuits
(23.78)
(Top entry type)
Circuits
4
6
Model No.
qB04BA-AIT2-1AK
wB06BA-AIT2-1AK-K
Q’ty/box
108
120
Housing
Color
Black
Black
Material and Finish
Housing:
qGlass-filled
nylon
wGlass-filled
PBT
Pin: Brass, tin-plated
20.5
23.08
2.54
7.62
¡6
circuits
(20.84)
20.5
18.74
1
6
2.54
12.7
5
10.8
8.3
2
1
4
