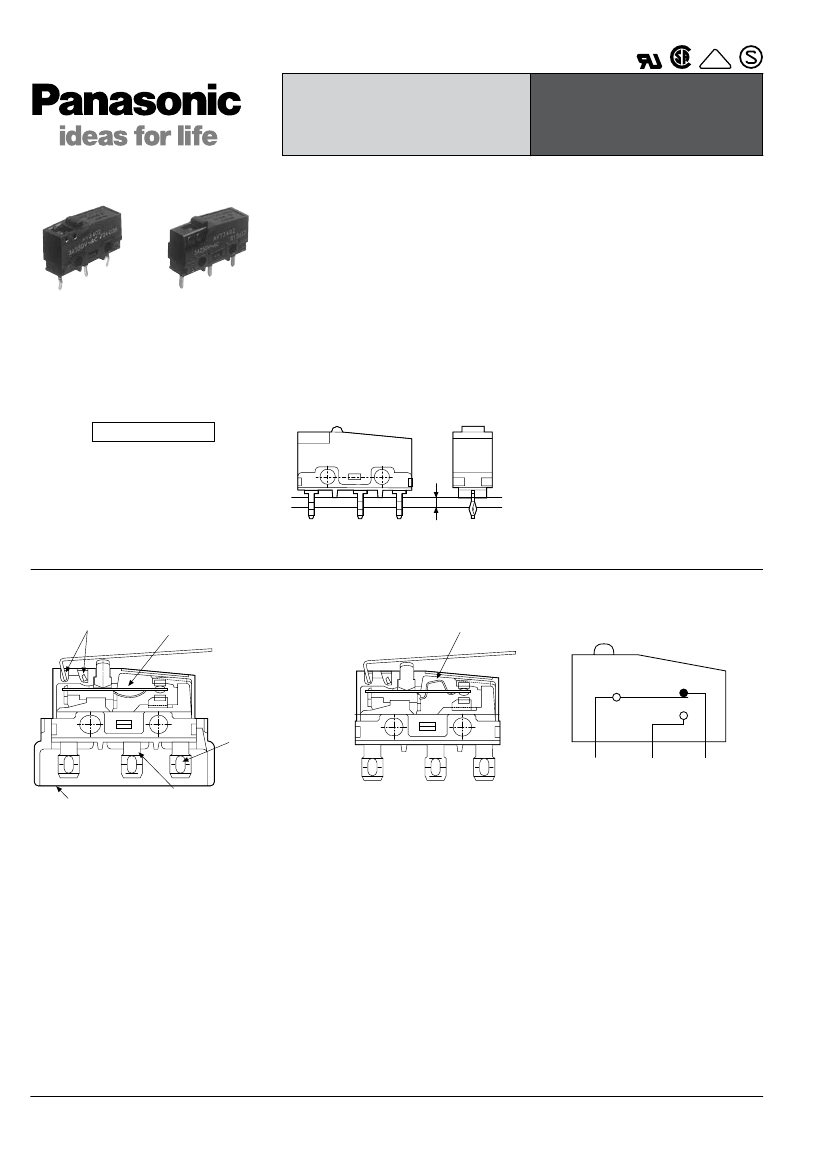

AV3,AVM3/AVT3,AVL3
NEW SUBMINIATURE
SWITCHES
WITH HIGH PRECISION
VDE
AV (FS•FS-T)
SWITCHES
• 2 lever pivot positions available for
applications where low operating
force is required
FEATURES
• Consistent quality and high
precision through sophisticated
automatic fabrication system —O.P.:
8.4±0.3 mm (O.P.of conventional
subminiature switches: 8.4±0.5)
• Flux-resistant construction with
integrally molded terminals
• Solder terminal; Self-standing,
internationally common pitch, right
angle, left angle terminals for PC
board; Quick connect .110 terminals
for easy mounting
• Insulation guard available for safety
mounting
TYPICAL
APPLICATIONS
• Communication equipment
• Vending machines
• Security systems
• Data systems
• Medical equipment
• VCR
FS
FS-T
RoHS compliant
PC board thickness:
1.6 mm
CONSTRUCTION
(Example: AV3/AVM3 type)
Standard version
2 lever pivot positions
Spring
Long life version
Arch-shaped independent spring
CONTACT
ARRANGEMENT
Solder-terminal
Self-standing PC terminal
.110 Quick connect terminal
COM
NO
NC
Flux resistant construction
Optional insulation guard
Remark: As for FS-T switches, the terminals are the different shape.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB10E 201201-T
AV3,AVM3/AVT3,AVL3
ORDERING INFORMATION
1.FS switches
Ex. AV
3
2
0
2
3
Type of
switch
AV3(FS)
switch
Version
3: Standard
Terminals
1: Solder terminal with guard
2: Solder terminal without guard
3: Solder terminal with opposite
side guard
4: Self-standing PC terminal
5: Internationally common pitch
PC terminal
6: Right angle terminal
7: Left angle terminal
8: .110 Quick-connect terminal
Actuators
0: Pin plunger
1: Short hinge
lever
2: Hinge lever
3: Long hinge
lever
4: Simulated
roller lever
5: Roller lever
Operating force by
pin plunger, max.
0: 0.25 N
(Gold-clad
contact only)
2: 0.49 N
4: 0.98 N
Lever
position
Nil: Standard
[11: forward]
Contacts
Nil: AgNi alloy
61: Gold-clad
triple layer*
International
standard
3: UL/CSA/
VDE/
SEMKO
Ex. AV
M3
2
0
2
3
Type of
switch
AV3
(FS long
life ver.)
switch
Version
M3: Long life
Terminals
1: Solder terminal with guard
2: Solder terminal without guard
3: Solder terminal with opposite
side guard
4: Self-standing PC terminal
5: Internationally common pitch
PC terminal
6: Right angle terminal
7: Left angle terminal
8: .110 Quick-connect terminal
Actuators
0: Pin plunger
1: Short hinge
lever
2: Hinge lever
3: Long hinge
lever
4: Simulated
roller lever
5: Roller lever
Operating force by
pin plunger, max.
5: 1.47 N
Lever
position
Nil: Standard
[11: forward]
Contacts
Nil: AgNi alloy
61: Gold-clad
triple layer*
International
standard
3: UL/CSA/
VDE/
SEMKO
2.FS-T switches
Ex. AV
T3
2
0
2
3
Type of
switch
AVT3
(FS-T)
switch
Version
T3: Standard
Terminals
2: Solder terminal
4: PC terminal
8: .110 Quick-connect
terminal
Actuators
0: Pin plunger
1: Short hinge lever
2: Hinge lever
3: Long hinge lever
4: Simulated roller
lever
5: Roller lever
Operating force by
pin plunger, max.
0: 0.25 N
(Gold-clad
contact only)
2: 0.49 N
4: 0.98 N
Lever
position
Nil: Standard
[11: forward]
Contacts
Nil: AgNi alloy
(Not applicable
to 0.25 N type)
61: Gold-clad
triple layer*
Agency
standard
3: UL/CSA/
VDE/
SEMKO
Ex. AV
L3
2
0
2
3
Type of
switch
AVL3
(FS-T
long life
ver.)
switch
Version
L3: Long life
Terminals
2: Solder terminal
4: PC terminal
8: .110 Quick-connect
terminal
Actuators
0: Pin plunger
1: Short hinge lever
2: Hinge lever
3: Long hinge lever
4: Simulated roller
lever
5: Roller lever
Operating force by
pin plunger, max.
5: 1.47 N
Lever
position
Nil: Standard
[11: forward]
Contacts
Nil: AgNi alloy
(Not applicable
to 0.25 N type)
61: Gold-clad
triple layer*
Agency
standard
3: UL/CSA/
VDE/
SEMKO
* Gold-clad triple layer contact
Au
CuNi
AgNi
AECTB10E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AV3,AVM3/AVT3,AVL3
APPLICABLE CURRENT RANGE
Type
Contact
Rating
1mA
100mA
3A
5A
0.25 N
0.49 N
O.F.
0.98 N
1.47 N
Silver alloy contact
Standard
version Gold-clad triple layer
contact type
Silver alloy contact
Long life
version Gold-clad triple layer
contact type
Remark: For high capacity contact rating up to 10.1 A, please refer to PS (AVM3
P) switches catalog.
PRODUCT TYPES
1. FS switches (In-line terminal type)
Standard type
Actuator
Operating force,
Max.
0.49N
0.98N
0.20N
0.39N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
0.25N
0.49N
0.98N
0.098N
0.20N
0.39N
0.078N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
Part No.
Self-standing solder terminal
Without guard
Pin plunger
Short hinge lever
Hinge lever
AgNi alloy contact
type
Long hinge lever
Simulated roller lever
Roller lever
AV32023
AV32043
AV32123
AV32143
AV32223
AV32243
AV32323
AV32343
AV32423
AV32443
AV32523
AV32543
AV3200613
AV3202613
AV3204613
AV3210613
AV3212613
AV3214613
AV3220613
AV3222613
AV3224613
AV3232613
AV3234613
AV3242613
AV3244613
AV3252613
AV3254613
With guard
AV31023
AV31043
AV31123
AV31143
AV31223
AV31243
AV31323
AV31343
AV31423
AV31443
AV31523
AV31543
AV3100613
AV3102613
AV3104613
AV3110613
AV3112613
AV3114613
AV3120613
AV3122613
AV3124613
AV3132613
AV3134613
AV3142613
AV3144613
AV3152613
AV3154613
With opposite
side guard
AV33023
AV33043
AV33123
AV33143
AV33223
AV33243
AV33323
AV33343
AV33423
AV33443
AV33523
AV33543
AV3300613
AV3302613
AV3304613
AV3310613
AV3312613
AV3314613
AV3320613
AV3322613
AV3324613
AV3332613
AV3334613
AV3342613
AV3344613
AV3352613
AV3354613
Internationally
common pitch
PC terminal
AV35023
AV35043
AV35123
AV35143
AV35223
AV35243
AV35323
AV35343
AV35423
AV35443
AV35523
AV35543
AV3500613
AV3502613
AV3504613
AV3510613
AV3512613
AV3514613
AV3520613
AV3522613
AV3524613
AV3532613
AV3534613
AV3542613
AV3544613
AV3552613
AV3554613
Self-standing
PC terminal
AV34023
AV34043
AV34123
AV34143
AV34223
AV34243
AV34323
AV34343
AV34423
AV34443
AV34523
AV34543
AV3400613
AV3402613
AV3404613
AV3410613
AV3412613
AV3414613
AV3420613
AV3422613
AV3424613
AV3432613
AV3434613
AV3442613
AV3444613
AV3452613
AV3454613
Pin plunger
Short hinge lever
Gold-clad triple layer
contact type
Hinge lever
Long hinge lever
Simulated roller lever
Roller lever
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB10E 201201-T
AV3,AVM3/AVT3,AVL3
Actuator
Pin plunger
Short hinge lever
Hinge lever
AgNi alloy contact
type
Long hinge lever
Simulated roller lever
Roller lever
Operating force,
Max.
0.49N
0.98N
0.20N
0.39N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
0.25N
0.49N
0.98N
0.098N
0.20N
0.39N
0.078N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
Right angle terminal
AV36023
AV36043
AV36123
AV36143
AV36223
AV36243
AV36323
AV36343
AV36423
AV36443
AV36523
AV36543
AV3600613
AV3602613
AV3604613
AV3610613
AV3612613
AV3614613
AV3620613
AV3622613
AV3624613
AV3632613
AV3634613
AV3642613
AV3644613
AV3652613
AV3654613
Part No.
Left angle terminal
AV37023
AV37043
AV37123
AV37143
AV37223
AV37243
AV37323
AV37343
AV37423
AV37443
AV37523
AV37543
AV3700613
AV3702613
AV3704613
AV3710613
AV3712613
AV3714613
AV3720613
AV3722613
AV3724613
AV3732613
AV3734613
AV3742613
AV3744613
AV3752613
AV3754613
.110 Quick-connect
AV38023
AV38043
AV38123
AV38143
AV38223
AV38243
AV38323
AV38343
AV38423
AV38443
AV38523
AV38543
AV3800613
AV3802613
AV3804613
AV3810613
AV3812613
AV3814613
AV3820613
AV3822613
AV3824613
AV3832613
AV3834613
AV3842613
AV3844613
AV3852613
AV3854613
Pin plunger
Short hinge lever
Gold-clad triple layer
contact type
Hinge lever
Long hinge lever
Simulated roller lever
Roller lever
Remark: When ordering, please refer to “Remarks” of ordering information.
AECTB10E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AV3,AVM3/AVT3,AVL3
2. FS-T switches (Cross-line terminal type)
Standard type
Actuator
Operating force,
Max.
0.49N
0.98N
0.20N
0.39N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
0.25N
0.49N
0.98N
0.098N
0.20N
0.39N
0.078N
0.16N
0.34N
0.12N
0.25N
0.16N
0.34N
0.20N
0.39N
Part No.
Solder terminal without
guard
AVT32023
AVT32043
AVT32123
AVT32143
AVT32223
AVT32243
AVT32323
AVT32343
AVT32423
AVT32443
AVT32523
AVT32543
AVT3200613
AVT3202613
AVT3204613
AVT3210613
AVT3212613
AVT3214613
AVT3220613
AVT3222613
AVT3224613
AVT3232613
AVT3234613
AVT3242613
AVT3244613
AVT3252613
AVT3254613
PC terminal
AVT34023
AVT34043
AVT34123
AVT34143
AVT34223
AVT34243
AVT34323
AVT34343
AVT34423
AVT34443
AVT34523
AVT34543
AVT3400613
AVT3402613
AVT3404613
AVT3410613
AVT3412613
AVT3414613
AVT3420613
AVT3422613
AVT3424613
AVT3432613
AVT3434613
AVT3442613
AVT3444613
AVT3452613
AVT3454613
.110 Quick-connect
terminal
AVT38023
AVT38043
AVT38123
AVT38143
AVT38223
AVT38243
AVT38323
AVT38343
AVT38423
AVT38443
AVT38523
AVT38543
AVT3800613
AVT3802613
AVT3804613
AVT3810613
AVT3812613
AVT3814613
AVT3820613
AVT3822613
AVT3824613
AVT3832613
AVT3834613
AVT3842613
AVT3844613
AVT3852613
AVT3854613
Pin plunger
Short hinge lever
Hinge lever
AgNi alloy contact
type
Long hinge lever
Simulated roller lever
Roller lever
Pin plunger
Short hinge lever
Gold-clad triple layer
contact type
Hinge lever
Long hinge lever
Simulated roller lever
Roller lever
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB10E 201201-T
京公网安备 11010802033920号
EEWORLD
