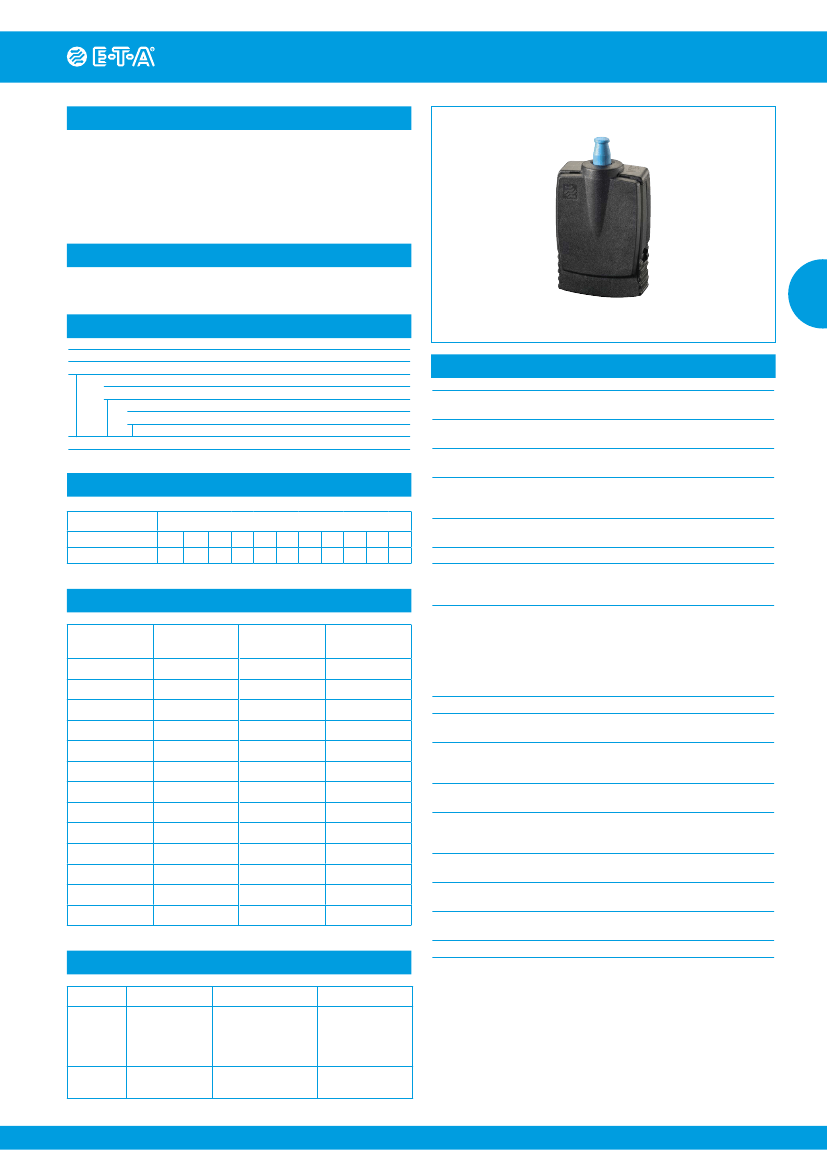

Magnetic Overcurrent Circuit Breaker 808-...
Description
Single pole miniaturised magnetic circuit breakers with unique
high-speed operating mechanism and push/pull on/off manual
actuation. Fitted with electrically separate excitation and switching
circuits, and one pair of auxiliary contacts which close when the
main circuit is open. Also suitable for impulse operation. Designed for
printed circuit board mounting. Low temperature sensitivity.
Typical applications
Printed circuit boards and components, safety and control systems.
1
808
Technical data
Voltage rating
Current ratings
Max. continuous load
excitation circuit (2-3)
Max. continuous load
switching circuit 6-7
auxiliary circuit 4-5
Typical life
Ambient temperature
Insulation co-ordination
(IEC 60664-1)
Dielectric strength
(UL 1077)
operating area
excitation to
switching circuit
excitation to
auxiliary circuit
Insulation resistance
Interrupting capacity
(o-o-o)
Interrupting capacity
(UL 1077)
Degree of protection
(IEC 60529/DIN 40050)
Vibration
DC 24 V
(higher voltages to special order)
UL: AC 120 V; DC 60 V
0.01...5 A
(higher current ratings to special order)
2.65 x I
N
5A
6,000 operations
at 5 A for switching circuit
-30...+70 °C (-22...+158 °F)
rated impulse
pollution
withstand voltage
degree
1.5 kV
2
test voltage
AC 1,240 V
AC 1,240 V
AC 1,240 V
> 100 MΩ (DC 500 V)
100 A
2,000 A AC 120 V
1,000 A DC 60 V
operating area IP30
terminal area IP00
3 g (57-500 Hz), ± 0.23 mm (10-57 Hz),
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
25 g (11 ms)
to IEC 60068-2-27, test Ea
48 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 10 g
Ordering information
Type No.
808
fast-acting
Manual release
H
manual release facility
Current ratings
0.01...5 A
808 - H - 5 A
ordering example
Preferred types
Preferred types Standard current ratings (A)
0.02 0.05 0.1 0.3 0.4 0.5 0.6
808-H-
x
x
x
x
x
x
x
1
x
2
x
3
x
5
x
Standard current ratings and typical internal resistance values
Current
rating (A)
0.01
0.02
0.03
0.04
0.05
0.08
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Internal
resistance (Ω)
625
170
77
47
29.2
10.3
5.6
1.65
0.89
0.39
0.28
0.198
0.143
Current
rating (A)
0.8
0.9
1
1.2
1.5
2
2.5
3
3.25
4
4.5
5
Internal
resistance (Ω)
0.096
0.085
0.073
0.050
0.031
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
Shock
Corrosion
Humidity
Mass
Approvals
Authority
UL
Standard
UL 1077
C22.2 No 235
CSA
C22.2 No 235
Rated voltage
AC 120 V
DC 60 V
AC 120 V
DC 60 V
AC 120 V
DC 60 V
Current ratings
0.006
0.006
0.006
0.006
A…8
A…8
A…5
A…8
A
A
A
A
0.01...5 A
0.01...8 A
1646
www.e-t-a.de
1
Magnetic Overcurrent Circuit Breaker 808-...
Dimensions
808-H
2.5 ON
.098
7.5 OFF
.295
20
.787
ø9.3
.366
Internal connection diagram
ø4
.157
5
.197
4
6
5
.197
5
7
2-3: excitation circuit
6-7: switching circuit
4-5: auxiliary circuit
30
1.18
1
2
-
+
3
14
.551
15
.591
0.6
.024
0.5
.020
10
.394
15.5
.610
Typical time/current characteristics at +23 °C/+73.4 °F
10000
1000
Trip time in milliseconds
100
10
1
0.1
1
2
4
6 8 10
20
40
... times rated current
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved. Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
2
www.e-t-a.de
1646
