Circuit diagram of driver board ..............................................................................................................18
External trigger function description ......................................................................................................22
Parallel operation on one output channel for test purpose ....................................................................23
Preferred software settings for 2.5G, 7G, and 15G types .............................................................................14
Detailed description of hardware ...................................................................................................................18
Software revision history list ..........................................................................................................................24
Important Notes .............................................................................................................................................25
PPD PI AE/IE PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 25
2018-04-26
Evaluation Kit for PowerHap
TM
Piezo actuators
Preliminary data
2 Introduction
This evaluation kit was developed to support engineers during their first steps designing applications
with the PowerHap
TM
piezo actuators for haptic feedback.
This evaluation kit is available in two versions.
The design is not qualified regarding manufacturing and operation over the whole operation
temperature range or lifetime.
The bevaluation kits provided by TDK are intended to be used for functional testing only.
Due to their purpose, evaluation driver kits are not intended to be used by the same procedures
regarding returned material analysis (RMA) and process change notification (PCN) as regular
products.
The board described is an evaluation driver board dedicated for laboratory
environment only. It operates at voltages up to 124V. This board must be
operated by qualified and skilled personnel familiar with all applicable safety
standards.
2.1
Ordering Code
Version 1 was designed to drive up to five PowerHap
TM
. It can be ordered by using the ordering
code Z63000Z2910Z 1Z 7.
Version 2 can drive a single PowerHap
TM
actuator at a time. It can be ordered by using the
ordering code Z63000Z2910Z 1Z 1.
.
PPD PI AE/IE PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 25
2018-04-26
Evaluation Kit for PowerHap
TM
Piezo actuators
Preliminary data
2.2
Content of evaluation driver kit
One channel evaluation kit
Power supply (12V
DC
/ 1A) shipped with two pin connector (Euro connector)
Micro USB cable
One part of each PowerHap
TM
type (15G; 7G; 2.5G)
USB memory stick
o
PC configuration software*
o
Documentation
4 pcs female connectors
One channel driver board

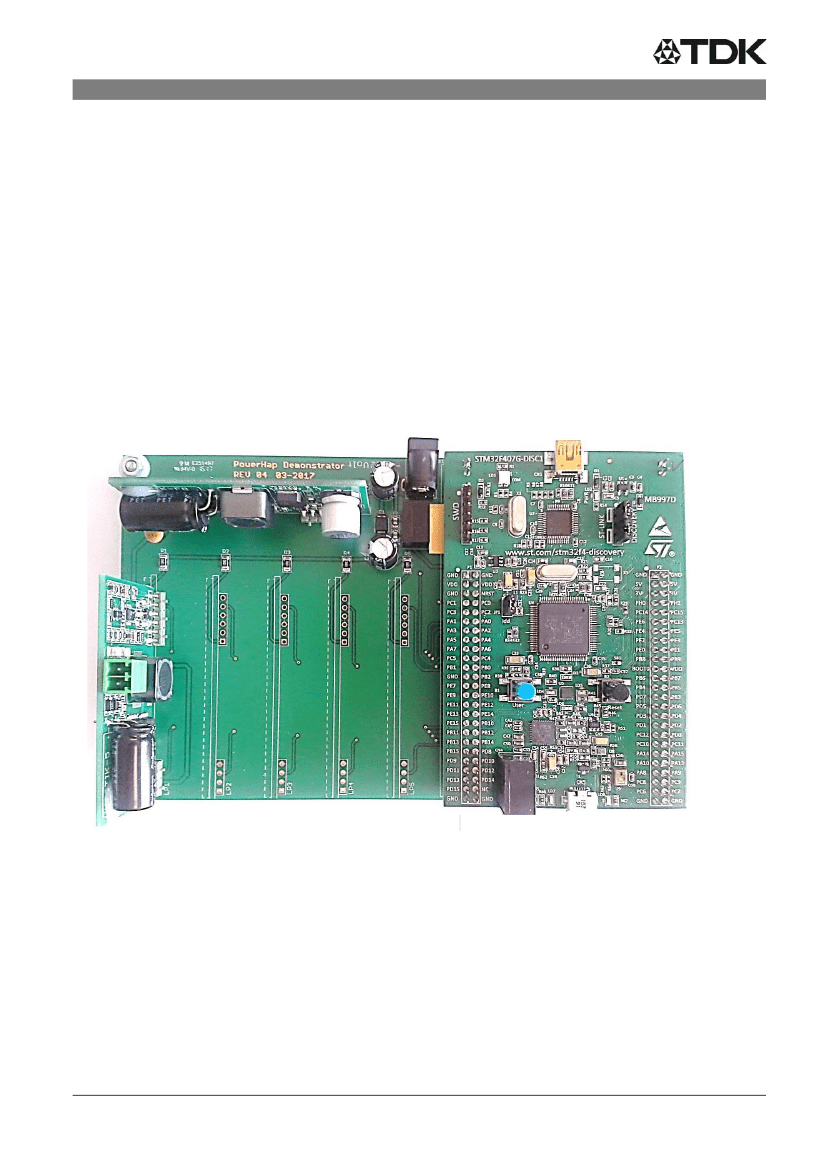

Figure 1: PowerHapTM 1-channel driver board
*In case your company policy does not allow the use of USB sticks pls. contact your TDK sales
contact person.
PPD PI AE/IE PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 25
2018-04-26
Evaluation Kit for PowerHap
TM
Piezo actuators
Preliminary data
Five channel evaluation kit
shipped with two pin connector (Euro connector)
Power supply (12V
DC
/ 1A)
Micro USB cable
One part of each PowerHap
TM
type (15G; 7G; 2.5G)
USB memory stick
o
PC configuration software*
o
Documentation
8 pcs female connectors
5 channel driver board

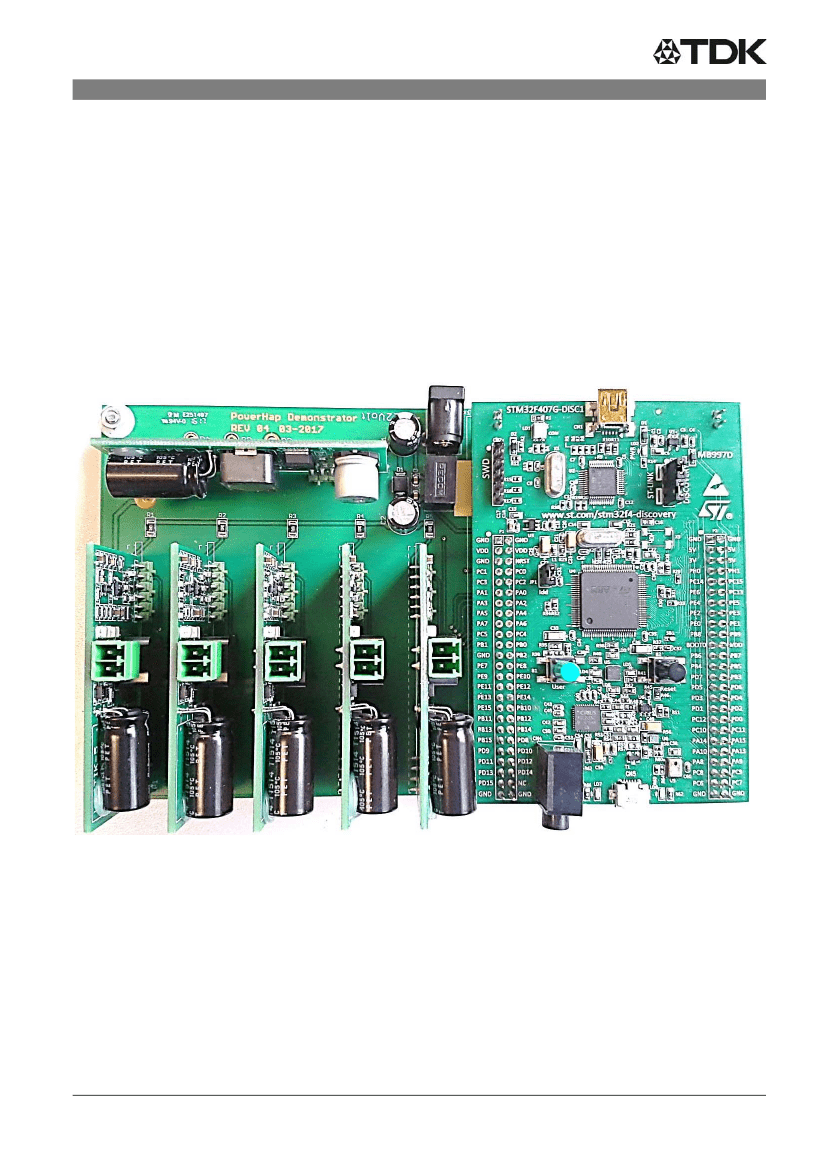

Figure 2: PowerHap
TM
5-channel driver board
*
In case your company policy does not allow the use of USB sticks pls. contact your TDK sales
