ADAM-5013-A2E Overview

I/O module 3-Ch RTD Input Module

ADAM-5013-A2E Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	I/O module
Shipping restrictions	Mouser does not currently sell this product.
product	AC Input Modules
Termination type	Screw
insulation	Isolated
series	ADAM-5013/5017
Factory packaging quantity	1

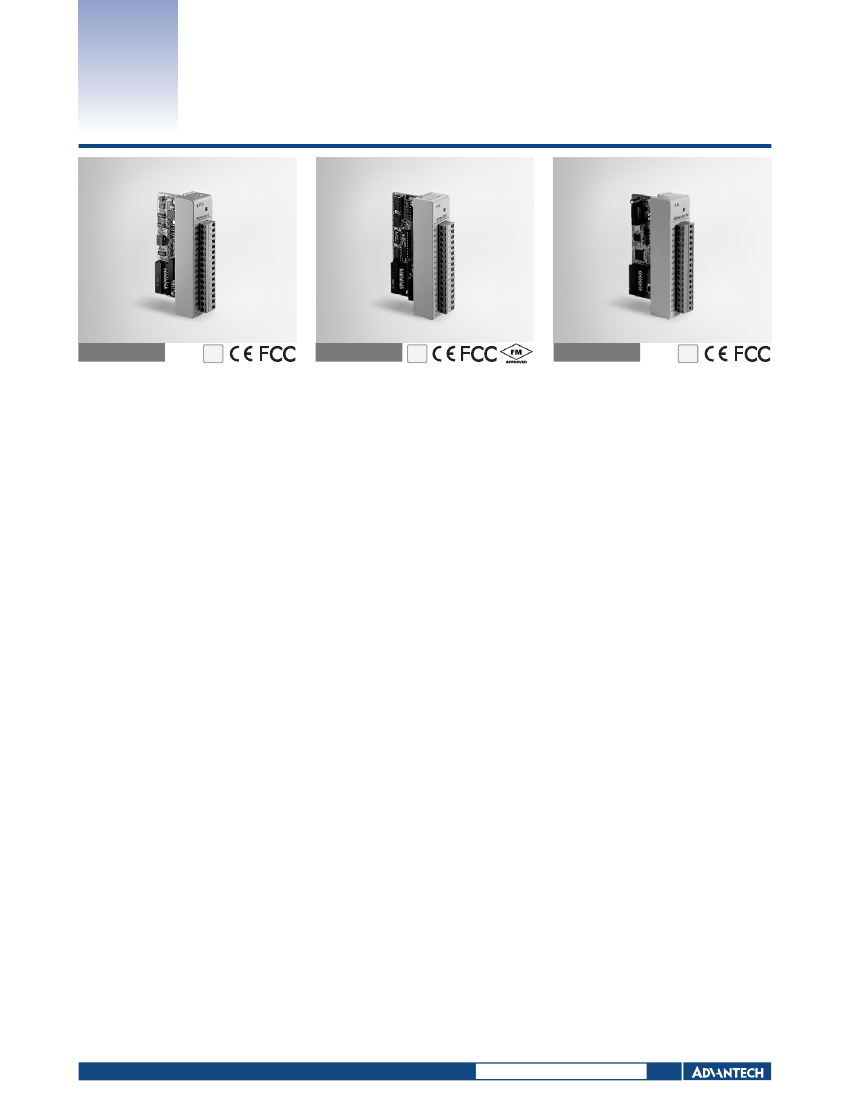

Preview

Download Datasheet

View All

ADAM-5013

ADAM-5017

ADAM-5017P

3-ch RTD Input Module

8-ch Analog Input Module

8-ch Analog Input Module with

Independent Input Range

ADAM-5013

RoHS

2002/95/EC

COMPLIANT

ADAM-5017

RoHS

2002/95/EC

COMPLIANT

ADAM-5017P

RoHS

2002/95/EC

COMPLIANT

Specifications

General

Certification

Connectors

1 x Plug-in screw terminal

(# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.1 W (max.)

Specifications

General

Certification

Connectors

CE, FM

1 x Plug-in screw terminal

(# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.25 W (max.)

Specifications

General

Certification

Connectors

CE, FCC Class A

1 x Plug-in terminal block

(#14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.25 W (max.)

RTD Input

Accuracy

Bandwidth

±0.1% or better

13.1 Hz @ 50 Hz

15.72 Hz @ 60 Hz

Channels

CMR @ 50/60 Hz

150 dB

Input Connections

2, 3 or 4 wire

Input Impedance

2 MΩ

lnput Type

PT100 or Ni RTD

NMR @ 50/60 Hz

100 dB

Resolution

16-bit

RTD Types and Temperature Ranges

IEC RTD 100 ohms

-100°C to +100°C

a=0.00385

0°C

to +100°C

a=0.00385

0°C

to +200°C

a=0.00385

0°C

to +600°C

a=0.00385

JIS RTD 100 ohms

-100°C to +100°C

a=0.00392

0°C

to +100°C

a=0.00392

0°C

to +200°C

a=0.00392

0°C

to +600°C

a=0.00392

Ni RTD

-80°C

to +100°C

0°C

to +100°C

Sampling Rate

10 samples/sec. (total)

Span Drift

±0.01°C/°C

Zero Drift

±0.015°C/°C

Analog Input

Accuracy

Voltage mode: ±0.1% or

better

Current mode: ±0.2% or

better

13.1 Hz @ 50 Hz

15.72 Hz @ 60 Hz

8 differential

92 dB min.

Voltage: 2 MΩ

Current: 120Ω (Build-in

120

Ω

resistor for Current

input)

±150 mV, ±500 mV, ±1 V,

±5 V, ±10 V; ±20 mA

16-bit

10 samples/sec. (total)

±25 PPM/°C

±6 μV/°C

Analog Input

Accuracy

Voltage mode : ±0.1% or

better

Current mode : ±0.2% or

better

Channels

8 (differential, each channel

can be configured with

different range)

CMR @ 50/60 Hz

92 dB min.

Input Impedance

Voltage: 800K

Ω

Current: 120

Ω

(Build-in

120

Ω.

resistor for Current

Input)

for Current Input)

lnput Range

0 ~ 150 mV, 0 ~ 500 mV,

0 ~ 1 V, 0 ~ 5 V, 0 ~ 10

V, 0 ~ 15 V, ±150 mV, ±500

mV, ±1 V, ±5 V, ±10 V,

±15 V, ±20 mA,

4 ~ 20 mA

Resolution

16-bit

Sampling Rate

10 samples/sec. (total)

Span Drift

±25 ppm/°C

Zero Drift

±6 μV/°C

High Common Mode

200 V

Bandwidth

Channels

CMR @ 50/60 Hz

Input Impedance

lnput Range

Resolution

Sampling Rate

Span Drift

Zero Drift

Protection

Isolation Voltage

3,000 V

Fault and

Withstands overvoltage

Overvoltage

up to ±35 V

Protection

Note:

The voltage difference between any two pins

must not exceed ±15 V

Protection

Over Voltage Protection

Built-in TVS/ESD Protection

Isolation Voltage

3,000 V

Note:

Does not support ADAM-5510KW series

Protection

Isolation Voltage

3000 V

Ordering Information

ADAM-5017

8-ch Analog Input Module

Ordering Information

ADAM-5013

3-ch RTD Input Module

Ordering Information

ADAM-5017P

8-ch Analog Input Module

w/ Ind. Input Range

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 28-Aug-2013
