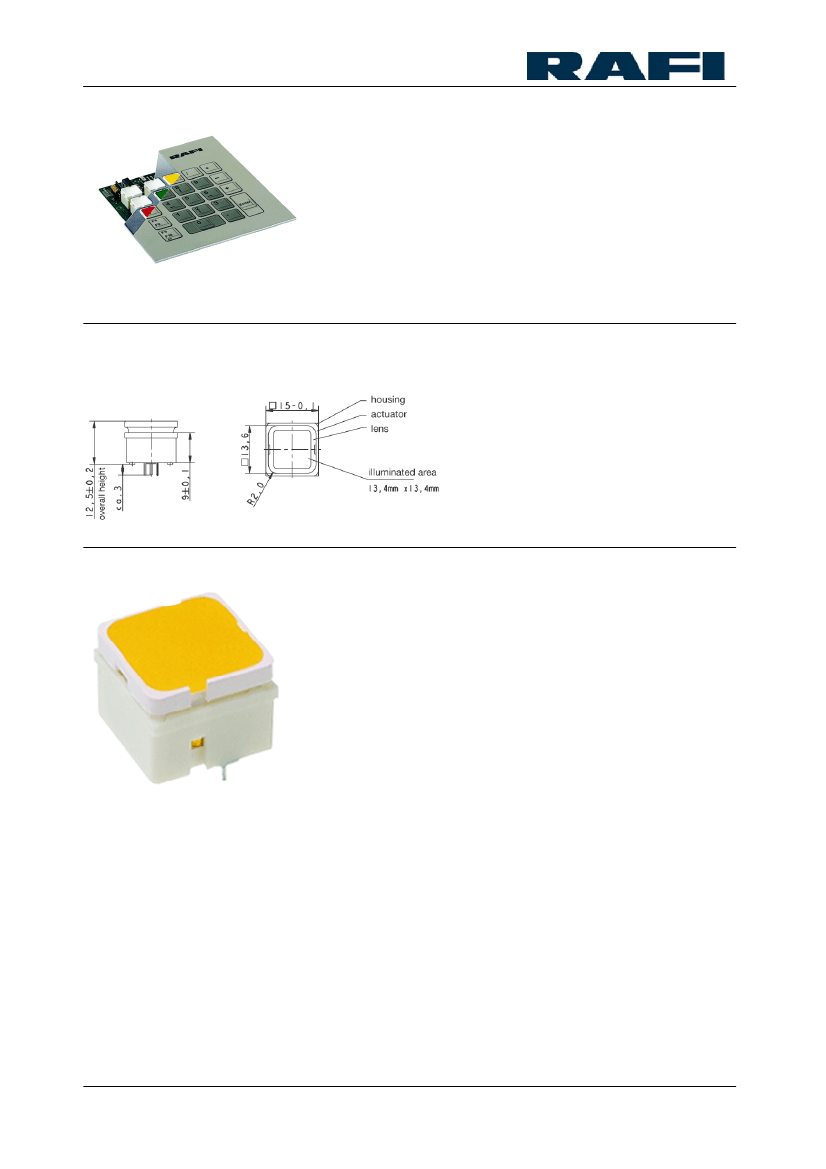

RF 15 H - Tactile switch, non-illuminated, silver contacts

3.14.100.707/0000

General information

Color of lens

Recommended key grid

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

Mechanical characteristics

Operating force max.

Switching travel

Robustness max.

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new max.

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Operating life min. (operations)

Solderability / solder heat resistance

Wave soldering

Manual soldering

ROHS compliant

REACH compliant

white

20 mm

15 mm

12.5 mm

soldering in PCB

THT

snap-action contact

1 NO

not illuminated

2.9

±0.6

0.5

+0.2

with through-plated PCB 100 N

Au: 0.02 V, Ag: 3 V

35 V

Au: 0.01 mA, Ag: 0.1 mA

Au: 100 mA, Ag: 250 mA

Au: 2 W, Ag: 12.5 W

100 mΩ

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

1,000,000 cycle

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
