831340C2.BL Overview

Basic/Snap Action Switch SNSW 5A PCB PLAIN 70514559

831340C2.BL Parametric

Parameter Name	Attribute value
Maker	Crouzet
Product Category	Basic/snap-action switch
Shipping restrictions	Mouser does not currently sell this product.
Termination type	Solder Pin
lighting color	-
illumination	Non-Illuminated
Lamp type	-
Installation style	PCB Mount
Factory packaging quantity	1

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

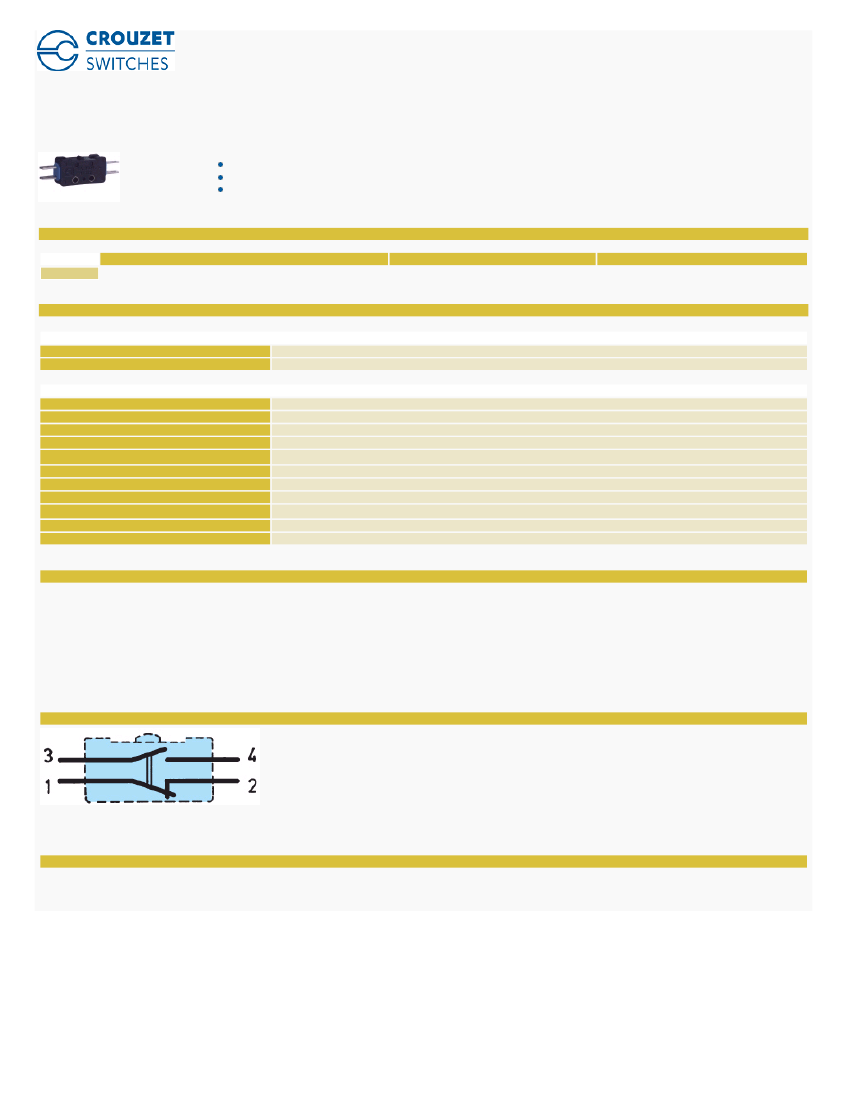

83132 / 83133 / 83134 Side outputs 831320 Part number Contact us

Double break switching

Choice of actuators for symmetrical mounting

Options for operation in stable positions

Part numbers

Type

Side outputs 831320

Function

I (changeover)

Connections

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Max. permitted overtravel force (N)

Maximum rest position (mm)

Operating position (mm)

Maximum differential travel (mm)

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

1,6

0,4

8,45

7,7

±0,2

0,45

0,27

-20 →+125

0,3 x 2

1,8

Additional specifications

Components

Material

- Case : glass-filled polyamide

- Contacts : silver

- Cupro-nickel terminals

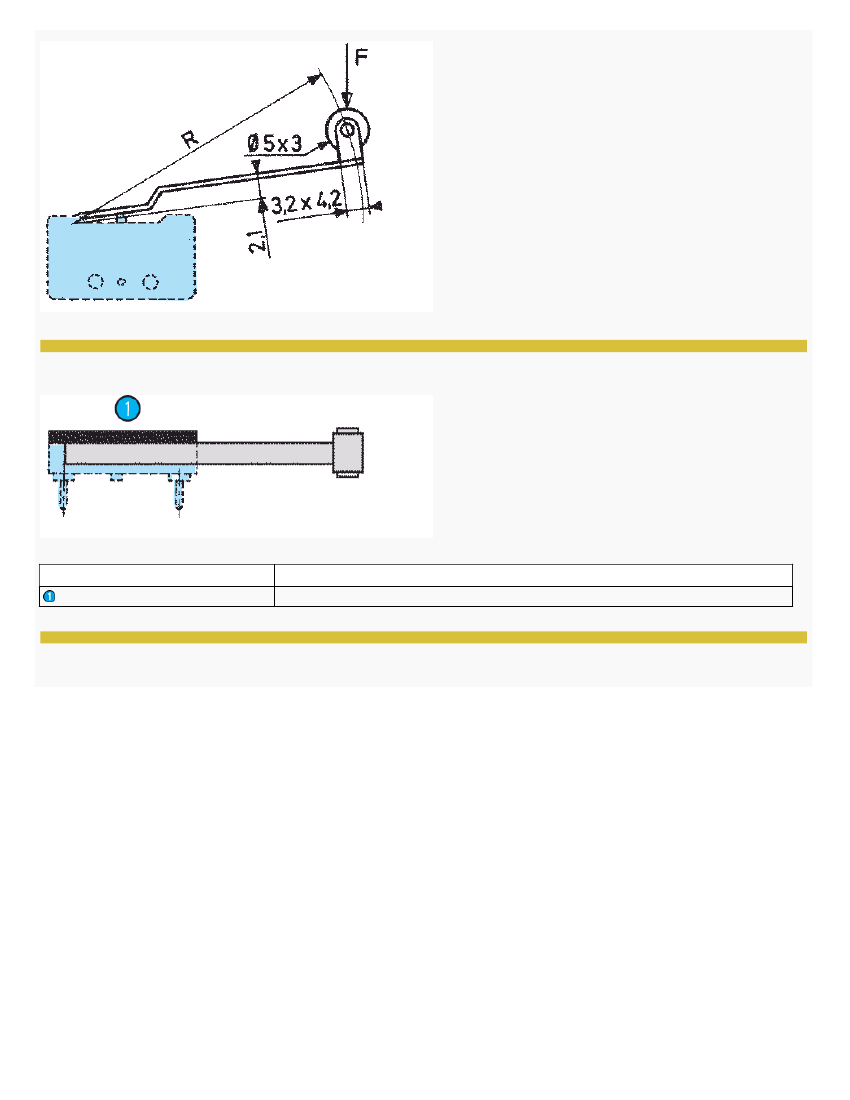

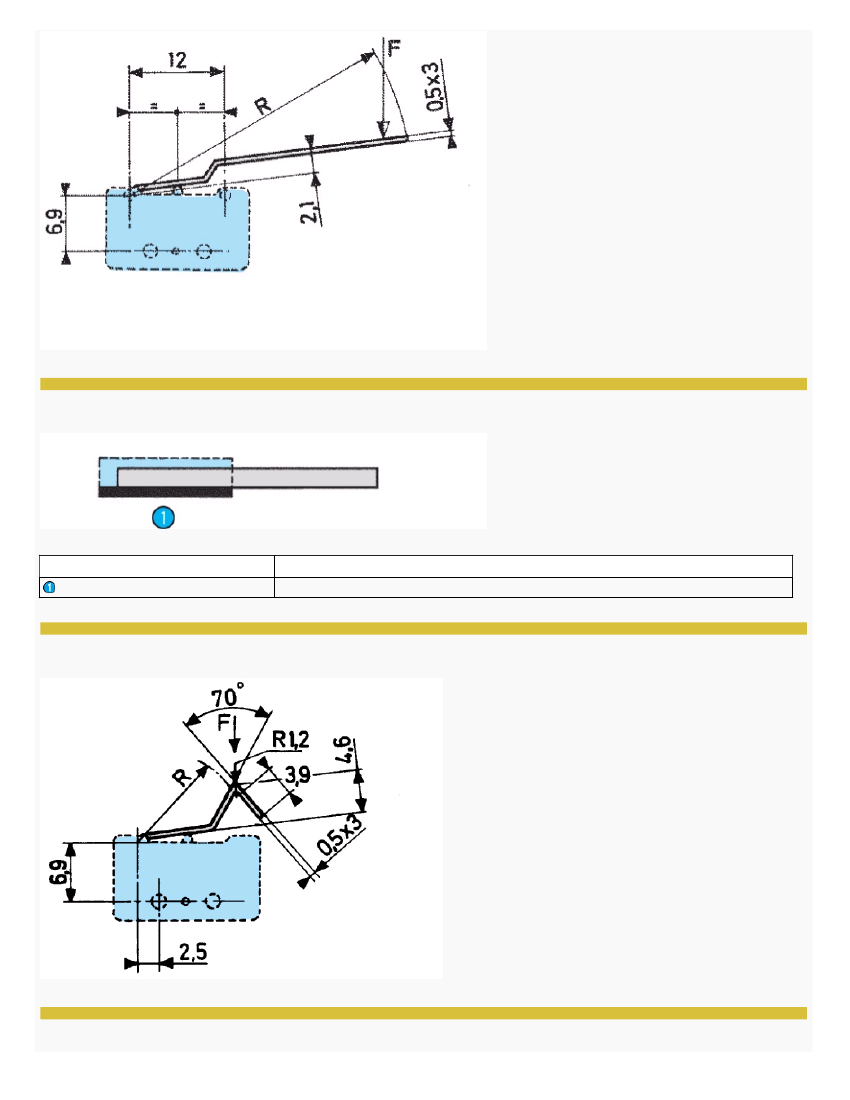

Lever

- Flat : stainless steel

- Roller : polyamide

Accessories

: stainless steel

Principles

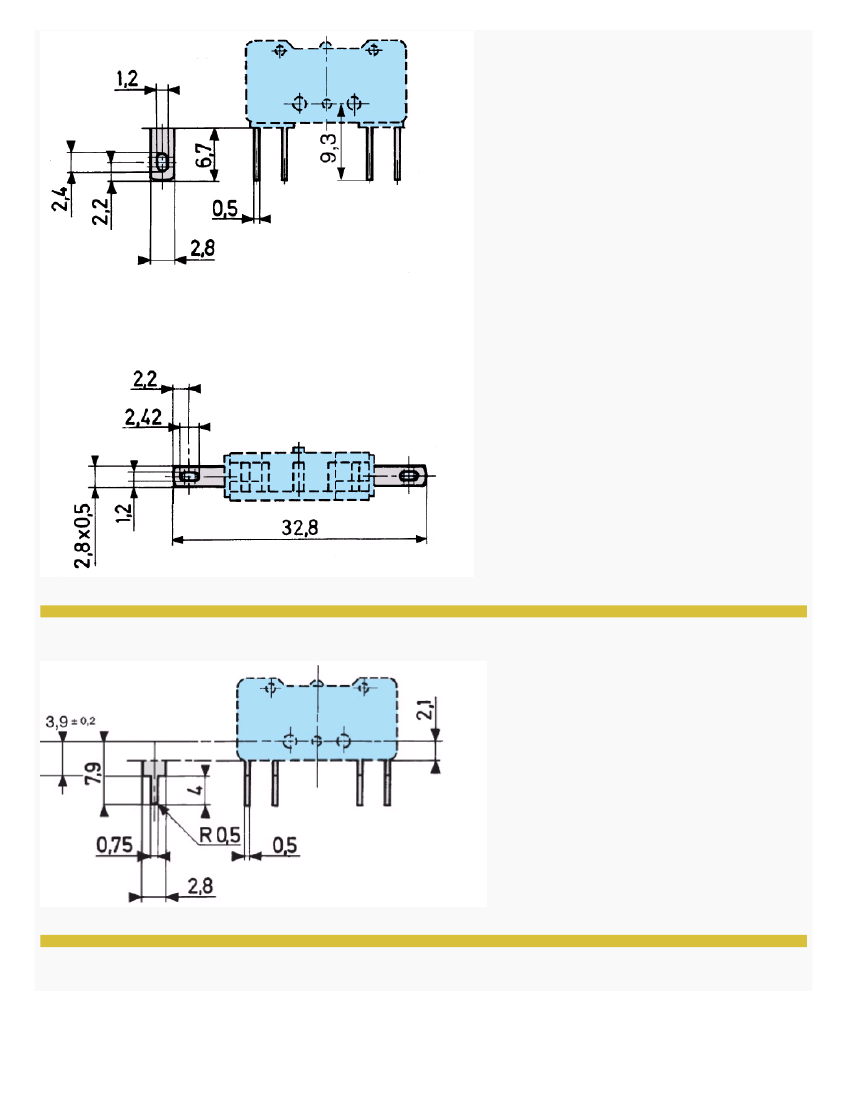

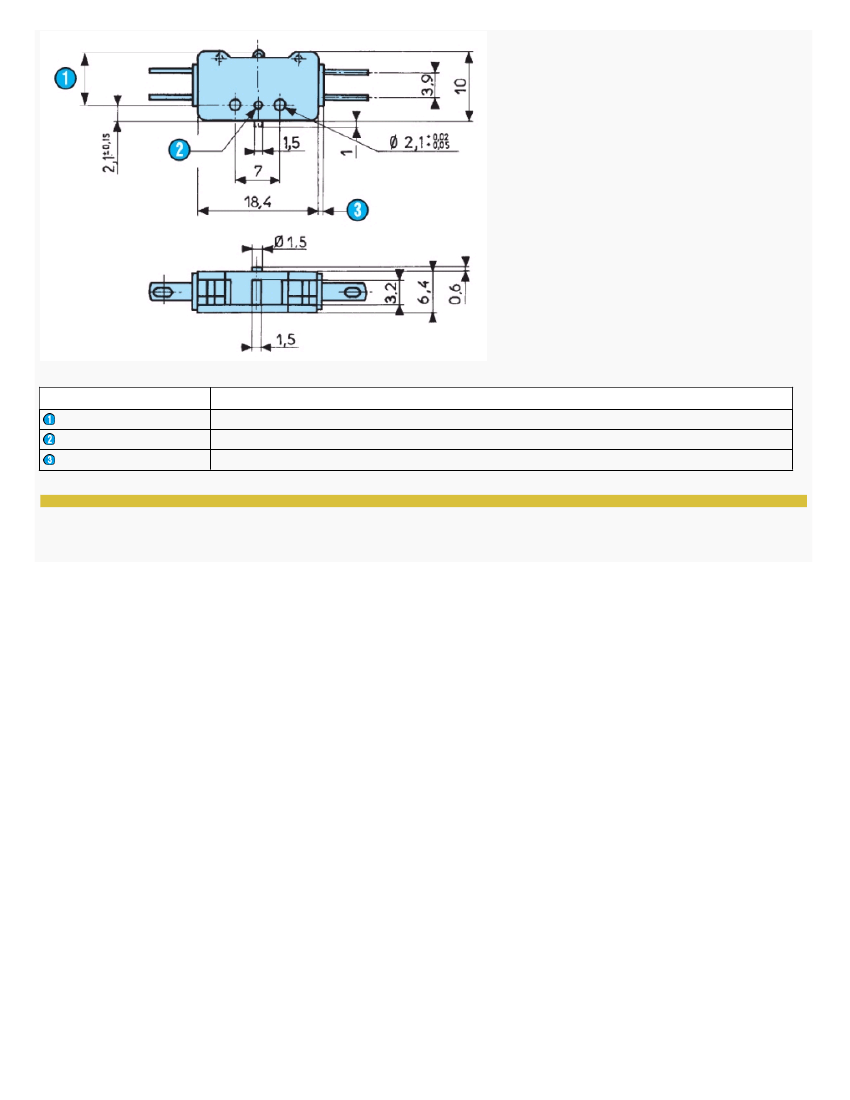

Dimensions (mm)

Product

831320

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
