Rotary switch IP40
3.13.007.011/0152
General information
Color
Form of collar
Dimensions
Length of collar
Width of collar
Overall height
Mechanical design
Mounting
Terminals
Contact system
Contact function
Contact materials
Illuminability
Mechanical characteristics
Torque against stop min.
Dielectric strength AC min.
Rated power max.
Electrical characteristics
Rated voltage max.
Rated current max.
Contact resistance when new max.
Contact resistance acc. to life max.
Insulation resistance
ESD strength max.
Other specifications
Rotating angle
Operating life
Degree of protection from front side
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
Flammability of materials
ROHS compliant
charcoal grey
square
19 mm
19 mm
24 mm
soldering
tin-plated
cross contact self cleaning
latching
Au alloy
no
0.45 Nm
500 V
1W
35 V
100 mA
100 mΩ
200 mΩ
10
9
Ω
8 kV
2 x 90°
50,000 cycle
IP40 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
UL 94 HB
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
04.12.2018
REACH compliant

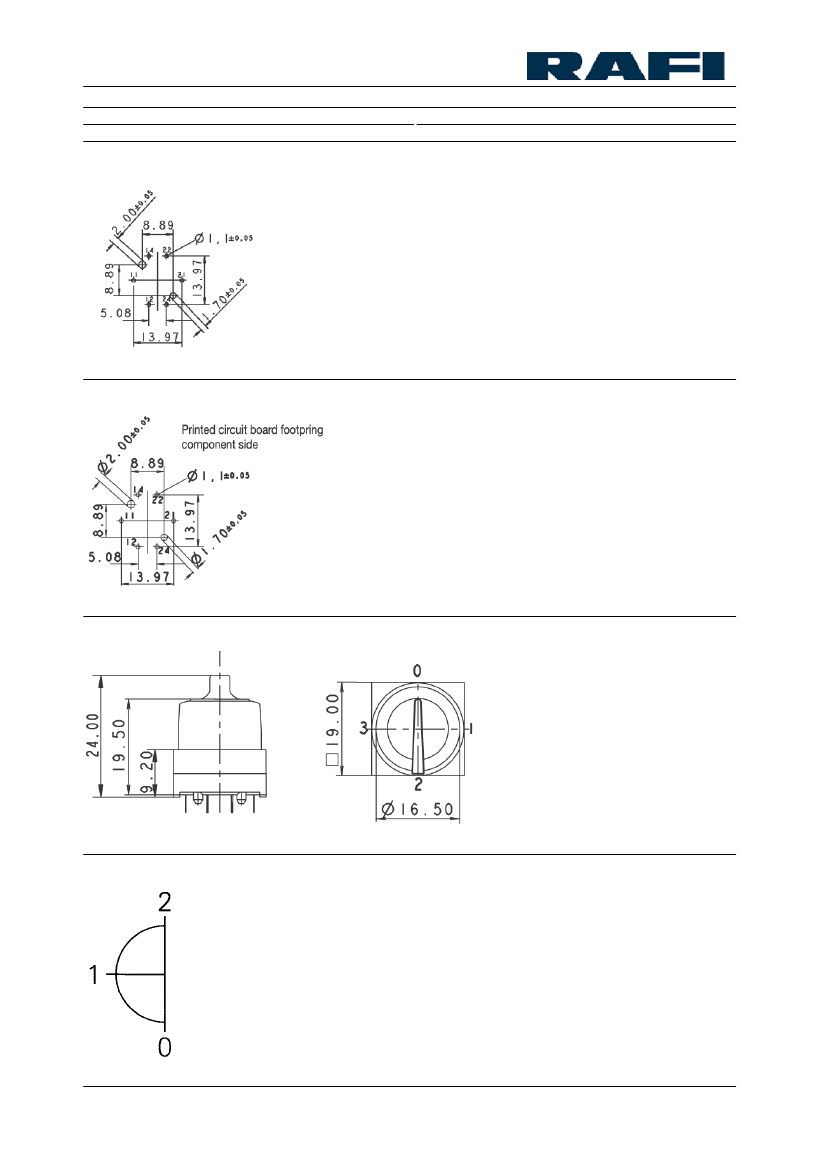

PCB hole pattern, component side
