Tilt Sensor Switch
Item No.
Page
RBS170200T
Description
Ball-Contact
Publish Date
Version
12
1 of 9
Jul. 03, 2018
●

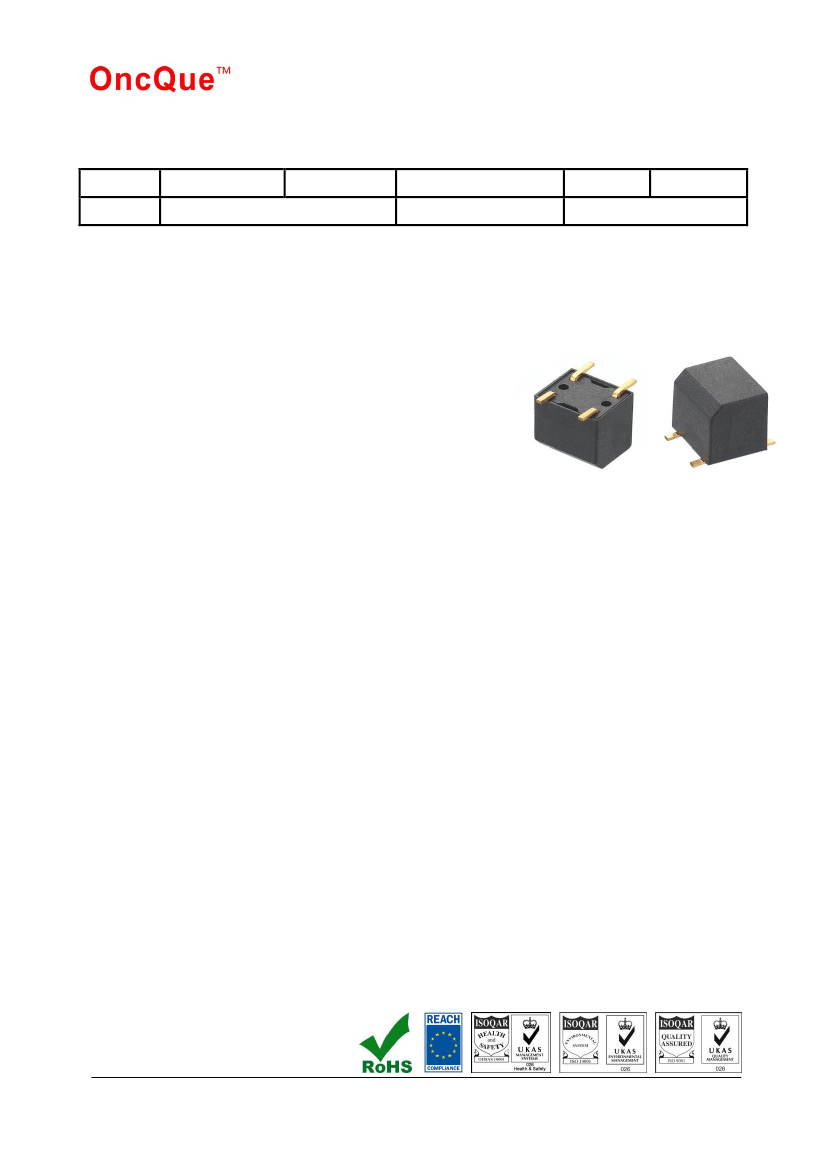

FUNCTIONS
One Axis 15° Tilt Detecting in horizontal position
●
APPLICATIONS
1. Wake up systems for power saving, such like
remote controllers
2. Solar underground light
3. One Axis tilt detecting under PCB
●
FEATURES
1. Suitable for horizontal PCB.
2. Switch state: SMD Normal Open.
3. Gold-plated ball and terminals, low possibility of oxidization.
4. Housing made of high insulation plastic material, free from electric conduction and
rust problem.
5. All plastic materials subject to industrial purpose, resist high temperature and meet
fireproof function.
6. Simple ON and OFF signals, easy for design.
7. RoHS compliance, an ideal substitute for mercury switch.
8. A more economical tilt and rotation detection option than IC design solution.
9. All made in Taiwan and examined before shipment.
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
PATENTS
1.
2.
3.
4.
5.
6.
U.S.A Patent No. 7,323,649 B2
U.S.A Patent No. 7,319,200 B2
Taiwan Patent No. I 297159
Taiwan Patent No. I 297160
China Patent No. ZL 200610072317.1
China Patent No. ZL 200610073028.3
RBS170200T
Description
Ball-Contact
Publish Date
Version
12
2 of 9
Jul. 03, 2018
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS170200T
Description
Ball-Contact
Publish Date
Version
12
3 of 9
Jul. 03, 2018

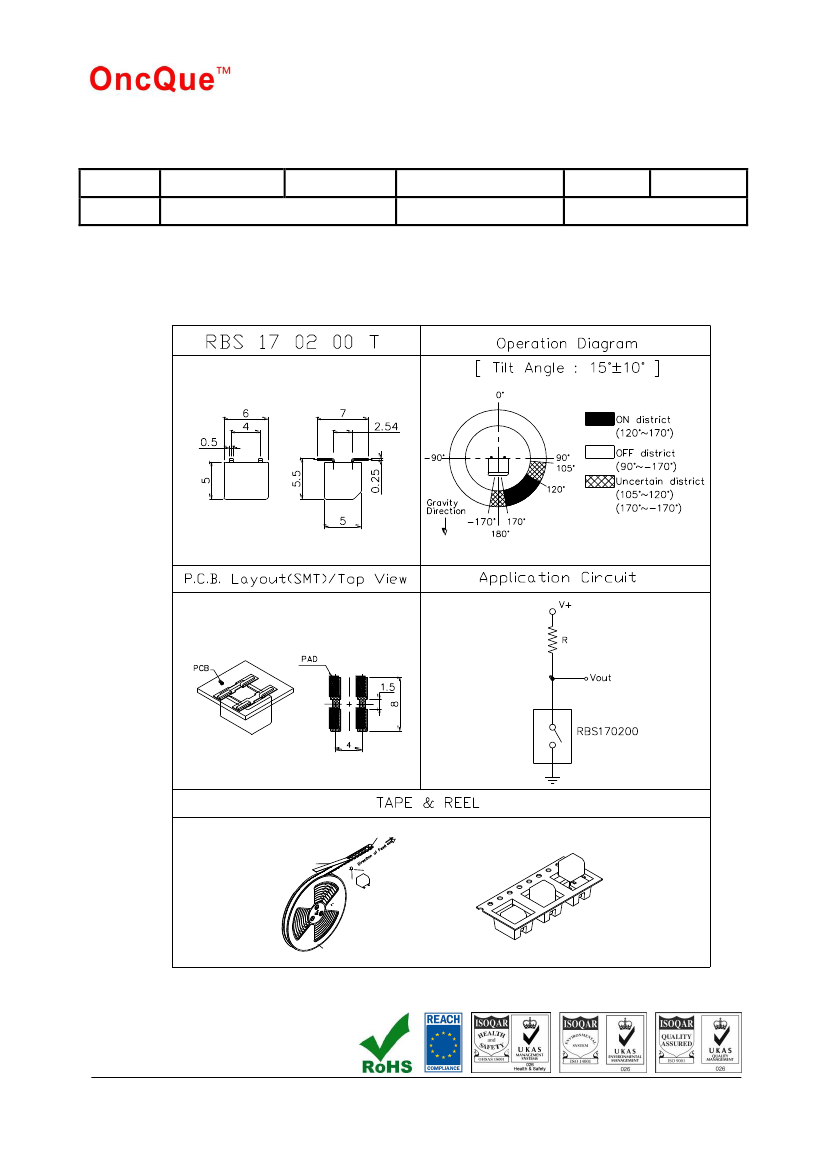

DIMENSIONS / OPERATION / P.C.B. LAYOUT (Unit: mm, Tolerance: ±0.25mm)
Fig. 1
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
RBS170200T
Description
Ball-Contact
Publish Date
Version
12
4 of 9
Jul. 03, 2018
●
Current/Voltage Suggested
Input Current (mA)
1.0
Operating Voltage (V)
5
Condition
--
●
ELECTRICAL CHARACTERISTICS
1.
2.
3.
4.
5.
6.
7.
Contact Rating
Contact Resistance
Operation Diagram
Insulation Resistance
Dielectric Strength
Capacitance
Conductive Rate
10 mA, 5VDC
10 Ω max.
Refer to Fig. 1.
100 MΩ min. at 100VDC
100 VDC min. for 1 minute
5pF max.
90% min.
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS170200T
Description
Ball-Contact
Publish Date
Version
12
5 of 9
Jul. 03, 2018
RELIABLE TEST ITEMS
Reliable Test for RBS170200T
Test Item
1
2
3
4
5
6
IR Reflow
Operating Temperature
Storage Temperature
Humidity
Mechanical Life
Electrical Life
Contents
Peak temp.=255~260°C
-25℃~ 85°C
-40°C ~ 85°C
40 °C / 95 %RH
2 Hz, horizontal
1,000,000 times
100,000 times
●
SOLDERING CONDITION
Following soldering conditions are for reference only, please use soldering information that
solder paste manufacturer recommends.
Condition
Suitable
Production
Process
IR Reflow
Soldering
Temperature
Soldering Time
Wattage of
Manual
Soldering
Type
Please refer to following < Table
of classification Reflow profile >
and Fig. 2
-
30W or
Temperature-
controlled
manual
soldering
SMD
Manual Soldering
300±5°C
< 3 seconds max.
SMD
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
