3.14.002.062/0000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 3.14.002.062/0000

3.14.002.062/0000: DescriptionIndustrial panel mount indicator/switch indicator RF19 Signal indicator 1/2 x 1-part GRN; CategoryMechanical and electronic products switch; File Size205KB，3 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.14.002.062/0000 Overview

Industrial panel mount indicator/switch indicator RF19 Signal indicator 1/2 x 1-part GRN

3.14.002.062/0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	9.5 mm
body height	9.15 mm
Body length or diameter	19.05 mm
Circuit configuration	1X1
illumination	GREEN LED
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYBOARD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

04.12.2018

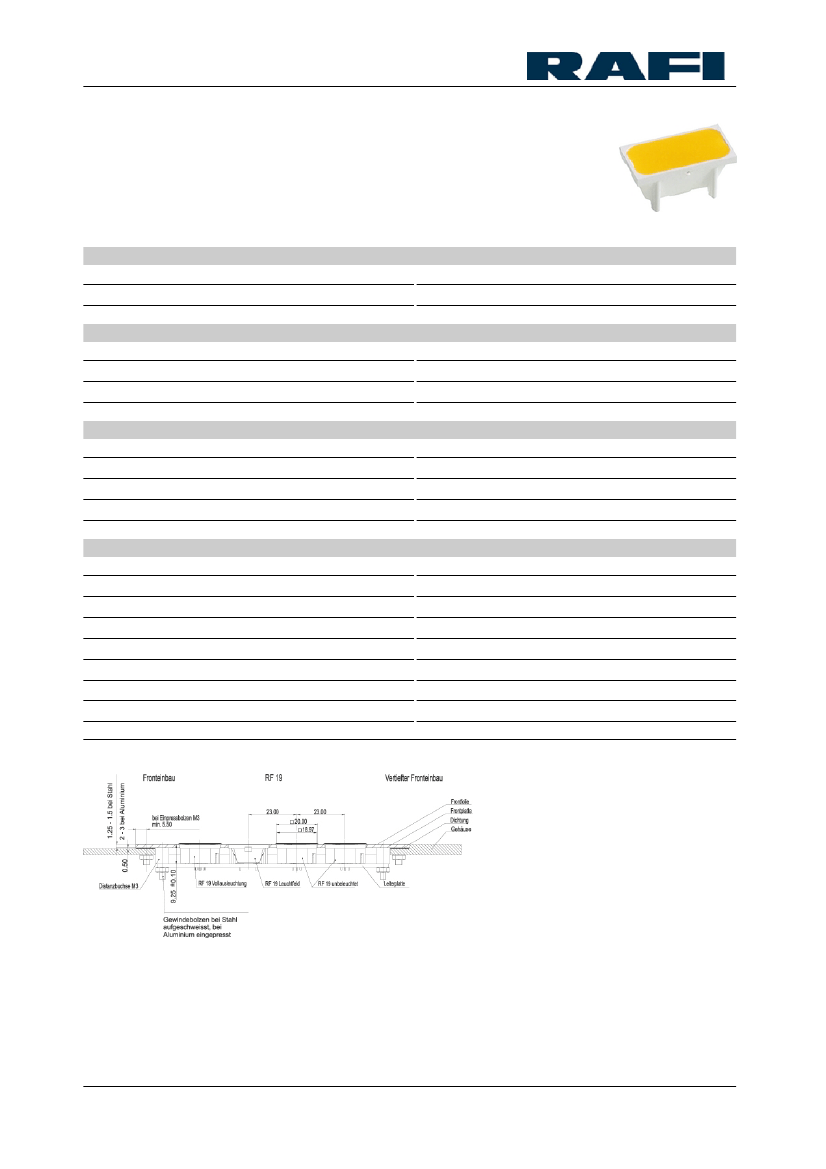

RF 19 - Signal indicator, ½ x 1-module

3.14.002.062/0000

For more information, see LEDs.

General information

Color of lens

Recommended key grid

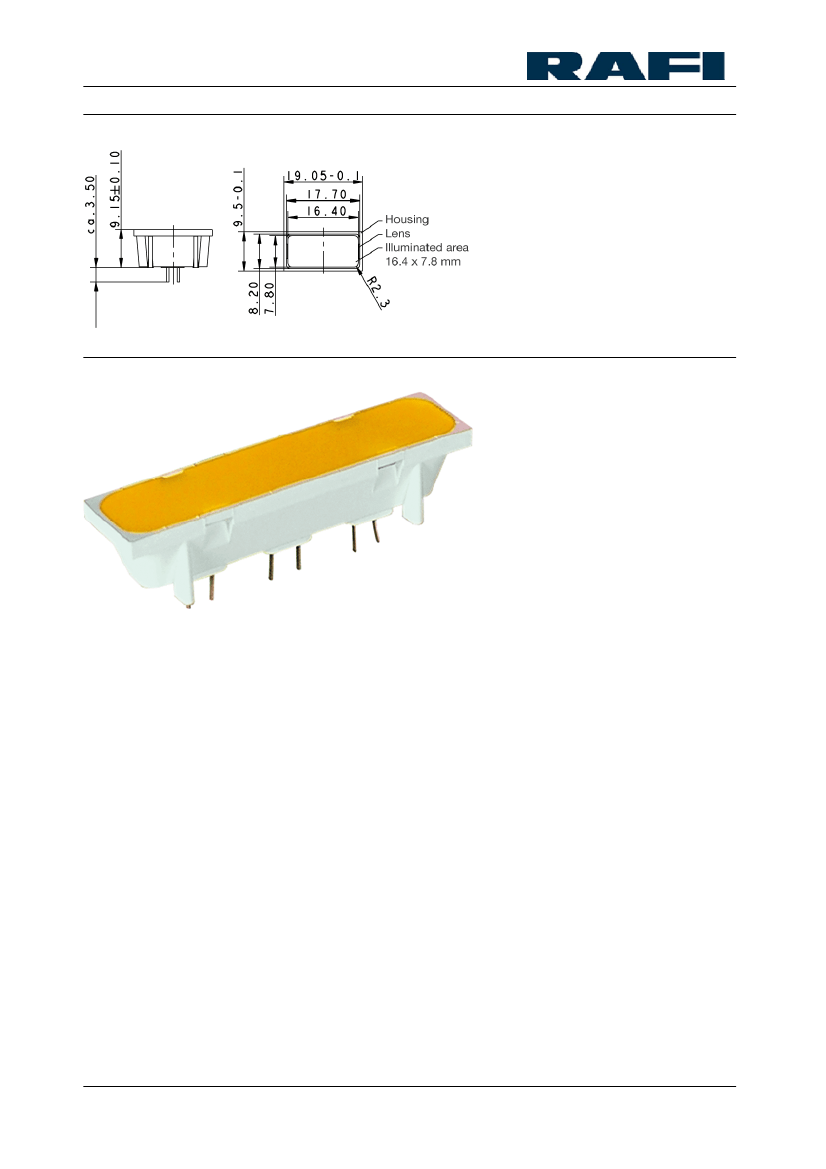

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Illumination

LED color

LED type

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Solderability / solder heat resistance

Wave soldering

Manual soldering

ROHS compliant

REACH compliant

green

23/x mm

19.05 mm

9.5 mm

9.15 mm

THT soldering in PCB

fully illuminated 1 LED

green

2 mm

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
