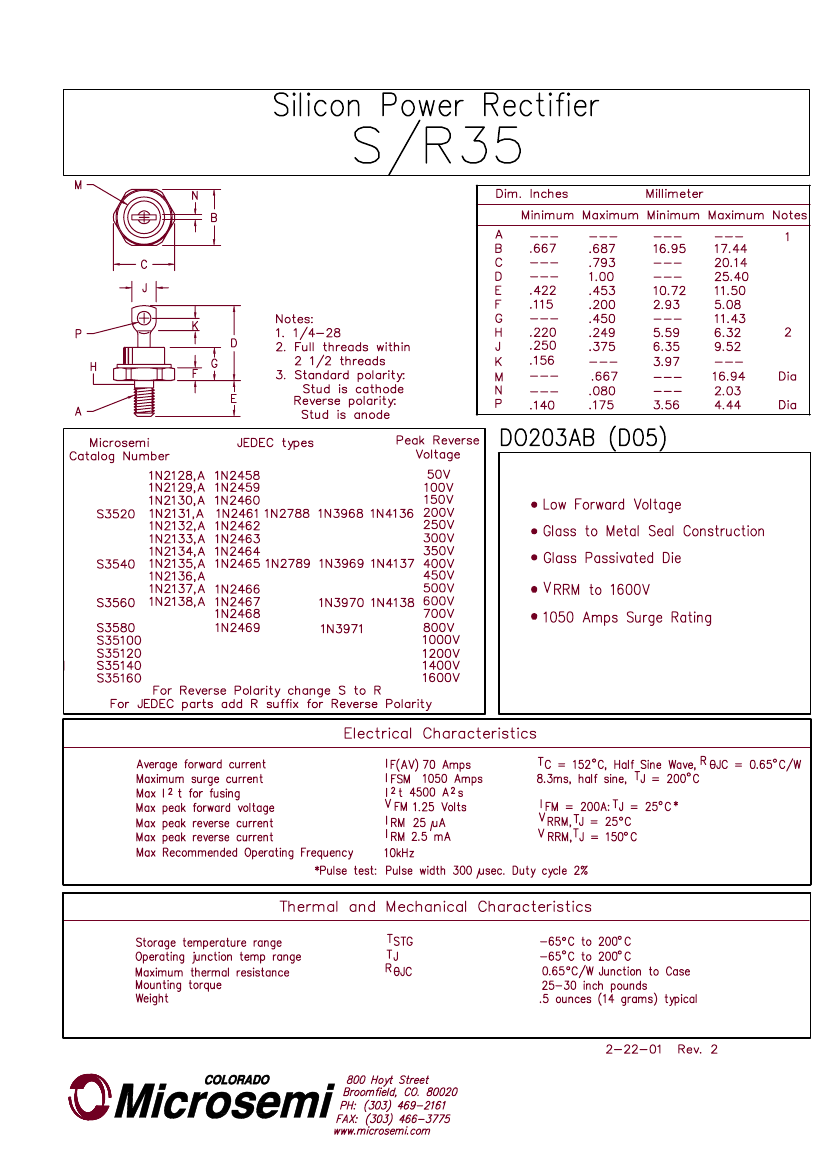

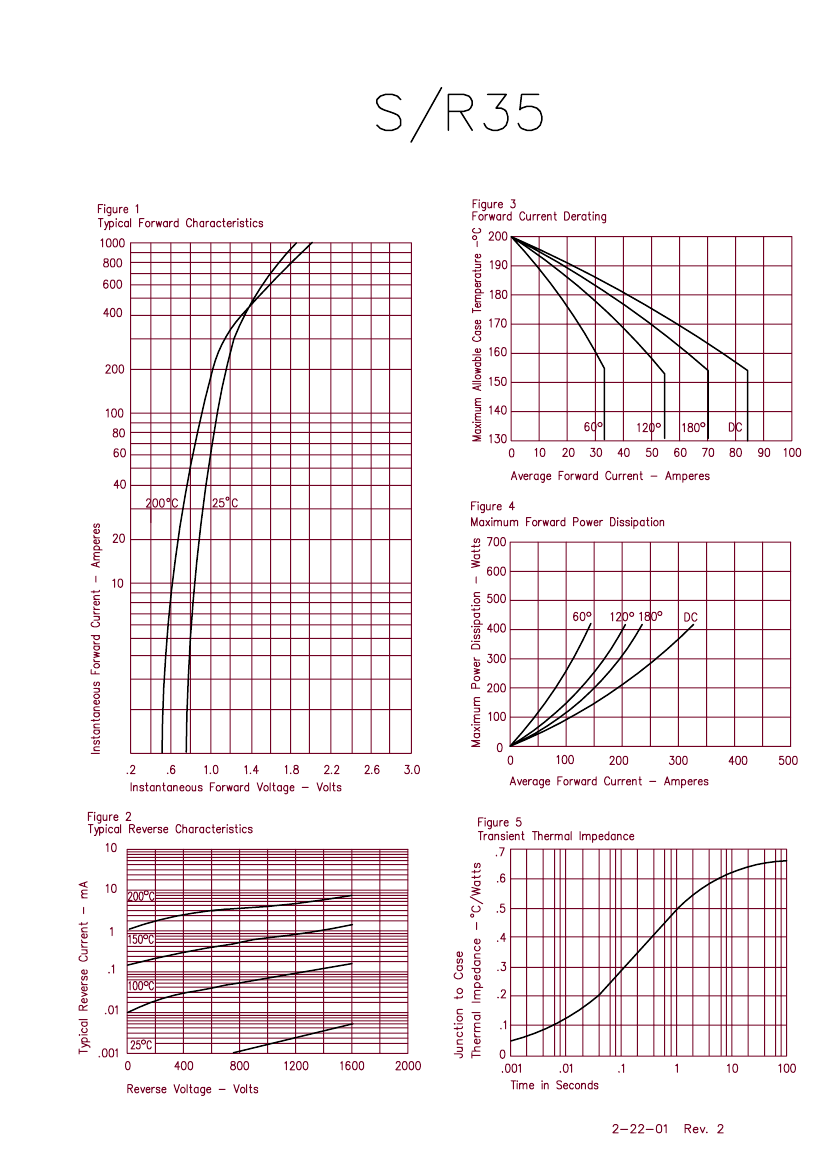

Silicon Power Rectifier
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Microsemi |
| Parts packaging code | DO-5 |
| package instruction | O-MUPM-D1 |
| Contacts | 1 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | EXCELLENT RELIABILITY |
| application | POWER |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V |
| JEDEC-95 code | DO-203AB |
| JESD-30 code | O-MUPM-D1 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 1050 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 70 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| Maximum reverse current | 50 µA |
| Maximum reverse recovery time | 5 µs |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| S3580 | S-R35 | S3560 | S3520 | S3540 | |
|---|---|---|---|---|---|
| Description | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier |
| Is it lead-free? | Contains lead | - | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | incompatible |
| Maker | Microsemi | - | Microsemi | Microsemi | Microsemi |
| Parts packaging code | DO-5 | - | DO-5 | DO-5 | DO-5 |
| package instruction | O-MUPM-D1 | - | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Contacts | 1 | - | 1 | 1 | 1 |
| Reach Compliance Code | compli | - | compli | compli | compli |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 |
| Is Samacsys | N | - | N | N | N |
| Other features | EXCELLENT RELIABILITY | - | EXCELLENT RELIABILITY | EXCELLENT RELIABILITY | HIGH RELIABILITY |
| application | POWER | - | POWER | POWER | POWER |
| Shell connection | CATHODE | - | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | - | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | - | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V | - | 1.25 V | 1.25 V | 1.25 V |
| JEDEC-95 code | DO-203AB | - | DO-203AB | DO-203AB | DO-203AB |
| JESD-30 code | O-MUPM-D1 | - | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| JESD-609 code | e0 | - | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 1050 A | - | 1050 A | 1050 A | 1050 A |
| Number of components | 1 | - | 1 | 1 | 1 |
| Phase | 1 | - | 1 | 1 | 1 |
| Number of terminals | 1 | - | 1 | 1 | 1 |
| Maximum operating temperature | 200 °C | - | 200 °C | 200 °C | 200 °C |
| Minimum operating temperature | -65 °C | - | -65 °C | -65 °C | -65 °C |
| Maximum output current | 70 A | - | 70 A | 70 A | 70 A |
| Package body material | METAL | - | METAL | METAL | METAL |
| Package shape | ROUND | - | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | - | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | - | 600 V | 200 V | 400 V |
| Maximum reverse current | 50 µA | - | 50 µA | 50 µA | 50 µA |
| Maximum reverse recovery time | 5 µs | - | 5 µs | 5 µs | - |
| surface mount | NO | - | NO | NO | NO |
| Terminal surface | TIN LEAD | - | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | SOLDER LUG | - | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | - | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | - | 1 | 1 | 1 |
