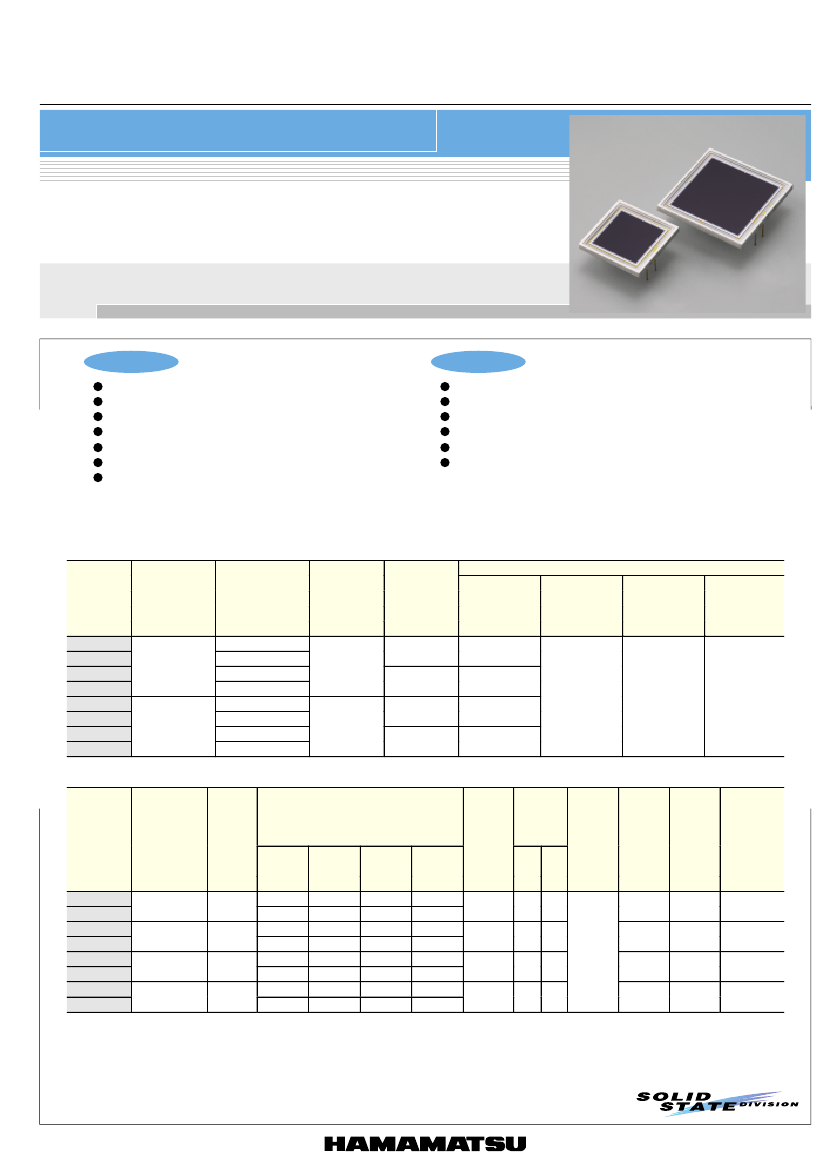

PHOTODIODE
Si PIN photodiode
S3204/S3584 series
Large area sensors for scintillation detection
S3204/S3584 series are large area Si PIN photodiodes having an epoxy resin window. These photodiodes are also available without window.
Features
Applications
l
Higher sensitivity and low dark current than conventional type
l
Sensitivity matching with BGO and CsI (TI) scintillators
l
High quantum efficiency QE=85 % (λ=540 nm)
l
Low capacitance
l
High-speed response
l
High stability
l
Good energy resolution
l
Scintillation detectors
l
Calorimeters
l
Hodoscopes
l
TOF counters
l
Air shower counters
l
Particle detectors, etc.
s
General ratings / Absolute maximum ratings
Type No.
Dimensional
outline
Window
material
Epoxy resin
Window-less
Epoxy resin
Window-less
Epoxy resin
Window-less
Epoxy resin
Window-less
Active
area
(mm)
S3204-05
S3204-06
S3204-08
S3204-09
S3584-05
S3584-06
S3584-08
S3584-09
➀
18 × 18
0.3
0.5
28 × 28
0.3
100
100
100
150
-20 to +60
-20 to +80
Depletion
layer
thickness
(mm)
0.5
Reverse
voltage
V
R
Max.
150
Absolute maximum ratings
Power
Operating
dissipation temperature
P
Topr
(mW)
(°C)
Storage
temperature
Tstg
(°C)
➁
s
Electrical and optical characteristics (Typ. Ta=25 °C, unless otherwise noted)
S p ectral
response
range
λ
(nm)
S3204-05
320 to 1120
S3204-06
S3204-08
320 to 1100
S3204-09
S3584-05
320 to 1120
S3584-06
S3584-08
320 to 1100
S3584-09
*1: V
R
=70 V
Peak
sensitivity
wavelength
λp
(nm)
980
960
980
960
Photo sensitivity
S
LSO
420 nm
(A/W) (A/W)
0.62
0.19
0.64
0.23
0.66
0.20
0.66
0.22
0.62
0.19
0.64
0.23
0.66
0.20
0.66
0.22
λ=λp
BGO
CsI(Tl)
480 nm 540 nm
(A/W)
(A/W)
0.25
0.3
0.32
0.39
0.3
0.36
0.33
0.41
0.25
0.3
0.32
0.39
0.3
0.36
0.33
0.41
Dark
S h ort
Cut-off
circuit current Temp. Frequency
I
D
current
fc
coefficient
V
R
= 10 0 V
V
R
= 10 0 V
Isc
of I
D
100
lx
Typ. Max. T
CID
-3 dB
(µA)
310
340
740
780
(nA) (nA) (tim es/° C) (MHz)
15
50
20
20 *
1.12
20 100
10 * 30 *
10
10 *
200
300 *
1.3 × 10
-13
Type No.
Ter minal
capacitance
Ct
NEP
f= 1 M H z V
R
=100 V
V
R
=100 V
(pF)
80
130 *
(W/Hz
1/2
)
1.2 × 10
-13
6 * 20 *
6.6 × 10
– 14
*
8.6 × 10
– 14
*
1
Si PIN photodiode
s

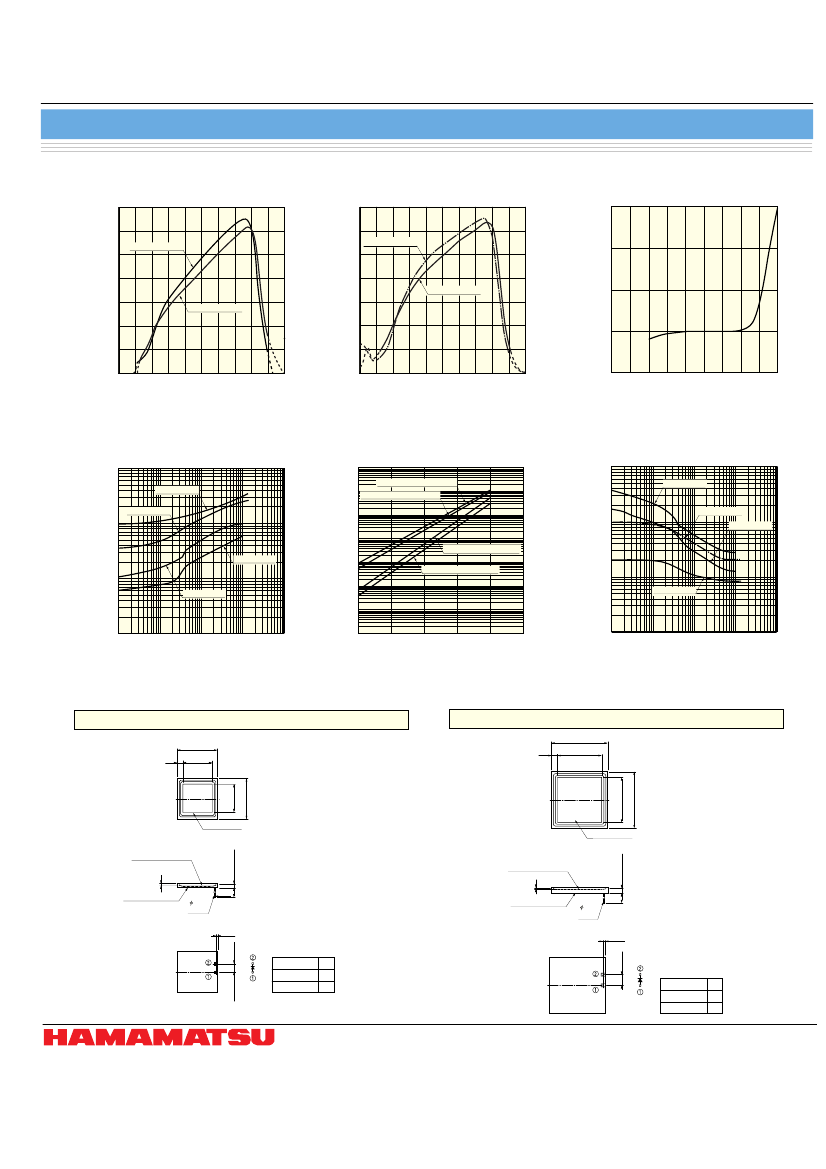

Spectral response
0.7
0.6
(Typ. Ta=25 ˚C)
S3204/S3584 series
s
Photo sensitivity temperature characteristic
+1.5
(Typ.)
s
Spectral response (without window)
0.7
0.6
(Typ. Ta=25 ˚C)
PHOTO SENSITIVITY (A/W)
S3204/S3584-08
0.5
0.4
0.3
0.2
0.1
0
200
PHOTO SENSITIVITY (A/W)
S3204/S3584-09
0.5
0.4
TEMPERATURE COEFFICIENT (%/˚C)
+1.0
S3204/S3584-06
0.3
0.2
0.1
0
200
+0.5
S3204/S3584-05
0
400
600
800
1000
1200
400
600
800
1000
1200
-0.5
200
400
600
800
1000
WAVELENGTH (nm)
KPINB0227EA
WAVELENGTH (nm)
WAVELENGTH (nm)
KPINB0264EA
KPINB0093EC
s
Dark current vs. reverse voltage
100 nA
S3204-05/-06
S3584-05/-06
(Typ. Ta=25 ˚C)
s
Dark current vs. ambient
temperature
10
µA
S3584-05/-06 (V
R
=100 V)
1
µA
S3204-05/-06 (V
R
=100 V)
s
Terminal capacitance vs. reverse voltage
(Typ.)
10 nF
(Typ. Ta=25 ˚C, f=1 MHz)
S3584-08/-09
TERMINAL CAPACITANCE
DARK CURRENT
100 nA
10 nA
S3584-08/-09 (V
R
=70 V)
1 nA
S3204-08/-09 (V
R
=70 V)
S3584-05/-06
1 nF
S3204-08/-09
DARK CURRENT
10 nA
S3204-08/-09
1 nA
S3584-08/-09
100 pF
S3204-05/-06
100 pA
10 pA
100 pA
0.1
1
10
100
1000
1 pA
-20
0
20
40
60
80
10 pF
0.1
1
10
100
1000
REVERSE VOLTAGE (V)
KPINB0228EB
AMBIENT TEMPERATURE (˚C)
KPINB0229EB
REVERSE VOLTAGE (V)
KPINB0230EB
s
Dimensional outlines (unit: mm)
➀
S3204 series
25.5
+0
-
0.6
3.4
18.0
➁
S3584 series
35.6
+0
-
0.8
3.4
28.0
25.5
+0
-
0.6
ACTIVE AREA
ACTIVE AREA
2.54
±
0.2
PHOTOSENSITIVE
SURFACE
0.45
LEAD
1.75
WHITE CERAMIC
0.45
LEAD
1.75
Type No.
5.0
±
0.2
a
S3204-05/-06 1.0
S3204-08/-09 1.2
Type No.
a
S3584-05/-06 1.0
KPINA0040EB
5.0
±
0.2
10
WHITE CERAMIC
10
2.54
±
0.2
PHOTOSENSITIVE
SURFACE
a
a
35.6
+0
-
0.8
18.0
28.0
S3584-08/-09 1.2
KPINA0041EB
