ADAM-5051D-BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> I/O module> ADAM-5051D-BE

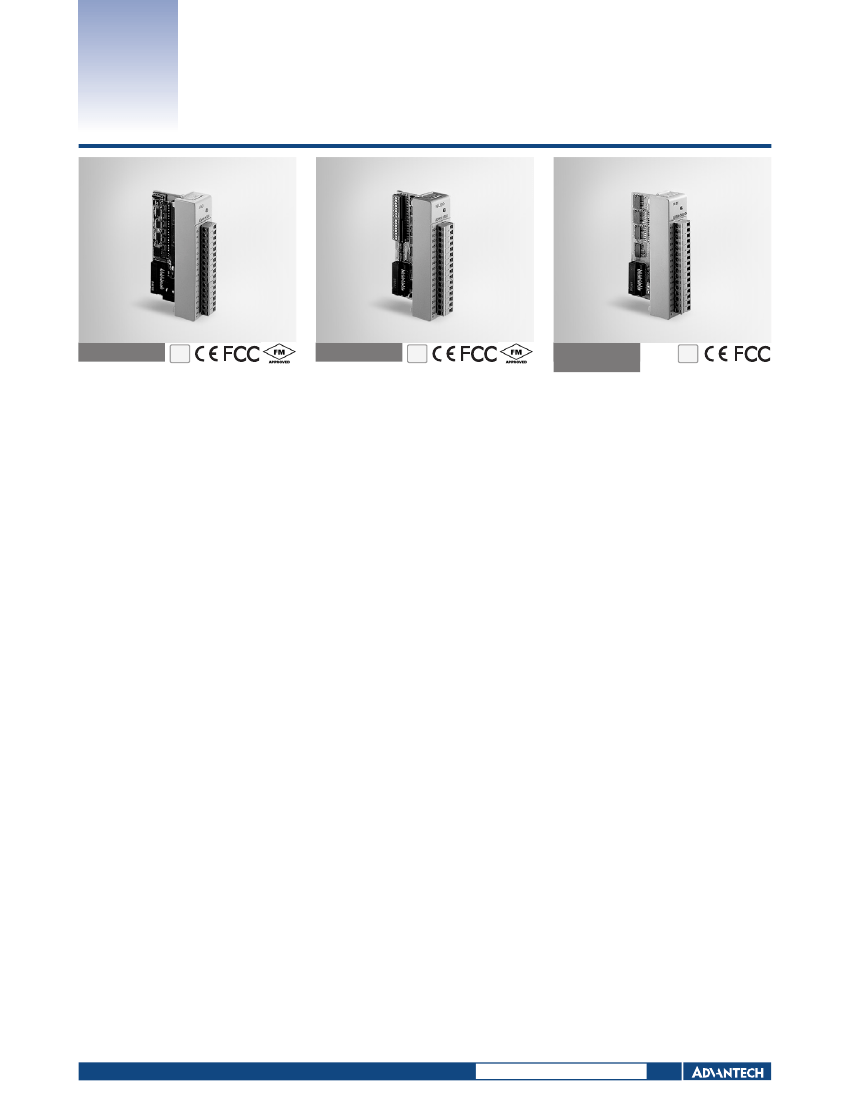

ADAM-5051D-BE: DescriptionI/O Module 16-Ch DI Module w/ LED; CategoryMechanical and electronic products I/O module; File Size235KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ADAM-5051D-BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADAM-5051D-BE	-	-	View	Buy Now

ADAM-5051D-BE Overview

I/O Module 16-Ch DI Module w/ LED

ADAM-5051D-BE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	I/O module
product	DC Input Modules
Input voltage	30 V
Termination type	Screw
insulation	Isolated
series	ADAM-5024/5050/5051

Preview

Download Datasheet

View All

ADAM-5024

ADAM-5050

ADAM-5051/D/S

4-ch Analog Output Module

16-ch Universal Digital I/O Module

16-ch Digital Input Module

ADAM-5024

RoHS

2002/95/EC

COMPLIANT

ADAM-5050

RoHS

2002/95/EC

COMPLIANT

ADAM-5051

ADAM-5051D

ADAM-5051S

RoHS

2002/95/EC

COMPLIANT

Specifications

General

Certification

Connectors

CE, FM

1 x Plug-in screw terminal

(# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

2.9 W (max.)

Specifications

General

Certification

Connectors

CE, FM

1 x Plug-in screw terminal

(# 14 ~ 22 AWG)

Enclosure

ABS+PC

Power Consumption

1.2 W (max.)

Specifications

General

Certification

Connectors

ADAM-5051/5051D: 1 x

Plug-in screw terminal

(# 14 ~ 22 AWG)

ADAM-5051S: 1 x Plug-in

screw terminal (# 14 ~ 28

AWG)

ABS+PC

Analog Output

Accuracy

±0.1% of FSR for current

output

±0.2% of FSR for voltage

output

0 ~ 500

Ω

(source)

mA, V

0 ~ 20 mA, 4 ~ 20 mA,

0 ~10 V

0.125 ~ 128.0 mA/sec.

0.0625 ~ 64.0 V/sec.

12-bit

±0.015% of FSR

±25 PPM/°C

Voltage: ±30 µV/°C

Current: ±0.2 µA/°C

Digital I/O

Channels

Channel I/O Type

Digital Input

Bit-wise selectable by DIP

switch

Dry Contact:

Logic level 0: close to GND

Logic level 1: open

Wet Contact:

Logic level 0: 2 V max.

Logic level 1: 4 ~ 30 V

Open collector to 30 V,

100 mA and 450 mW max.

load

300 mW for each channel

Enclosure

LED Indicators

ADAM-5051D

Channels

Current Load

Resistor

Output Type

Output Range

Programmable

Output Slope

Resolution

Span Temperature

Coefficient

Zero Drift

Digital Output

On: Input logic level 1

Input floating

Off: Input logic level 0

ADAM-5051S

On: Active

Off: Inactive

Power Consumption

ADAM-5051: 0.53 W

(max.)

ADAM-5051D: 0.84 W

(max.)

ADAM-5051S: 0.8 W

(max.)

Power Dissipation

Digital Input

Circuit Type

Channels

Input Voltage

Logic Level

ADAM-5051/5051D

ADAM-5051S

Pull-up current: 0.5 mA

(Source Type) -only for

ADAM-5051/5051D

ADAM-5051/5051D:

30 V max

ADAM-5051S: 50 V max

Logic level 0: 1 V max.

Logic level 1: 3.5 ~ 30 V

Logic level 0: 3 V max.

Logic level 1: 10 ~ 50 V

2,500 V

70 V

Ordering Information

ADAM-5050

16-ch Universal Digital

Input/Output Module

Protection

Isolation Voltage

3,000 V

Ordering Information

ADAM-5024

4-ch Analog Output

Module

Protection (Only for ADAM-5051S)

Optical Isolation

Overvoltage

Protection

Ordering Information

ADAM-5051

ADAM-5051D

ADAM-5051S

16-ch Digital Input Module

w/ LED

16-ch Isolated Digital Input

Module w/ LED

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 28-Aug-2013
