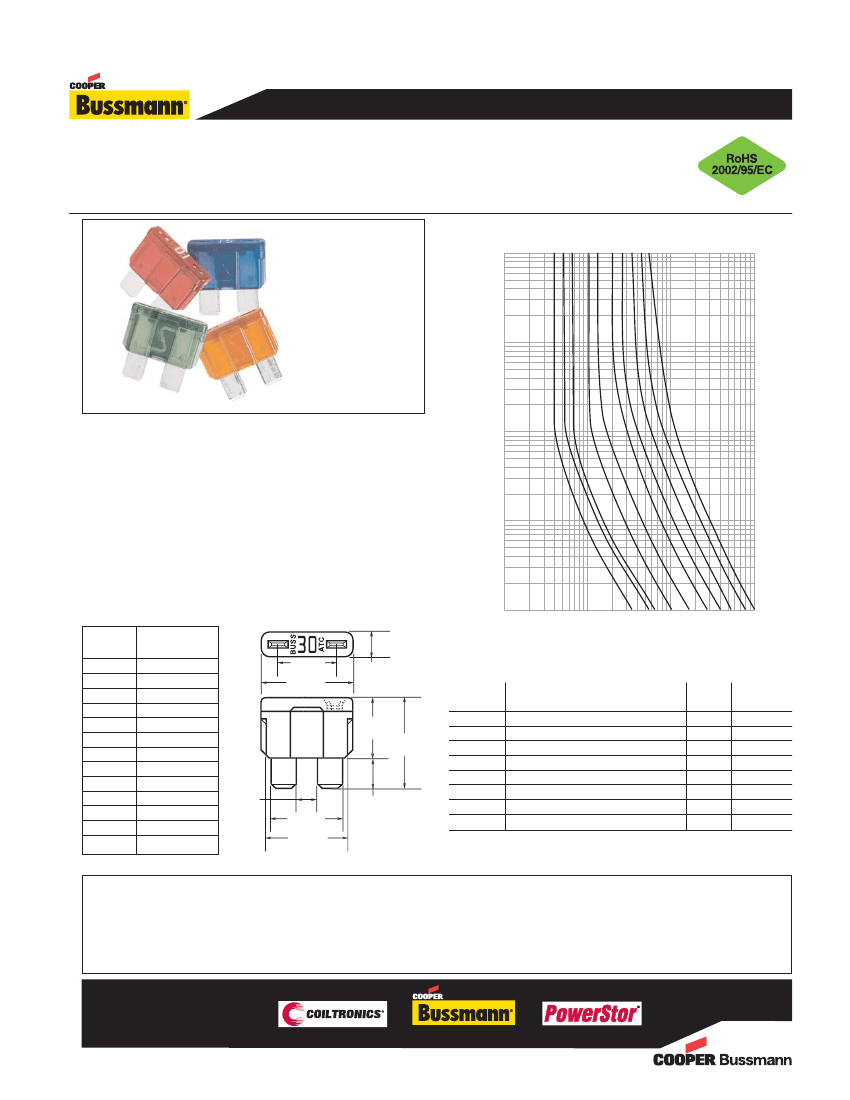

Automotive Blade Fuses
ATC
®
Series Fast-Acting
Time-Current Characteristic Curves - Average Melt
100
AMP
RATING
3
4
5
7.5
10
15
20
25
30
40
10
Also available with open
fuse indication in ratings
from 3 to 40A.
Contact factory for details
10
TIME IN SECONDS
Catalog Symbol: ATC
Fast-Acting
Ratings:
Volts: 32Vdc
Amps: 1 to 40A
Interrupting: 1000A
Agency Approvals:
UL Recognized, (3-40A) Guide JFHR2, File E56412
1
Ordering: Specify packaging and product code:
Blank = five (5) fuses packed in a tin
“BK” prefix = 2000 fuses packed in a carton
.1
Product
Number
ATC-1
ATC-2
ATC-3
ATC-4
ATC-5
ATC-7
1
/
2
ATC-10
ATC-15
ATC-20
ATC-25
ATC-30
ATC-35
ATC-40
Fuse Body
Color Code
Black
Gray
Violet
Pink
Tan
Brown
Red
Blue
Yellow
Clear
Green
Blue/Green
Amber
CURRENT IN AMPS
11.7
(0.460)
19.3
(0.760)
5.25
(0.207)
Recommended Cooper Bussmann Fuse Holders*
Part No.
HHC
HHF
HHD
HHG
HHD-C
HHR
HHS
ATC-FHID
Description
Yellow fuse holder
Black fuse holder w/cover
Black fuse holder
Black fuse holder w/cover
Cover Only
Heavy duty, water resistant fuse holder
Self-stripping fuse holder
Illuminating fuse holder
Fuse
Range
1-20A
1-20A
1-30A
1-30A
—
1-30A
1-20A
1-20A
Lead Wire
Size
#16
#14
#12
#12
—
#12
#18 to #14
#16
12.5
(0.492)
19.1
(0.752)
4.13
(0.163)
14.6
(0.575)
16.7
(0.657)
6.67
(0.263)
*Also used in Cooper Bussmann 1A5600 Fuse Clips (0-20A)
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0809
BU-SB09723
Page 1 of 1
