SSRHP07: DescriptionRelay socket and hardware SSP HEATSINK THERMAL RATING 0.7 CW; CategoryMechanical and electronic products relay Relay socket with the hardware; File Size107KB，3 Pages; ManufacturerSCHNEIDER ELECTRIC; Environmental Compliance

Download Datasheet Parametric View All

SSRHP07 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSRHP07	-	-	View	Buy Now

SSRHP07 Overview

Relay socket and hardware SSP HEATSINK THERMAL RATING 0.7 CW

SSRHP07 Parametric

Parameter Name	Attribute value
Maker	SCHNEIDER ELECTRIC
Product Category	Relay sockets and hardware
Shipping restrictions	Mouser does not currently sell this product.
product	Hardware
Attachment type	Thermal Pad
series	SSR
Factory packaging quantity	1

Preview

Download Datasheet

View All

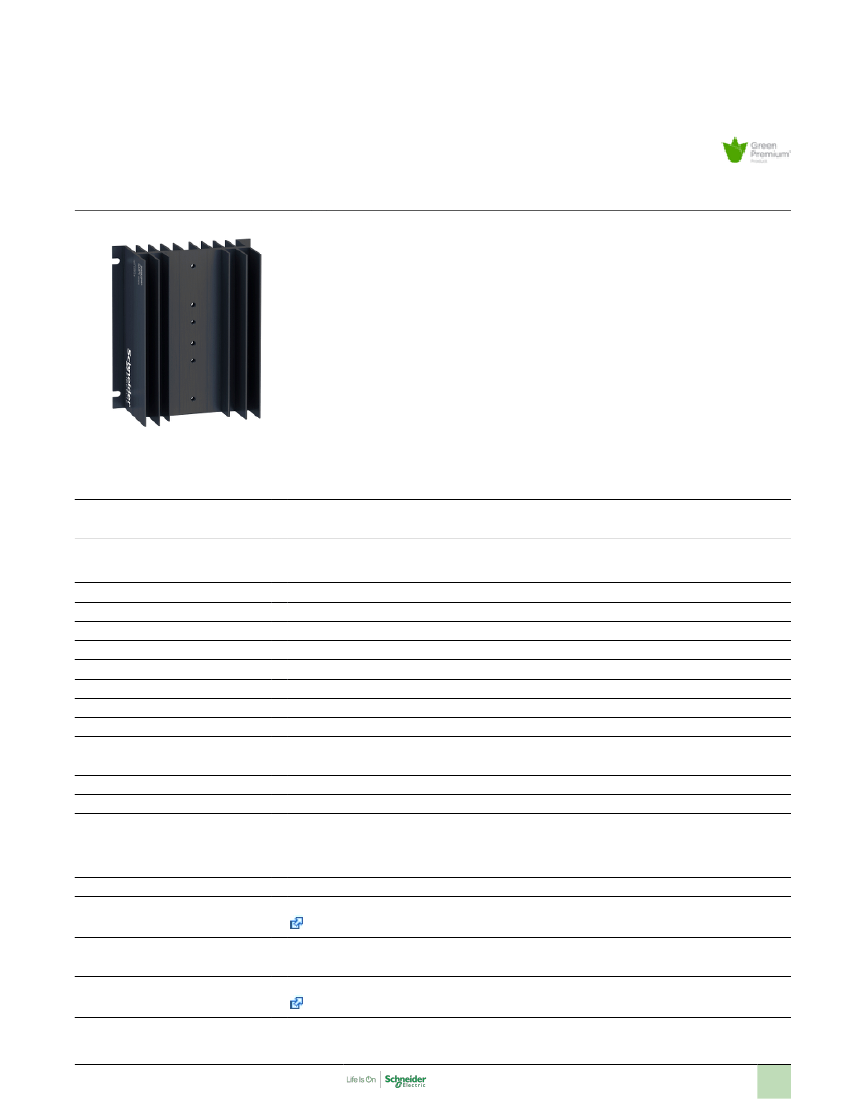

Product data sheet

Characteristics

SSRHP07

heat sink for panel mounting relay

Main

Range of product

Accessory / separate part type

Zelio Relay

Heat sink

Complementary

Product compatibility

Thermal resitance

Mounting support

Material

Surface finish

Surface and useful surface

Number of mounting holes

Tightening torque

Sale per indivisible quantity

Width

Height

Depth

Product weight

1 solid state relay SSR on panel

0.7 °C/W

Panel

Aluminium

Black anodized

1640 cm²

6 with UNC 8-32 thread

1.7...2.2 N.m

1

139.7 mm

120.7 mm

66.8 mm

526 g

Offer Sustainability

Sustainable offer status

RoHS (date code: YYWW)

REACh

Product environmental profile

Product end of life instructions

Green Premium product

Compliant - since 1522 - Schneider Electric declaration of conformity

Schneider Electric declaration of conformity

Reference not containing SVHC above the threshold

Available

Product Environmental Profile

Need no specific recycling operations

Apr 5, 2019

1
