MICS-EK1 Datasheet
Metal Oxide Semiconductor Gas Sensor Evaluation Kit

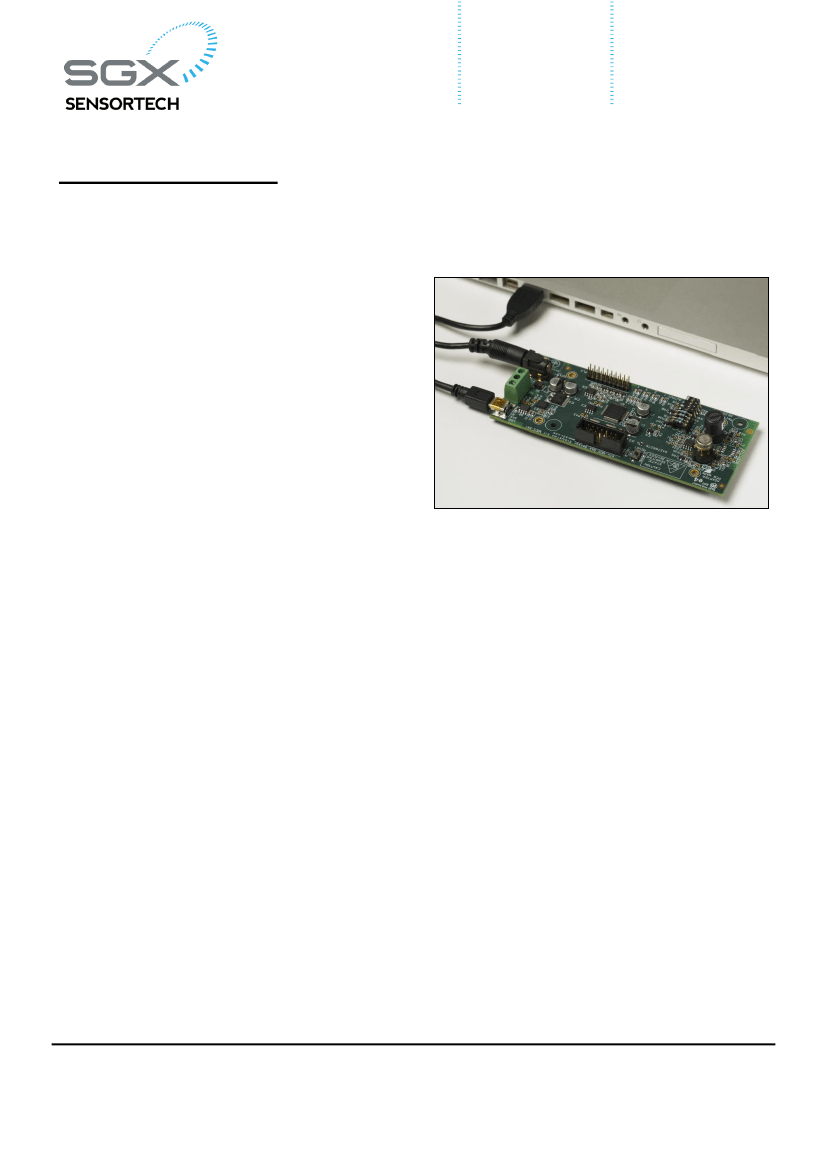

Getting started quickly with SGX Metal Oxide Semiconductor Gas Sensors
Simply attach the universal power supply, connect to a PC
USB port and plug in one or two gas sensors. The SGX data
logging and control software allows the performance of
different sensors to be assessed and makes it easy to
capture performance data.
INTRODUCTION
The SGX MICS-EK1 Gas Sensor Evaluation Kit will drive
the SGX range of Metal Oxide Semiconductor gas sensors
and automatically measure the sensor resistance as it
changes with applied gas.
Sensors can be driven manually or automatically by sending
simple commands through the USB interface to an on-board
microcontroller. A comprehensive set of commands is
provided for use with a terminal program such as
HyperTerminal. Alternatively an easy-to-use control and
data logging PC application is provided on CD which gives
full functionality in a few mouse-clicks.
Surface mount adapter boards are also available with the kit
and can be ordered separately. One adapter PCB will plug
in to both sockets and can be fitted with either a single or
dual surface mount gas sensor.
The heaters can be set to two levels. These are nominally
preset to 43 mW and 76 mW by plug-in resistors but may be
changed by the user to other values. The microprocessor
monitors the sensor output resistance with automatic
resistance range switching.
An expansion connector provides access to four
configurable alarms (open collector), two analog outputs
and four digital inputs. LEDs on the board mimic the status
of each alarm. A JTAG header allows advanced users to
upload their own software to the microcontroller
(MSP430F2616) and make full use of the available
interfaces.
A universal mains adapter is also supplied or the user may
connect a 9 V power supply to the terminal block connector.
Gas sensors to be ordered separately
FEATURES
For use with
SGX
Metal Oxide Semiconductor Gas
Sensors
Automatic measuring of sensor resistance changes
Operates one 10-pin surface mount sensor (single or
dual) with additional adapter PCB
USB interface to a Personal Computer (PC)
Free PC application software for easy control and data
logging
Settable heater drive levels
Automatic load resistor switching
Four configurable alarm outputs
Two configurable analog outputs
Four digital inputs
Ambient temperature monitoring
Provision for humidity sensor (customer fit)
Expansion header for additional applications
JTAG header for user software upload
Supplied with universal mains adapter
Supplied with user manual on CD
Whilst SGX has taken care to ensure the accuracy of the information contained herein it accepts no responsibility for the consequences of any use thereof and also
reserves the right to change the specification of goods without notice. SGX accepts no liability beyond the set out in its standard conditions of sale in respect of
infringement of third party patents arising from the use of SGX products in accordance with information contained herein.
In case of modification of the product, SGX disclaims all liability.
SGX Europe sp .z o.o. Poland REGON: 362332227
DS-0186, Issue 2, 10-May-2016, Page 1
ELECTRICAL DATA
Universal Mains Adapter
Input voltage
Input frequency
Adapters supplied
Output
90 - 264 V ac
50 – 60 Hz
UK, Europe, USA, Australia
9 V dc
MECHANICAL DATA
Dimensions
Mains adapter
Evaluation kit PCB
SMD adapter PCB
72 x 45 x 29 mm
130 x 55 mm
25 x 10 mm
PCB Interfaces
DC Supply Input
SK4
TB1
Input voltage
Input protection
2.1 x 5.5 mm socket, centre positive
terminal block
9 V
10%
Over-voltage and current,
reverse voltage
ENVIRONMENTAL DATA
Operating Temperature Range
Mains adapter
Operating temperature: 0 to +40
C
Storage temperature: -25 to +85
C
Operating humidity: 10 to 90%
Designed for operation and storage
from -40 to +85
C
See individual sensor data sheets
Gas Sensor Sockets
SK1
Channel 1: 4-pin TO5
SK2
Channel 2: 4-pin TO5
The adapter PCB is plugged into SK1 and SK2 to allow a
single or dual surface mount sensor to be used.
Expansion Connector
PL2
2 x 10-pin 0.1” PCB header
3V3 regulated
0V
Input 1 (3V3 logic)
Input 2 (3V3 logic)
Input 3 (3V3 logic)
Input 4 (3V3 logic)
0V
0V
Spare RXD (3V3)
0V
JTAG Connector
PL1
TDO
TDI
TMS
TCK
0V
TRST
Unused
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
9 V unregulated
0V
Output 1 (Open collector)
Output 2 (Open collector)
Output 3 (Open collector)
Output 4 (Open collector)
Analog out 1 (0 - 2.048 V)
Analog out 2 (0 - 2.048 V)
Spare TXD (3V3)
Spare
PCBs
Sensors
PERFORMANCE DATA
ADC resolution
DAC resolution
Resistance measurement
accuracy (25
C)
Resistance measurement
resolution (25
C)
Temp measurement
accuracy
12-bit
12-bit
≤2% (75R to 6.5M)
≤5% (30R to 20M)
<1% (output given to 4
significant digits)
2 C
(at 25
C)
3 C
(-25 to +85
C)
2 x 7-pin 0.1” box header
1
3
5
7
9
11
13
2
4
6
8
10
12
14
VCCO
VCCI
Unused
Unused
Unused
Unused
Unused
RECOMMENDED PC SYSTEM
For Control and Data Logging Software
Processor
Operating system
Screen resolution
RAM
Disk space
Pentium 4/M or equivalent
Windows XP or Vista
1024 x 768 pixels
1 GB
1.6 GB
Microcontroller Reset
SW2
Push-button
Indicators
D1 – D4
D5
Control Switch
SW1 1-4
ORDERING INFORMATION
MICS-EK1
MICS Gas Sensor Evaluation Kit Contents:
Evaluation PCB
Universal Mains Adapter
USB lead
CD Containing Data Logging Software and User
Manual
5 x SMD Adaptor PCB’s (also available separately)
Green LEDs (ON = alarm asserted)
Green LED (flash = PCB functional)
Control of heater modes and
humidity sensing (see manual)
Heater Control Resistors
RA, RB
High/low power – channel 1
RC, RD
High/low power – channel 2
USB
SK5
MICS-SMD-PCB5
MICS Surface Mount Adapter Kit Contents :
5 x SMD Adapter PCB’s
Note:
The above kits do not include sensors. These must
be ordered separately.
Mini-USB type B
© SGX Sensortech 2016
Document subject to disclaimer on page 1
DS-0237, Issue 1, 10-May-2016, Page 2
