2570

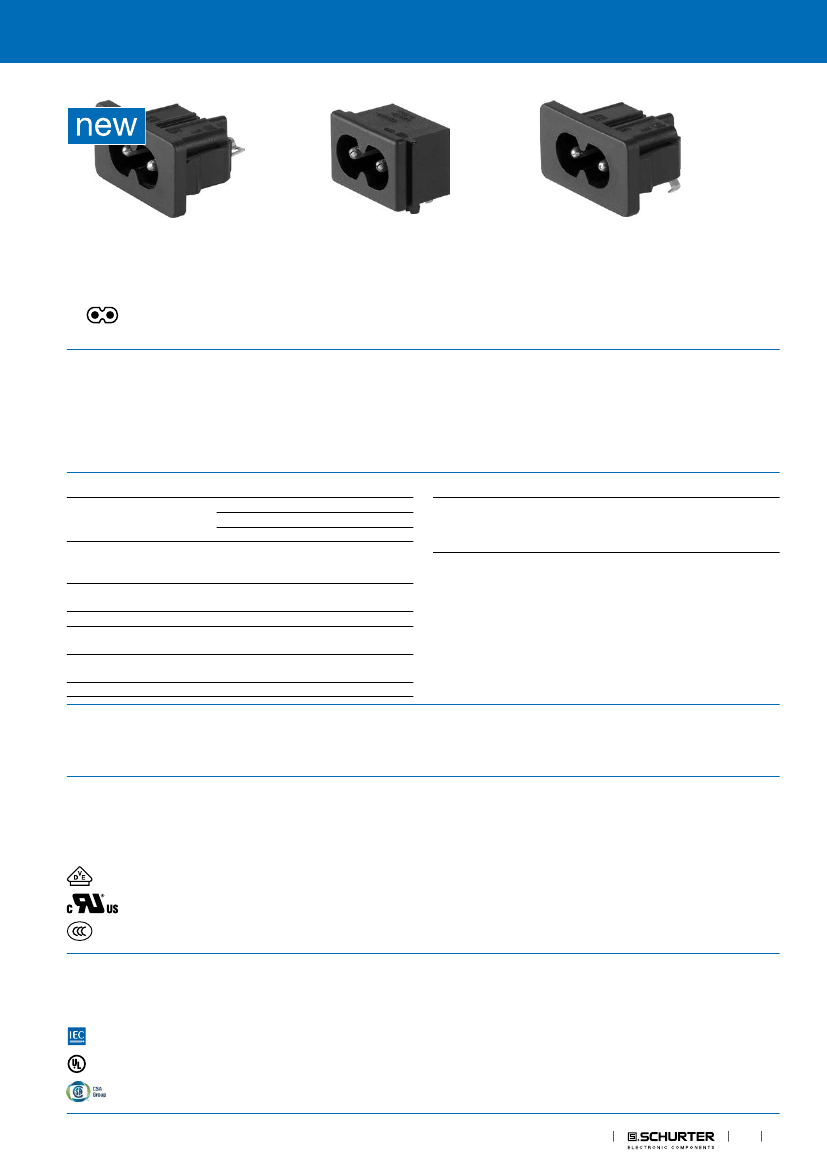

IEC Appliance Inlet C8, Solder, PCB or Quick-connect Terminal
2570-1110
2570-2210
2570-1210
C8
See below:
70° C
Approvals and Compliances
Description
Weblinks
- Panel mount :
Splitpanel (sandwich) or snap-in version from front side
- Appliance Inlet , Pin temperature 70 °C , Protection class II
- Solder, Quick Connect or PCB Terminal
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Unique Selling Proposition
- Complete approvals
- Well-priced product
Technical Data
Ratings IEC
Ratings UL/CSA
␣
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
2.5 A / 250 VAC; 60 Hz
7 A / 125 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class II acc. to IEC 61140
Snap-in: from 0.6 mm to 2.0 mm
Sandwich: 1.5 mm
PA6, black, UL 94V-0
appliance inlet/-outlet
C8 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 2.5 A, Protection Class II
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 2570
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 40044595
UL File Number: E96454
CCC Certificate Number: 2016180204001695
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
UL 60320-1
CSA C22.2 no. 60320-1
Description
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Connectors
1
2570
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
SCHURTER strives to offer our customers halogen free products.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
Halogen Free
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
SCHURTER AG

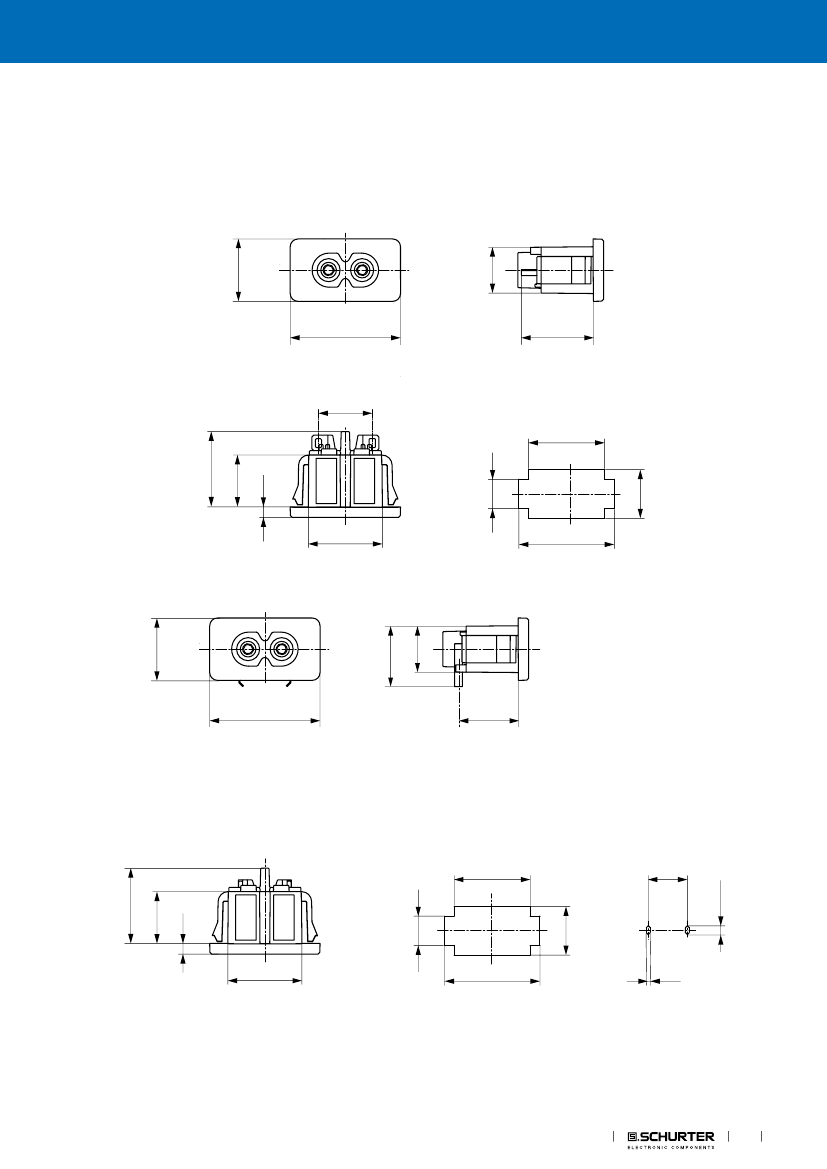

Dimensions [mm]
2570-1310
Snap-in mounting with quick connect terminal
28.3
14.6
19.5
±0.1
21.2
13.3
11.8
16
19
24.5
±0.1
2
Connectors
12.5
±0.1
7.5
±0.1
2.70
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
2570
2570-1110
Snap-in mounting with quick solder terminal
11.8
16
28.3
18.4
14.1
19.5
±0.1
19.3
13.3
19
24.5
±0.1
2570-1210
Snap-in mounting with PCB terminal
15.5
11.8
16
28.3
15.15
19.5
±0.1
19.3
13.3
12.5
±0.1
11.5
±0.1
2.5
±0.1
1.1
±0.1
2.70
7.5
±0.1
19
24.5
±0.1
Connectors
12.5
±0.1
7.5
±0.1
2.70
3
2570
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07

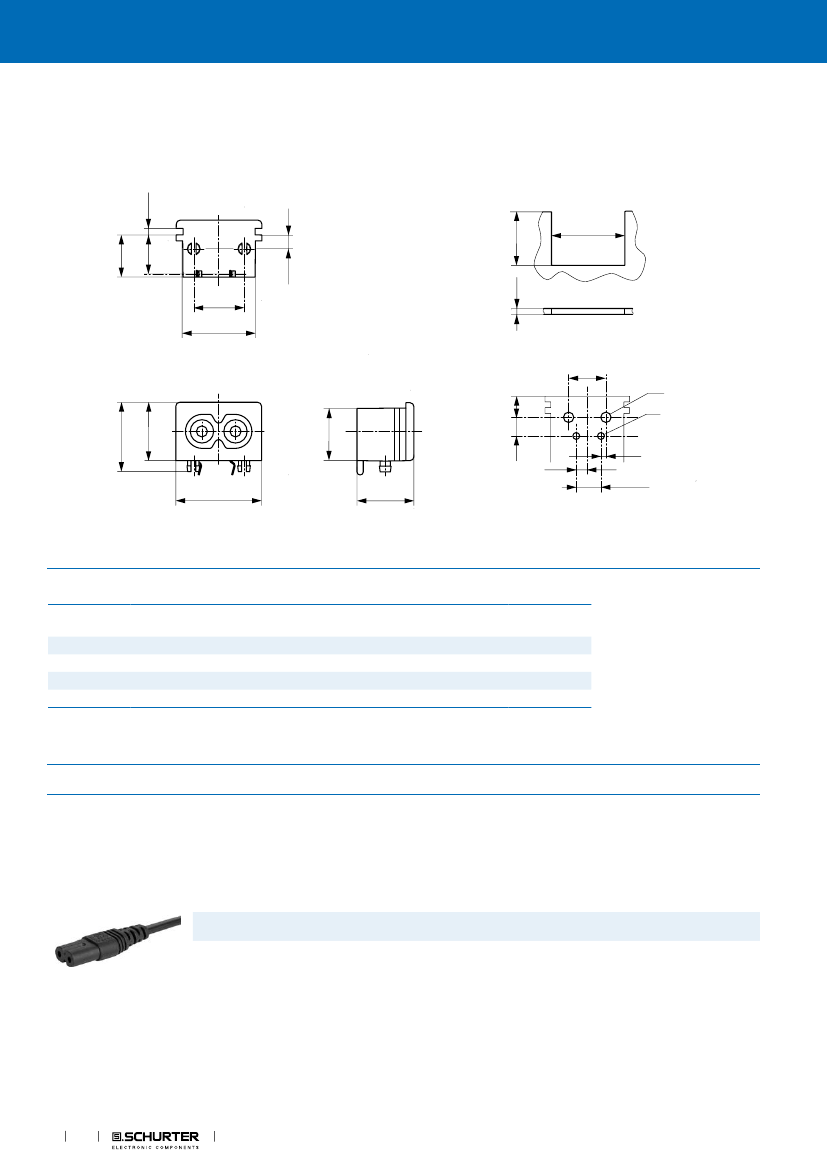

2570-2210
Sandwich mounting with PCB terminal
1.6
10.8
9.95
3.55
13
±0.10
18.7
1.5
13.8
18.9
PANEL CUT_OUT
13
±0.10
Ø
3
7.35
Ø
2
17.8
13.8
15
6.5
1.2
3.3
8.6
±0.10
22
14.6
PCB LAYOUT
All Variants
Type
2570-1110
2570-1210
2570-1310
2570-2210
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Panel mounting
Snap-in
Snap-in
Snap-in
Sandwich
Panel Thickness
s [mm]
0.6 - 2.0
0.6 - 2.0
0.6 - 2.0
1.5
Terminal
Solder terminals
PCB terminals
Quick connect 4.8 x 0.8 mm
PCB terminals
Order Number
4300.0102
4300.0103
4300.0105
4300.0104
█
█
█
█
Packaging unit
100 Pcs
Mating Outlets/Connectors
Category / Description
Power Cord Overview complete
Cord Sets 2.5 A, IEC Connector, Black, 2.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, 001500 mm, H03VVH2-
F2G0.75, black
Cord Sets 2.5 A, IEC Connector, Black, 4.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, 001500 mm, H05VVH2-
F2G0.75, black
Power Cord further types to 2570
6013.0474
6013.0478
4
Connectors
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
2570
Power Supply Cord Overview complete
Cord Sets 2.5 A, North America, Black, 2.0 m, SVT 2x18AWG, Connector IEC C7, 002500 mm, NISPT-2, black
Cord Sets 2.5 A, North America, Black, 4.0 m, SVT 2x18AWG, Connector IEC C7, 002500 mm, NISPT-2, black
Power Supply Cord further types to 2570
6010.5274
6010.5278
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
5
10.09.2018
