0.5mm Pitch Vertical Mating Connectors for Thin Wire Coaxial Cable
DF80 Series
Superb mating operability
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. Supports high speed connections
The single row alignment utilizes a 0.5mm pitch to
support 2.7Gbps & 5.4Gbps speeds and produces
excellent signal characteristics. Supports eDP
TM
version 1.3
【Embedded
DisplayPort
TM
】
Fig. 1
High contact reliability
2. Maximizes space
Designed to be a space saving connector, this
series features a 0.5mm pitch, a low-mated height,
and a single row layout in a vertical mating style.
1.72 ±0.08 (mated height)
3. Excellent mating operation
It features long mating guides and a generous lead
in opening that makes it easy to visually check the
connection. (Lead-in amount : ± 1mm)(Fig. 1)
(0.5) Effective mating
length
4. Reliable contact structure
The DF80 series utilizes its effective contact length
(0.5mm) and a 2 point type contact structure to
ensure high contact reliability.(Fig. 2)
Fig. 2
5. Shield performance enhancement
By utilizing multiple contacts between the plug and
receptacle shells, the shielding performance is
enhanced and creates a more reliable contact. (Fig. 3)
Shield performance enhancement
①
②
6. Durable plug structure
The plug has two metal covers around it to form a
rigid structure.
③
①
③
③
7. Secure locking system with a clear tactile
click
A tactile click ensures that the lock function has
been completed and is properly secured. This
system also produces excellent lock retention.
③
②
8. Structure supports a pull tab
The structure was designed to allow a pull tab to be
utilized to aid in un-mating the connector.
9. Halogen-free and RoHS compliant
All materials and substances used to produce these
parts comply with the Halogen-free and RoHS free
standards.
* Defined according to IEC 61249-2-21.
Br: 900 ppm or below, Cl : 900 ppm or below,
Br+Cl: 1,500 ppm or below
②
③
①
Multiple ground springs/points (8 places)
Fig. 3
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.9③
1
DF80 Series●0.5mm Pitch Vertical Mating Connectors for Thin Wire Coaxial Cable
■Product
Specifications
Rated
Current
【Discreet
Cable】
32 AWG : 0.5A
36 AWG : 0.35A
【Thin
wire coaxial cable】
(Note
3)
40 AWG : 0.2A
42 AWG : 0.2A
44 AWG : 0.15A
46 AWG : 0.1A
AC/DC 50V
Specifications
Minimum of 50Mø
No flashover or breakdown
Signal : Maximum of 80mø
GND : Maximum of 80mø
No electrical discontinuity of 1µs or greater
Contact resistance (difference from initial state)
Maximum of 50mø
Insulation resistance
Minimum of 25mø
Contact resistance (difference from initial state)
50mø or below, Insulation resistance 25mø or
above
Contact Resistance : Maximum of 50mø
Should be no melting of resin parts that affects
its performance
Operating Temperature Range
Operating Humidity Range
–35~+85ç (Note 1)
20 to 80%
Ratings
Rated
Voltage
Items
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration Resistance
Storage Temperature Range −10~+60ç (Note 2)
Storage Humidity Range
40~70% (Note 2)
Conditions
Measured with DC 100V
Apply AC 150V for 1 minute
100mA (DC or 1,000Hz) measurement
10 cycles in each of three directions at
frequency 10-55Hz, half amplitude 0.75mm
Left at temperature 40±2ç, humidity 90 to 95%,
96 hours
(−55ç : 30 minutes
→
5~35ç : 2~3 minutes
→
85ç : 30 minutes
→
5~35ç : 2~3 minutes)
5 cycles
30 mating cycles
Reflow : according to the Recommended
Temperature Profile
Hand solder : Soldering iron temperature 350ç,
3 seconds
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Humidity Resistance
6. Temperature Cycles
7. Durability
8. Soldering Heat
Resistance
Note 1 : Includes the temperature rise caused by current flow.
Note 2 : The term “storage” refers to products stored for a long period prior to mounting and use. The operating temperature and
humidity range covers the non-energized condition of installed connectors in storage, shipment or during transportation
after board mounting.
Note 3 : With only the connector portion at an elevated temperature level, the rated current value is set.
■Materials
/ Finish
Product
Receptacle
Component
Insulator
Contact
Metal fitting
Insulator
Contact
Outer Shell
Outer Shell
Materials
LCP
Phosphorous bronze
Phosphorous bronze
LCP
Phosphorous bronze
Stainless steel
Stainless steel
Finish
Black
Gold plating
Tin plating
Black
Gold plating
Tin plating
Tin plating
Specifications
UL94V-0
----------
----------
UL94V-0
Plug
Shell
----------
----------
----------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connector
DF 80 −
*
S − 0.5 V
（*
*）
❶
❷
❸
❹
❺
❻
❼
DF 80 −
*
P −
❶
❷
❸
❹
❶
Series Name : DF
❷
Series No. : 80/80 D
❸
No. of Contacts : 30, 40, 50
❹
Connector Type
S : Receptacle
P : Plug
❺
Contact pitch : 0.5mm
SHL
½
❻
Termination method
V : Vertical SMT
SD : Thin wire coaxial plug
❼
Packaging Type
(51) Embossed packaging
½
Separately installed parts
SHL : Outer shell
2
DF80 Series●0.5mm Pitch Vertical Mating Connectors for Thin Wire Coaxial Cable

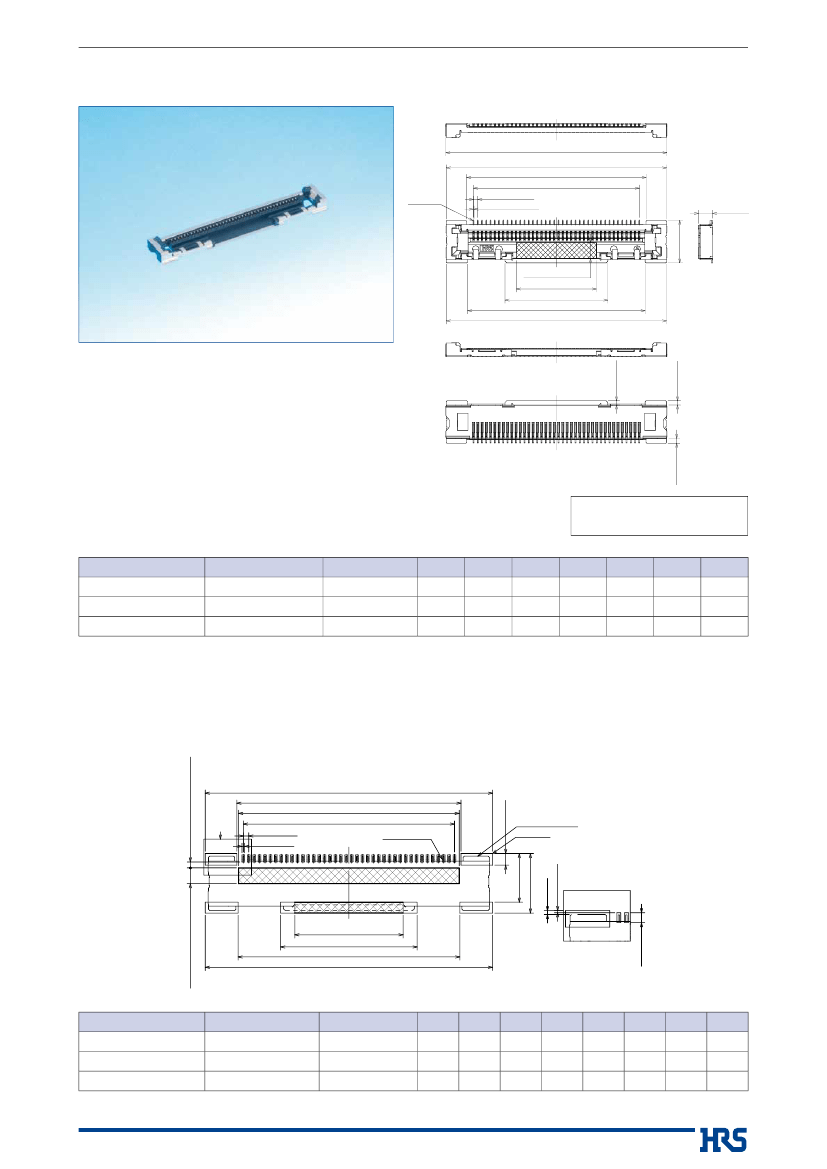

■Receptacle
(SMT)
A±0.1
B±0.1
C±0.1
D±0.1
P=0.5±0.05
t=0.1±0.015
5±0.1
1.65±0.1
Contact
No.1
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(1.86) Vacuum pick up area
(E) Vacuum pick up area
F±0.1
G±0.1
B±0.1
0.5±0.05
【Specification
No.】 **, (**)
-
(51) : Embossed packaging
0.58±0.05
0.5±0.05
Unit : mm
Part No.
DF80-30S-0.5V(**)
DF80-40S-0.5V(**)
DF80-50S-0.5V(**)
HRS No.
662-8004-0 **
662-8001-2 **
662-8007-9 **
No. of Contacts
30
40
50
A
21.00
26.00
31.00
B
20.94
25.94
30.94
C
16.10
21.10
26.10
D
14.50
19.50
24.50
E
4.40
9.40
14.40
F
7.10
12.10
17.10
G
15.88
20.88
25.88
Note 1 : This product is sold in full reel quantities of 5,000 pcs/reel. Please place orders by full reel quantities.
BRecommended
PCB layout
(0.55) Pattern prohibited area
1.08±0.02
A
Ｈ±0.05
Ｊ
±0.05
(K) Pattern prohibited area
Ｄ±0.05
P=0.5±0.02
0.25±0.02
Contact pad
Connector outline
GND pad
4.5±0.05
5.5±0.05
(0.25)
0.135±0.02
A(FREE)
(1.45) Pattern prohibited area
L ±0.05 Pattern prohibited area
M±0.05
N±0.05
P±0.05
0.65±0.02
Unit : mm
Part No.
DF80-30S-0.5V(**)
DF80-40S-0.5V(**)
DF80-50S-0.5V(**)
HRS No.
662-8004-0 **
662-8001-2 **
662-8007-9 **
No. of Contacts
30
40
50
H
J
K
D
L
5.00
M
7.60
N
P
21.54 15.70 15.38 14.50
15.48 21.54
26.54 20.70 20.38 19.50 10.00 12.60 20.48 26.54
31.54 25.70 25.38 24.50 15.00 17.60 25.48 31.54
3
DF80 Series●0.5mm Pitch Vertical Mating Connectors for Thin Wire Coaxial Cable

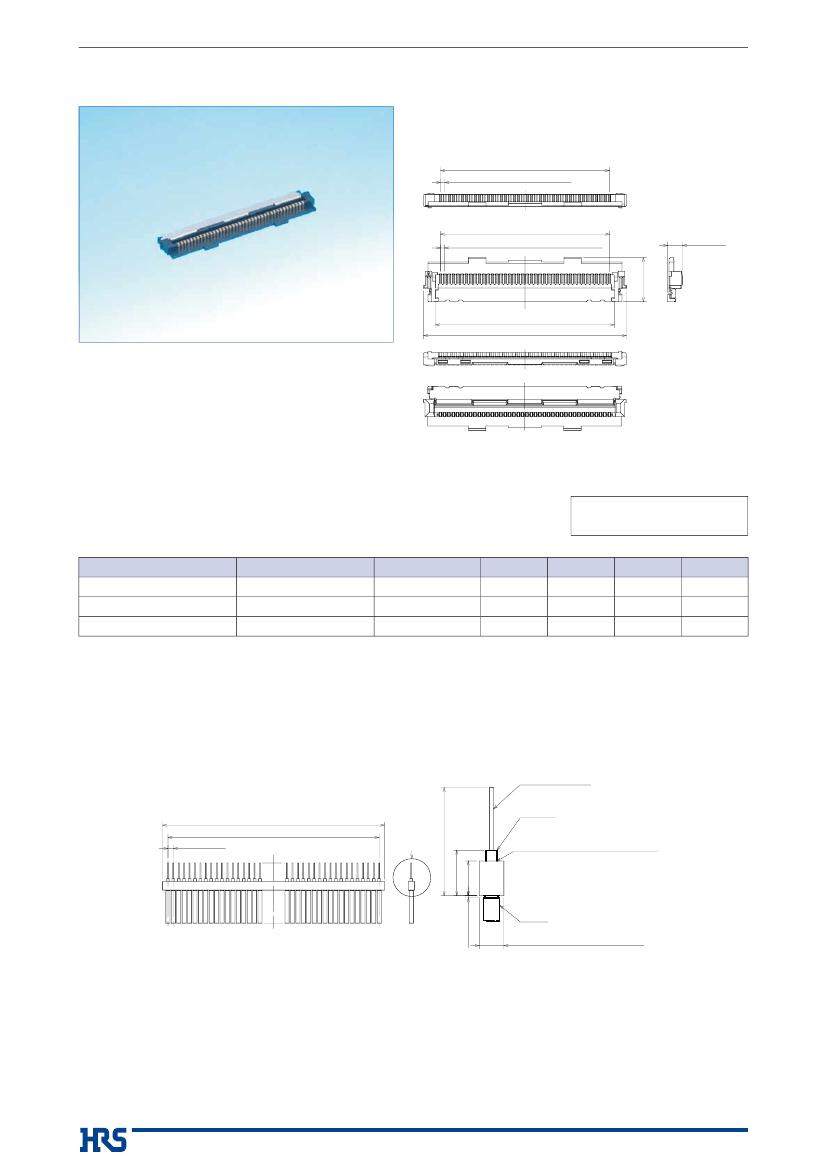

■Plug
A±0.1(Contact area)
P=0.5±0.05(Contact area pitch)
A±0.1(Contact Termination area)
P=0.5±0.05(Contact Termination area pitch)
5.1±0.1
1.69±0.1
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
B±0.05
C±0.1
【Specification
No.】 **, (**)
-
(51) : Embossed packaging
Unit : mm
Part No.
DF80D-30P-0.5SD(**)
DF80D-40P-0.5SD(**)
DF80D-50P-0.5SD(**)
HRS No.
662-8018-5 **
662-8118-0 **
662-8020-7 **
No. of Contacts
30
40
50
A
14.50
19.50
24.50
B
15.62
20.62
25.62
C
18.40
23.40
28.40
D
15.48
20.48
25.48
Note 1 : This product is sold in full reel quantities of 5,000 pcs/reel. Please place orders by full reel quantities.
Note 2 : When terminating electric wire, the outer shell (DF80-*P-SHL) is required.
BRecommended
wire preparation diagram
E(FREE)
Center conductor
(Pre-soldered)
Dielectric
2.5±0.05
1.35±0.05
0.8±0.05
D±0.1
A±0.15
P=0.5±0.07
E
Outer shield (for individual conductor)
0.05 mm Max.
0.05±0.05
Jacket
0.57 ±0.03 (Ground bar thickness)
Note 1 : Pre-soldering with lead free solder is required for the center conductor.
4
DF80 Series●0.5mm Pitch Vertical Mating Connectors for Thin Wire Coaxial Cable

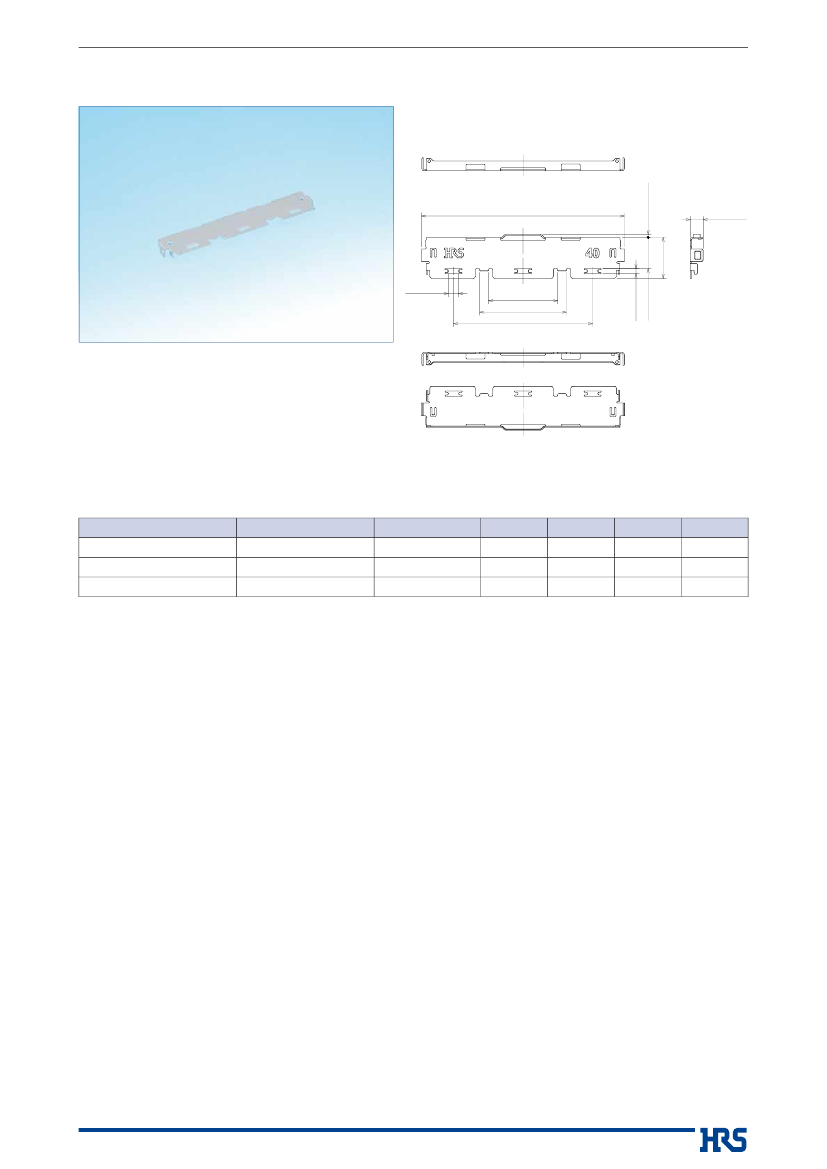

■Outer
shell
A±0.05
0.34±0.05
1.51±0.1
4.74±0.05
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3-1.2±0.1
B±0.03
C±0.03
D±0.03
0.6±0.03
3.59±0.05
Unit : mm
Part No.
DF80-30P-SHL
DF80-40P-SHL
DF80-50P-SHL
HRS No.
662-8006-6
662-8003-8
662-8009-4
No. of Contacts
30
40
50
A
18.40
23.40
28.40
B
4.50
8.00
10.00
C
6.50
10.00
12.00
D
11.07
16.07
21.07
Note 1 : This product is sold in full reel quantities of 10,000 pcs/reel. Please place orders by full reel quantities.
5
